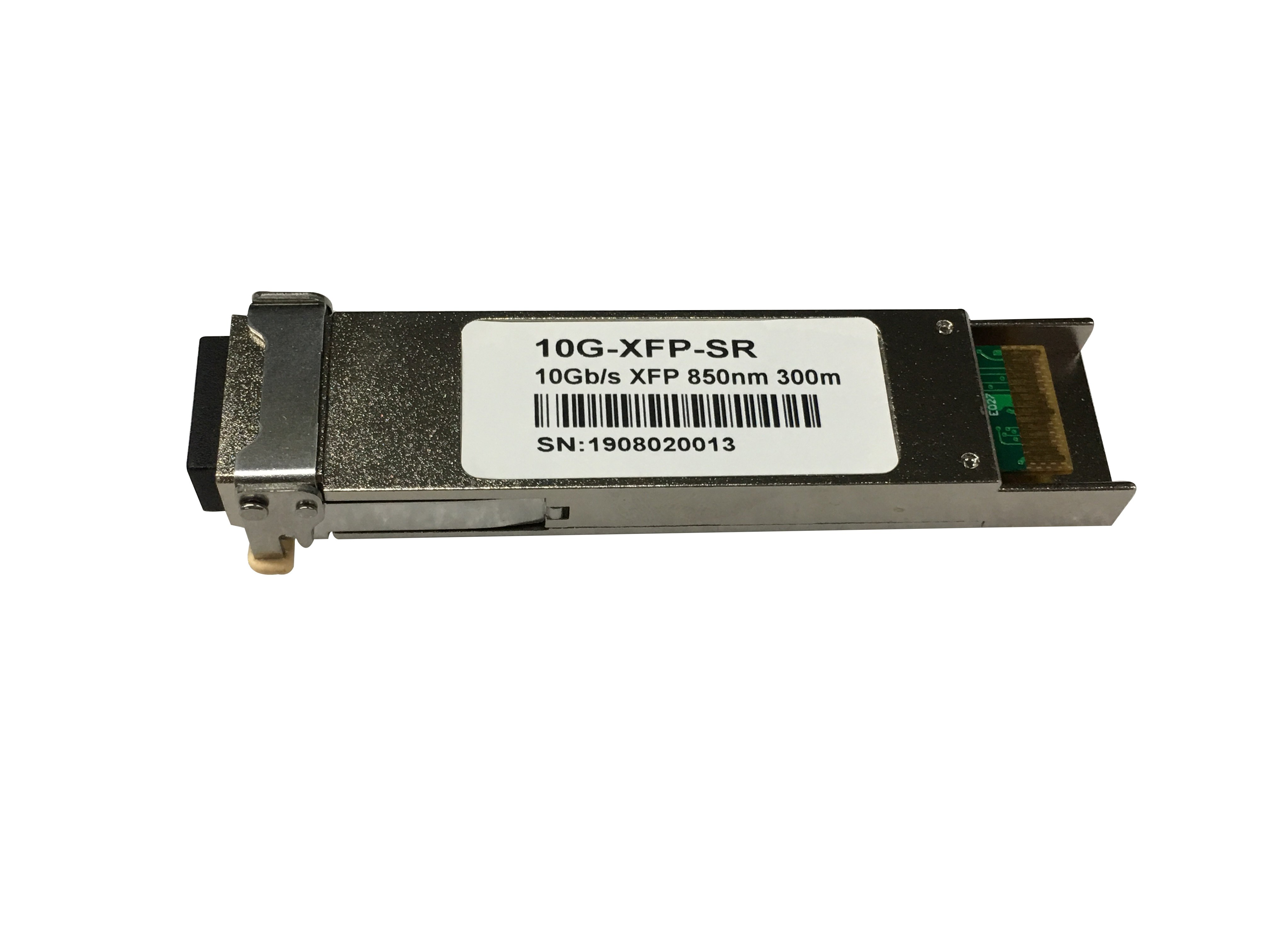

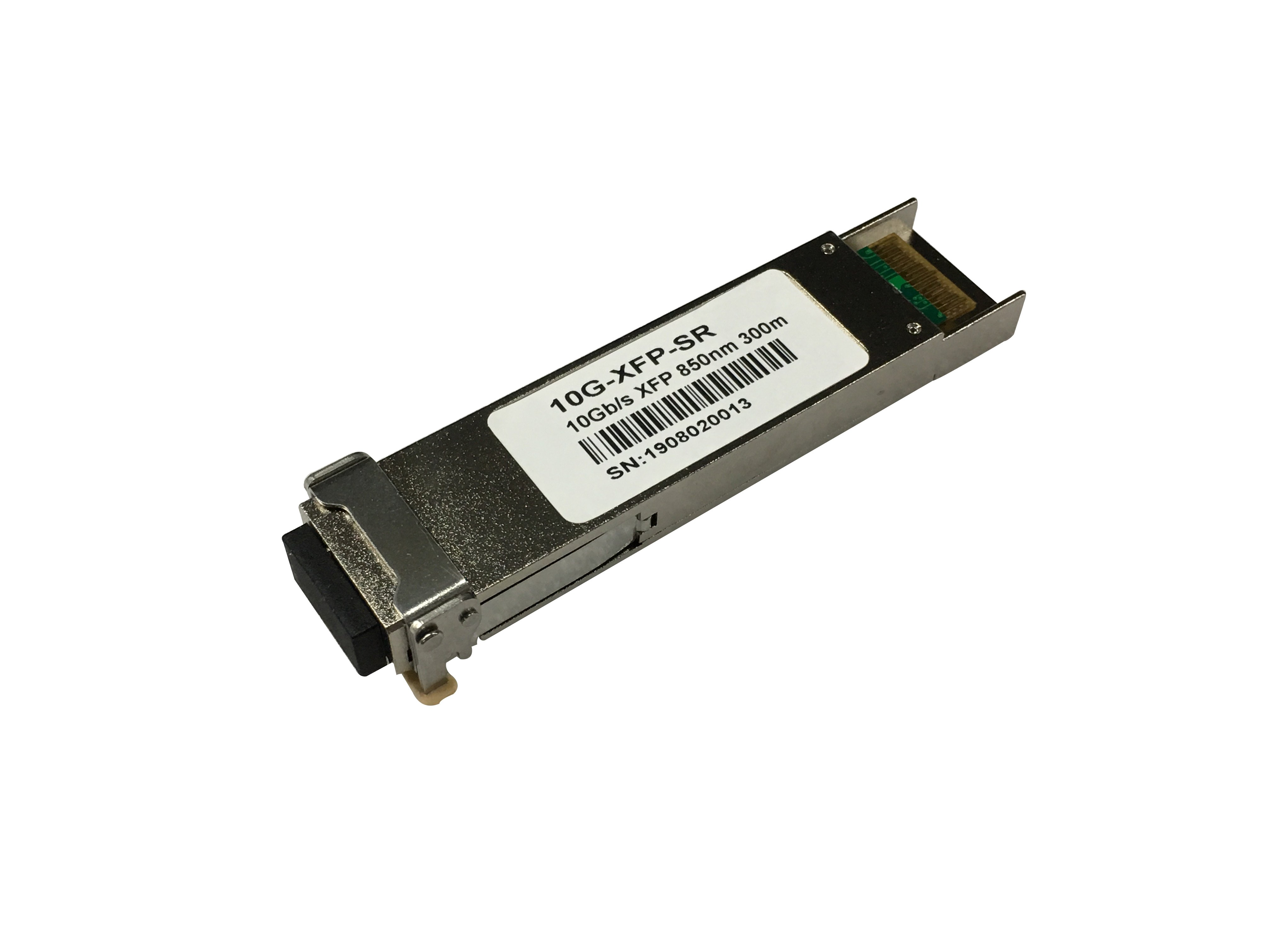

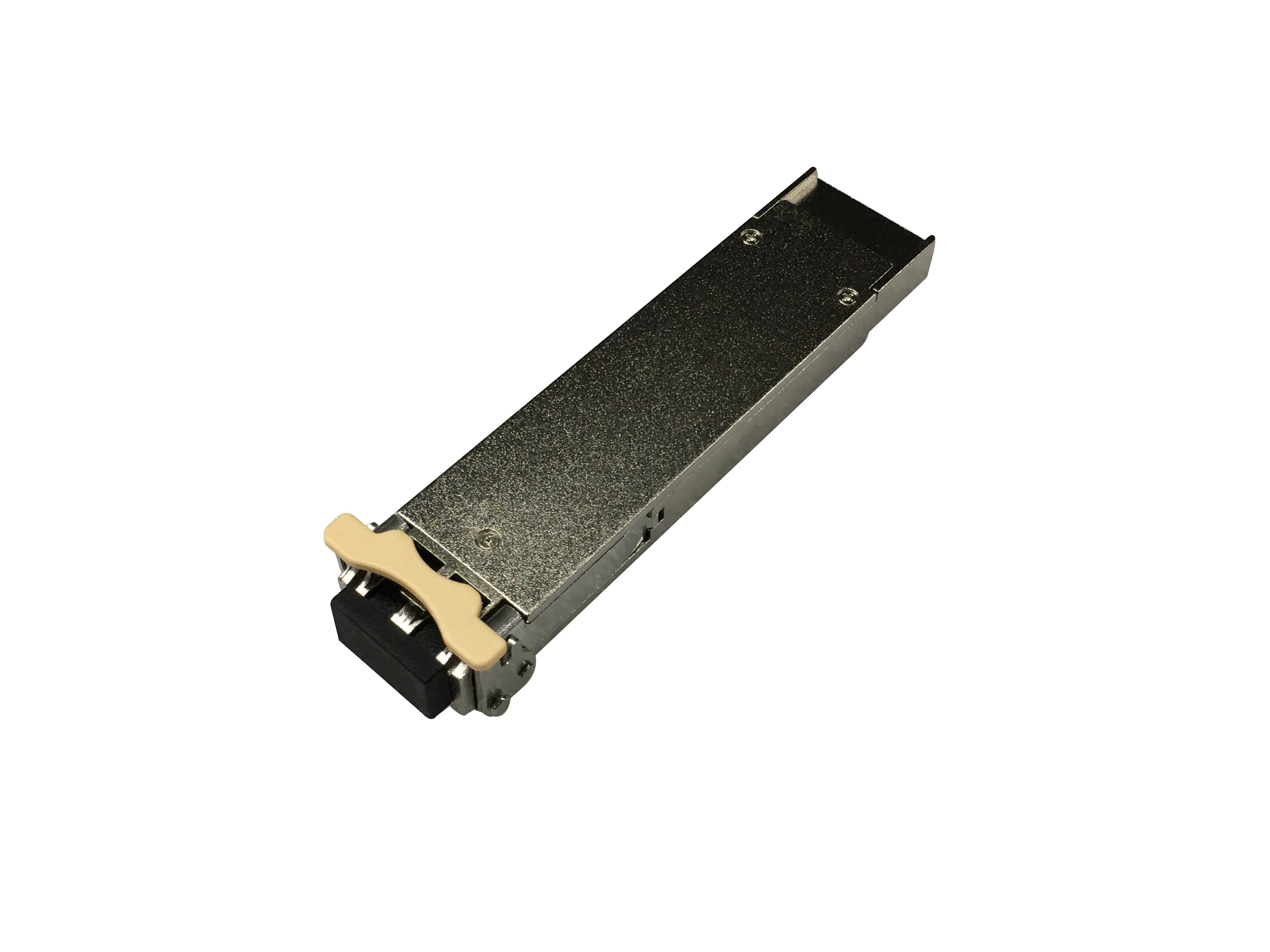

10g XFP 850nm 300m LC Loxp-1085-03
Features:Support multi protocol from 9.95Gb/s to 11.3Gb/sHot pluggable 30 pin connectorCompliant with XFP MSATransmission distance of 300m over multi mode fiber850nm Vcsel laser transmitter.Duplex LC connector2-wire interface for management and diagnostic monitorXFI electrical interface with AC coup......
Send Inquiry
Product Description
Features:
- Support multi protocol from 9.95Gb/s to 11.3Gb/s
- Hot pluggable 30 pin connector
- Compliant with XFP MSA
- Transmission distance of 300m over multi mode fiber
- 850nm Vcsel laser transmitter.
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor
- XFI electrical interface with AC coupling
- Single power supply voltages : +3.3V
- Temperature range 0°C to 70°C
- Power dissipation: <1.5W
- RoHS Compliant Part
Applications:
- 10GBASE-SR/SW Ethernet
- 1200-Mx-SN-I 10G Fibre Channel
- Other optical links
Description:
Linklieo' LOXP-1085-03 Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance uncooled 850nm Vcsel transmitter and high sensitivity PIN receiver provide superior performance for 10G Fibre Channel and Ethernet applications up to 300m optical links.
