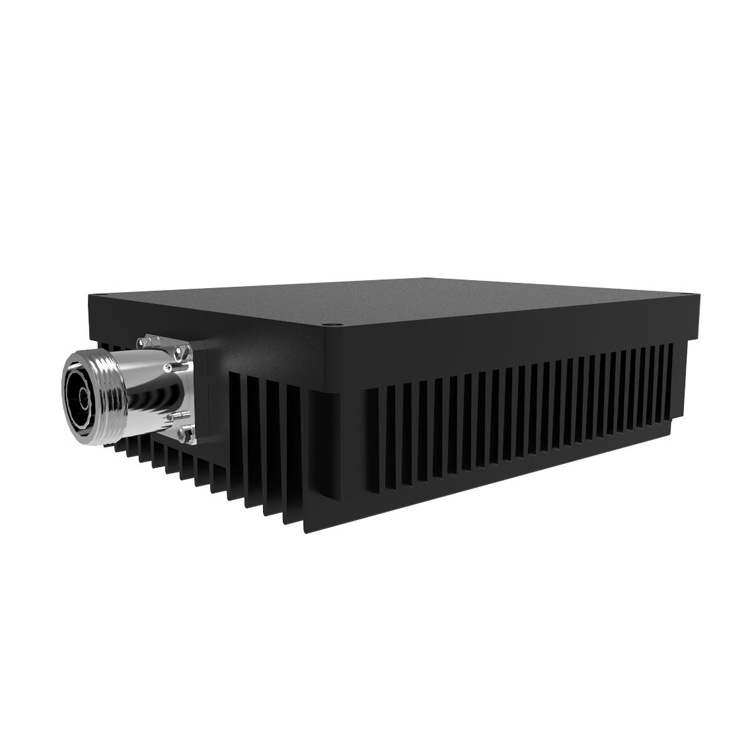

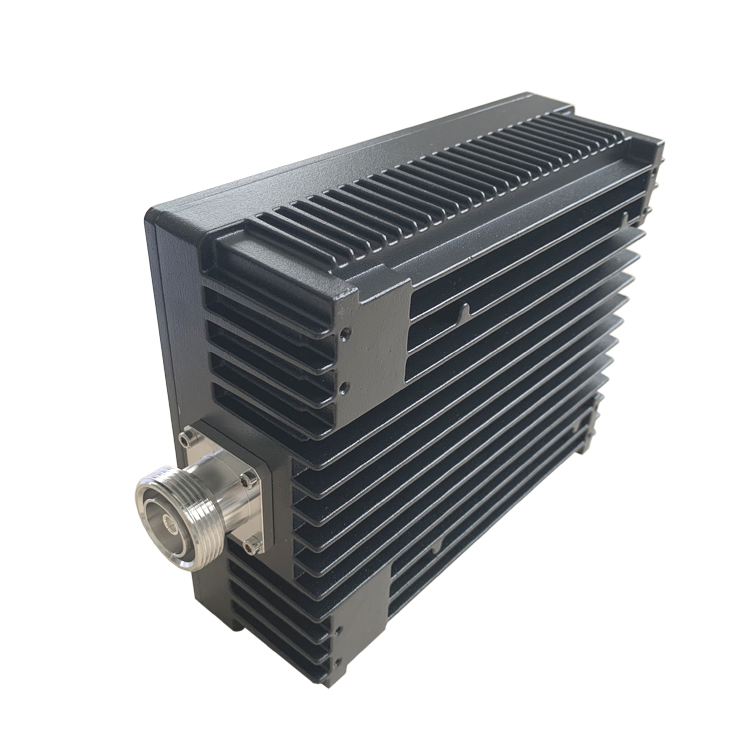

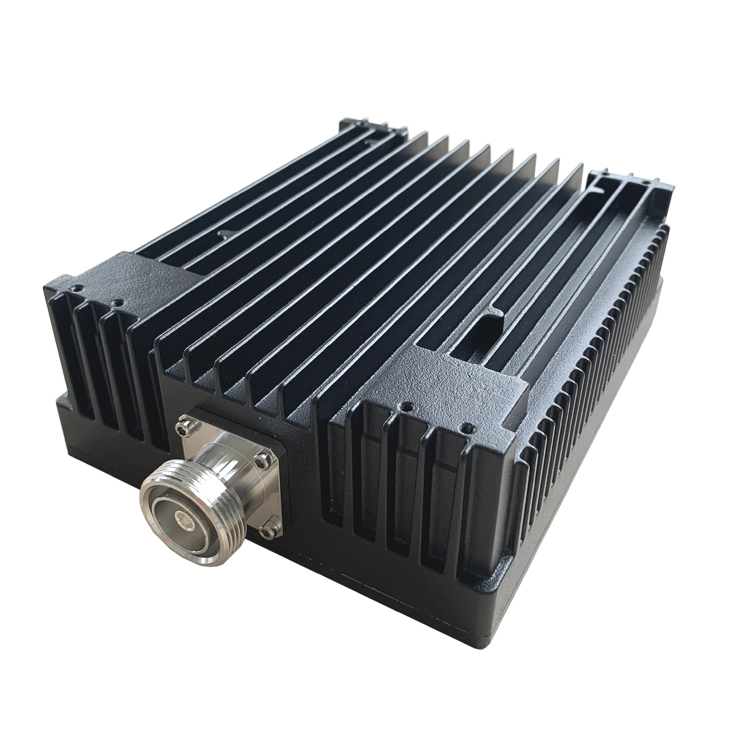

0- 4GHz 100W Low Pim Termination Dummy Load

Product Description

Product Data sheets

Part Number	VN-LD-4G-100W-ODf-S-160
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.30 (≤1.2 @ DC-3.8G)
IM₃ (dBc @ 2×43dBm)	-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ºC )	-40 ~ + 80
Interface	Din Female
Handling Power (Watt, max)	100
Dimension (mm)(L×W×H, excl connector)	180X150X62
Net Weight (g)	1875 ± 20
Packing Dimensions (mm,L×W×H)	305 × 170 × 115
Packing Carton Size (mm,L×W×H)	620 × 360 × 180
ROHS Compliance	Yes
Revision	R1
Date	27-Sept -2020

Our Company
0-4GHz 100W Low Pim Termination Dummy Load

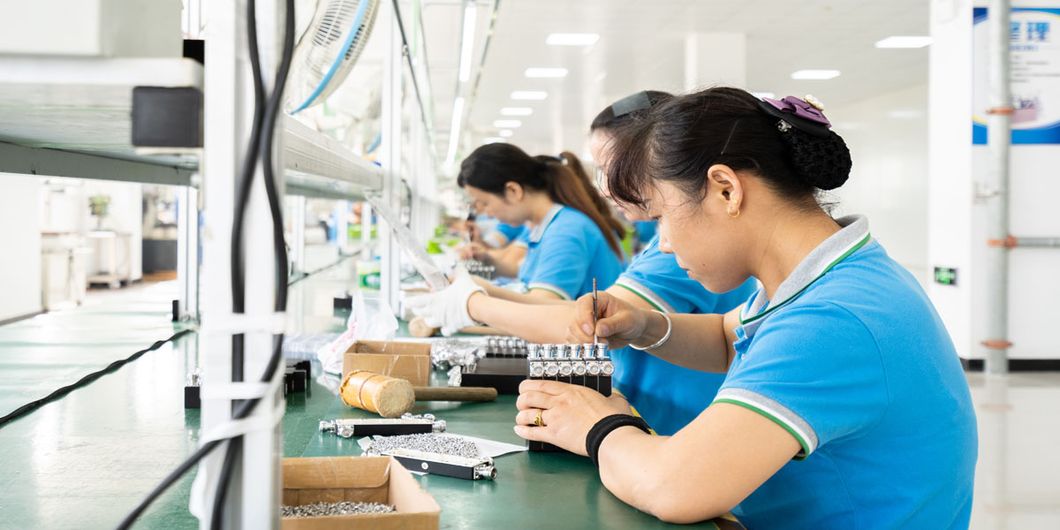

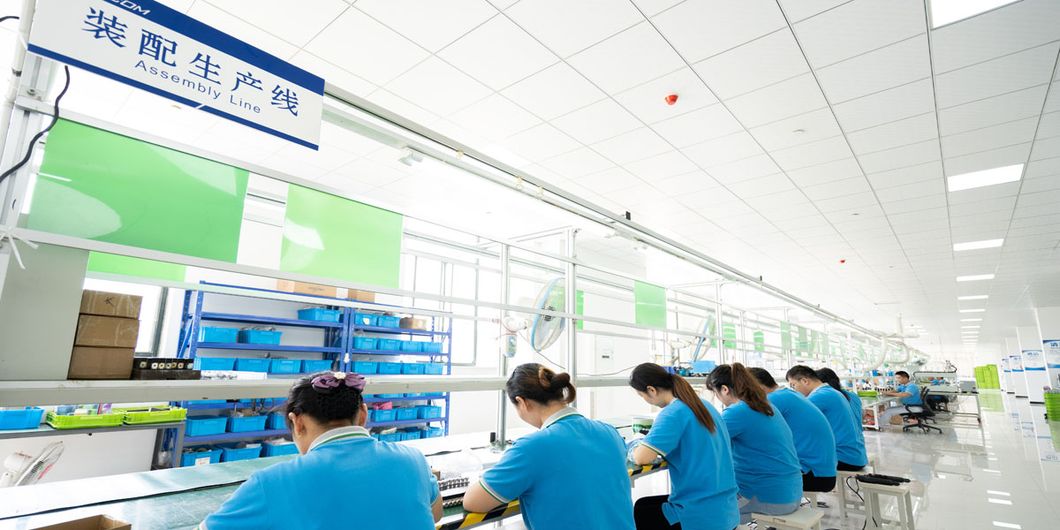

Our Workshop
0-4GHz 100W Low Pim Termination Dummy Load

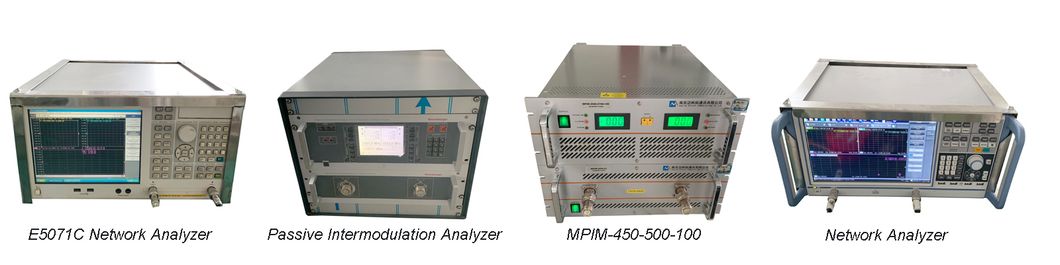

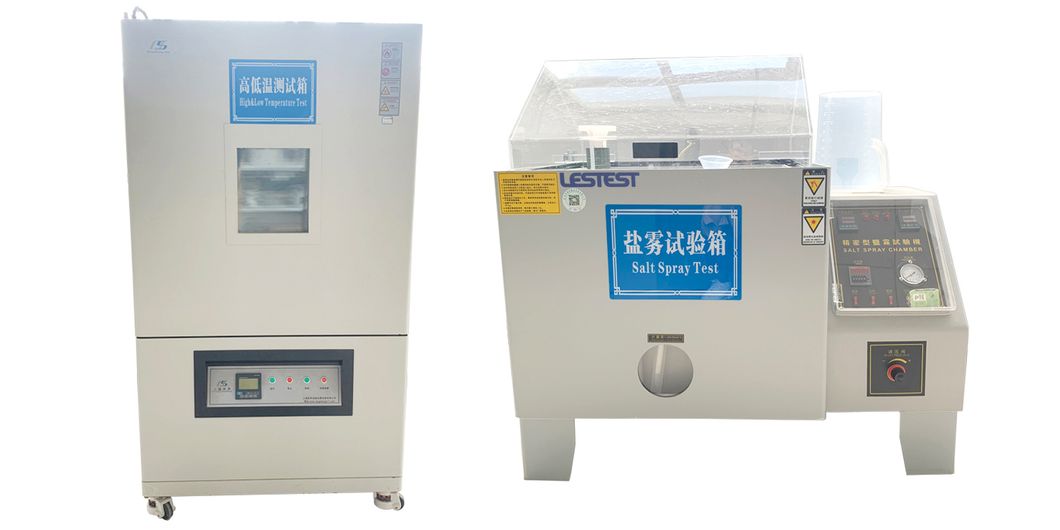

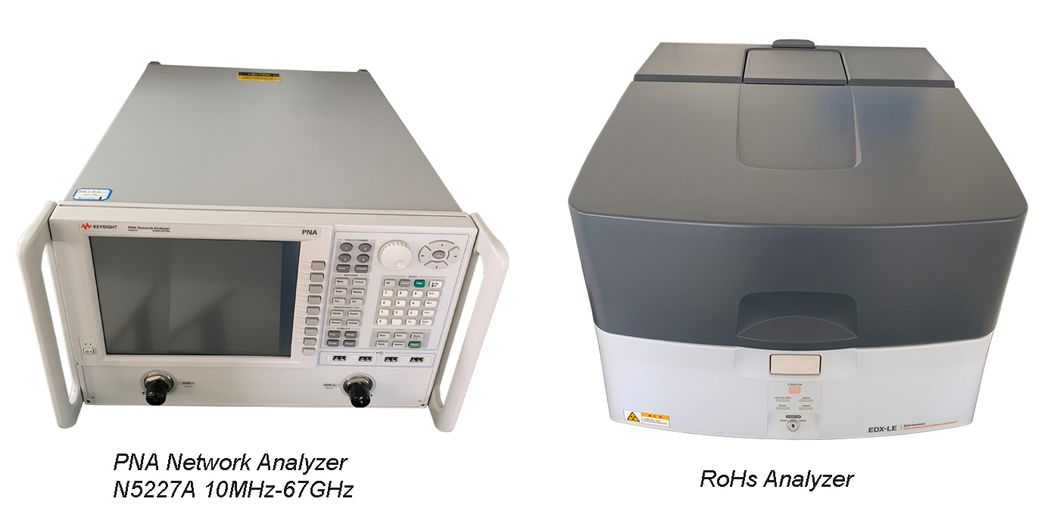

Our Test Machine
0-4GHz 100W Low Pim Termination Dummy Load

FAQ
1.Can we get a free sample firstly?
Yes,free sample for testing approval is available to our customers.But customer should pay shipping fee.

2.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.

3. Is OEM/ODM Service available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.

4. What's your company advantage?
We have our own R&D, production lines, marketing and sales team, professional technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.

5. Please let us know more details about Trade Terms, payment term and leadtime.
Payment Terms: 100% TT in advance, for the sample order
Price Terms: FOB Shanghai/Ningbo/ShenZhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,1-3 business days; mass production 7-15 business days after the deposit.

6.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintanence service, just charge components cost fee and labor fee
