High Gain Universal Ku Band LNB

Product Description

CHENZHOUXIPOINT TECHNOLOGIES CO.LTD		Product specification	Product model:GKF-L01WGN(Universal Single PLL LNB)
			Edition:A
No.	ITEM		SPECIFICATION	UNIT
1	Low Band I/P Frequency Range		10.7 ~ 11.7	GHz
2	O/P Frequency Range		950 ~ 1950	MHz
3	LO Frequency		9.75	GHz
4	Noise Figure		0.8 [typ] 1.2[max]	dB
5	High Band I/P Frequency Range		11.7 ~ 12.75	GHz
6	O/P Frequency Range		1100~ 2150	MHz
7	LO Frequency		10.6	GHz
8	Noise Figure		0.8[typ] 1.2 [max]	dB
9	LO Initial Accuracy		± 0.5	MHz
10	LO Temperature Drift - 30 ~ + 60ºC		± 0.75	MHz
11	LO Phase Noise @ 1K Hz		-55	dBc / Hz
12	LO Phase Noise @ 10K Hz		-80	dBc / Hz
13	LO Phase Noise @ 100K Hz		-90	dBc / Hz
14	Conversion Gain		58(min)	dB
15	Gain Flatness		± 4[max]	dB
16	Gain Variation		± 0.75	dB/27 MHz
17	Image Rejection		-40 [min]	dB
18	O/P 1 dB Compression Point		0.0 [min]	dBm
19	Crosstalk Isolation		18[min]	dB
20	Control Signals Ca [ V ]		11.0 ~ 14.5	V
21	Control Signals Cb [ H ]		16.0 ~ 20.0	V
22	Control Signals Cc		22± 4	KHz
23	O/P VSWR		2.5 : 1	~
24	DC Power		11 ~ 20V/120(max)	Vdc*mA
25	Working Temperature		- 30 ~ + 60	ºC
26	Output Impedance		75	Ω (F-Type)

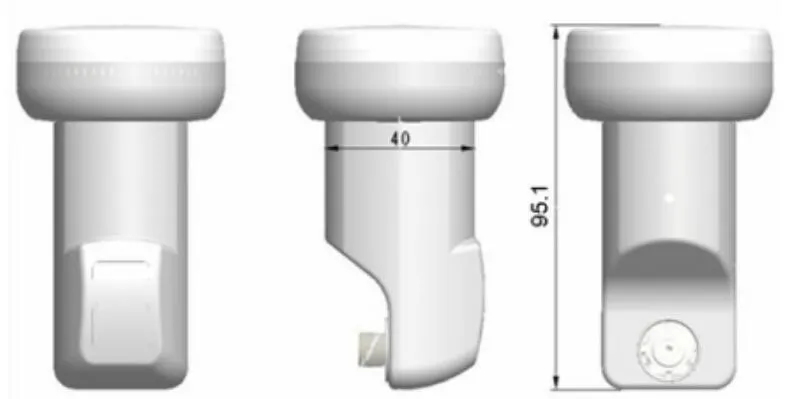

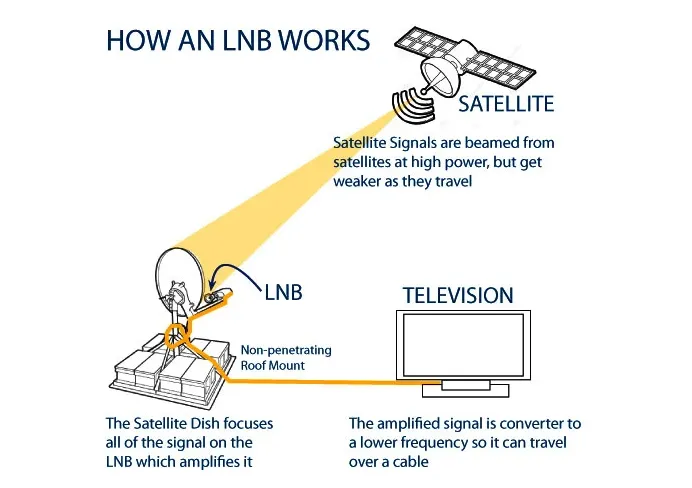

How It Works
