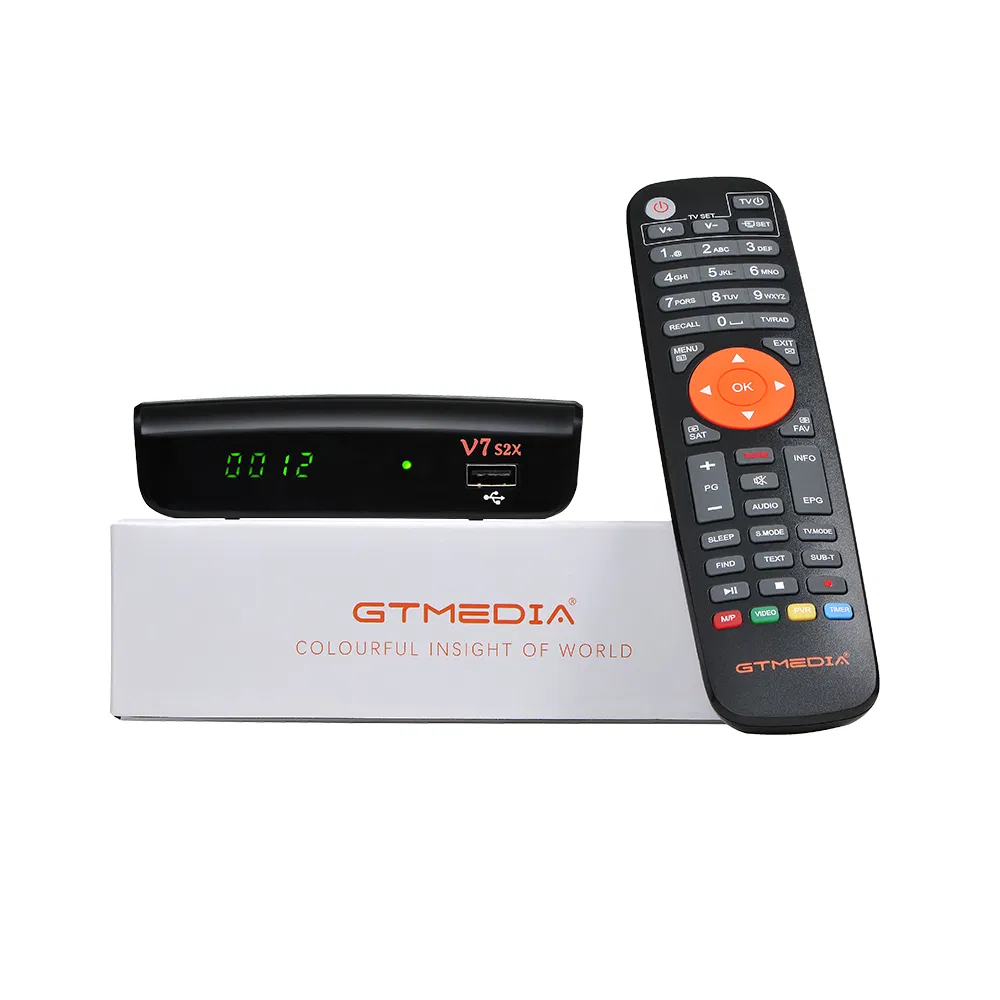

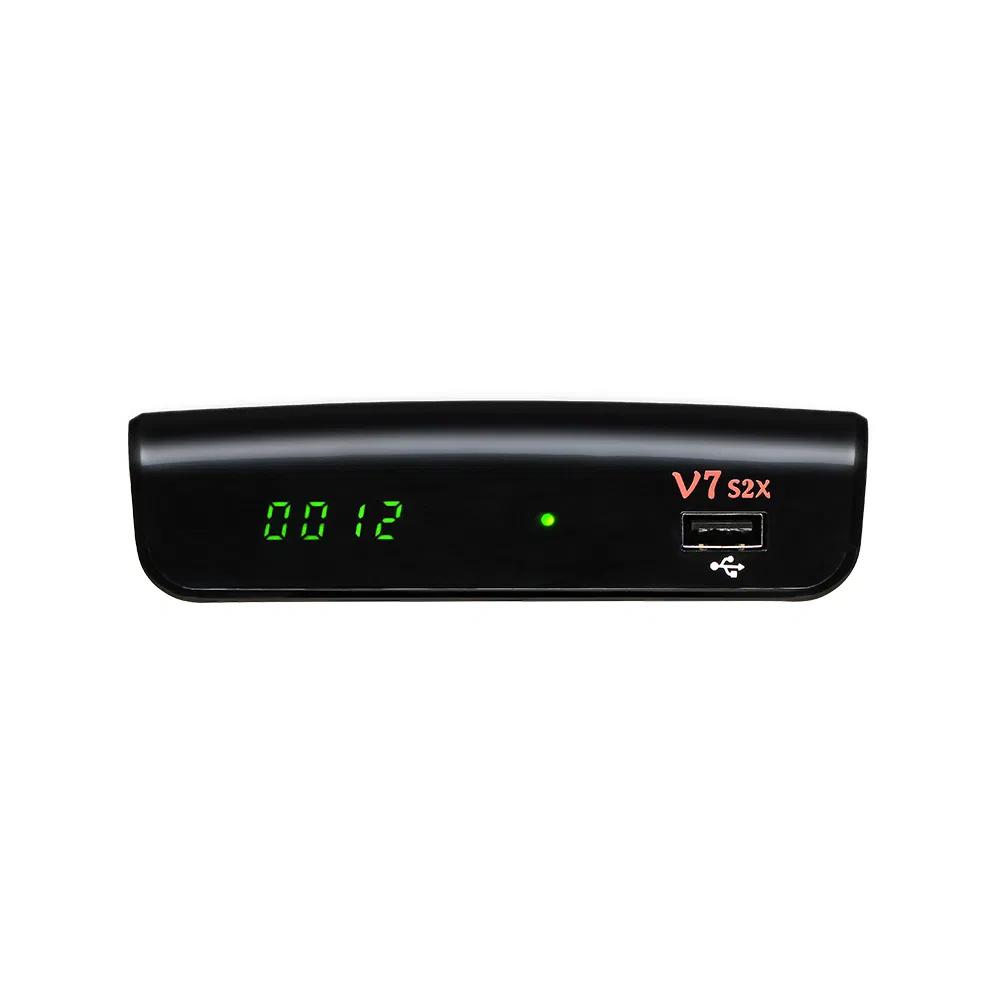

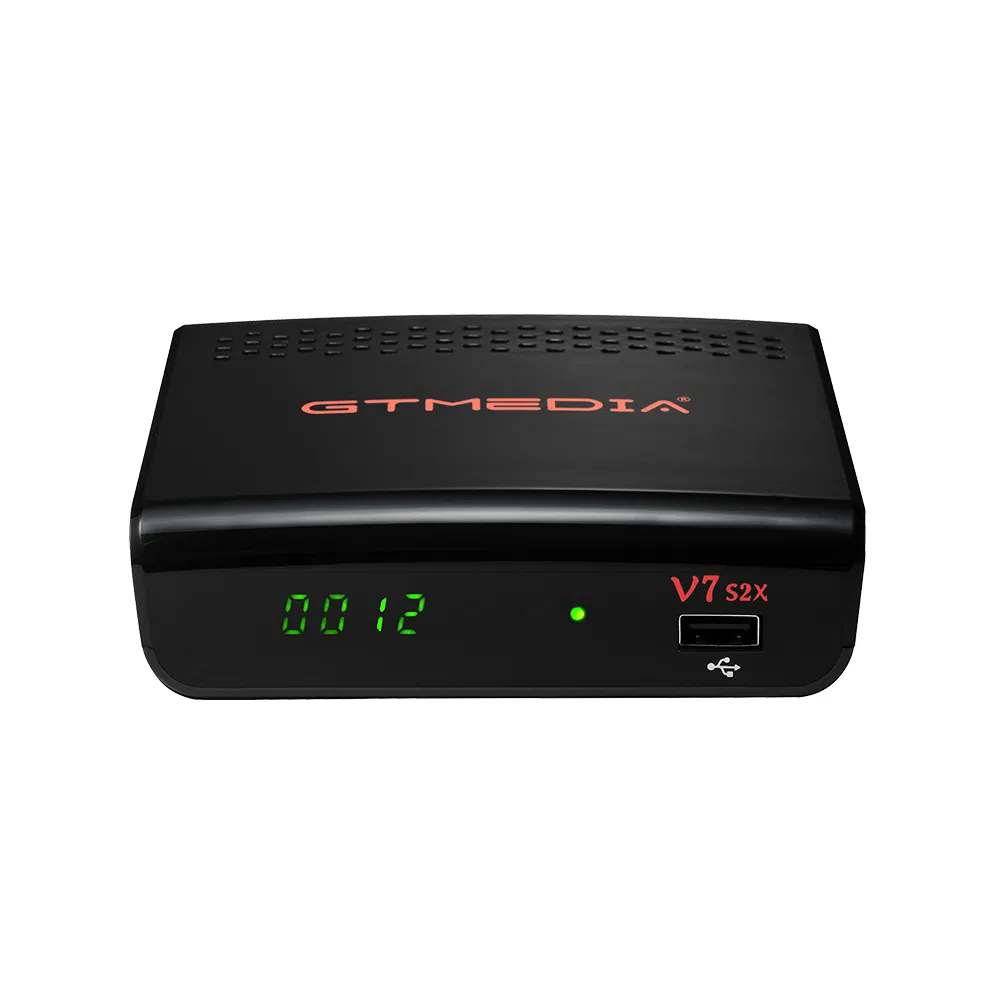

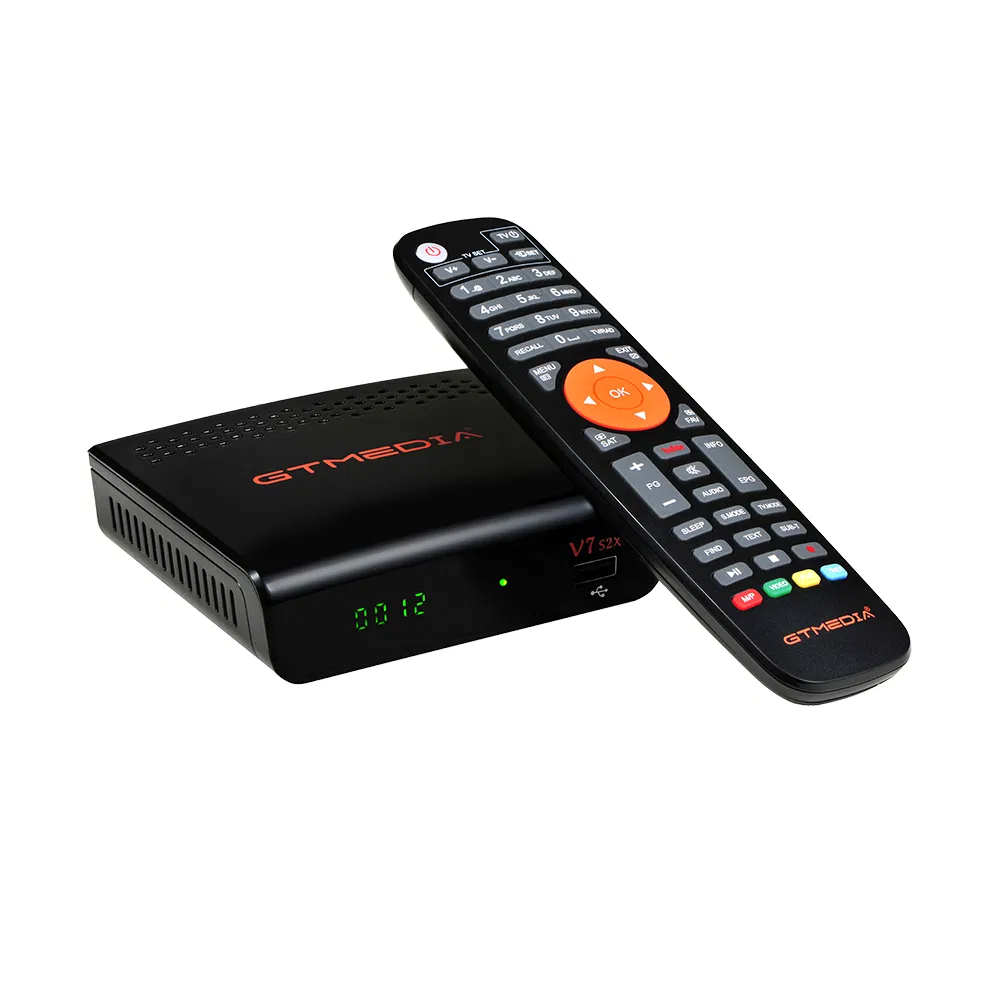

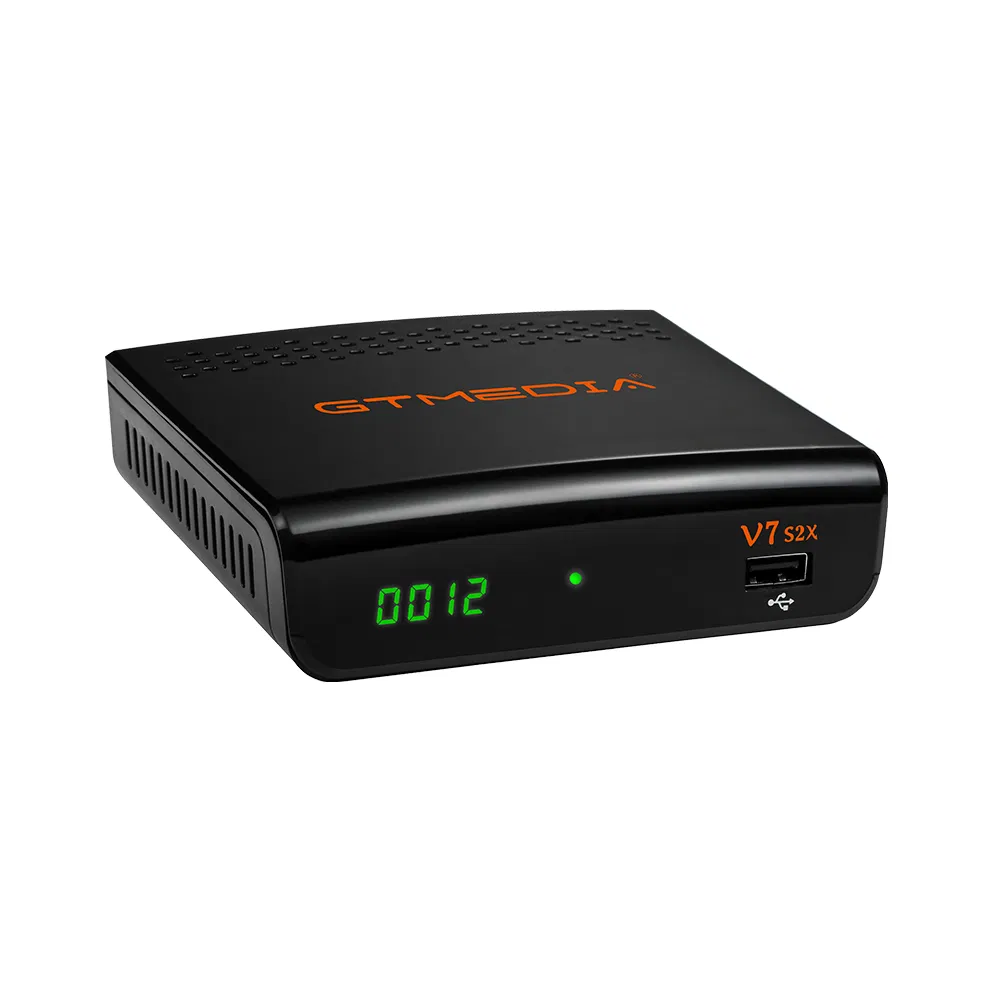

2021 Gtmedia V7s2X Satellite Receiver Decoder DVB-S2 S2X Support Europe Spain CCAM Pk Freesat V7s HD TV Recetor Set Top Box
Brief Function:1.Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-stream/T2MI2.Support BISS auto roll, Full PowerVu, DRE &Biss key;3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;4.Support Full speed USB 3/4G dongle and USB wifi dongle,5.Support Online Movie (Youtube,Youporn); 6.Support ......
Send Inquiry
Product Description
Brief Function:
1.Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-stream/T2MI
2.Support BISS auto roll, Full PowerVu, DRE &Biss key;
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
4.Support Full speed USB 3/4G dongle and USB wifi dongle,
5.Support Online Movie (Youtube,Youporn);
6.Support ccamd, Newcamd;
1.Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-stream/T2MI
2.Support BISS auto roll, Full PowerVu, DRE &Biss key;
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
4.Support Full speed USB 3/4G dongle and USB wifi dongle,
5.Support Online Movie (Youtube,Youporn);
6.Support ccamd, Newcamd;
| Main Chip Sets | CPU frequency | 550MHz Dual Core | |||||
| Flash Memory | 64MB SPI Flash | ||||||
| DDR2 Memory | 512M RAM | ||||||
| TS Demux | Demultiplexer | ISO/IEC 13818-1 | |||||
| Input Bit Rate | Max 100Mbit/s | ||||||
| Video Decode | Video Decode | HEVC main profile@level 4.1 and main10 [email protected],High tier MPEG-2 MP@ML H.264 BP,MP&HP@L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile@L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder | |||||
| PAL/NTSC | Automatic PAL/NTSC conversion | ||||||
| Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | ||||||
| Video Resolution | 1080P, 1080I, 720P, 576P, 480P, 576I, 480I | ||||||
| Audio Decode | Audio Decode | MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH | |||||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | ||||||
| Sampling Frequency | 32KHz,44.1KHz,48KHz | ||||||
| Hardware specifications | Panel display | 4-digit LED display | |||||
| LED Indicator | Power ON :Green; Standby :Red | ||||||
| Button | NC | ||||||
| Wifi | Support USB Wifi dongle (MTK7601/RT5370) | ||||||
| IR | Exit IR for 38KHz,Infra Remote control | ||||||
| Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz DVB-S/S2/S2X) | ||||||
| HD OUT (up to 1080P) | |||||||
| RCA*3 (AV OUT) | |||||||
| 2*USB 2.0 HOST | |||||||
| Power (DC 12V/1.2A) | |||||||
| DVB-S/S2 Tuner specificati-ons | System standard | ETS 302 307 | |||||
| Frequency Range | 950~2150MHz for DVB-S/S2/S2X | ||||||
| LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection | ||||||
| Input Level Range | -80dBm ~ -25dBm | ||||||
| Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | ||||||
| Forward error correction rate | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | ||||||
| Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | ||||||
| Symbol Rates | 2 ~ 90MSPS(Code Rate 1/2) | ||||||
| Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates | ||||||
| ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | ||||||
| Sortware Features | Standard | Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite) | |||||
| Channels Number | 5000+ channels TV and Radio programmable | ||||||
| Favorites | 16 different favorite groups selection | ||||||
| OSD Language | OSD Multi-language for options(English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai) | ||||||
| EPG | Fully support to 7 days Electronic Program Guide(EPG) | ||||||
| OSD Color | 16-bit OSD with anti-flickering | ||||||
| Channel Search | Supports Automatic network search for newly added transponders | ||||||
| Channel Edit | Various channel editing function(favorite,move,lock,skip, delete,rename,find,sort) | ||||||
| Parental Ctrl | Parental control for channels | ||||||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | ||||||
| SoftUpgrade | Software upgrades through USB port upgrade. | ||||||
| Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | ||||||
| Subtitle | support DVB EN300743 and EBU | ||||||
| Teletext | support DVB ETS300472 by VBI and OSD | ||||||
| Time Set | Time set by GMT offset automatic and manual,Summer Time support | ||||||
| Timer | 5 event timers,off/Once/Daily/Weekly Mode | ||||||
| USB Decode | USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | |||||
| PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | ||||||
| Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | ||||||
| Audio Codec | WMA,MP3 | ||||||
| Photo Codec | JPG, BMP, PNG, GIF | ||||||
| Packing | Product Dimension | 120*105*33mm (L*W*H) | |||||
| Packaged Size | 205*175*52MM | ||||||
| Carton Size | 610*295*375MM---30pcs/ctn | ||||||
| Unit Weight | 0.46 Kg with gift box | ||||||
| Carton Qty&Weight | 40 pcs/Carton, 14.5 kgs optional | ||||||

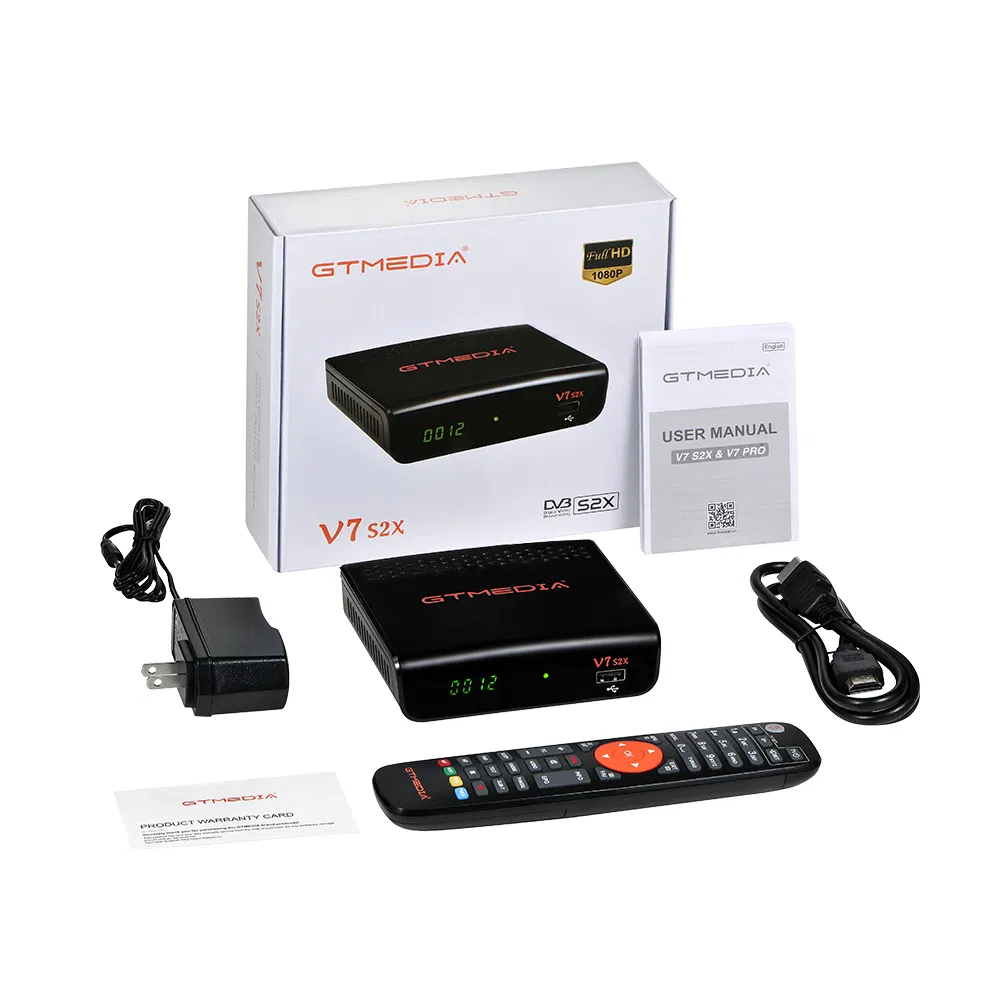

| Accessories | Gift Box, Adapter, IR remote control, HDMI Cable, User Manual,Warranty card | ||||||
| Physicals | Power Supply | AC 100-250V,50Hz/60Hz | |||||
| Power Consumption | 8W in operation <=1 W Standby Power Mode | ||||||
| Temperature | Operation 0~+45ºC; Storage -10~+60ºC | ||||||
| Humidity | 20~90%, non-condensed | ||||||
