Xpon ONU Modo Dual Gpon Epon ONU WiFi FTTH ONU
Xpon onu Modo Dual Gpon Epon ONU wifi Ftth ONUProduct OverviewONT-2GF-RFW is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.The uplink of ONT-2GF-RFW provides one PON interface, whil......
Send Inquiry
Product Description
Product Overview
ONT-2GF-RFW is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.
The uplink of ONT-2GF-RFW provides one PON interface, while downlink provides two Ethernet and one RF interfaces.
It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.

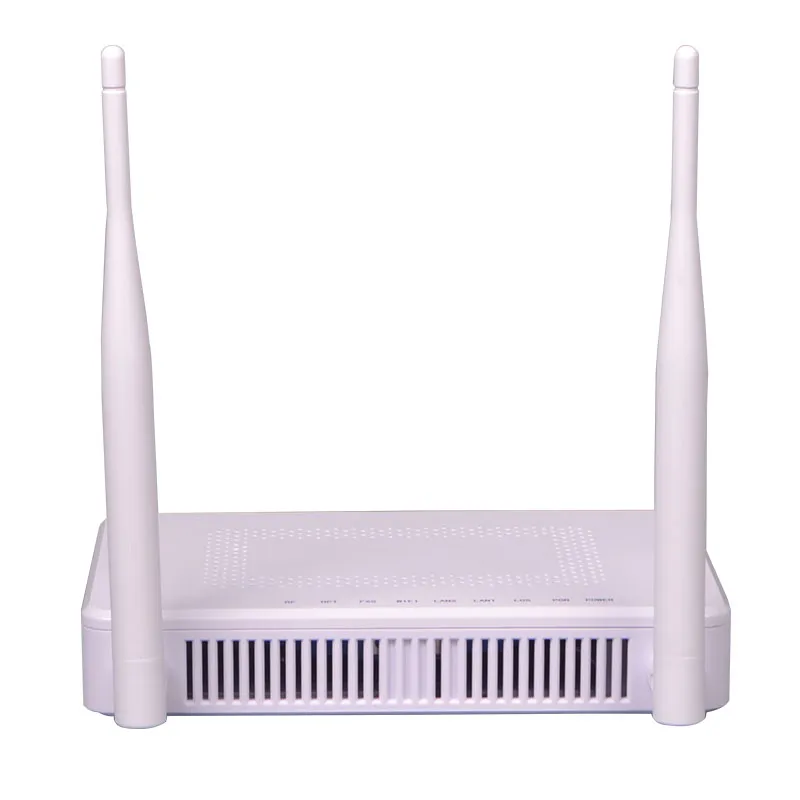

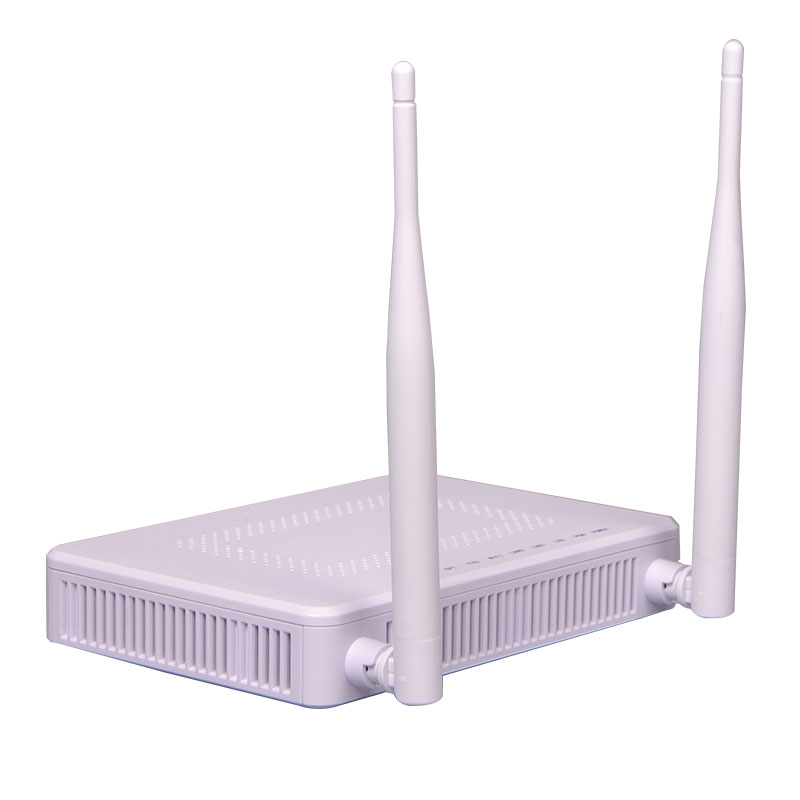

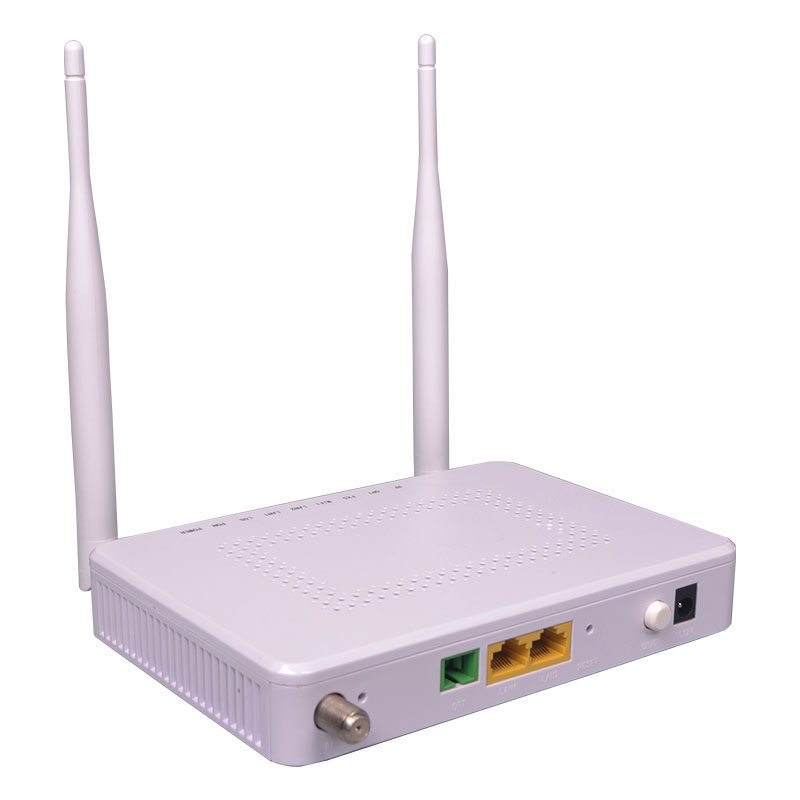

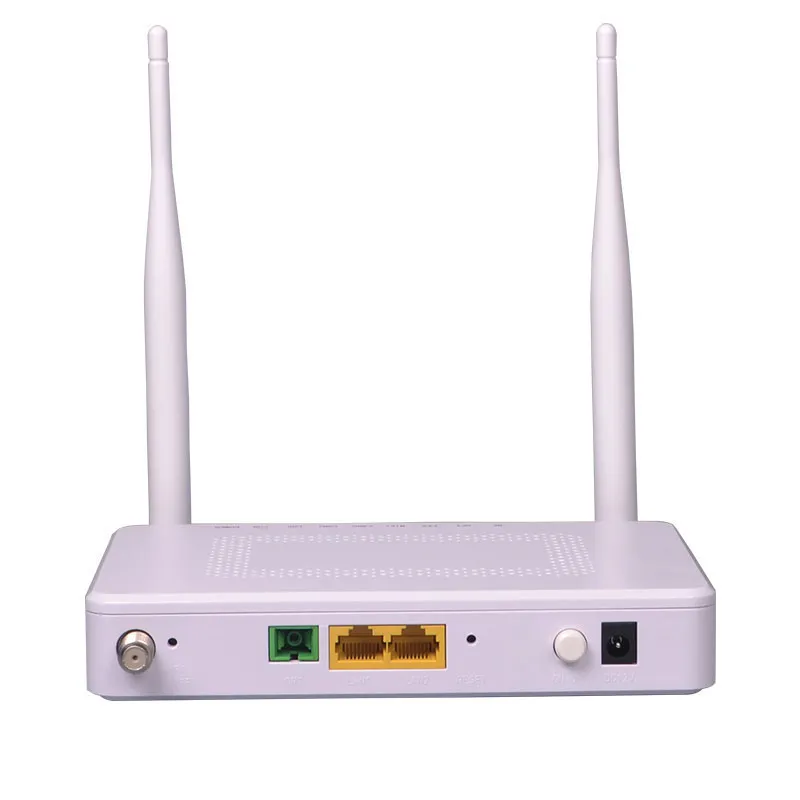

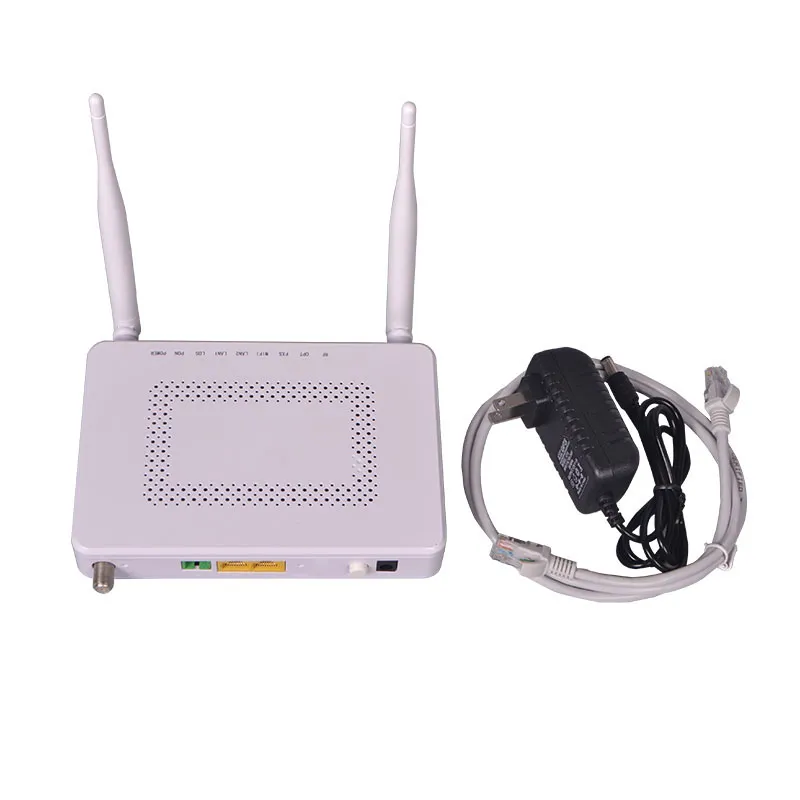

Product Appearance
Hardware Specifications
| PON Interface | Interface Type | SC/PC, CLASS B+ |
| Rate | Uplink: 1.25Gbps; Downlink: 2.5Gbps | |
| User-Side Interface | 1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface | |
| Size (Mm) | 167(L)×118(W)×30(H) | |
| Maximum Power Consumption | <8W | |
| Weight | 200g | |
Operating Environment | Temperature: -10°C ~ 55°C | |
| Humidity: 5% ~ 95% (no condensation) | ||
| Power Supply | External Power Adapter 12V/1A | |
| Power Adapter Input | 100-240V AC, 50/60Hz | |
| Power Interface Size | metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm | |
WLAN Module | Internal and external dual antenna, antenna gain 5db, antenna power 16~21dbm | |
| Support 2.4GHz, 300M transmission rate | ||
Company Information
Packaging & Shipping
Buyer Feedback
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
