Wgp5000-08p Gpon Olt

Product Description

Product Overview

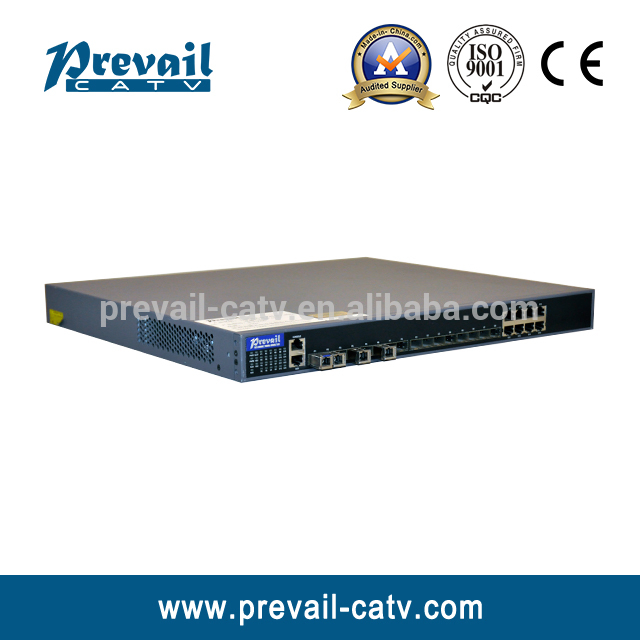

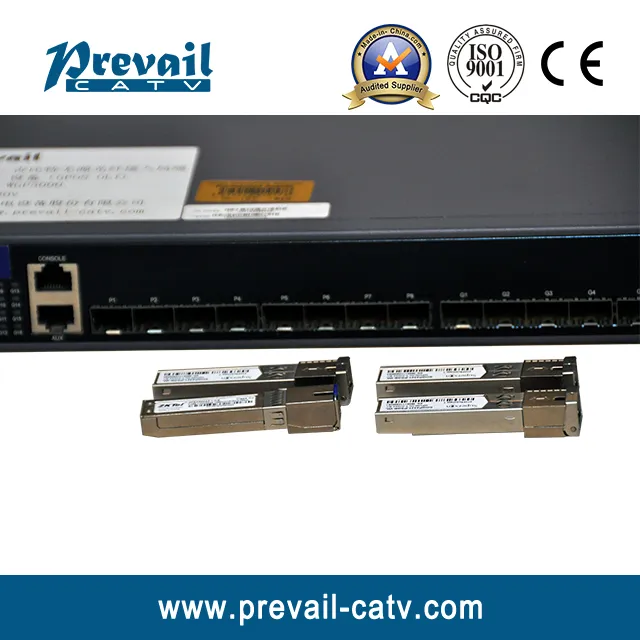

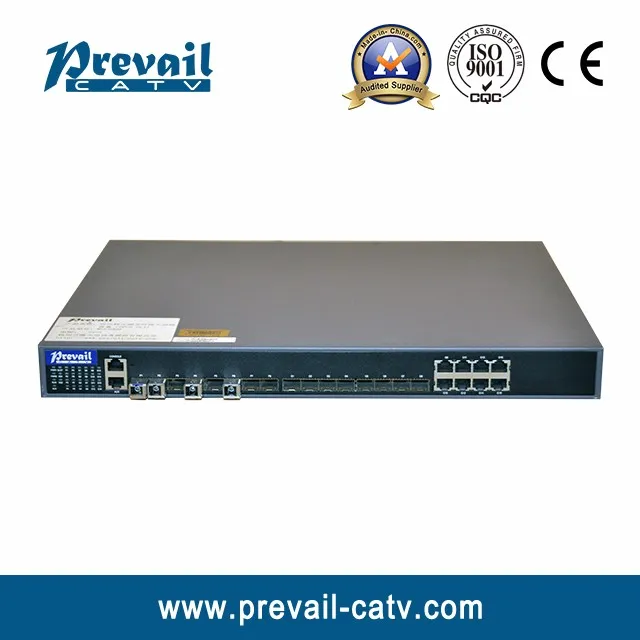

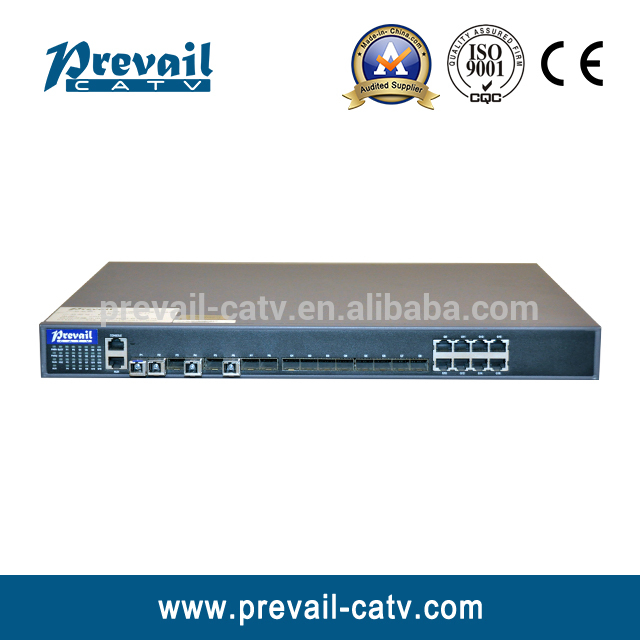

WGP5000-08P is a latest GPON OLT based on ITU-T G.984.x standard. It provides 8 downlink PON ports, 8 uplink Combo ports, 1 expansion slot to access 2 10GE SFP+ ports. WGP5000-08P, with powerful function and QoS guarantee, supports SLA and DBA with 1:128 splitting ratio that enables hybrid networking of different types of ONUs to minimize operator's investment.

Performance Features

Compliant with ITU-T G.984.x technical standard and native communication industry requirements.
High-density interfaces, each PON port supports up to 128 accessing, full with 1024 ONU terminals.
Support multiple combinations of different network interfaces; GE or 10GE port transferring accords with network situation.
Small space occupation with 1U height, low power consumption to reduce business costs.

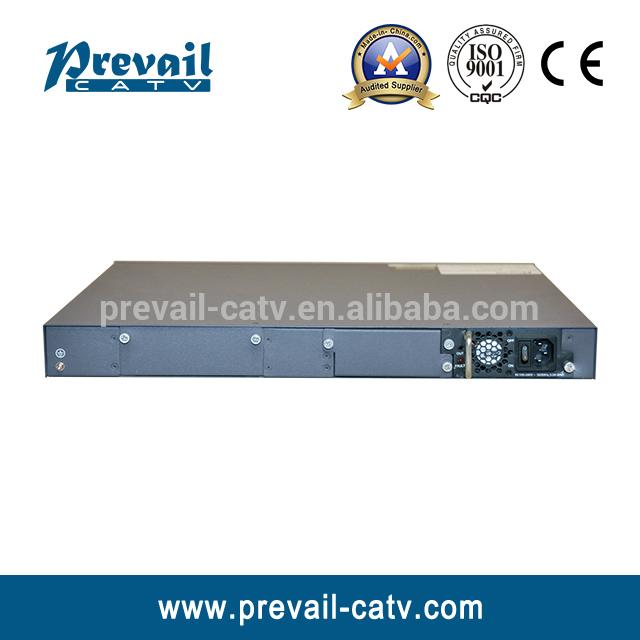

Support 1+1 hot-swap power supply and port loopback detection.

Major Technical Parameter

Exchanging Capacity: 102Gbps
PON Port Rate: upstream 1.25Gbps, downstream 2.5 Gbps
Maximum Optical Splitting Ratio: 1:128
Maximum Transmission Distance: 20KM

General Character

Operating Temperature: -10C to +55C
Operating Voltage: AC 100240V, 47/63Hz; DC -36V-75V
Overall Power Consumption: ≤ 85W
Dimension: 440mm (L) ×380mm (W) ×44mm (H)

Detailed Images
