Product Description

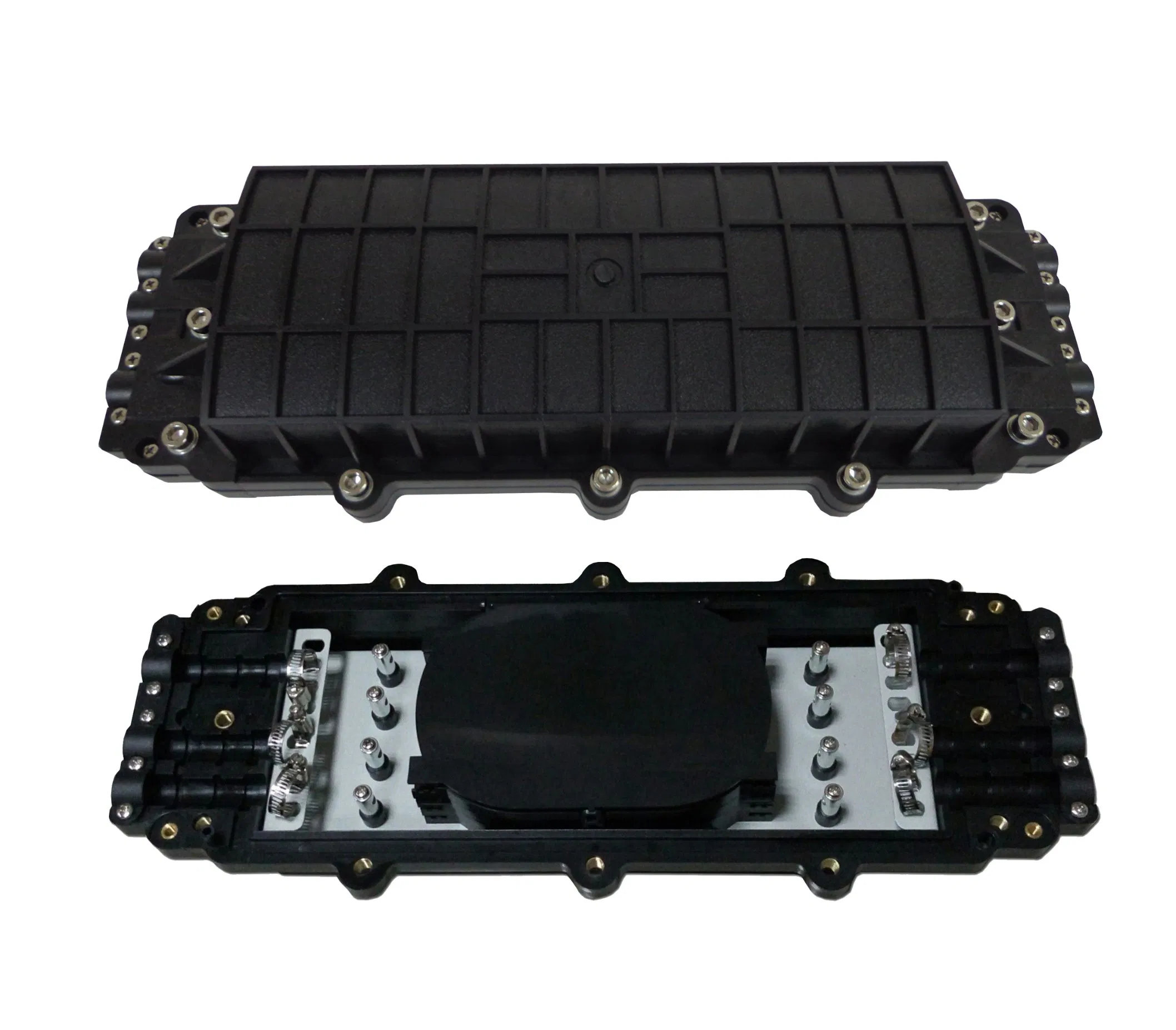

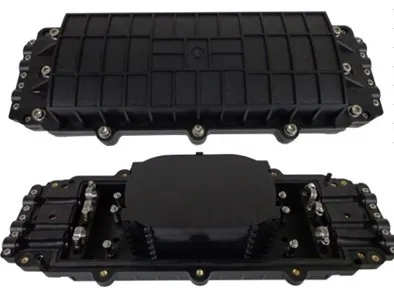

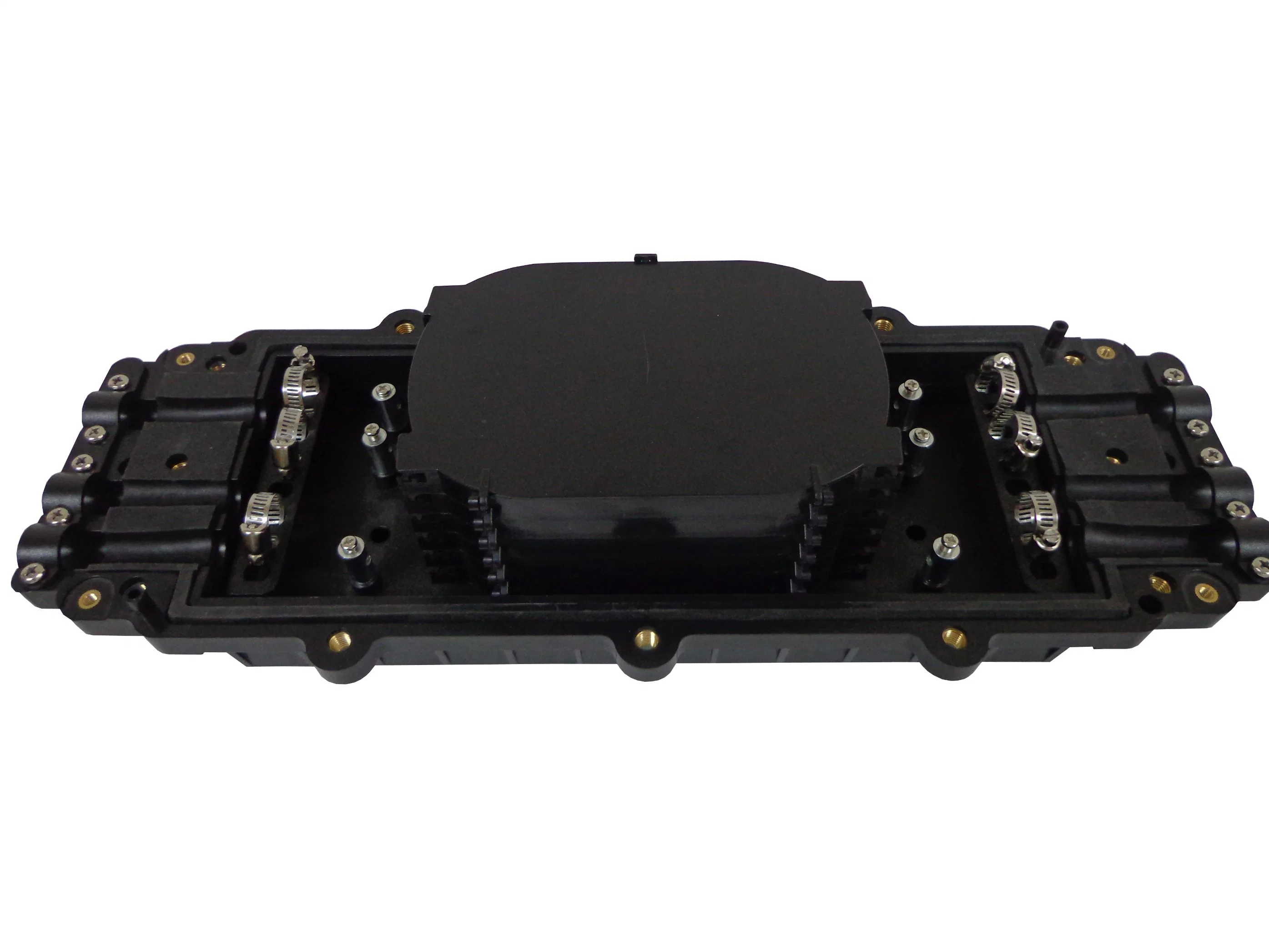

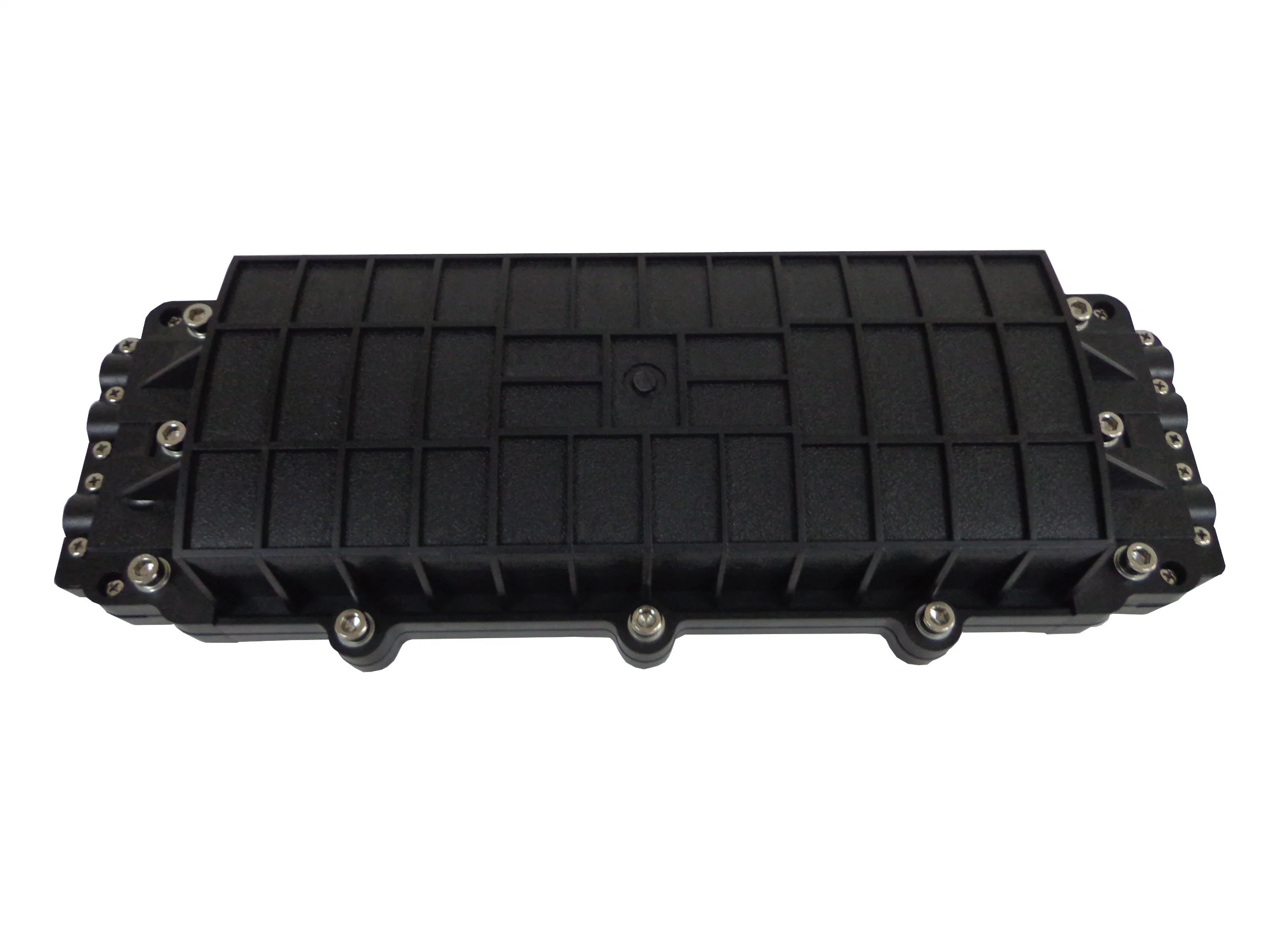

Horizontal Fiber Optic Splice Closure
CH004
Description:
CH004 has 6 fiber cable in-out round ports for the cable diameter Ф13-Ф15mm entry. It is widely applied to the splicing and distributing variable optical cables.
It is made of high-quality ABS plastic and with the mechanical seal structure filled with the seal material.The external component and fastening piece are all made of the high-quality steel. It can be opened after sealing and can be reused without changing sealing material, with silicone rubber insulation tape.

Material:
high-quality ABS plastic and with the mechanical seal structure filled with the seal material
Waterproof 3in 3out Horizontal Fiber Optic Splice Closure Max 144cores

Application:
Aerial hanged, Wall mounting

Waterproof 3in 3out Horizontal Fiber Optic Splice Closure Max 144cores

Specification:

Dimension (mm)	466.5x179.8x120.6
Weight (Kg)	2.7
Cable diameter	Ф13-Ф15
cable entry ports	3 in 3 out
Max Capacity of splice tray	6
Max Capacity	72(single layer tube) 144(double layer tube)
Sealing structure	silicon gum material or sticky cincture

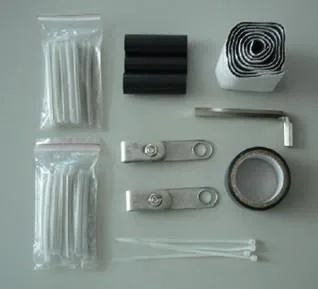

Accessories:
Splice protector sleeve
Silicon gum material
Sticky cincture
Cable ties
Sealing washer
Allen wrench
Insulated rubber belt

Waterproof 3in 3out Horizontal Fiber Optic Splice Closure Max 144cores

Factory:

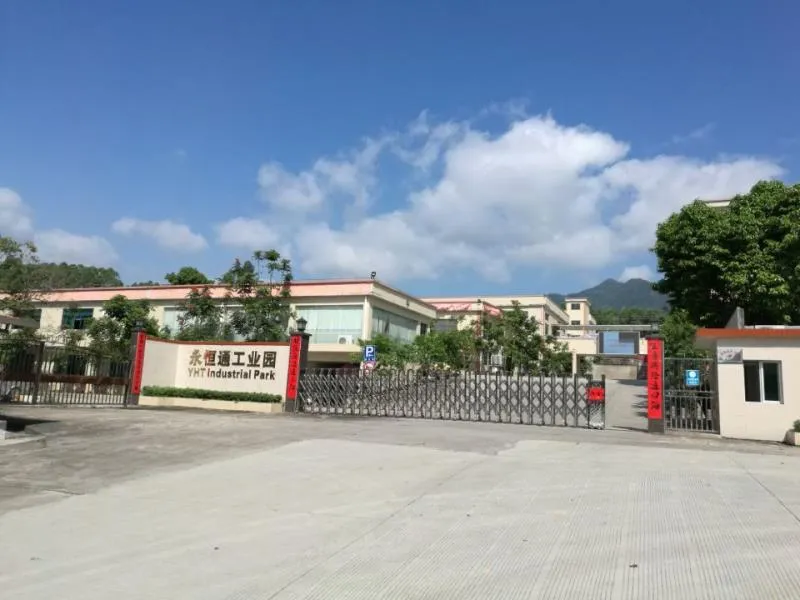

Guangzhou CST Technology Co., Ltd. is a subsidiary of Huizhou YHT Broadband Equipment Co., Ltd. provide fiber optic products. Such as fiber optic terminal box, fiber optic patch panel, fiber optic distribution box, ODF, FTTH box, fiber optic splice closure, fiber optic splitter box, splitter cassette, cabinet, fiber optic connector, adapter, jumper, pigtail, PLC splitter and so on. Its headquarters Huizhou YHT Broadband Equipment Co., Ltd. is a national high technology enterprise located in YHT industry park and certified by ISO 9001 2015 management systems, ISO 14001 2015 environmental management systems, OHSAS 18001 2007 occupational health and safety management systems, GB T 29490-2013 intellectual property management systems. There are hardware, diemaking, injection moulding, painting, assembling, fiber optic cable production, connector and cable assembling workshops for producing fiber optic splicing, connection, distribution and termination products. We have strong research and development ability and well experience technical person for supporting customized fiber optic products. Welcome to contact us.

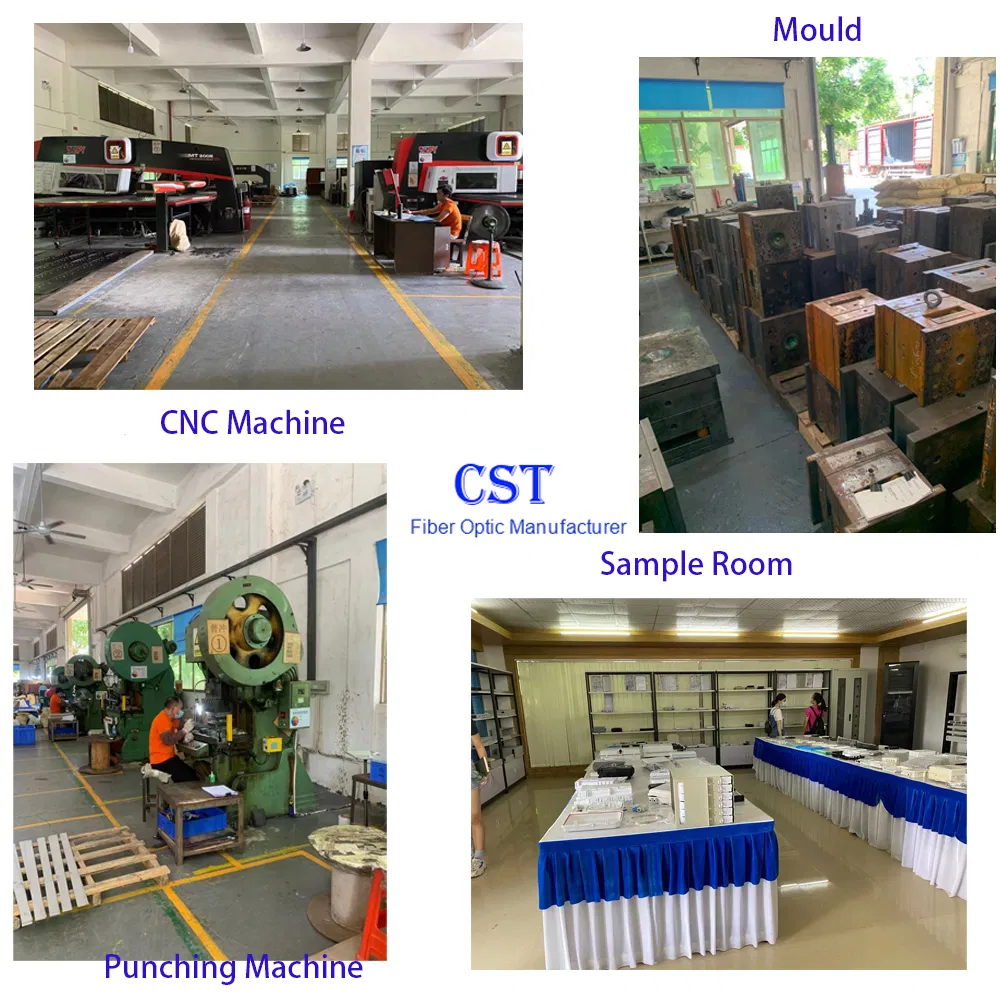

Factory Glance:

Waterproof 3in 3out Horizontal Fiber Optic Splice Closure Max 144cores

FAQ

Q1:  Are your manufacturer ?
     CST:  Yes!  CST have one office in Guangzhou and one factory in Huizhou. Located in  Sanya zhen, Meizhou, Yonghan, Longmen, Huizhou, Guangdong, China. It has 36000 square meters, 8 workshops-hardware CNC & Bending workshop, Diemaking & Injection Moulding workshop, Painting workshop, Fiber Cable Producing & Assembling workshop.

Q2:  Do you company offer OEM service?
     CST:  Yes! OEM available, your logo & reference on products & package available.

Q3. What's your products lead time?
    CST:  Some on stock, then 2 days, and some not on stock, usually it take 7-25 days after order confirmed (deposit received).

Q4. Where is your nearest sea-port and airport?
     CST:  The nearest sea-port is Shenzhen port.
                The nearest airport is Shenzhen, but if you have any requirements, we can deliver to your port.

Q4. What's your Payment Term?
     CST:  We perfer T/T.  Amount above 3000USD, 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
               Amount less than 3000USD, we perfer 100% in advance ad deposit. Also half as deposit is acceptable, but you bear the high bank fees, if it exceed 30USD each.

Q6. Quality and Reputation:
     CST:  CST highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.

Waterproof 3in 3out Horizontal Fiber Optic Splice Closure Max 144cores
