Triple Windows 1310/1490/1550 1X2 10/90 20/80 30/70 40/60 50/50 Split Ratio Fbt Coupler Fiber Optic Without Connector
Description

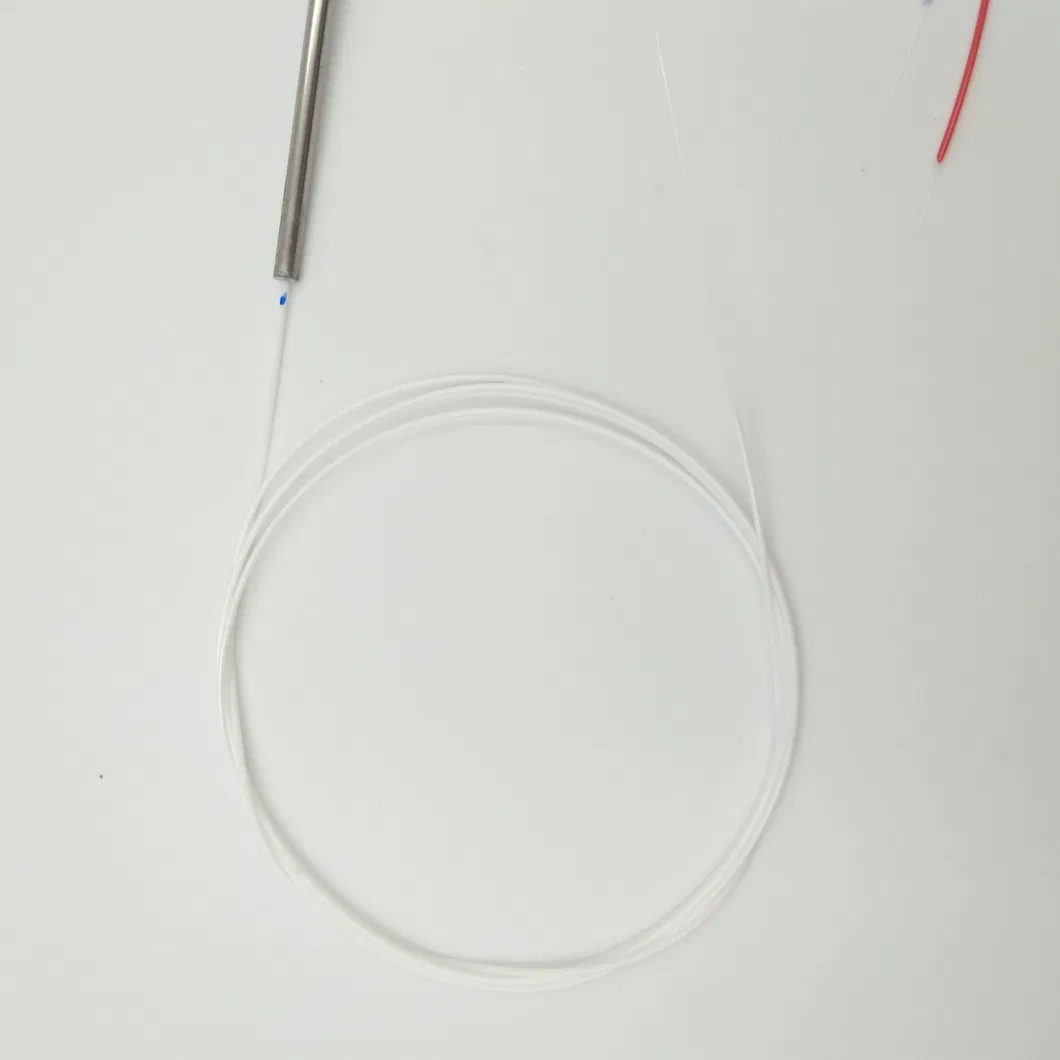

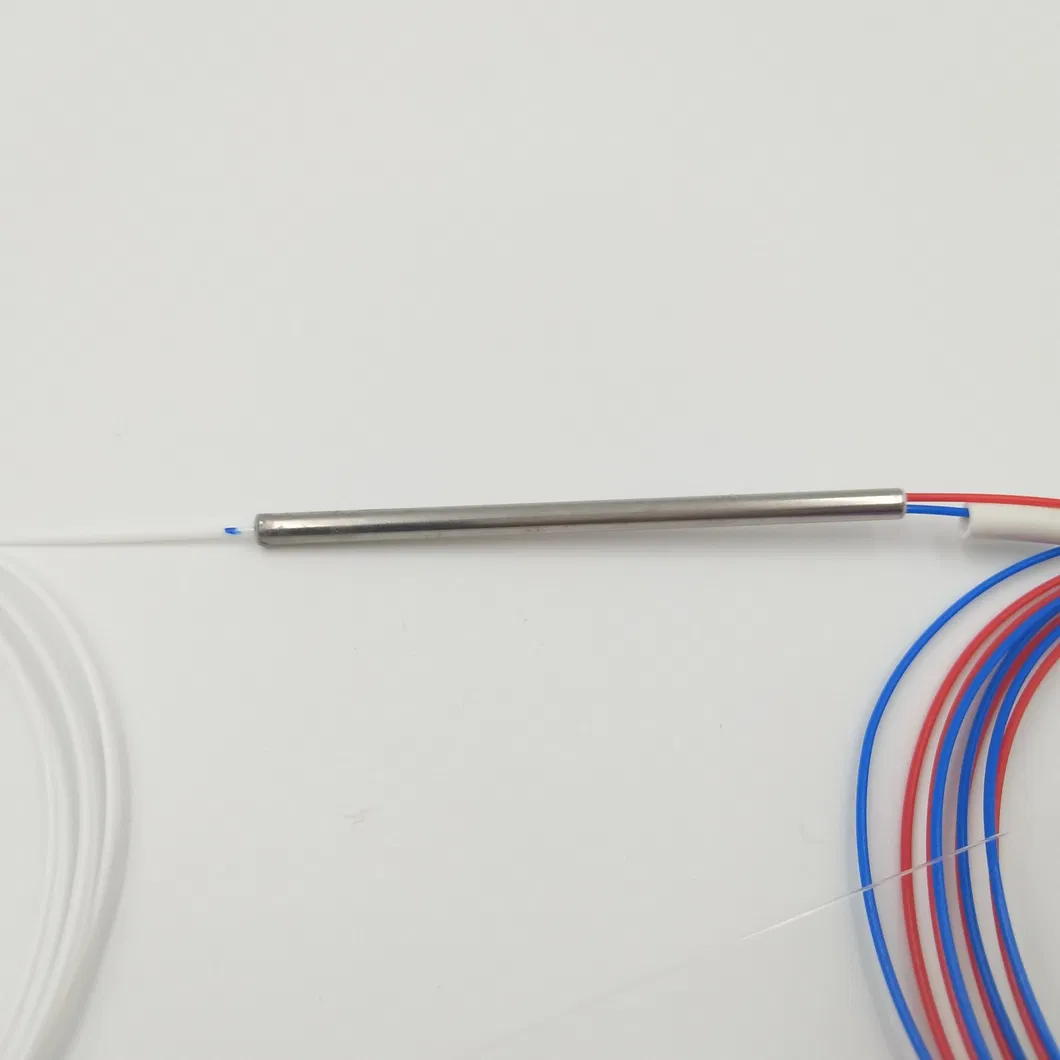

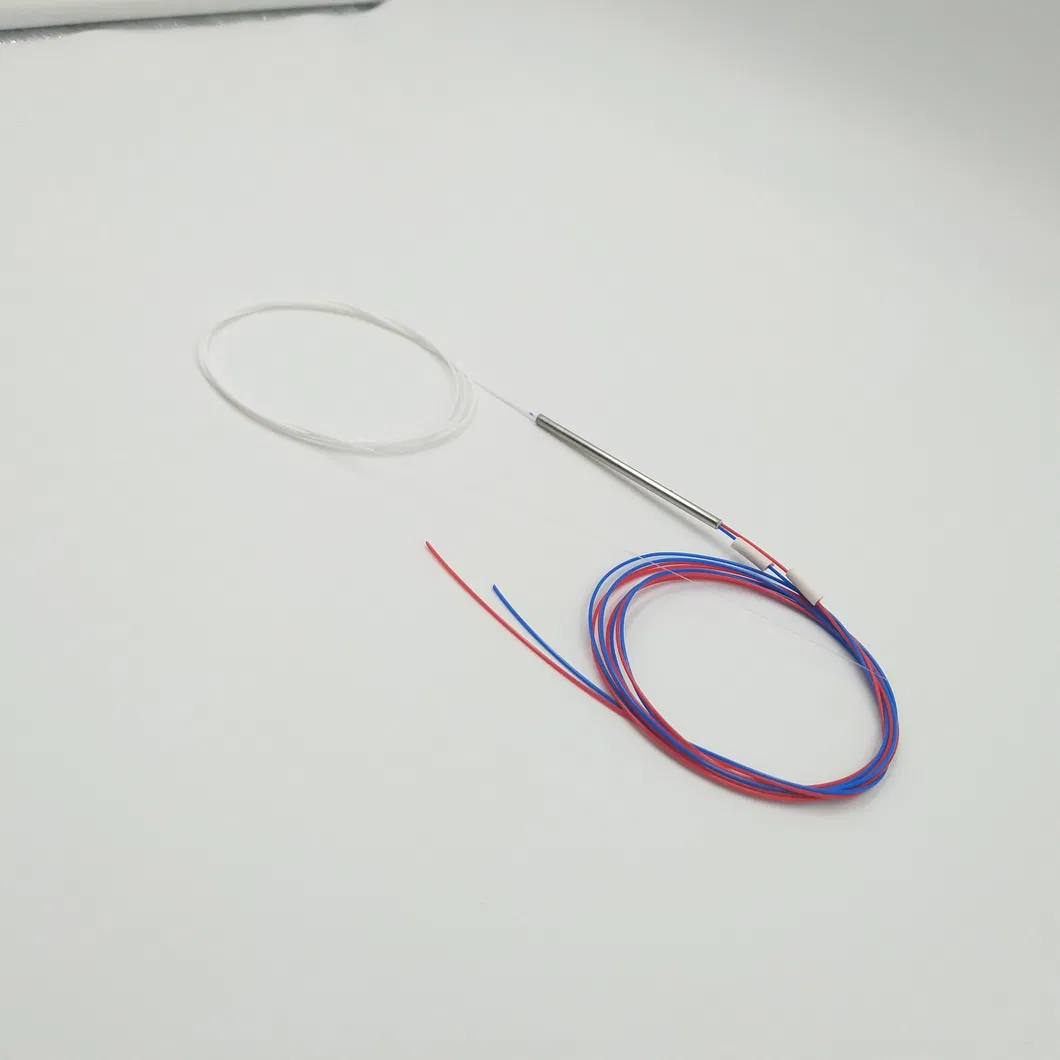

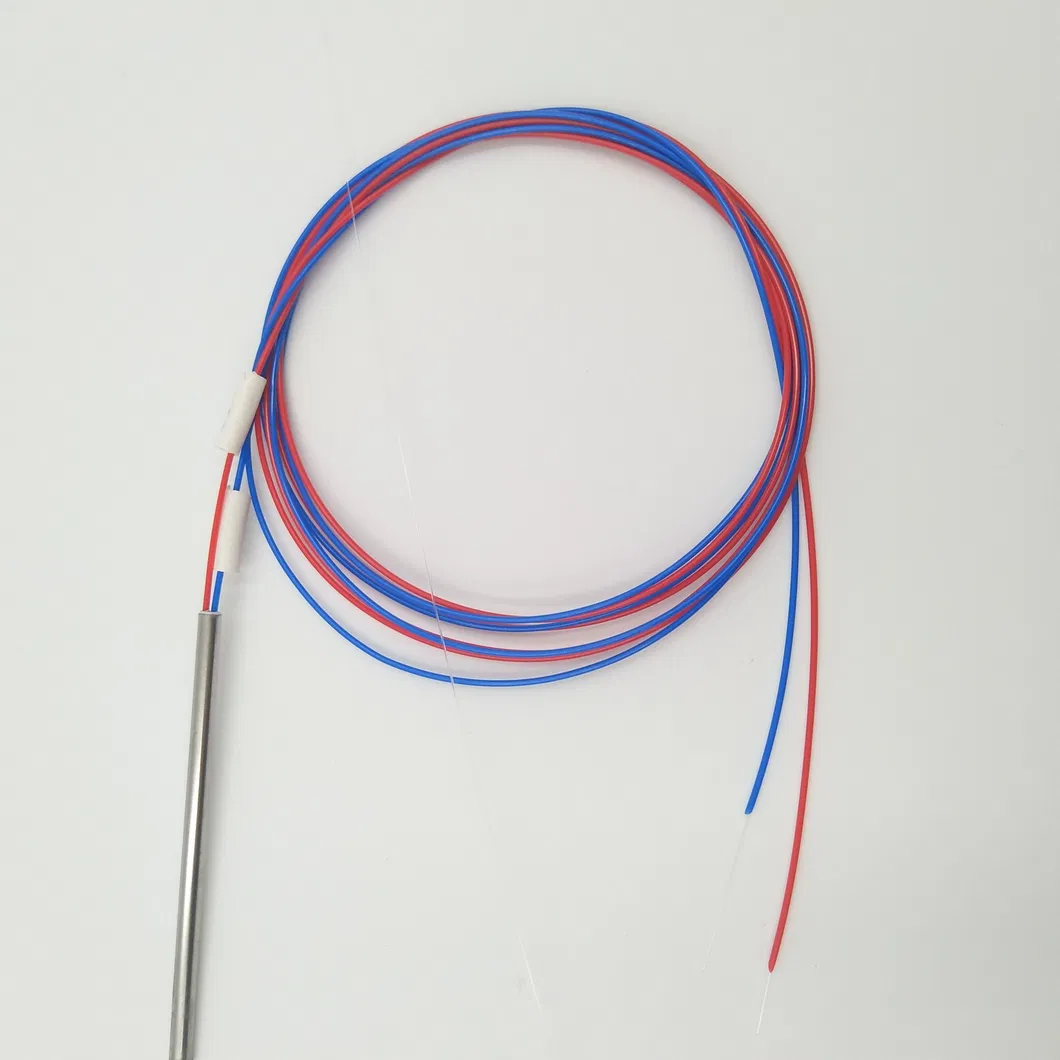

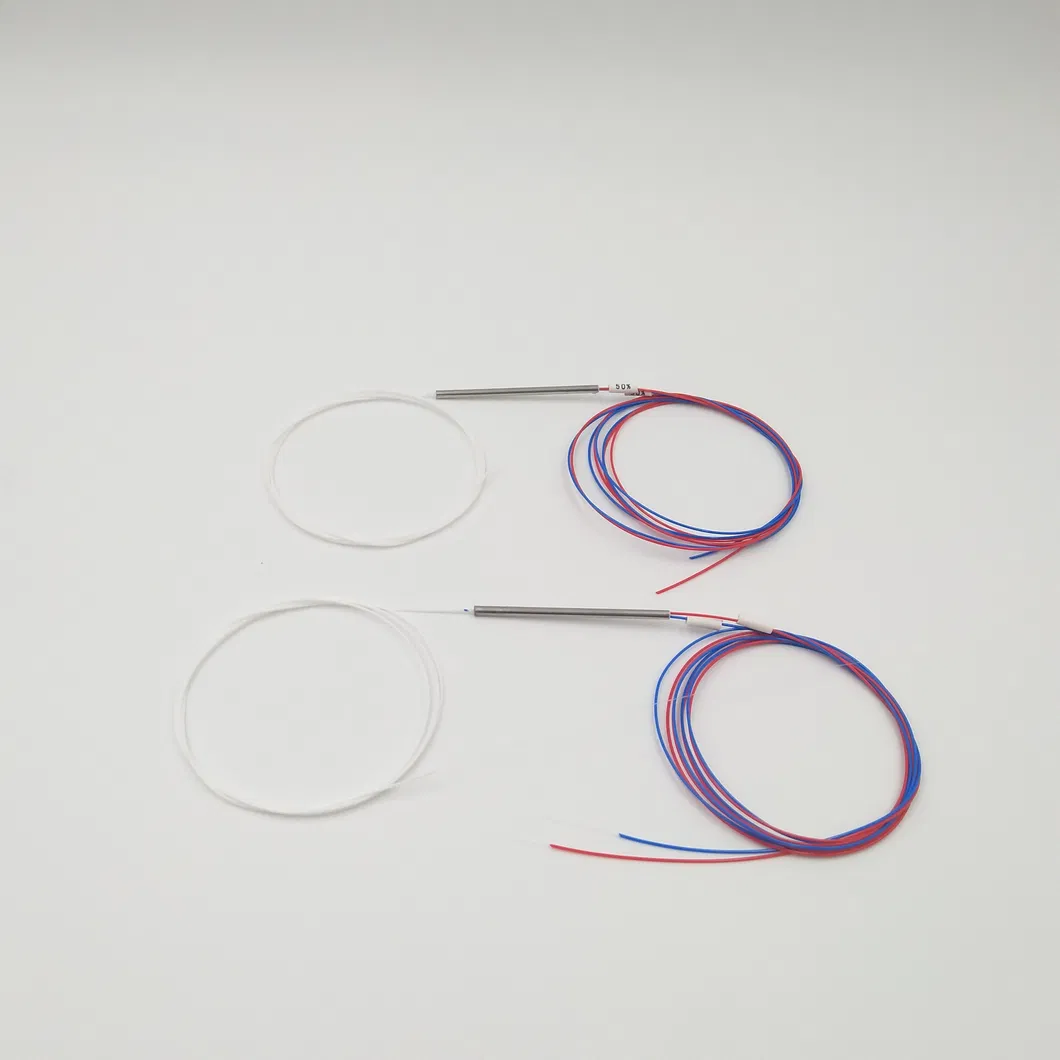

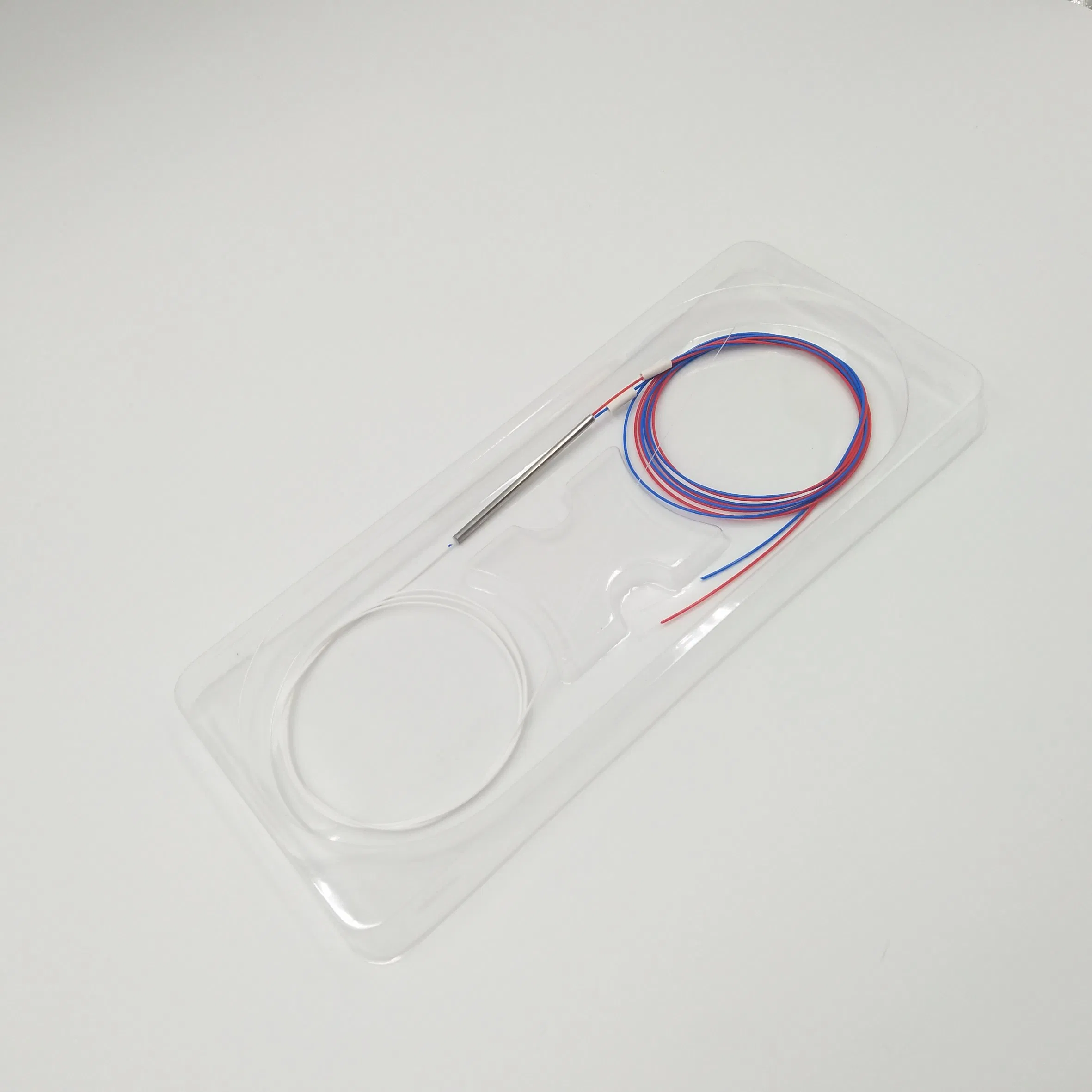

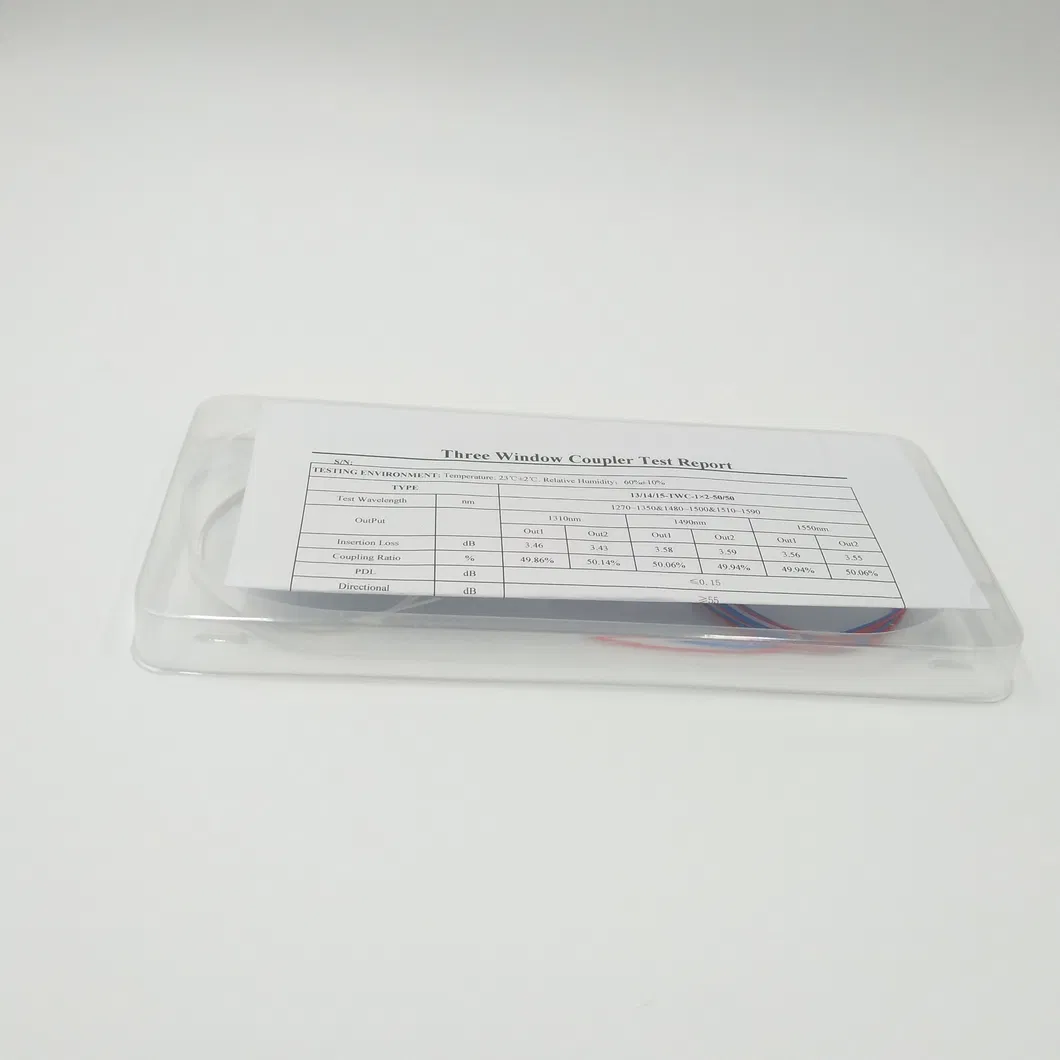

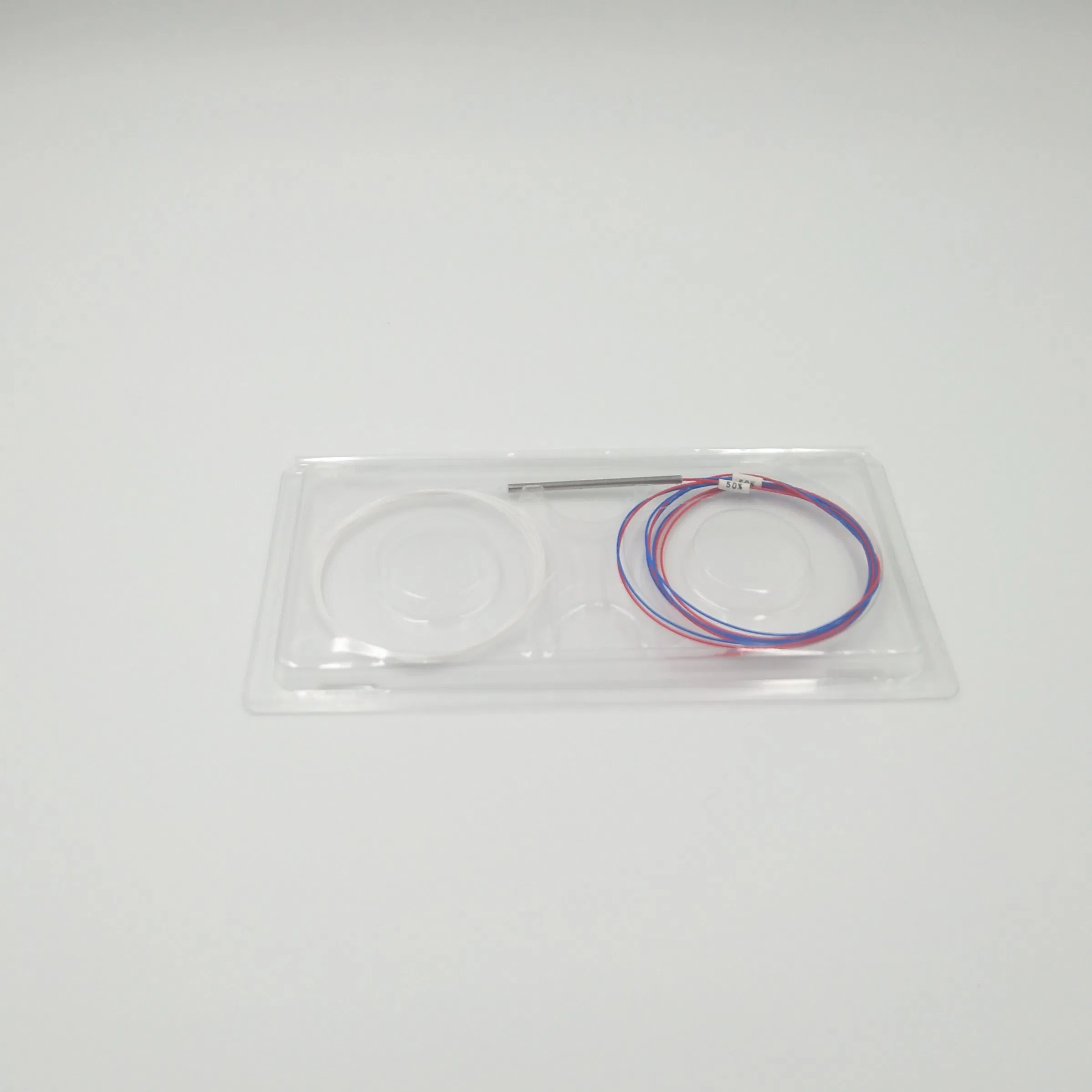

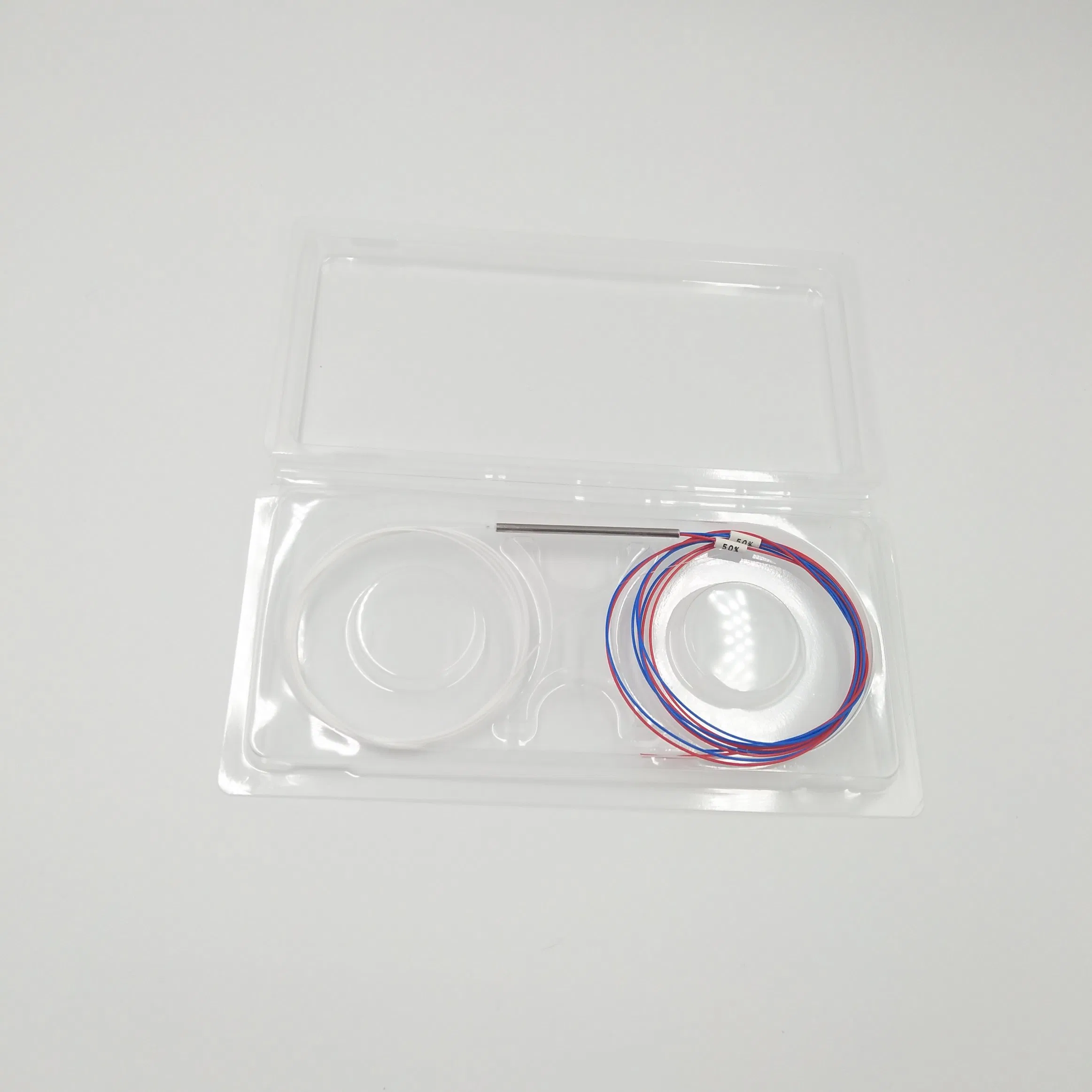

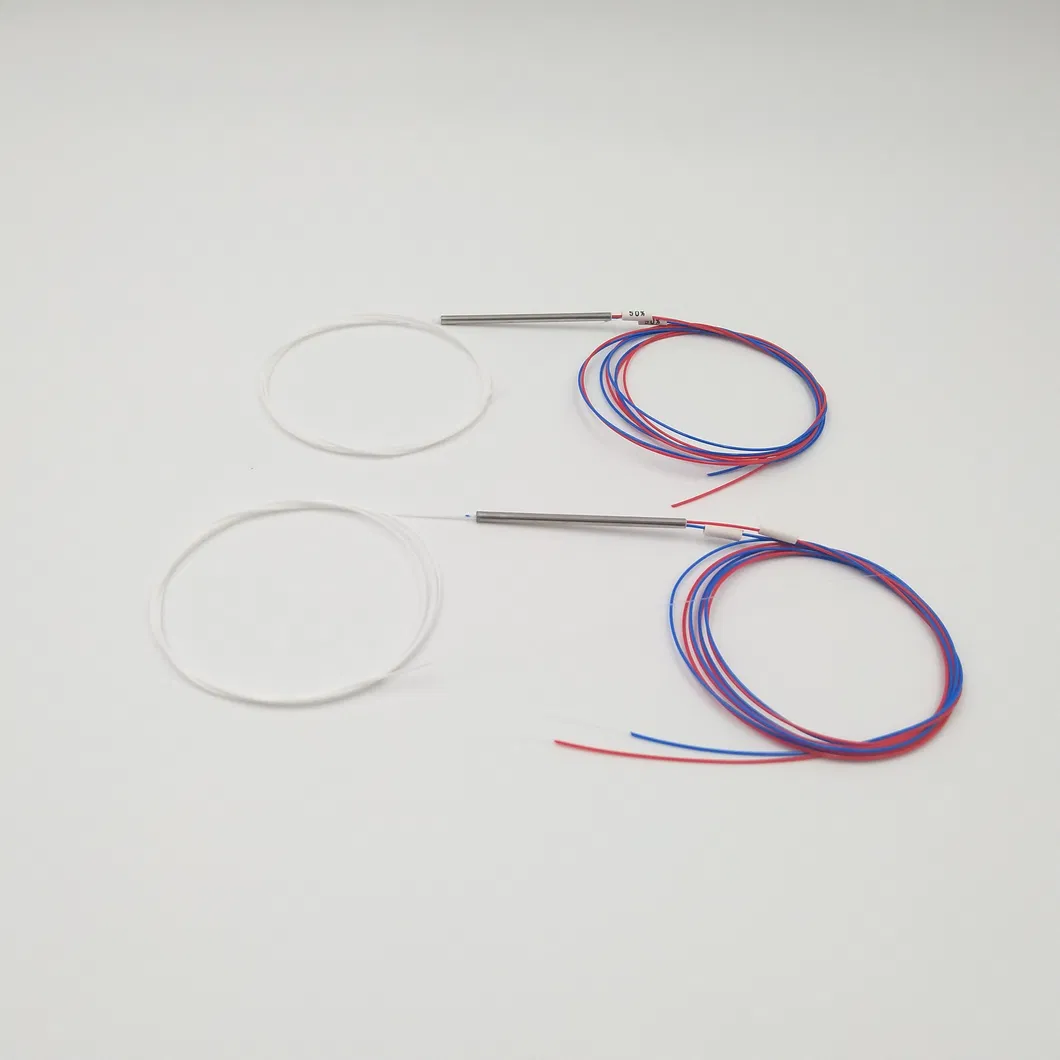

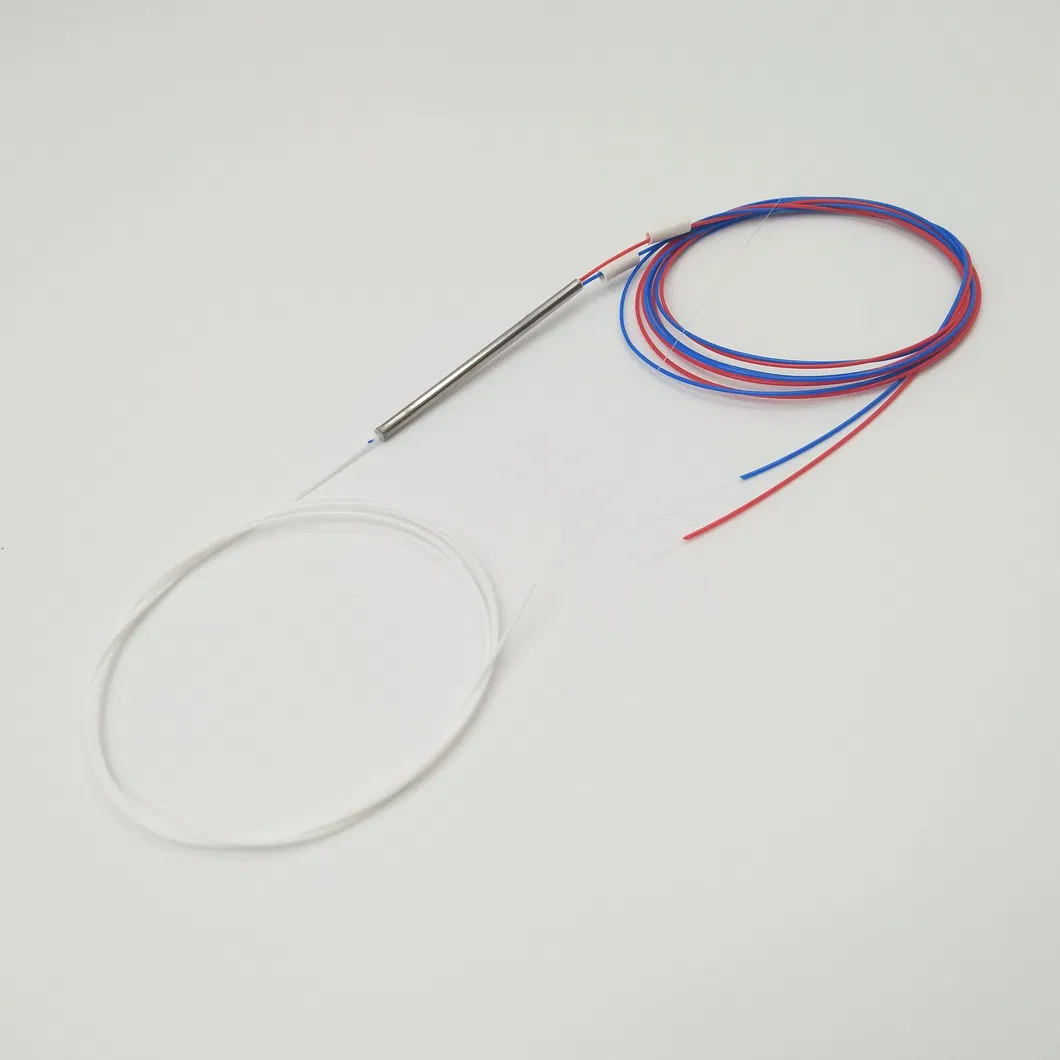

Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape Technology.
It features small size, high reliability ,cheap cost and good channel-to-channel uniformity,and is widely used in PON networks to realize optical signal power splitting.
April provides whole series of 1xN and 2xN spliiter products that are tailored for specific applications .All products meet GR-1209-CORE and GR-1221-CORE.
April offers both tree and star type inline couplers /splitters.They provide a reliable solution to split/combine signals.The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers ,and from 2x2 to 2x32 for star couplers. Available in single,dual and triple wavelength windows(1310/1490/1550nm)
Feature
1.Low Excess loss
2.Low PDL
3.Environmentally stable
4.Good Thermal Stability
Application
1.Long-haul Telecommunications
2.CATV Systems & Fiber Optic Sensors
3.Local Area Network
Technical Parameter
| Coupling Ratio | Insertion Loss(dB) | |
| P Grade | S Grade | |
| 50/50 | ≤3.4 | ≤3.6 |
| 45/55 | ≤3.7/2.7 | ≤3.8/2.9 |
| 40/60 | ≤4.4/2.6 | ≤4.7/2.8 |
| 35/65 | ≤4.8/2.0 | ≤4.9/2.10 |
| 30/70 | ≤5.7/1.9 | ≤6.0/2.0 |
| 25/75 | ≤6.9/1.3 | ≤6.5/1.4 |
| 20/80 | ≤7.6/1.2 | ≤8.0/1.3 |
| 15/85 | ≤8.6/0.7 | ≤8.9/0.88 |
| 10/90 | ≤11.0/0.65 | ≤11.5/0.8 |
| 5/95 | ≤14.2/0.4 | ≤14.8/0.5 |
| 2/98 | ≤18.5/0.25 | ≤19.0/0.35 |
| 1/99 | ≤21.5/0.2 | ≤22.0/0.3 |
| Excess Loss(Typ.)(dB) | ≤0.1 | |
| PDL(Max.)(dB) | ≤0.1 | |
| Operating Wavelength(nm) | 1310±40, 1550±40,1310/1550±40,1310/1550/1490±40 or 850, 850/1310 custom wavelength | |
| Directivity(dB) | ≥55 | |
| Return Loss(dB) | ≥50 | |
| Port Configuration | 1×2 or 2×2 | |
| Parameter | Specification | ||||||||
| Operating Wavelength(nm) | 1310±40, 1550±40,1490±10 | ||||||||
| Fiber Type | SMF | ||||||||
| (1×N)(2×N) | N=3 | N=4 | N=5 | N=6 | N=8 | N=10 | N=16 | N=24 | N=32 |
| IL(MAX)(dB) | 5.4 | 6.9 | 8.1 | 8.9 | 10.3 | 11.5 | 13.8 | 15.6 | 17.2 |
| Uniformity(dB) | 0.5 | 0.7 | 1.1 | 1.3 | 1.5 | 1.7 | 1.8 | 2 | 2.2 |
| PDL(dB) | ≤0.20 | ≤0.20 | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.40 | ≤0.40 | ≤0.50 | ≤0.50 |
| Return Loss(dB) | ≥55 | ||||||||
| Directivity(dB) | ≥50 | ||||||||
