Tks- 1806 -04c ABS PC 4 Port Sc/LC Fiber Optica Termination Box
TKS-1806-04C ABS,Pc 4 port sc/lc fiber optica termination boxFiber terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwh......
Send Inquiry
Product Description
TKS-1806-04C ABS,Pc 4 port sc/lc fiber optica termination box

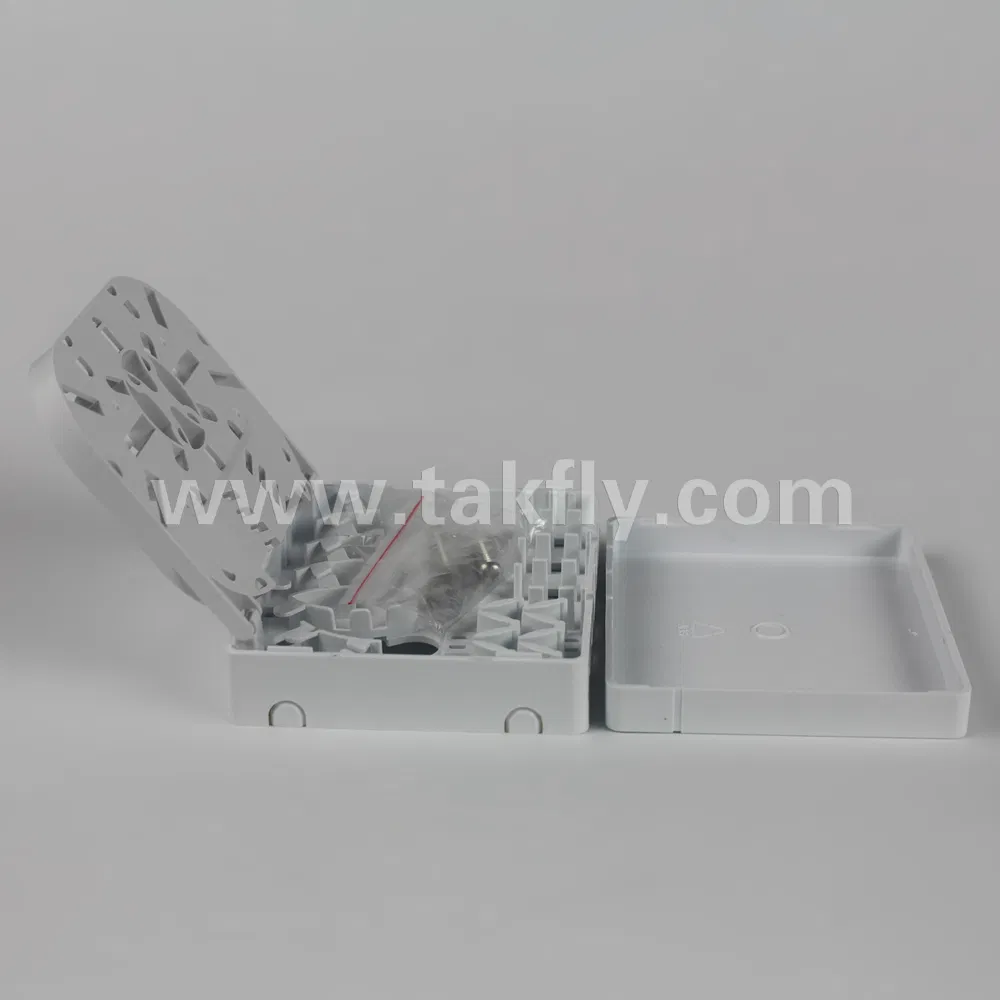

Fiber terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

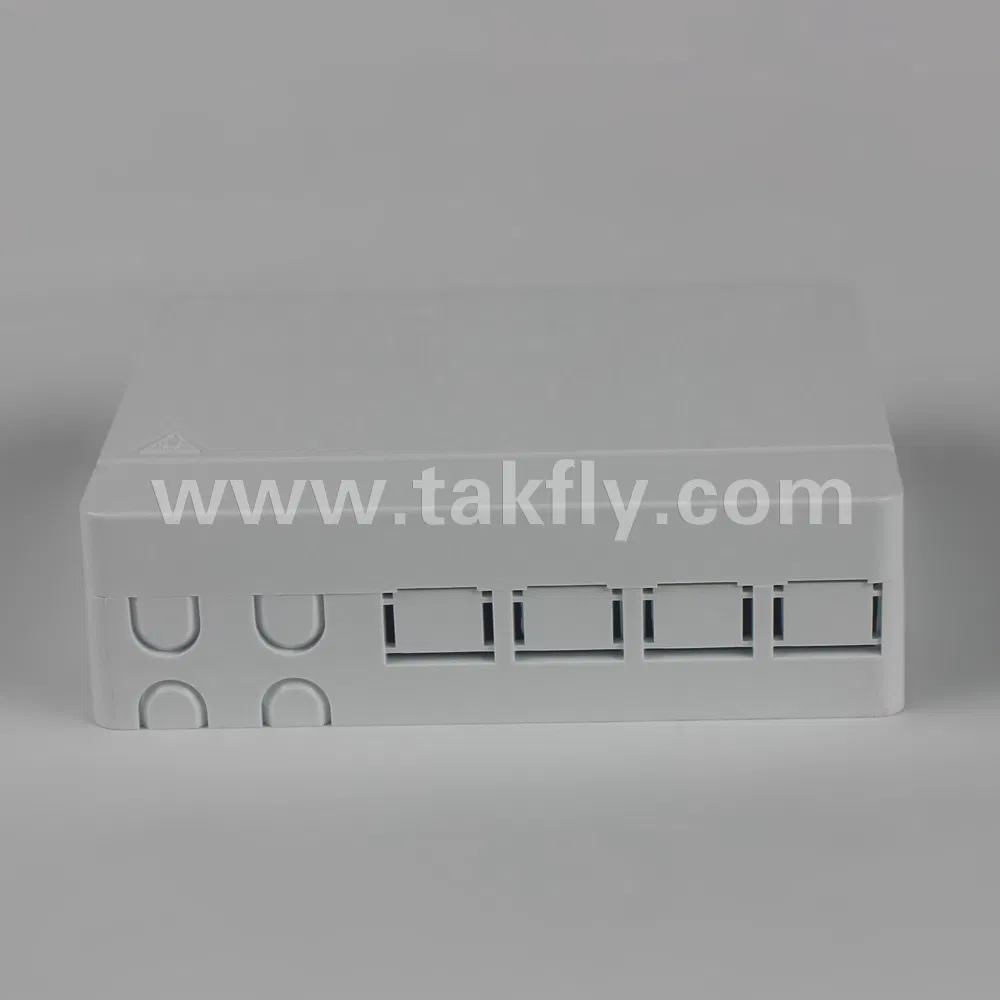

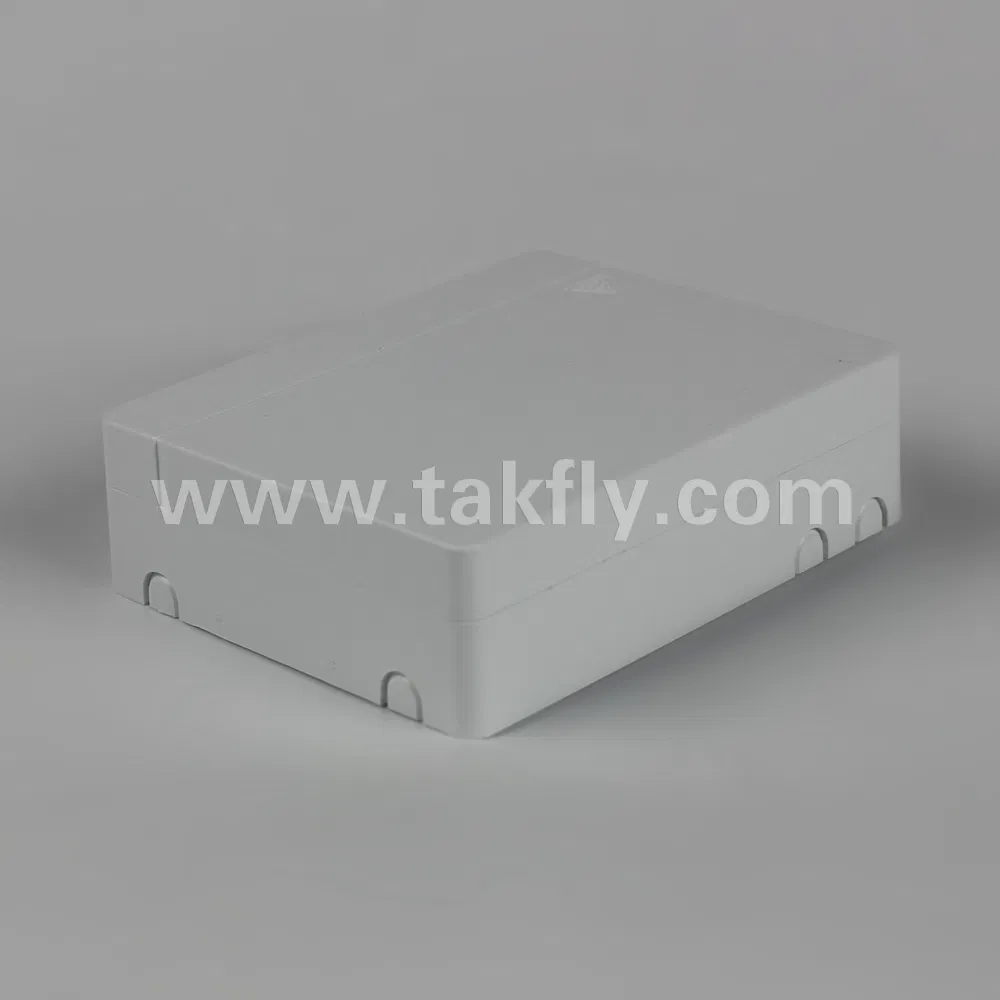

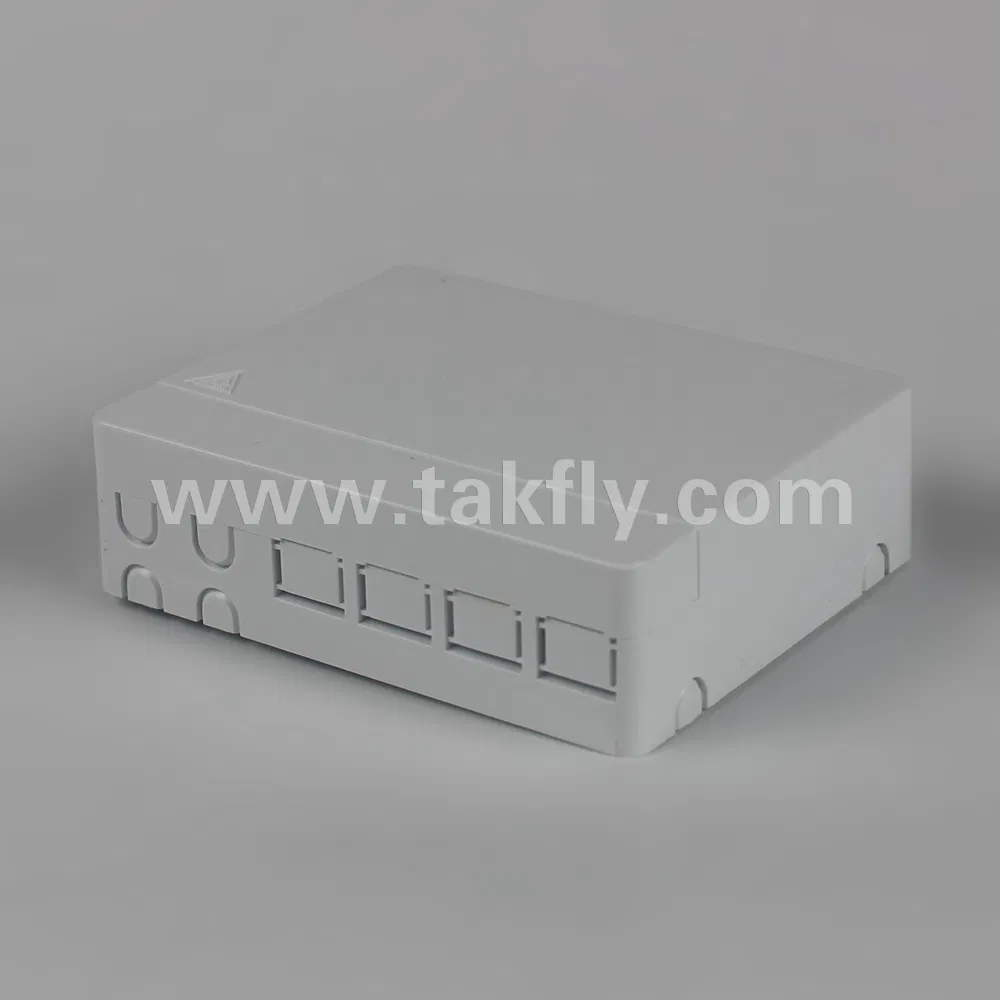

4 Ports Fiber Optic Termination Box
Model No.: TKS-1806-04C
Description
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
Cable management can be connected without cutting(with express port)
All modules are free of welding.

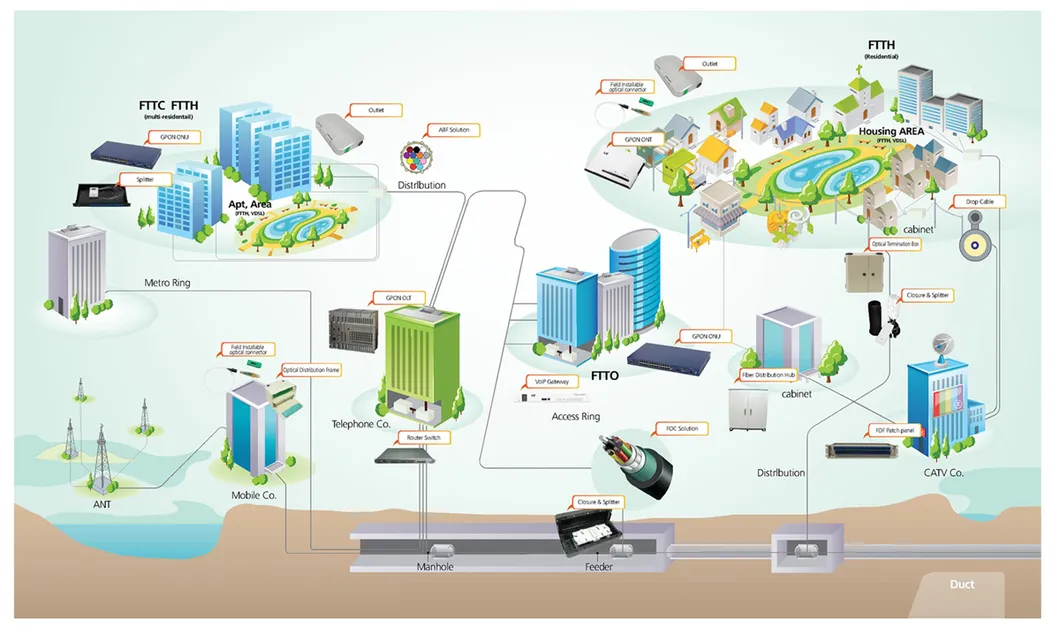

Working area
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index
Configuration table
Table 1 Model and configuration
Would you like some 4 port fiber terminal box for sample??Please leave me an inquiry or contact me directly.
Fiber terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
4 Ports Fiber Optic Termination Box
Model No.: TKS-1806-04C
Description
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
Cable management can be connected without cutting(with express port)
All modules are free of welding.
Working area
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index
| Item | Technical data |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( 652 & 657 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Single mode & duplex mode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 4 |
Configuration table
Table 1 Model and configuration
| Model | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | ||
| A*B*C(mm) | SC | LC | PLC | D (mm) | |
| TKS-1806-04C | 100.6*80.6*28.8 | 4 | 8 | 8 | 78 |
Would you like some 4 port fiber terminal box for sample??Please leave me an inquiry or contact me directly.
