Product Description

1.0 PRODUCT DESCRIPTION

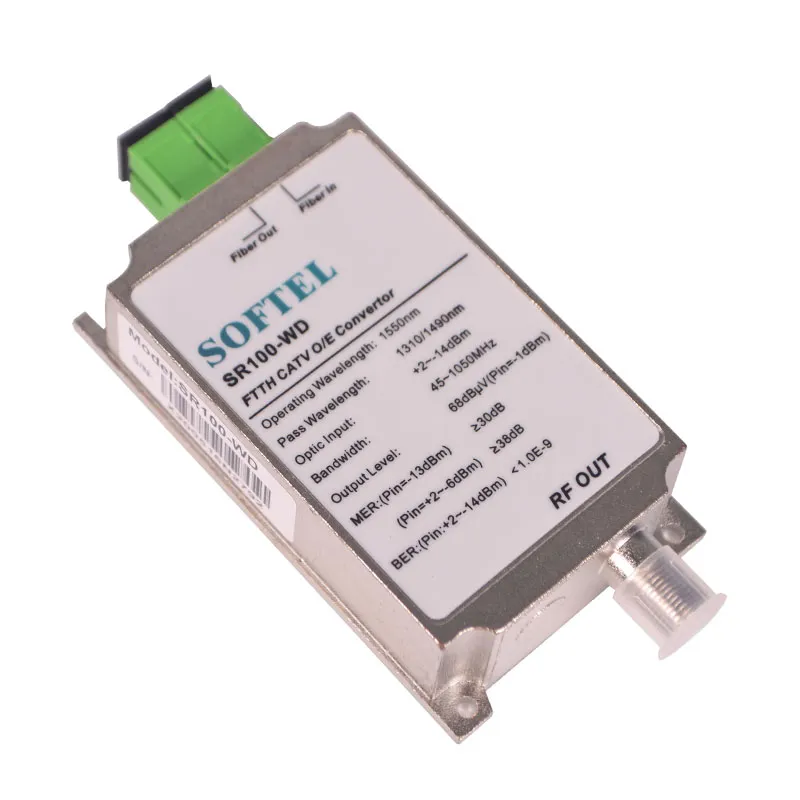

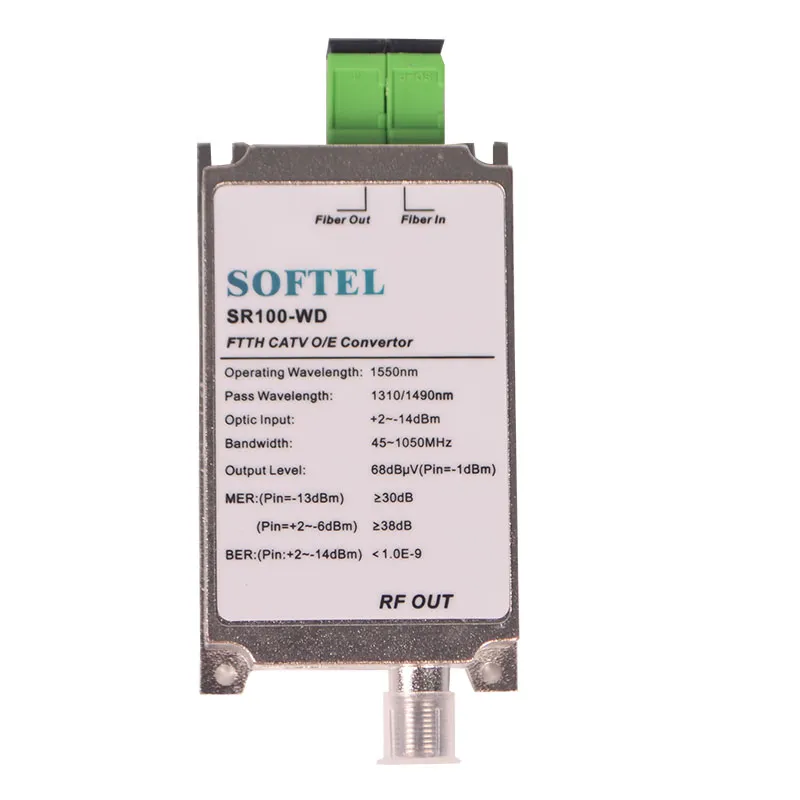

SR100

series CATV converter for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=68dBuV, economic, flexible application integration, application of fiber to the home network.

There are five kinds of model selection: SR100, SR100F: CATV operating wavelength 1260~1620nm. SR100-WD: Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON. SR100-WF, SR100F-WF: built-in1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV operating wavelength 1550nm.

2.0 PRODUCT FEATURE

1.No Power required

2.Work bandwidth 45~1050MHz

3.Output Level=68dBμV (Pin=-1dBm)

3.0 MAIN APPLICATION

1. CATV FTTH

2. Integration of three networks

3. FTTH PON

Specifications
Number Item		Unit	Description	Remark
Customer Interface
1	RF Connector		75Ω"F" connector	United standard
2	Optical Input Connector		SC/APC
2	Optical Output Connector		SC/PC
3	DC Supply		DC Adapter
Optical Parameter
4	Optical Input Power	dBm	-18 ~ +2
5	Optical Return Loss	dB	15(Min), 45(Type)
6	Operating Wavelength(Rx)	nm	1550±10
7	Respnsivity	A/W	>0.9	1310-1490nm
8	Insertion Loss	dB	0.4(Type), 0.6(Max)
9	Pass Wavelength	nm	1310/1490	Customized XGPON
10	Isolation	dB	40(Min)
11	Optical Fiber Type		SM 9/125um SM Fiber
RF Parameter
12	Frequency Range	MHz	45~2400
13	Band Flatness(40~860)	dB	<±1
14	Band Flatness(950~2150)	dB	<±2
15	Output Level	dBuV	83±2	AGC range
16	Optical AGC Range	dBm	-8 ~ +2
17	RF Gain Range	dB	20
18	Output Impedance	Ohms	75
19	CATV Output Freq. Response	MHz	40-860
20	C/N	dBc	54
21	CSO	dBc	60
22	CTB	dBc	60
Other Parameter
23	Power Input Voltage	VDC	9V & 12V
24	Power Consumption	W	<2
25	Dimensions	mm	508822
26	Net weight	KG	0.119

1. ModelNumber:SSR2020AW;Brand:
2. Designedfor triple play FTTH
3. Build-in WDM Technology applied To GEPON/GPON/XGPON System
4. AGCFunction Optional

5. Frequency range 45-2400MHz For CATV and Satellite Network
6. Voltagesupply: DC Adaptor & RF Port
7. RFInterface for CATV
8. OpticalOutput Interface for data SC/APC or SC/PC option
9. Red-LEDPower Indication

10.Green-LED Optical Power Indication
