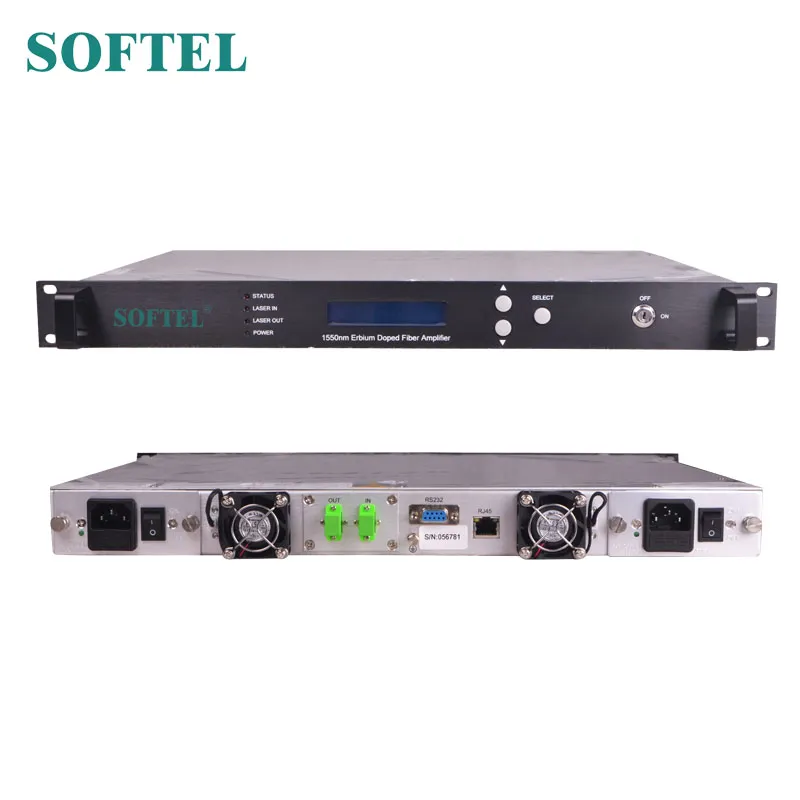

Softel CATV Single Port EDFA 1550nm Optical Amplifier
Softel CATV Single Port EDFA 1550nm Optical AmplifierSummary SOA1550 series is a CATV booster optical amplifier with gain spectrum band within 1540~1565nm. This kind of optical amplifier is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). Generally, ......
Send Inquiry
Product Description
Summary
SOA1550 series is a CATV booster optical amplifier with gain spectrum band within 1540~1565nm. This kind of optical amplifier is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). Generally, fiber CATV system operates in single wavelength that has no strict requirement on gain flatness. SOA1550 booster amplifier is featured with low NF, high-saturated output power. It is applicable for central bureau, sub-bureau and line relay, as well as other optical communication network. SOA1550 is applied most commonly and widely compared with other optical amplifier in CATV system.

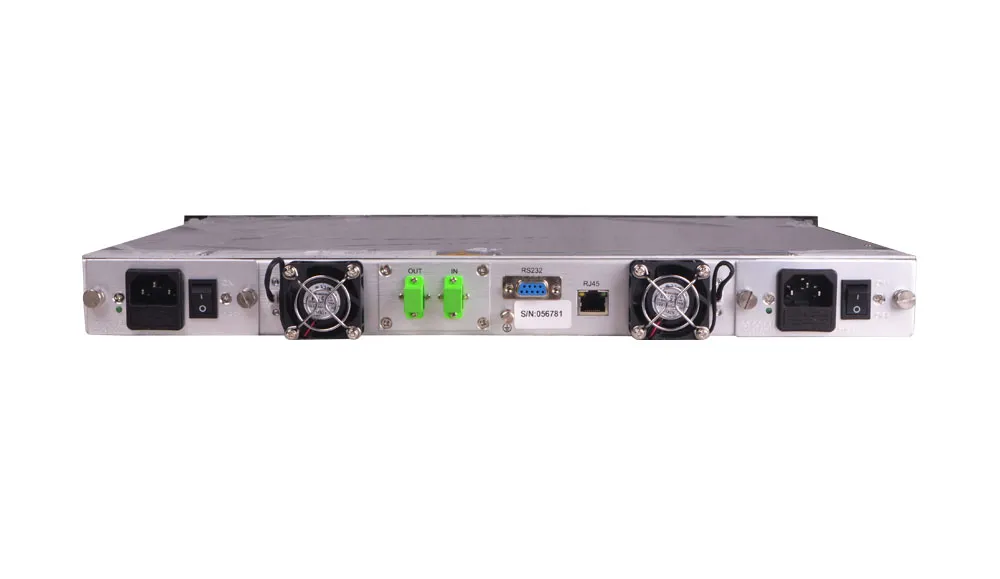

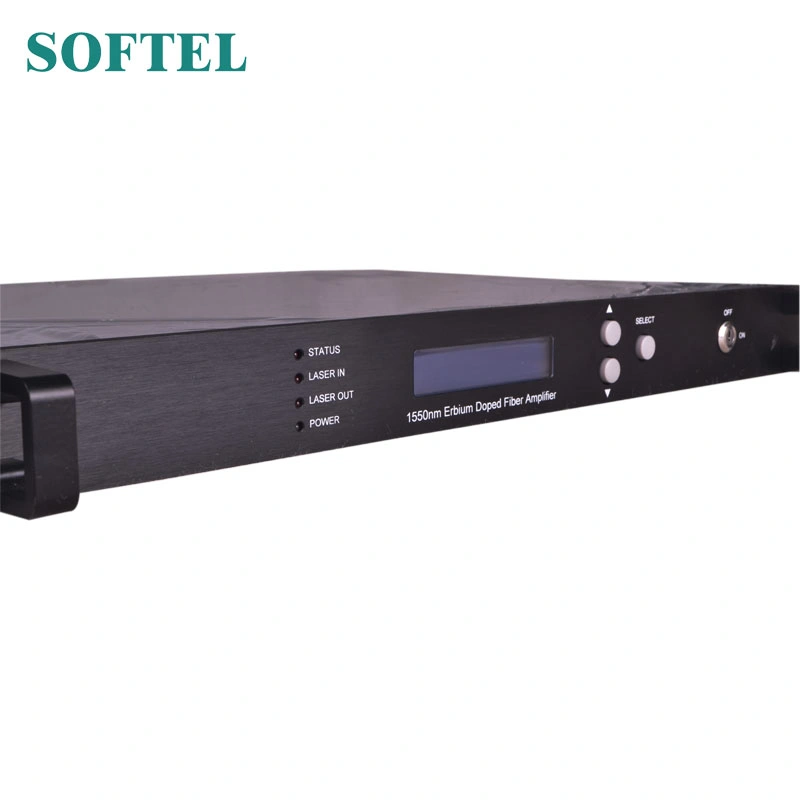

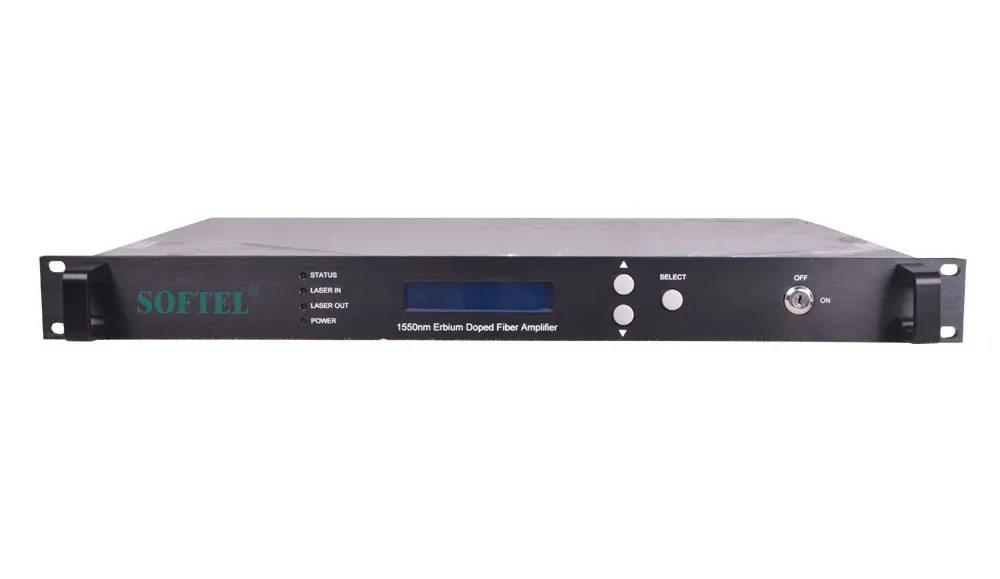

SOA1550 optical amplifier adopts the world's top class pump laser and America OFS erbium-doped optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. RS232 and RJ45 offer serial commutation and SNMP network management port. The LCD at the front panel offers the work index of all equipment and warning alarm. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical port of optical amplifier can be installed in the front panel (also can be in the back panel if customers specify).
Features
• 1540~1563nm operating bandwidth
• Low noise, high output, high reliability
• APC, ACC, ATC controlled selection(SOA1550/P)
• Powerful RS232 supervisory instruction
• Three exterior option: 1U (19" stander), 3D (12.4", 3U, Desk-type) and modulator
• 1U and 3D exterior, offering status appearance and diagnosing fault with LCD, standard RS232 communication interface, SNMP network management function
• Application of 3D models to adapt to laboratory
• Excellent P/P ratio in area
Performance | Index | Supplement | ||||
Min | Typ | Max | ||||
Optic feature | Operation wavelength range (λ) | (nm) | 1540 |
| 1563 | CATV |
Input power | (dBm) | -10 |
| +10 |
| |
Maximim output power 1) | (dBm) | +10 |
| +26 | Pin=0dBm | |
Output power adjustable range | (dBm) | -6 |
| 0 | S0A1550/P | |
Number of output ports |
| 1 |
| 8 | SC/APC, FC/APC | |
1 |
| 16 | LC/APC | |||
Difference of each output power | (dB) | -0.5 |
| +0.5 |
| |
Noise figure (Pin=0dBm) | (dB) |
|
| 6.3 | SOA1550-26 | |
Polarization dependence loss | (dB) |
|
| 0.3 |
| |
Polarization dependence gain | (dB) |
|
| 0.3 |
| |
Polarization mode dispersion | (ps) |
|
| 0.3 |
| |
Input/ output isolation | (dB) | 30 |
|
|
| |
Pump power leakage | (dBm) |
|
| -30 |
| |
Echo loss | (dB) | 55 |
|
| APC | |
General feature | SNMP network management interface |
| RJ45 |
| ||
Communication interface |
| RS232 |
| |||
Power supply | (V) | 90 |
| 265 | 220VAC | |
30 |
| 72 | -48VDC | |||
23 |
| 25 | +24VDC | |||
Power consume | (W) |
|
| 50 |
| |
Work temp. | (ºC) | -5 |
| 65 |
| |
Storage temp. | (ºC) | -40 |
| 80 |
| |
Operating relative humidity | (%) | 5 |
| 95 |
| |
Size (W)×(D)×(H) | (mm) | 483×368×44 | 1RU (19") | |||
315×391×133 | 3D (12.4", desk-type) | |||||
399×244×165 | Out-door | |||||
