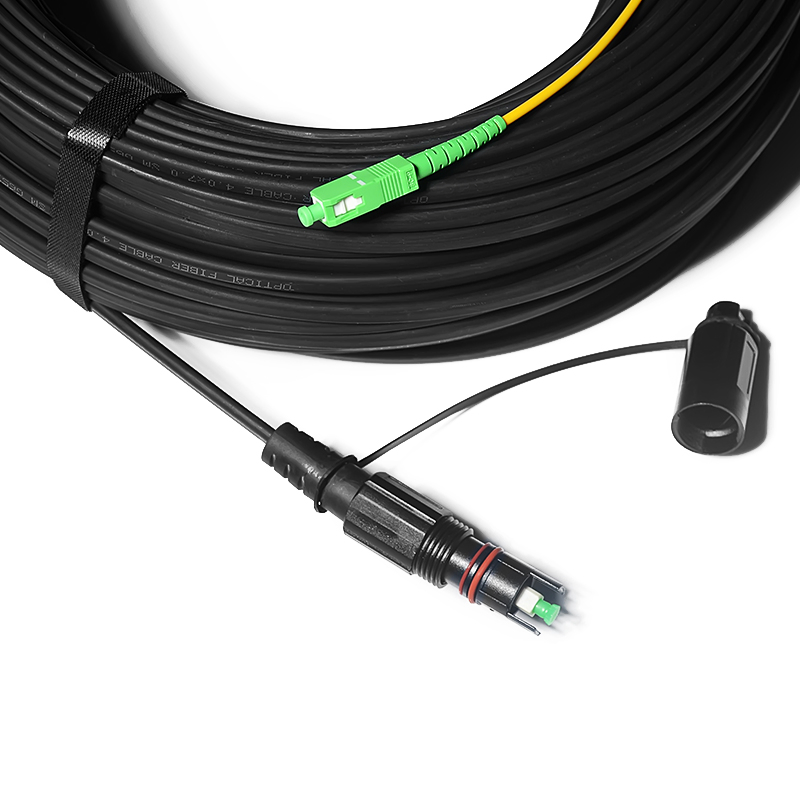

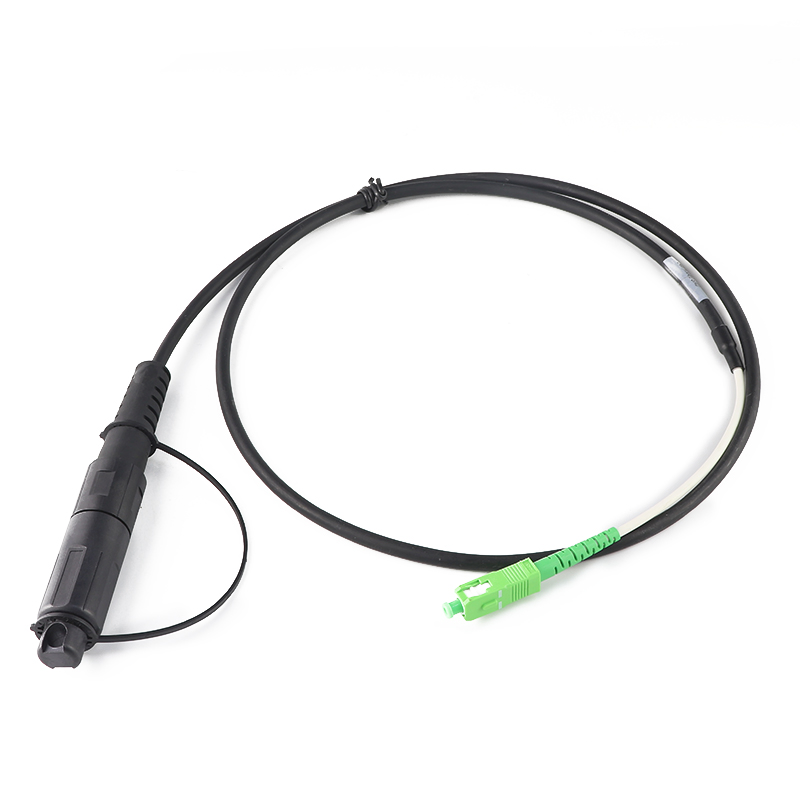

Sm G657A1 Sc APC 1 Fiber Hoptic Connector Matching with Corning Optitap Connector

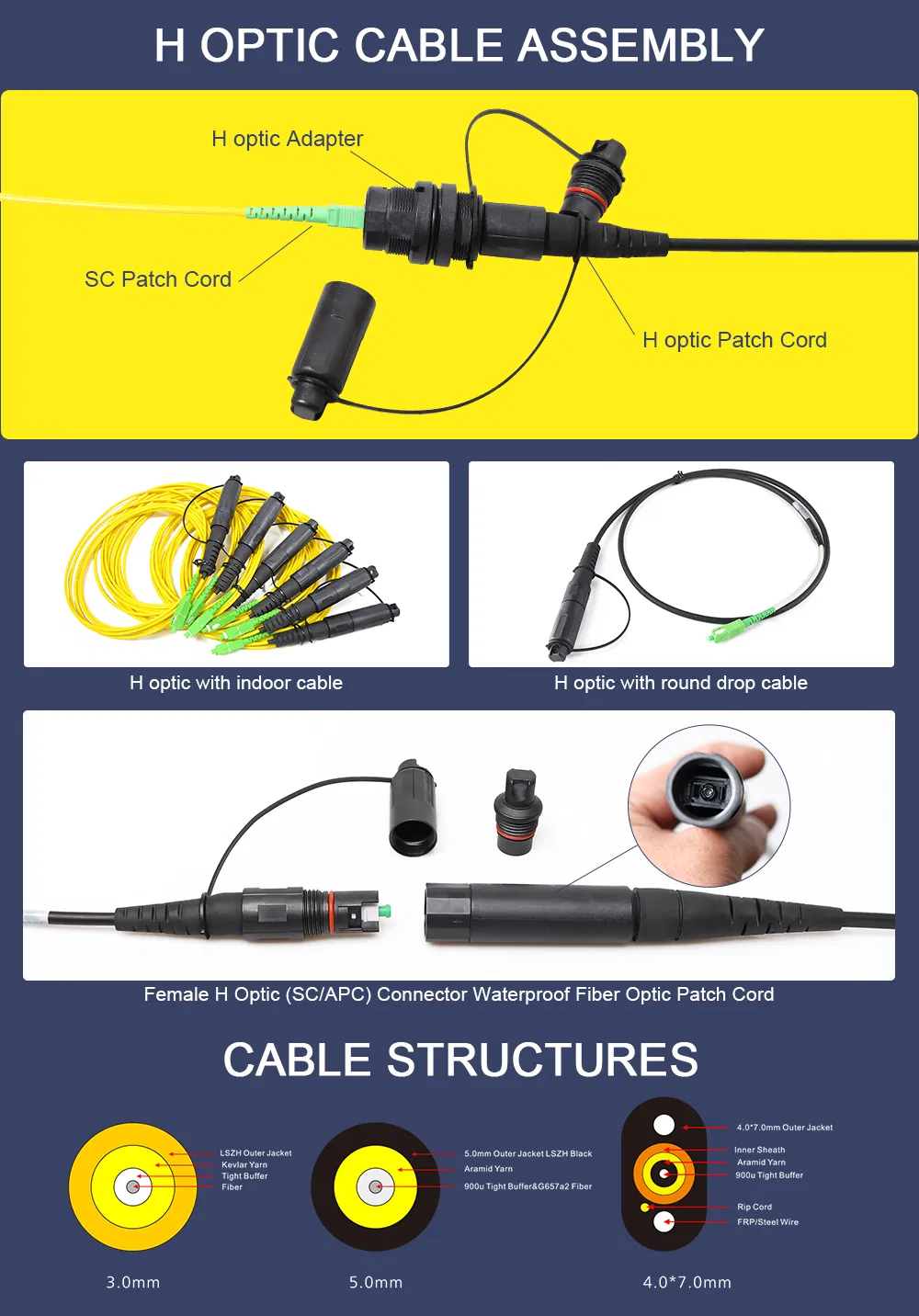

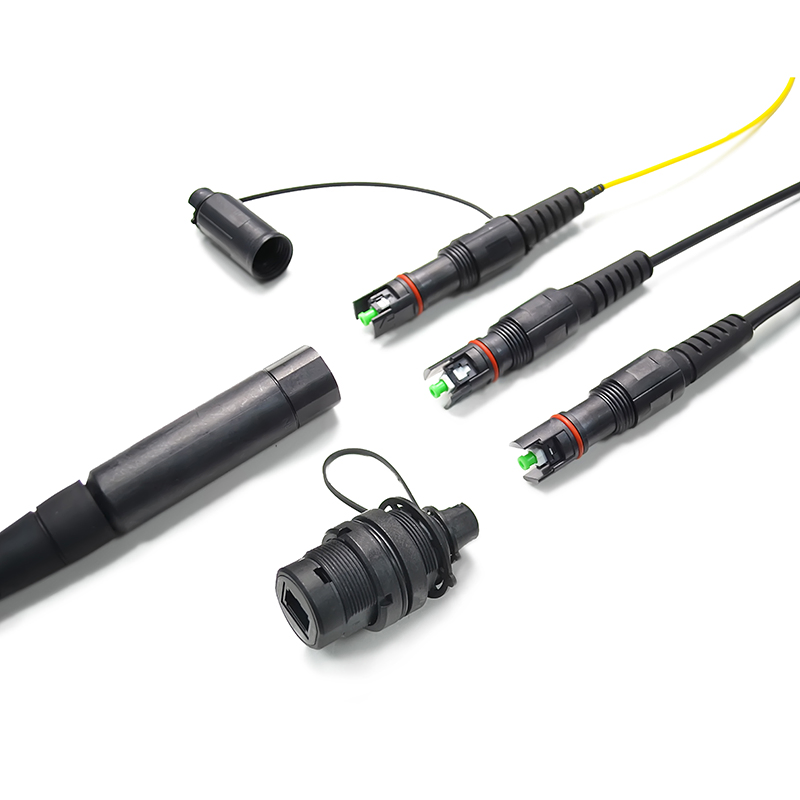

DYS's H optic assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H optic connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H optic connector provides an ideal solution for direct burial, conduit, or aerial installations.

Benefits
Allows flexibility to use factory terminated assemblies
Provides superior weather resistance for FTTH and other outdoor applications
Ensures functionality in harsh weather environments
Can be used with industry standard cable designs
Easily installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use

Features
Single fiber, SC-based connector
Bird proof and rodent resistant
IP68 water and dust protection
Low profile in-line receptacle available
No installation tools required
100 minimum mating cycles
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
33 lb. axial cable retention (150N)

Applications
FTTH
Outdoor Areas
Harsh Environment

Technical parameters
