Skycom OTDR750 1310/ 1550
SKYCOM OTDR T-OT750-S-A28sss T-OT750 series tester is a comprehensive optical fiber measuring instrument developed by Skycom, to solve the measurement of various parameters of optical fiber. It mainly USES OTDR function and has other common measuring functions. Really reflected: ONE MACHINE, TEST......
Send Inquiry
Product Description
SKYCOM OTDR T-OT750-S-A28
T-OT750 series tester is a comprehensive optical fiber measuring instrument developed by Skycom, to solve the measurement of various parameters of optical fiber. It mainly USES OTDR function and has other common measuring functions. Really reflected: ONE MACHINE, TESTING ALL!
Main parameter characteristics
Model Specification.
Parameter
FAQ
1.Are you a manufacture or trade company?
We are the manufacture with 10 year's history still 2020
2.What is your product's brand?
Our product's brand is SKYCOM
3.What is your main products?
Our main product is Fusion Splicer, OTDR, some fiber tools
4.How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your payment, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods, if you don't have the ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost.
5. What is the quality for your product?
All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile
6. How do you arrange the shipping?
They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days.
7. Why choose SKYCOM to cooperate?

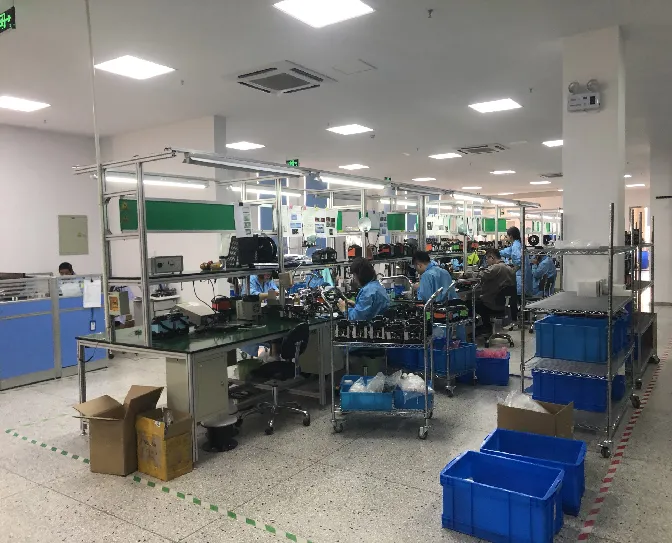

We have first-class production line and strict quality management system.
We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
We can provide the most competitive price to meet your budget.
We also design and innovation the new products based on our rich experience.
We have professional team to provide comprehensive one-stop service for you.
sss

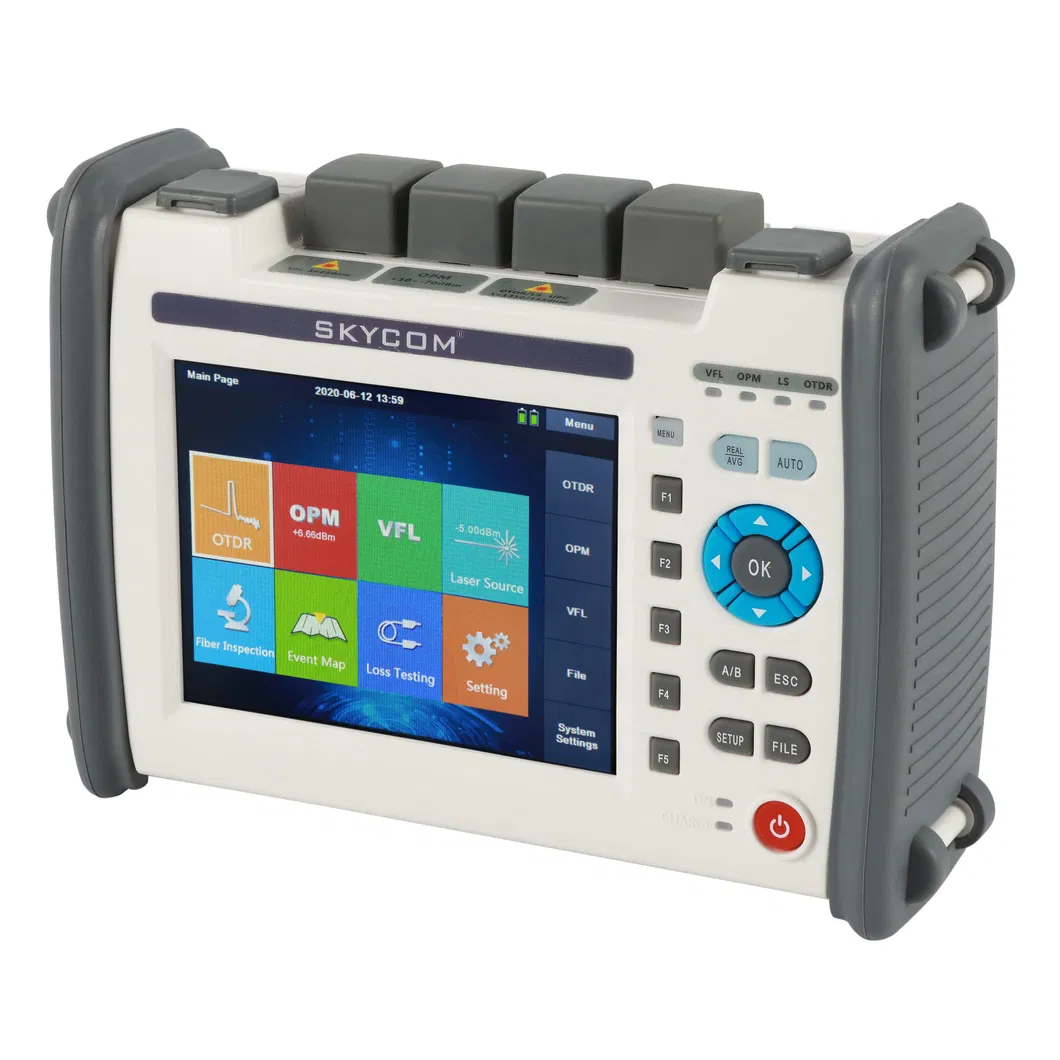

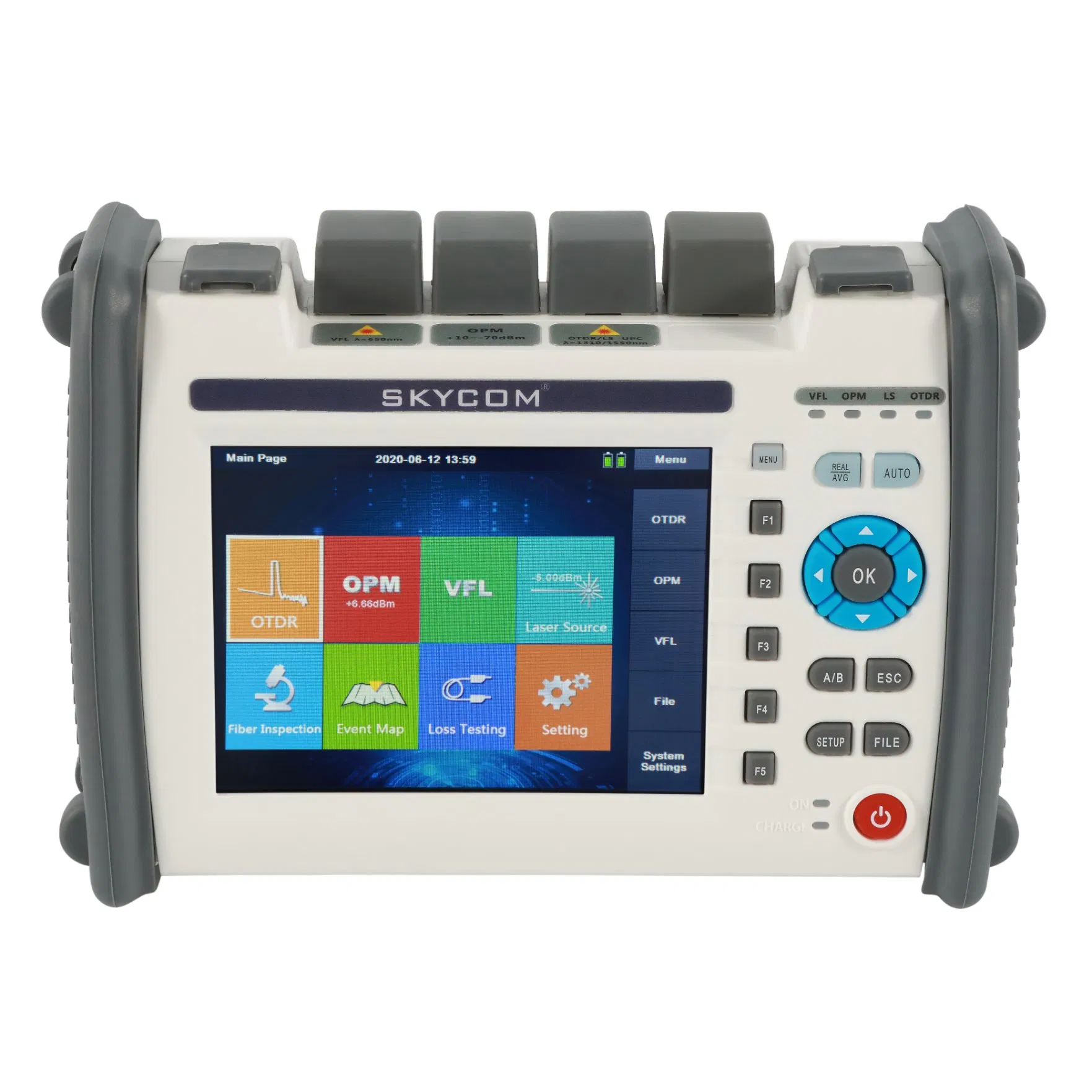

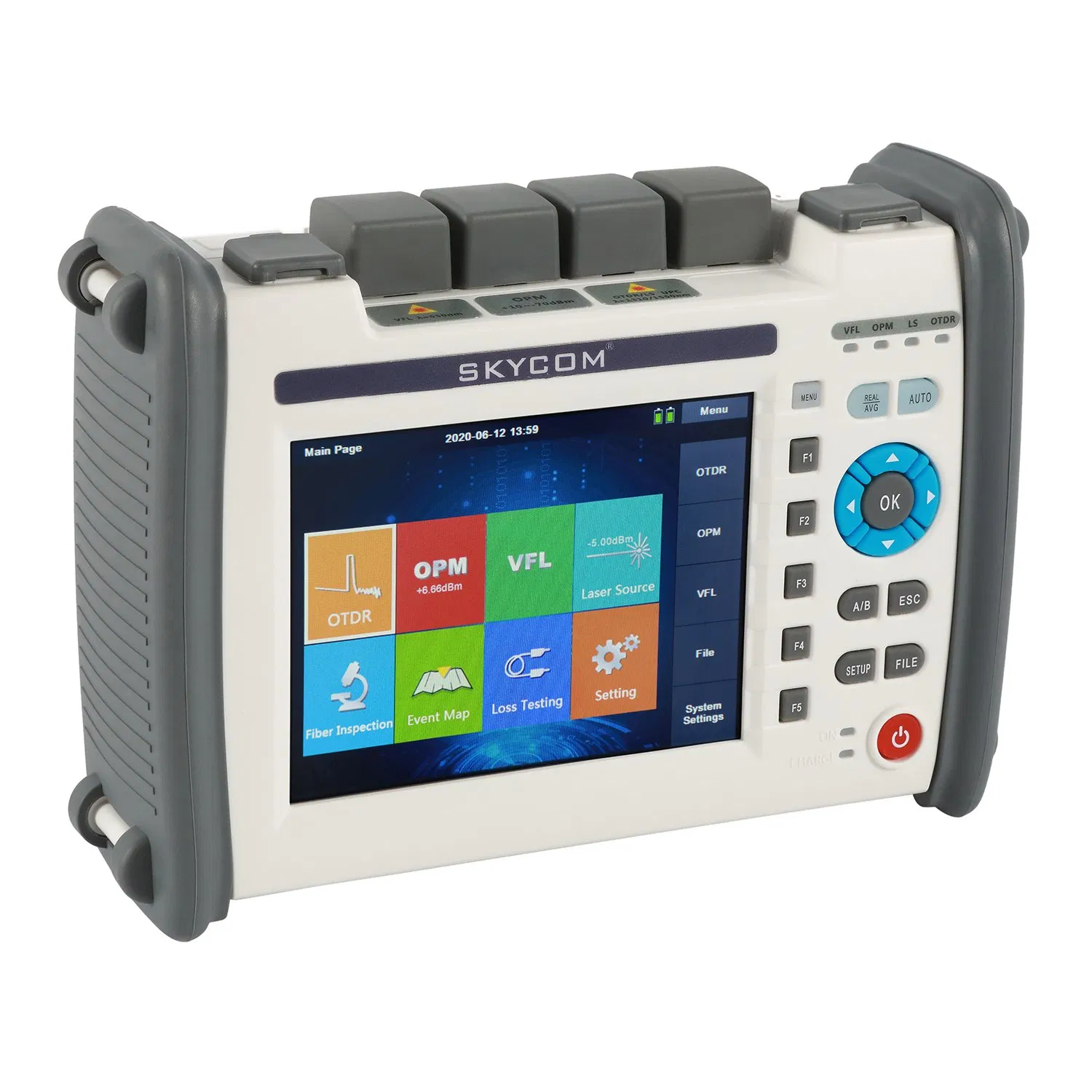

T-OT750 series tester is a comprehensive optical fiber measuring instrument developed by Skycom, to solve the measurement of various parameters of optical fiber. It mainly USES OTDR function and has other common measuring functions. Really reflected: ONE MACHINE, TESTING ALL!
Main parameter characteristics
- Touch-sensitive and solid physical button work together for perfect user experience
- Excellent for short-range measurement,Dead zone:0.8m/4m
- Maximum sampling resolution:5cm
- Support multiple analysis functions on testing results:Segment return loss,Event point return loss,Multi curves comparison, quick screen shots.
- Complete user data interface:USB(Type A),MINI USB,SD card
Model Specification.
| Model No. | Wave Length(nm) | Dynamic Range(dB) | Deadzone(M) |
| T-OT750-SM35 | 1310/1550/850/1300 | 35/32/22/26 | SM:0.8/4 MM:2/5 |
Parameter
| Pulse Width | SM | 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
| MM | 850mm:3ns,5ns,10ns,20ns,50ns,100ns,200ns,500ns,1us 1300mm:3ns,5ns,10ns,20ns,50ns,100ns,200ns,500ns,1us,2us | |
| Test Range | SM | 100m,500m,2km,5km,10km,20km,40km,80km,120km,160km,240km |
| MM | 850mm:500m,2km,5km,10km 1300mm:500m,2km,5km,10km,20km,40km,80km | |
| Minimum sampling resolution | 0.05m | |
| Maximum sampling point | 256,000 | |
| linearity | ≤0.05dB/dB | |
| Loss resolution | 0.001dB | |
| Distance resolution | 0.01m | |
| Distance accuracy | ±(1m+Range×3×10-5+Sampling resolution) (Regardless of the refractive index) | |
| Result Storage | >16G SD card(Maximum support 128G),Store more than 100000 pieces of data | |
| Complete user data interface | USB(Type A),MINI USB,SD card | |
| Monitor | 5.6 "TFT LCD 640 * 480 | |
| Battery | 7.4V/2500mAh X 2 lithium battery(Aviation certification) | |
| Working temperature | Working temperature:-10ºC~+50ºC;Storage temperature:-20ºC~+70ºC | |
| Relative humidity | ≤95%(No condensation) | |
| Size and weight | 215×155×68mm/1.1kg(Including 2 batteries) | |
| VFL | 10KMS, 10mW,CW/2Hz | |
| OPM | Option A:-10dBm~-70dBm; Option B:+23dBm~-50dBm | |
| Laser source | Output:-5dBm±2dB,Frequency:CW/270Hz/1KHz/2KHz | |
| GPS/GNSS | Customized | |
| WIFI/Bluetooth | Customized | |
FAQ
1.Are you a manufacture or trade company?
We are the manufacture with 10 year's history still 2020
2.What is your product's brand?
Our product's brand is SKYCOM
3.What is your main products?
Our main product is Fusion Splicer, OTDR, some fiber tools
4.How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your payment, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods, if you don't have the ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost.
5. What is the quality for your product?
All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile
6. How do you arrange the shipping?
They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days.
7. Why choose SKYCOM to cooperate?
We have first-class production line and strict quality management system.
We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
We can provide the most competitive price to meet your budget.
We also design and innovation the new products based on our rich experience.
We have professional team to provide comprehensive one-stop service for you.
