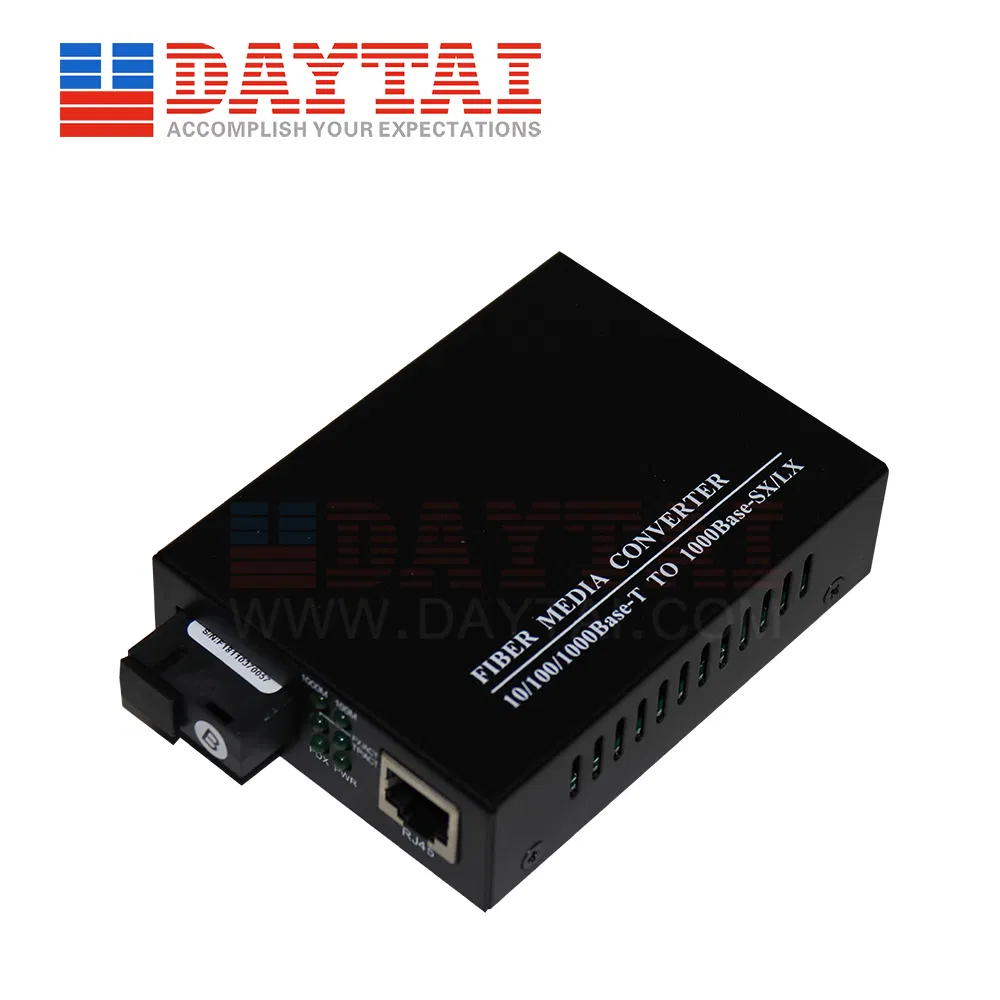

Single Mode Single Fiber 1000Mbps Media Converter for 20km Distance
Description Media Converter,DT-MC-1000M-SMSF-20KM,10/100/1000Mbps,Single Mode,Single Fiber,Distance:20KM,Optical Port:SC,Optical Wavelength: A:Tx:1310nm/Rx:1550nm,B:Tx:1550nm/Rx:1310nm,Power Supply:AC90V~260V,Power Plug:European standard Plug or American standard Plug is optional.The Gigabit media c......
Send Inquiry
Product Description
★Description
Media Converter,DT-MC-1000M-SMSF-20KM,10/100/1000Mbps,Single Mode,Single Fiber,Distance:
20KM,Optical Port:SC,Optical Wavelength: A:Tx:1310nm/Rx:1550nm,B:Tx:1550nm/Rx:1310nm,
Power Supply:AC90V~260V,Power Plug:European standard Plug or American standard Plug is optional.

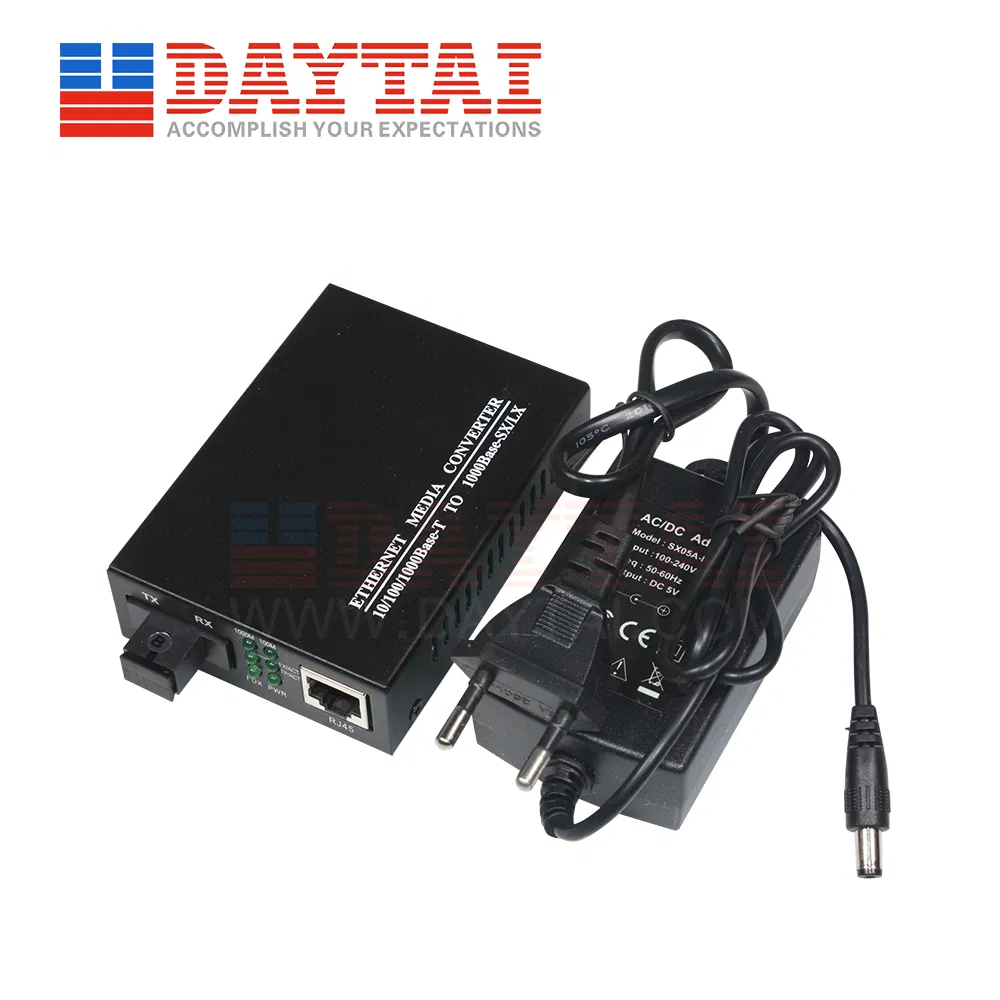

The Gigabit media converter with external power supply are designed to transmit and receive 10/100/
1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
★Features
⊙LED Indicators
⊙10/100/1000Mbps Ethernet
⊙Distances:20km Single mode
⊙1000 BASE-SX/LX optical port
⊙Automatic MDI/MDI-X crossover
⊙No in-field optical adjustments required
⊙10/100/1000 BASE-T/TX electrical port
⊙Optical port supports 1000Mbps full duplex data
⊙Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
⊙Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
★Applications
⊙Tamper Switch
⊙Access Control Systems
⊙High Speed Computer Links
⊙10/100/1000Mbps Ethernet Media Converter
⊙Building and Environmental Control Systems
★Product Specification
Media Converter,DT-MC-1000M-SMSF-20KM,10/100/1000Mbps,Single Mode,Single Fiber,Distance:
20KM,Optical Port:SC,Optical Wavelength: A:Tx:1310nm/Rx:1550nm,B:Tx:1550nm/Rx:1310nm,
Power Supply:AC90V~260V,Power Plug:European standard Plug or American standard Plug is optional.
The Gigabit media converter with external power supply are designed to transmit and receive 10/100/
1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
★Features
⊙LED Indicators
⊙10/100/1000Mbps Ethernet
⊙Distances:20km Single mode
⊙1000 BASE-SX/LX optical port
⊙Automatic MDI/MDI-X crossover
⊙No in-field optical adjustments required
⊙10/100/1000 BASE-T/TX electrical port
⊙Optical port supports 1000Mbps full duplex data
⊙Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
⊙Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
★Applications
⊙Tamper Switch
⊙Access Control Systems
⊙High Speed Computer Links
⊙10/100/1000Mbps Ethernet Media Converter
⊙Building and Environmental Control Systems
★Product Specification
| Parameters | Specifications |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX |

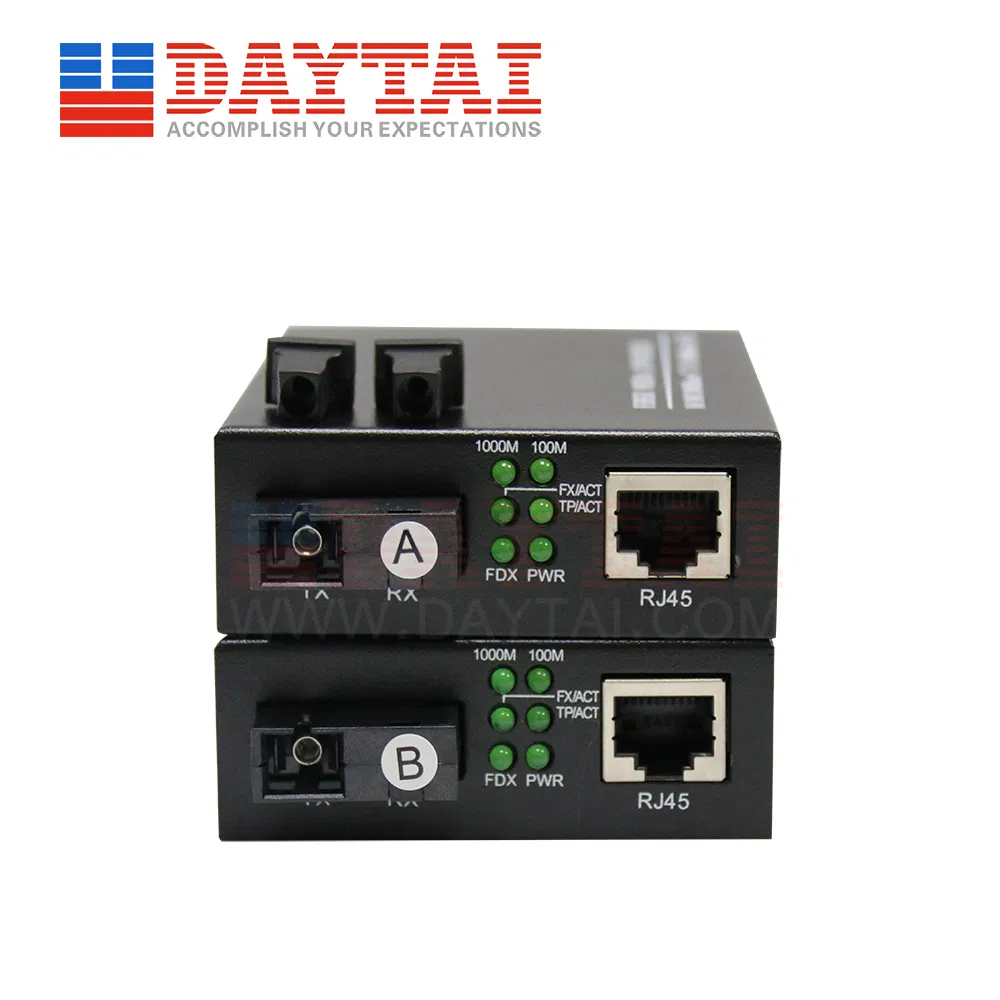

| Optic Wavelength | A:TX:1310nm/RX:1550nm B:TX:1550nm/RX:1310nm |
| Transmission Distance | Single mode:20km |
| Port | One RJ45 port, Single fiber port (SC Optional) |
| MDI/MDI-X | Auto selection |
| Mac address table | 4K |
| Memory buffer | 256K |
| Forward / Filter Rate | 1000M: 1,488,000/1,488,000pps |
| Power Supply | External : 5V DC 1A Built-in: 100 V to 240 V AC 50Hz to 60 Hz Power Consumption : ≤5W |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) |
| Dimensions | 95mm * 70 mm * 25mm |
| Net Weight | 0.165 kg |
| Emissions | FCC , Class A, RoHS, CE Mark |
