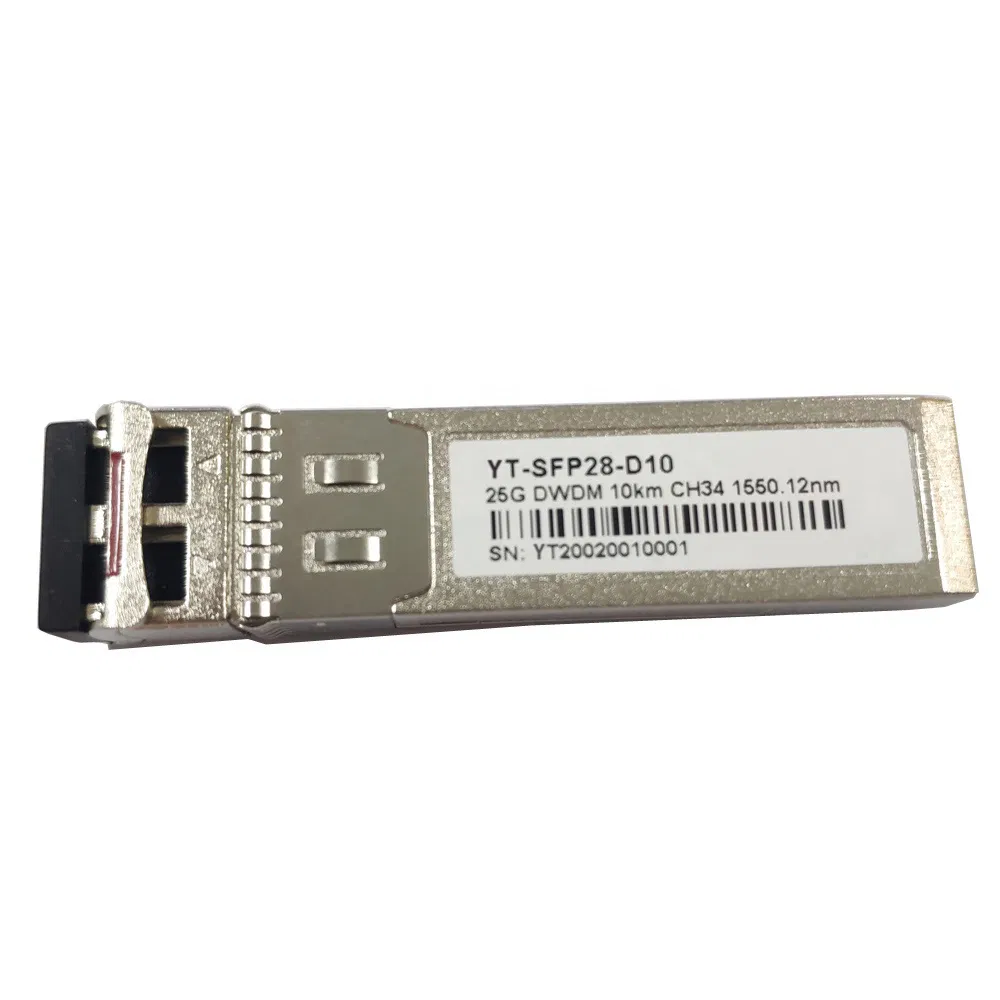

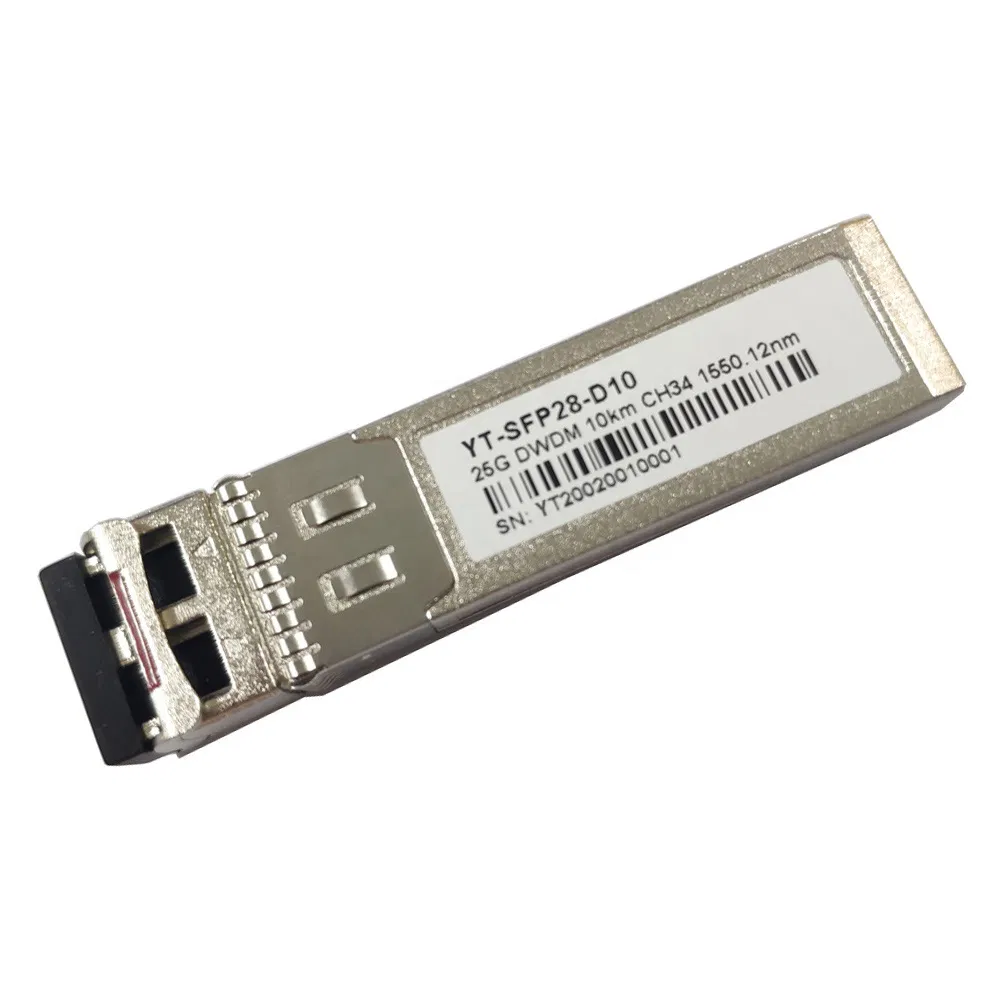

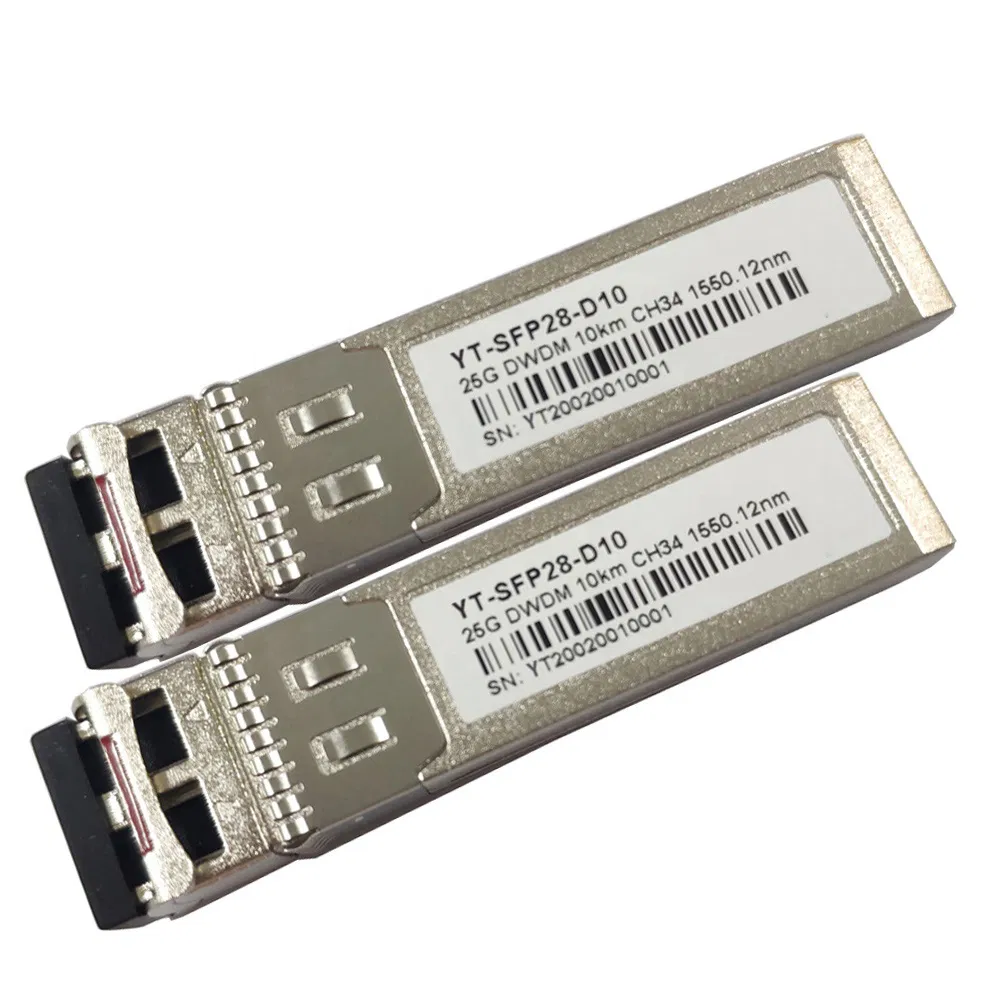

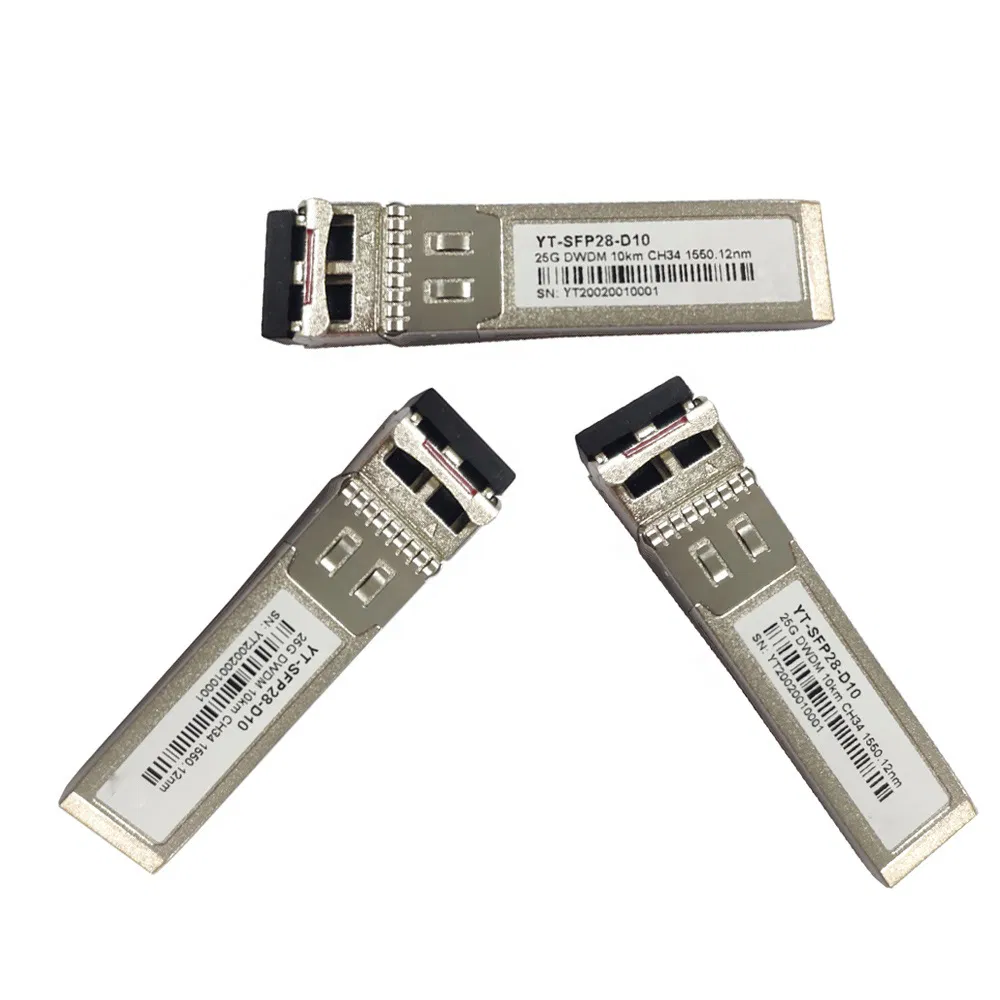

SFP28 25g DWDM SFP 10km CH34 1550.12nm Optical Transceiver Module
SFP28 25G DWDM SFP 10km CH34 1550.12nm Optical Transceiver Module DESCRIPTION Lightwit's 25Gb/s DWDM SFP28 transceiver is designed for use in 25-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of DWDM EML Laser, APD and Preamplifier in a high-integrated optical sub-......
Send Inquiry
Product Description
DESCRIPTION
Lightwit's 25Gb/s DWDM SFP28 transceiver is designed for use in 25-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of DWDM EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.
The module optical connection is duplex LC and shall be compatible with SFP+ 28Gbps and backward compatible with legacy 10G SFP+ pluggable. The SFP28 DWDM LR module is a dual directional device with a transmitter and receiver plus a control management interface (2-wire interface) in the same physical package. 2-wire interface is used for serial ID, digital diagnostics and module control function.
The transmitter converts 25Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 25GBASE-LR standard. An open collector compatible Transmit Disable (Tx_Dis) is provided. Logic "1" or no connection on this pin will disable the laser from transmitting. Logic "0" on this pin provides normal operation.
Features:
- Up to 25.78Gb/s data links
- DWDM EML transmitter and APD receiver
- 100 GHz ITU channel spacing with integrated wavelength locker
- Up to 20km on 9/125um SMF
- Hot-pluggable SFP28 footprint
- Support Digital Diagnostic Monitoring interface
- Duplex LC/UPC type pluggable optical interface
- RoHS-10 compliant and lead-free
- With CDR function
- Single +3.3V power supply
- Compliant with SFF+MSA and SFF-8472
- Metal enclosure, for lower EMI
- Meet ESD requirements, resist 8KV direct contact voltage
- Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Applications
- High-speed storage area networks
- Computer cluster cross-connect
- Custom high-speed data pipes
- Inter Rack Connection
- Other Optical Links
Compatible brand list: Cisco HP H3C 3COM Brocade Intel Juniper Arista Huawei Avago Broadcom Finisar
For other more brand, please contact us.
Warranty: 3 years warranty
Part Number | Data Rate (Gb/s) | Wavelength (nm) | Transmission Distance(km) | Temperature (oC) (Operating Case) | |
LWSFP28-XX25G-L10D | 25.78 | CH17~CH61 | 10km SMF | 0~70 commercial | |
LWSFP28-XX25GL10DE | 25.78 | CH17~CH61 | 10km SMF | -10~80 Extended | |
LWSFP28-XX25G-L10DI | 25.78 | CH17~CH61 | 10km SMF | -40~85 Industrial | |
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Usource transceivers can compatible with Cisco. All the Usource SFP compatible as the following:Cisco, Nortel, Juniper, 3COM, HUAWEI, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys,ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment
Q3. What are the trade terms?
A3: Lead Time:most popular optics in stock ,ready to ship.some of higher-value and specialize optics have a short lead time.
Payment term: Western union, T/T, Paypal
Warranty: 3 year
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
