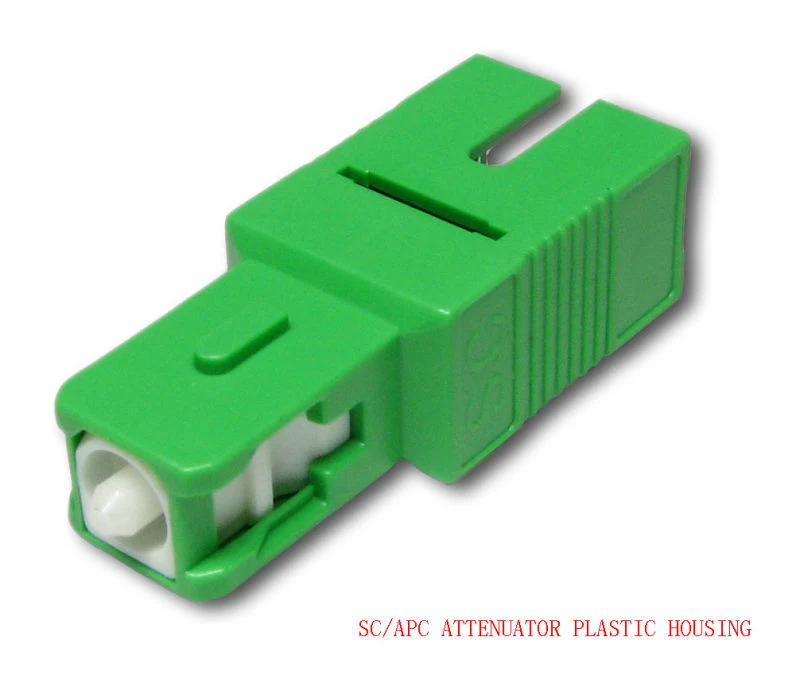

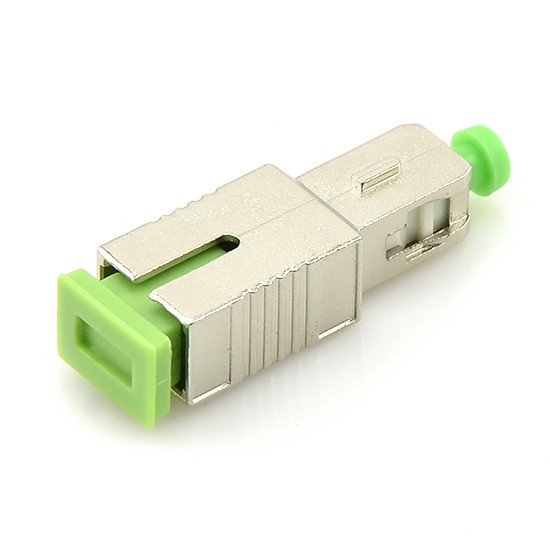

Sc/APC Male to Female Type Fiber Optic Attenuator
Singlemode LC Male to Female Fiber Optic Attenuator LC Male to Female Fiber Optic Attenuators (DF-LC Attenuator)FEATURES:Metal ion doped fiberAttenuation levels ranging from 1 dB to 30 dBLow back reflectionHigh power enduranceMaximum stability, reliability and flat spectral response100% IL, RL and ......
Send Inquiry
Product Description
Singlemode LC Male to Female Fiber Optic Attenuator
FEATURES:
Metal ion doped fiber
Attenuation levels ranging from 1 dB to 30 dB
Low back reflection
High power endurance
Maximum stability, reliability and flat spectral response
100% IL, RL and visual inspection tested
Easy to connect/disconnect (Push-Pull)
High mechanical resistance
APPLICATION:
Telecommunication
Local area network
CATV, FTTH
Fiber optic sensors
EDFA loop tests and measurements
Optical transmission system
Testing instruments
Any question about this item, please leave me an inquiry or contact me directly.
LC Male to Female Fiber Optic Attenuators (DF-LC Attenuator)
FEATURES:
Metal ion doped fiber
Attenuation levels ranging from 1 dB to 30 dB
Low back reflection
High power endurance
Maximum stability, reliability and flat spectral response
100% IL, RL and visual inspection tested
Easy to connect/disconnect (Push-Pull)
High mechanical resistance
APPLICATION:
Telecommunication
Local area network
CATV, FTTH
Fiber optic sensors
EDFA loop tests and measurements
Optical transmission system
Testing instruments
Spec:

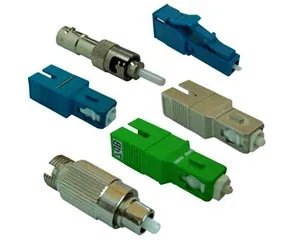

Parameters | FC,SC, LC, ST, MU, DIN, E2000, MTRJ, Hybrid |
| Attenuation Range | 2dB ~ 40dB |
| Operation Wavelength | SM: 1260-600nm, or 1310nm/1550nm |
| MM:850nm, 1310nm | |
| Return Loss | ≤50dB (PC) |
| ≤55dB (UPC) | |
| ≤65dB (APC) | |
| Attenuation Accuracy | ±0.5dB (1 ~ 10 dB) |
| ±10% of Attenuation Value (11~40 dB) | |
| Polarization Dependent Loss (PDL) | ≤0.2dB |
| Exchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Durability | ≤0.2dB Typical 1000 matings |
| Maximum Optical Input Power | 200mW |
| Operating Temperature | -20 ~ +75 degree centigrade |
| Storage Temperature | -40 ~ +85 degree centigrade |
Any question about this item, please leave me an inquiry or contact me directly.
