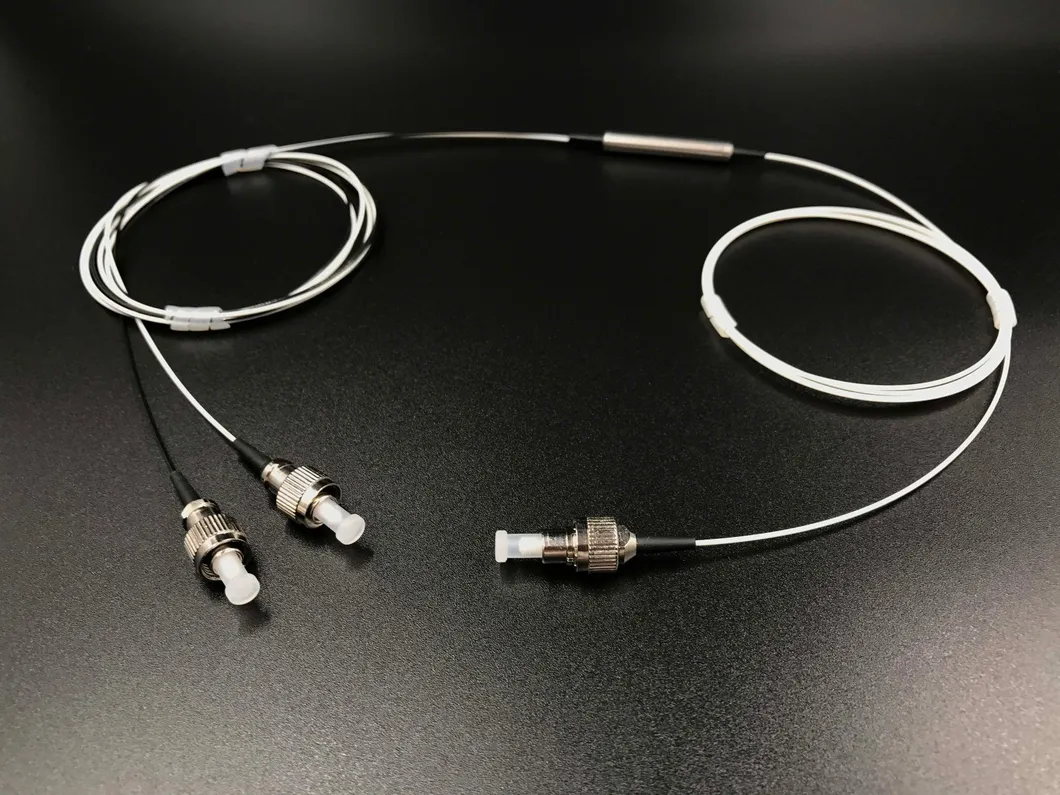

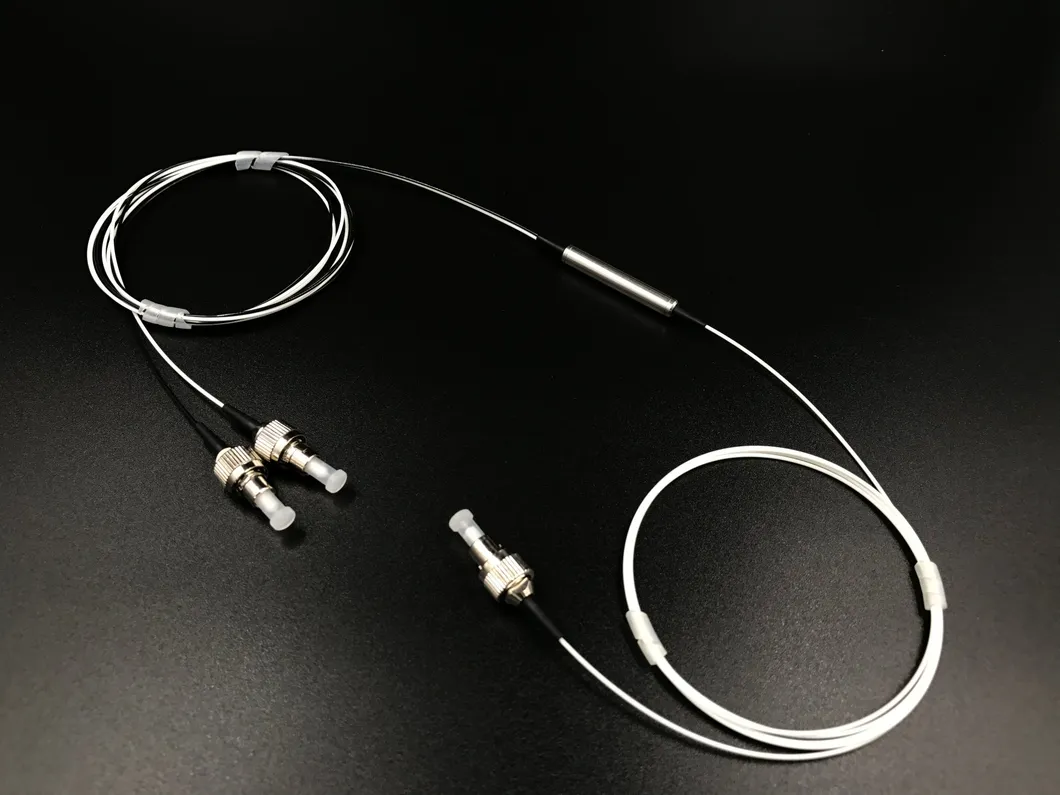

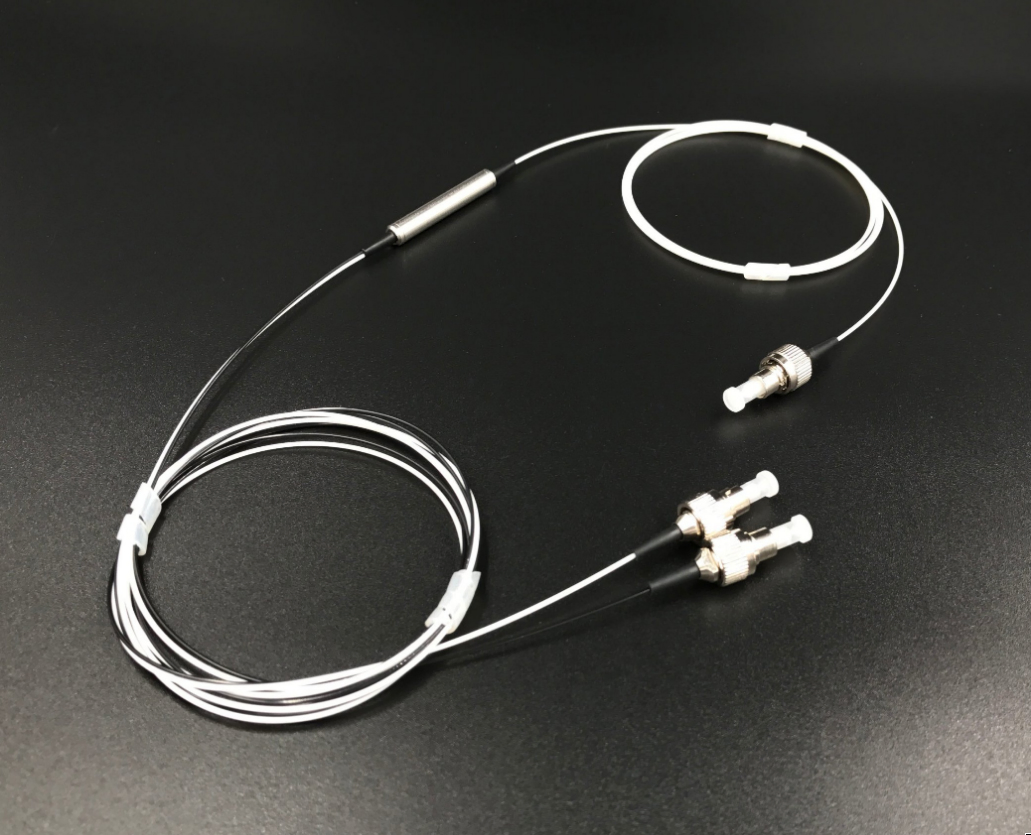

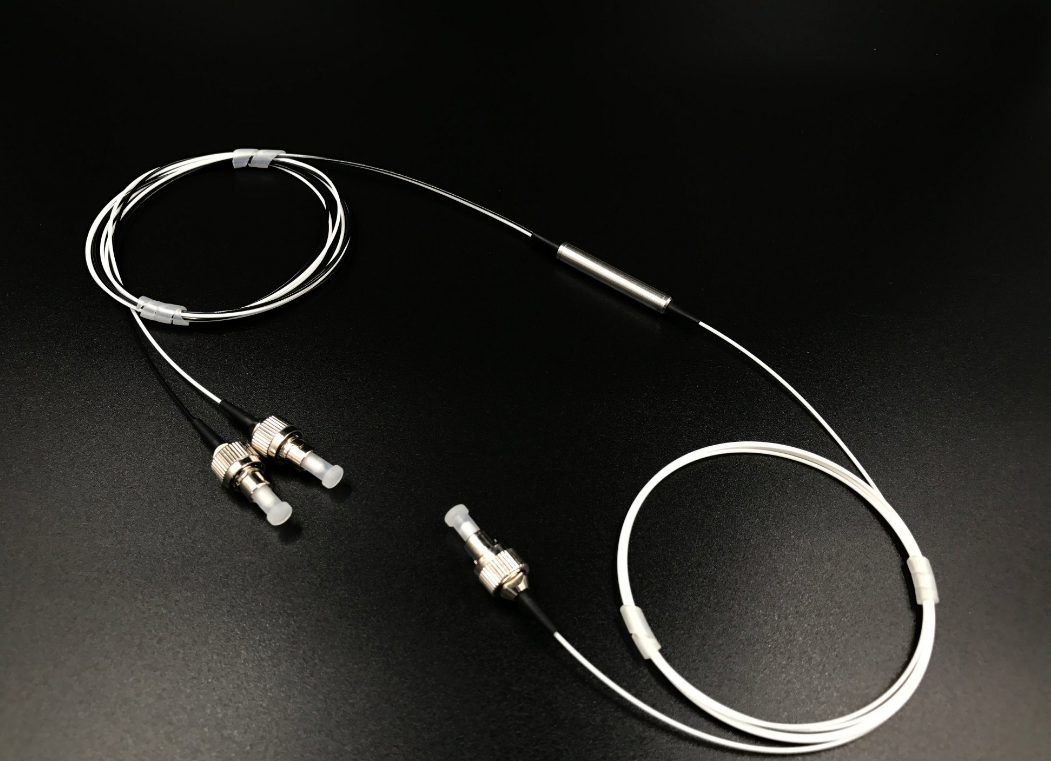

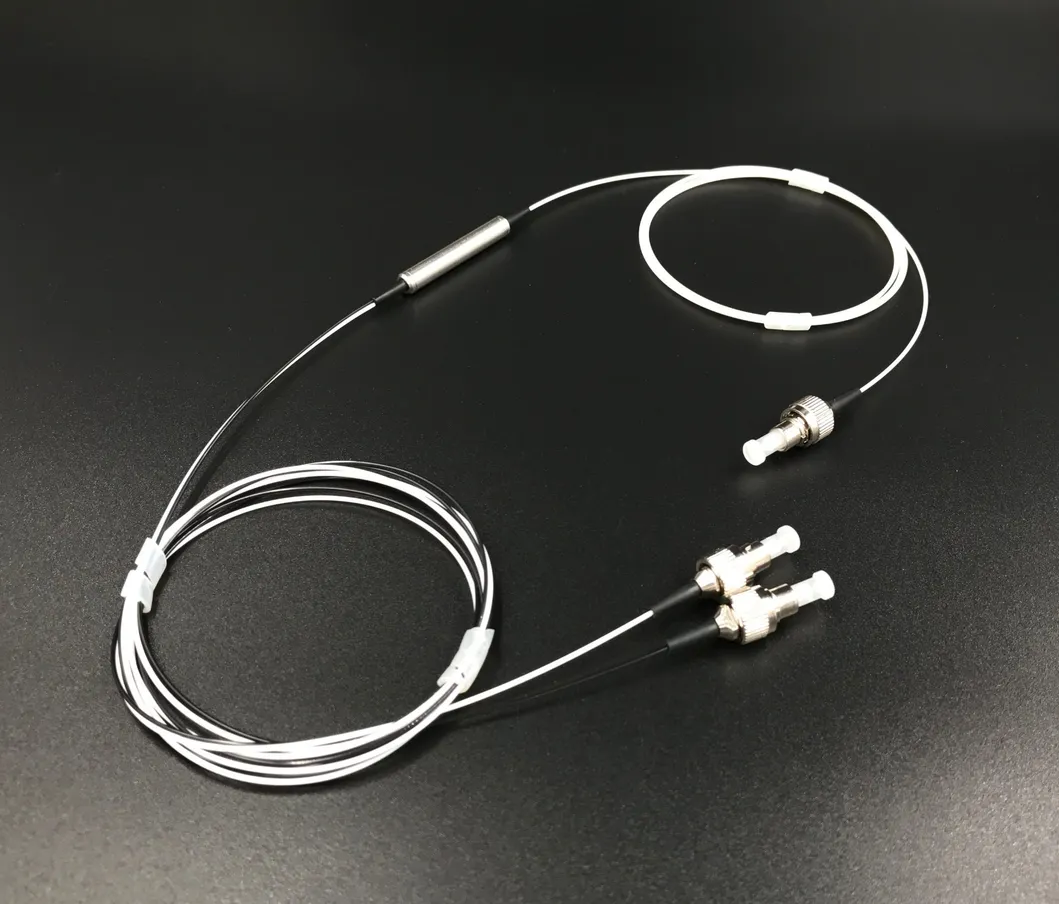

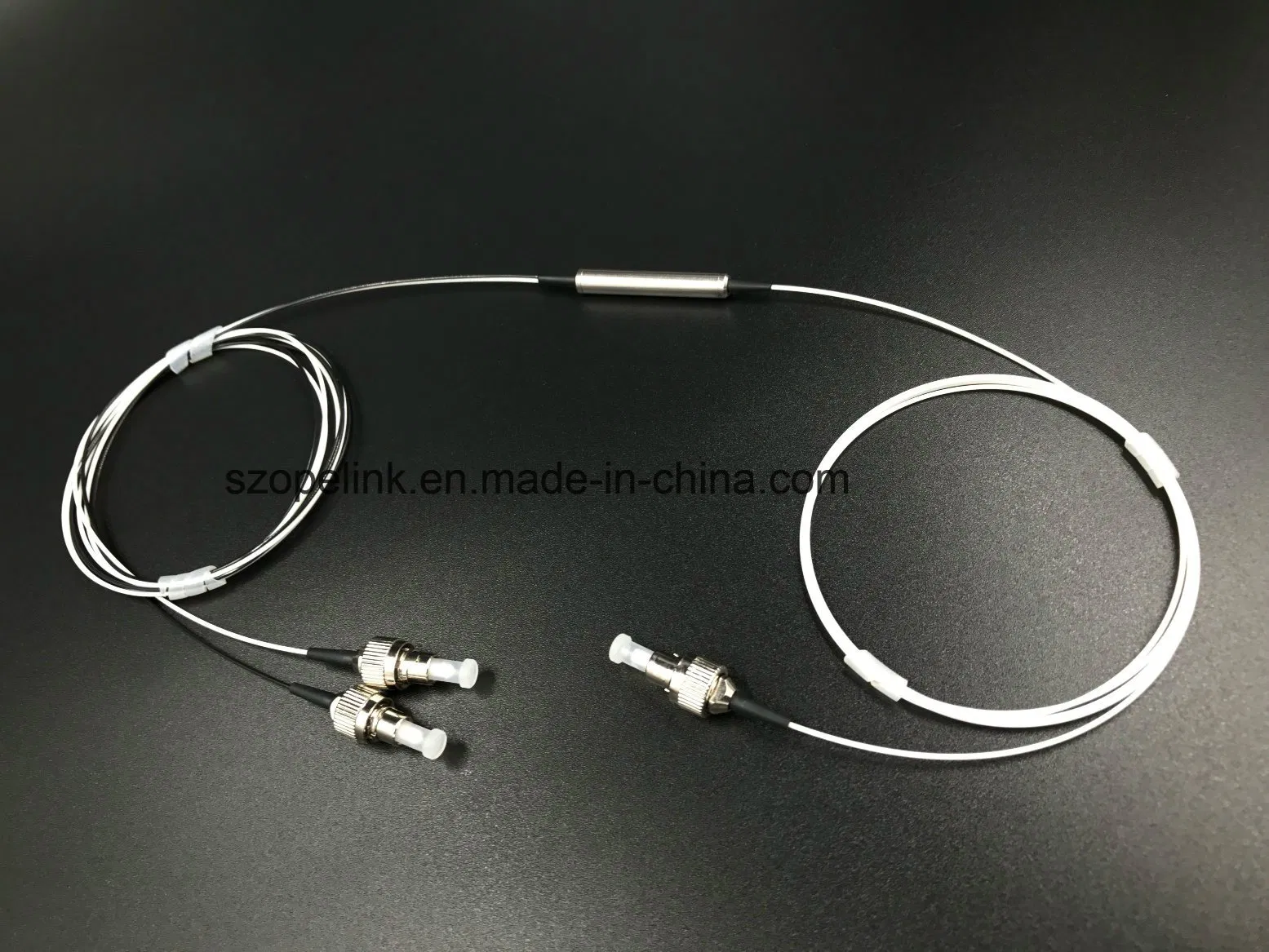

Polarization Insensitive Optical Circulator with FC Connector
Polarization Insensitive Optical Circulator with FC Connector FeaturesWide Band High Isolation Low Insertion loss Low PDL High Stability and High ReliabilityEpoxy Free Optical PathCompact In-line PackageSpecifications:ParameterUnitValueConfiguration Port 1 to Port2 to Port 3Operating Wavelength ......
Send Inquiry
Product Description
Polarization Insensitive Optical Circulator with FC Connector
Specifications:
Order Information:
----------------------------------------------------FAQ--------------------------------------------------
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
| Features |
| Wide Band High Isolation Low Insertion loss Low PDL High Stability and High Reliability Epoxy Free Optical Path Compact In-line Package |
Specifications:
| Parameter | Unit | Value |
| Configuration | Port 1 to Port2 to Port 3 | |
| Operating Wavelength | nm | 1310±30 or 1550±30 or 1585±30 |
| Typical /Maximum Insertion Loss | dB | 0.6/0.8 |
| Channel Peak Isolation | dB | >50 |
| Channel Minimum Isolation | dB | >40 |
| Channel Cross Talk | dB | >50 |
| Polarization Dependent Loss | dB | <0.15 |
| Polarization Mode Dispersion | ps | <0.1 |
| Return Loss | dB | ≥50 |
| Power Handling (mW) | mW | 300 |
| Operating Temperature | ºC | 0 ~ + 70 |
| Storage Temperature | ºC | -40 ~ +85 |
Order Information:
| Type | Operating Wavelength | Fiber Type | Package | Cable Type | Fiber Length | Connector Type |
| 3=3 Ports | 13=1310nm 15=1550nm 16=1585nm | 1=G652D 2=G657A1 | C3=5.5x50mm Steel Tube D=90x20x9.5mm Plastic Box | B=250um Bare Fiber L=900um Loose Tube S=2.0mm R=3.0mm | 10=1.0m 15=1.5m 20=2.0m | 00=None FA=FC/APC FU=FC/UPC SA=SC/APC SU=SC/UPC ST=ST/UPC LU=LC/UPC LA=LC/APC |
----------------------------------------------------FAQ--------------------------------------------------
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
