Outdoor CATV Eydfa 16 Port 21dBm
CATV Outdoor EDFA (outdoor optical amplifier)FWA-1550Y -15 Product features-High quality: The former-class pump commonly use 980nm, after-class pump use 1480nm, power is legitimately optimized by software to minimize the NF of the EDFA, could be comparable with the so-called low-power optical amplif......
Send Inquiry
Product Description

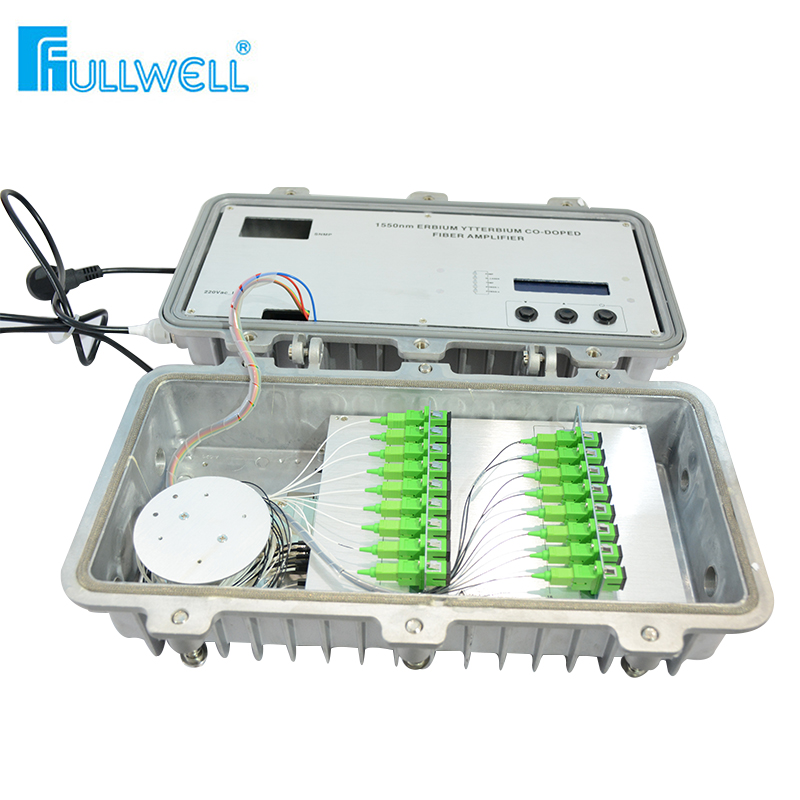

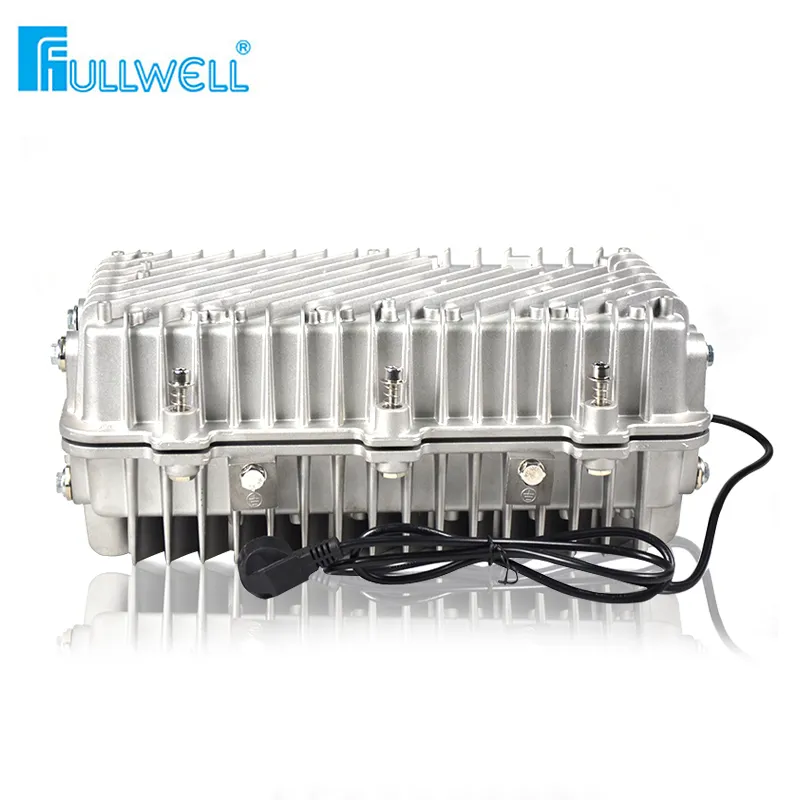

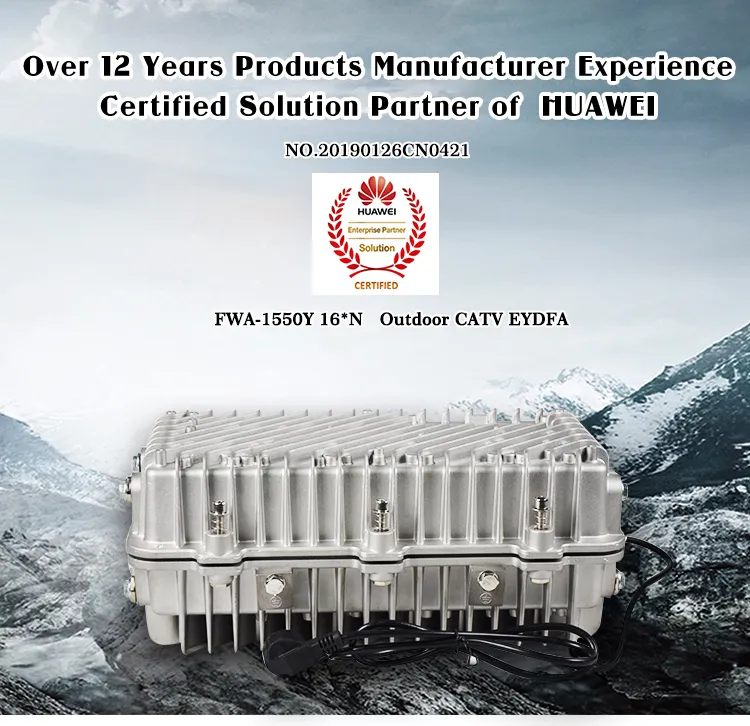

CATV Outdoor EDFA (outdoor optical amplifier)
FWA-1550Y -15

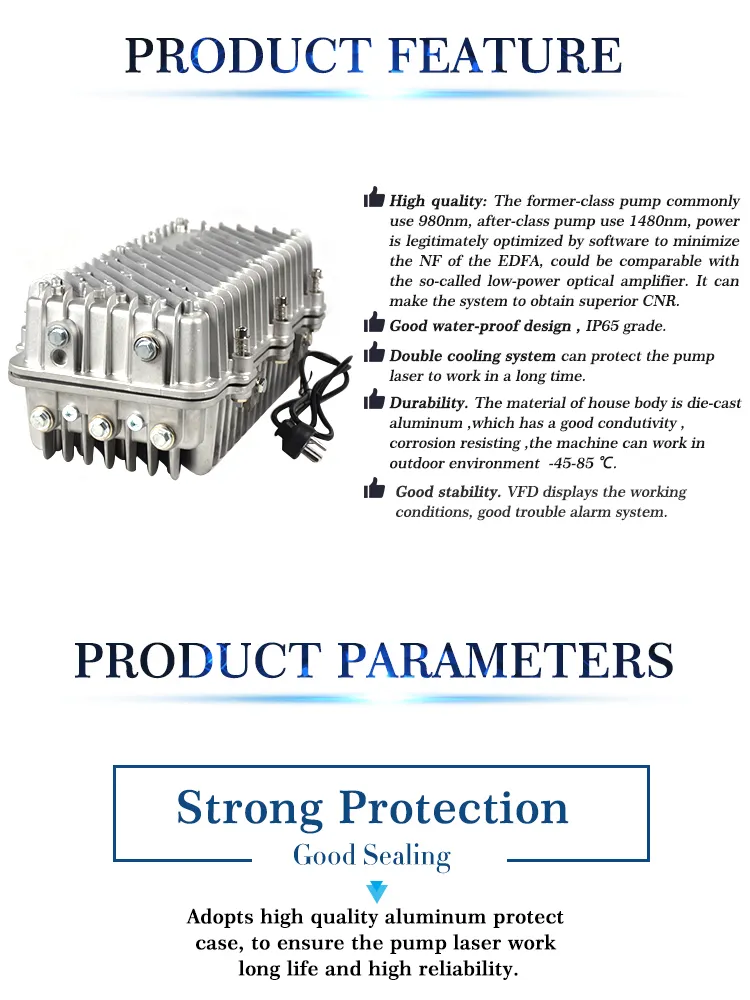

Product featuresFWA-1550Y -15
-High quality: The former-class pump commonly use 980nm, after-class pump use 1480nm,
power is legitimately optimized by software to minimize the NF of the EDFA, could be comparable
with the so-called low-power optical amplifier. It can make the system to obtain superior CNR.

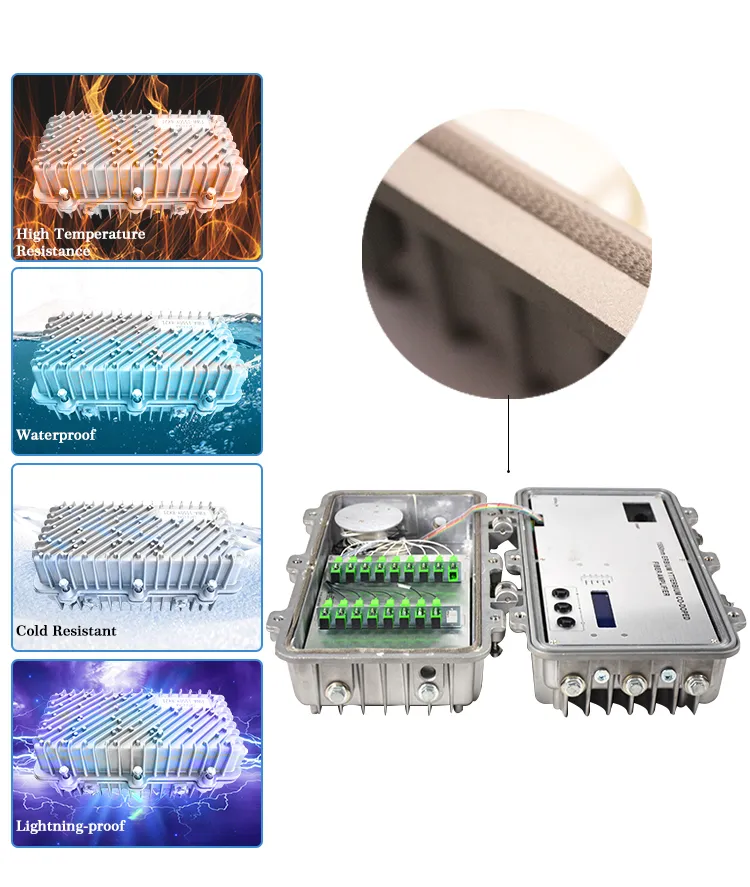

-Good water-proof design. Double cooling system can protect the pump laser to work in a long time ,

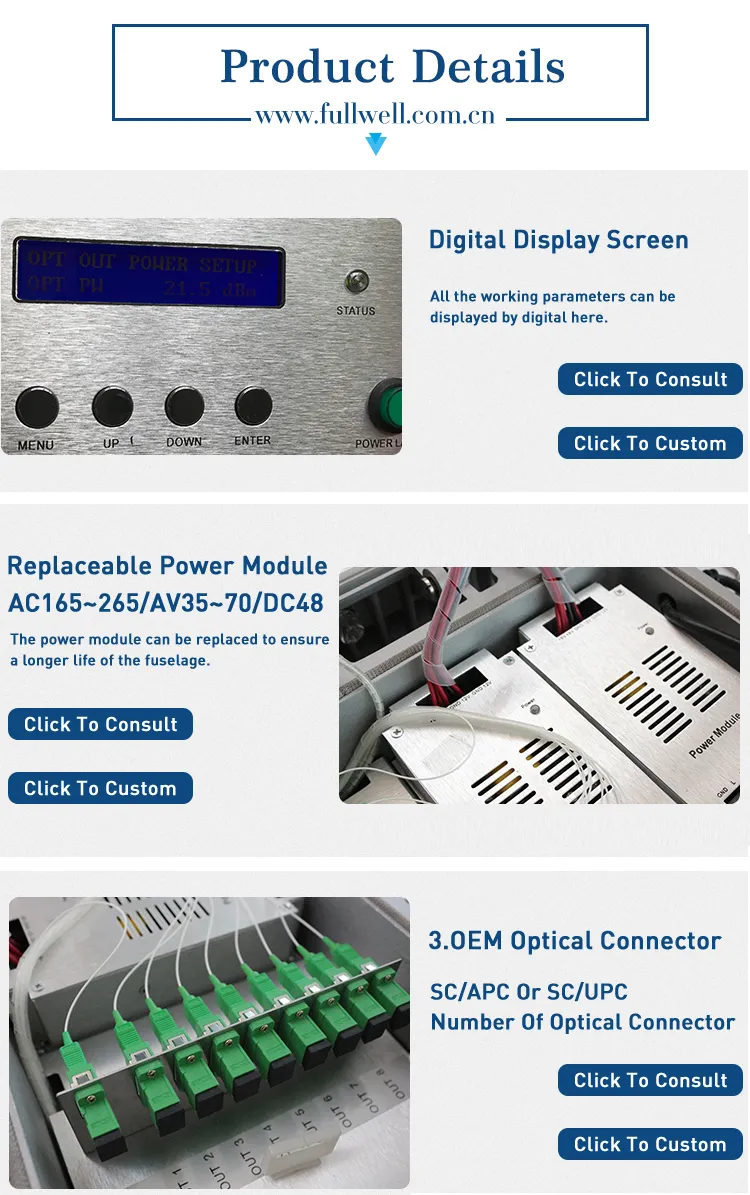

Good stability, VFD displays the working conditions, good trouble alarm system.
MAIN TECHNICAL INDICATORS
| Equipment type Item | FWA-1550Y |
| Wavelength (nm) | 1545~1555 |
| Optical input power (dBm) | ,-5~+10 |
| Nominal optical input power (dBm) | 3 |
| NF(dB) (+3 dBm,@1550nm) | 3.8~5.5 |
| Gain Flatness (dB) | <±0.3 |
| Optical output power stability (dB) | <±0.5 |
| Polarization Sensitivity (dB) | <0.2 |
| Polarization mode dispersion (ps) | <0.5 |
| Optical connector (IN/OUT) | FC/APC |
| Working pump quantity (N) | 13 |
| Saturated output power (dBm) | 13 (13~26) |
| Power source (Vac) | 115~265 |
| Power source (Vdc) | 48 |
| Working temperature (ºC) | 0~50 |
| size(mm) | 300*240*220 |
More information
FAQ:
Q1: Are you a factory or trading company?
A: We're a professional trading company with excellent cooperative factories.
Q2: Where is your company located?
A: Our company is located in Hangzhou City, Zhejiang Province, China. All our clients, from home or abroad, are warmly welcomed to visit us!
Q3: Do your products safe enough?
A: Our products meet with the certificate of CE, ISO & Rosh. Our products are made according to the
standard of the market in our clients. They're all in superior quality & competitive price. You can rest
assure that they are safe enough.
Q4: How long does your warranty provide?
A: We usually provide you a 2-year warranty after the date we sold under normal usage.
Q5: What's your payment terms?
A: T/T, Western Union, Money Gram, Paypal....etc.
Q6: What's your delivery time?
A: Around 8 working days after getting payment in the account ( or pre-payment)
Q7: Can you accept OEM?
A: Yes. We would accept OEM&ODM.
