Optical Fiber Protection Box Drop Cable Waterproof Protection Box
Optical fiber Protection box Drop cable waterproof protection box DescriptionThis low friction cable splice protecting box is with beautiful appearance, white color and reasonable structure design. It design with card slot and welding sleeve fixed slot, so that the cable is more stable, not easy to ......
Send Inquiry
Product Description
Optical fiber Protection box Drop cable waterproof protection box
Description

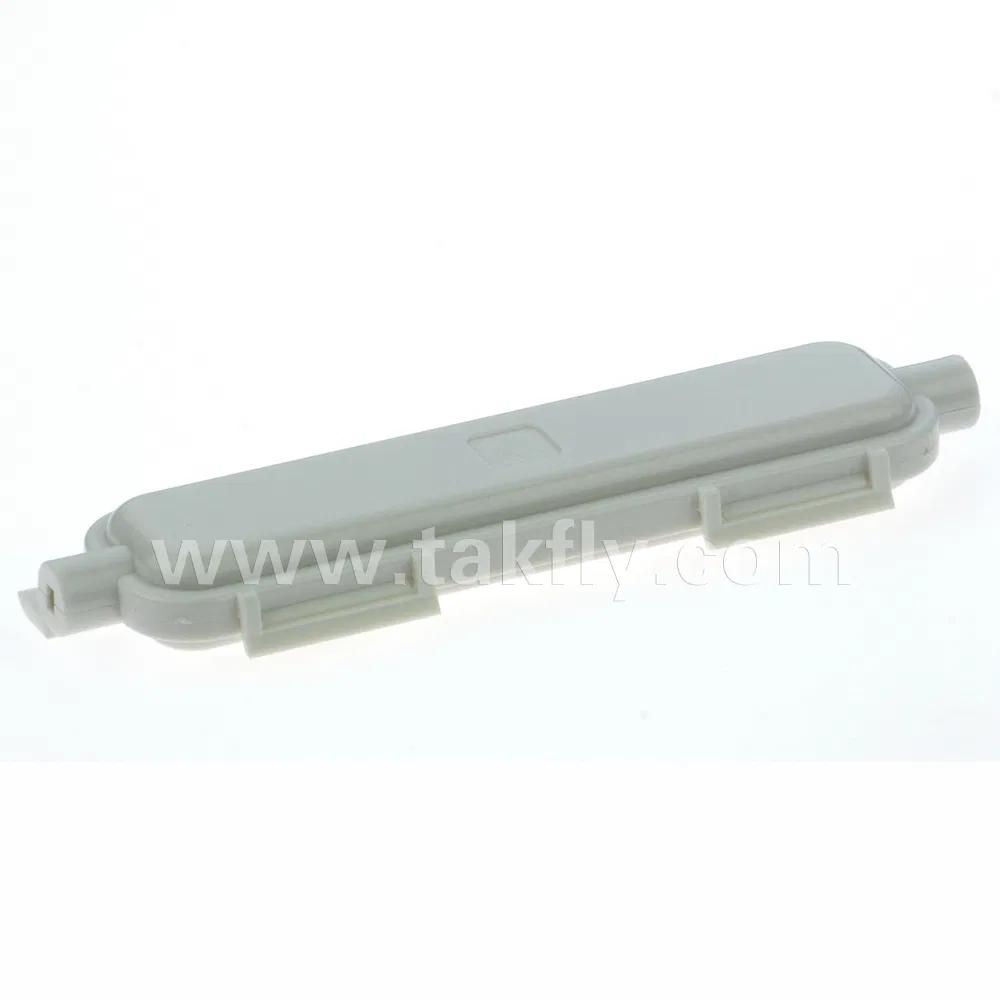

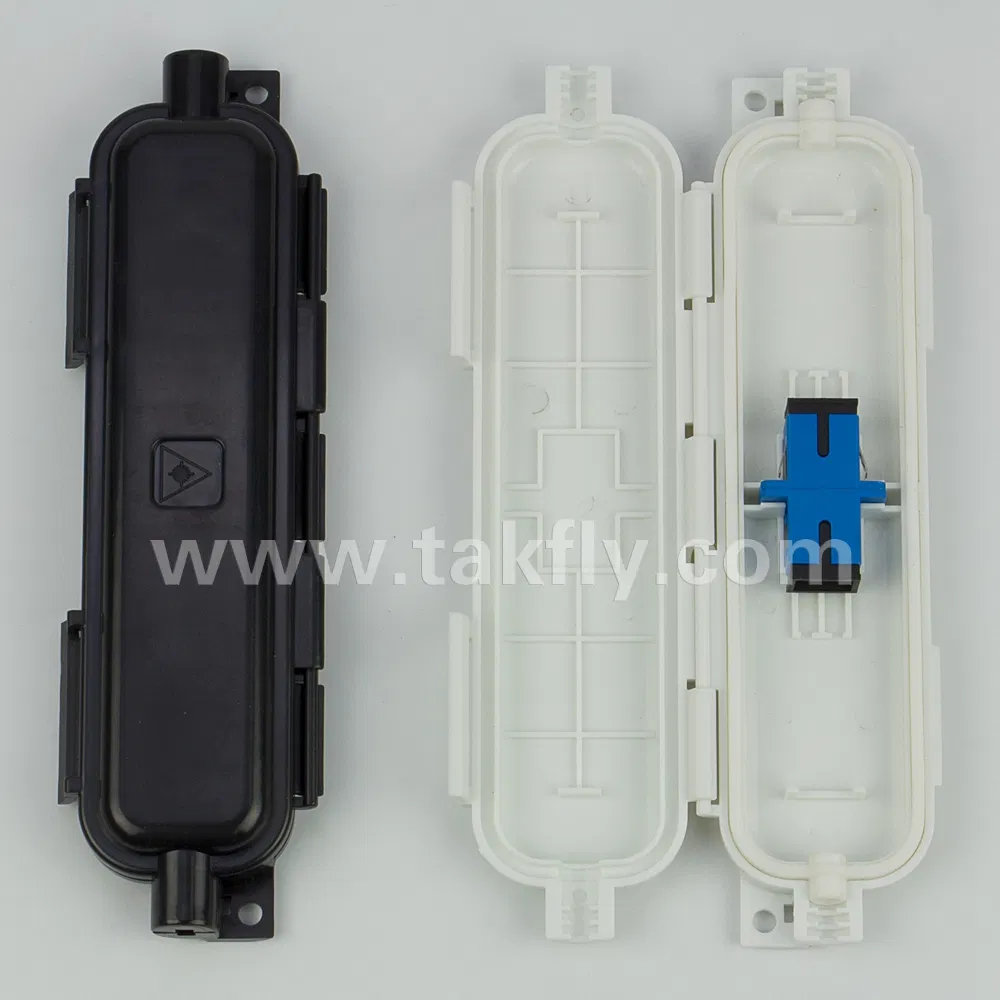

This low friction cable splice protecting box is with beautiful appearance, white color and reasonable structure design. It design with card slot and welding sleeve fixed slot, so that the cable is more stable, not easy to loose swing, it could complete the drop cable input and output. Built in simplex drop cable shrinkable tube, and protect input and output fiber to provide a better protection of the fiber and the splicing point.
Size: 150mm*50mm*15mm
Material: ABS flame retardant new material processing, non-return material processing
Specification
1. Compact, beautiful appearance and easy install
2. Fits for fixed both low friction cable and normal fiber optic cable
3. Splicing point's protection is stable and reliable, it is not easy to be broken by external force.
Operating Environment
Operating temperature:-25ºC~+65ºC.
Barometric Pressure:70Kpa~106Kpa.
Function
- It could meet the following cable sheath stripping end's requirement on hot melting: diameters are 3.0mm,2.5mm, 2.0mmx3.0mm and 2.0mmx1.6mm.
- It could fix the aramid yarn and nonmetal reinforcement device of the input cable, and make sure the fiber do not force after fixed.
3. It could meet the requirement of fixing the splicing equipment in distribution box, splicing box, indoor and outdoor comprehensive box.
- Ensure that the optical fiber cable from mechanical and physical damage.
- Protect the optical fiber cable and its connecting point from the changeable environment.
- It would not change the original features of the fiber and the cable.
- It could protect the fiber cable from pulling out during construction.
- Insertion Loss and Return Loss:
