New Model OTDR T-Ot750-1310/ 1550 -32/30 dB
OTDR T-OT750-S-A32 with Power Meter/Laser Source/VFL FTTx application installation and maintenance, fiber R&D and producing testing.1. to test the length, fiber loss connector loss and other physical characteristics of fiber.2. to locate events on fiber cables precisely. I.Main Features> Rug......
Send Inquiry
Product Description
OTDR T-OT750-S-A32 with Power Meter/Laser Source/VFL
FTTx application installation and maintenance, fiber R&D and producing testing.
1. to test the length, fiber loss connector loss and other physical characteristics of fiber.
2. to locate events on fiber cables precisely.
I.Main Features
> Rugged design, light weight and easy operation
> <3m extra-short event dead zone
> Wavelength: 1310/1550nm
> Up to 32/30 dB High Dynamic Range
> Distance Range: 4,8,16,32,64,128,256km
> Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
> USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
> Memory capacity >1000 traces
> Built-in friendly-environment lithium battery with high capacity for over 8 hours of operating life

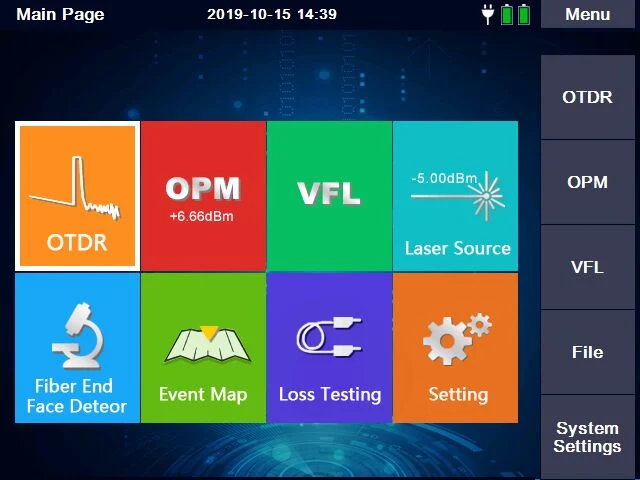

> Display:640×480, 6.5 inch low-reflection TFT-LCD (touch screen)
> One year Warranty
> With Calibration Certificate and CE Certificate
> Support English & Spanish
> Can do OEM according to customer's requirement: add your logo or language
II. Specifications

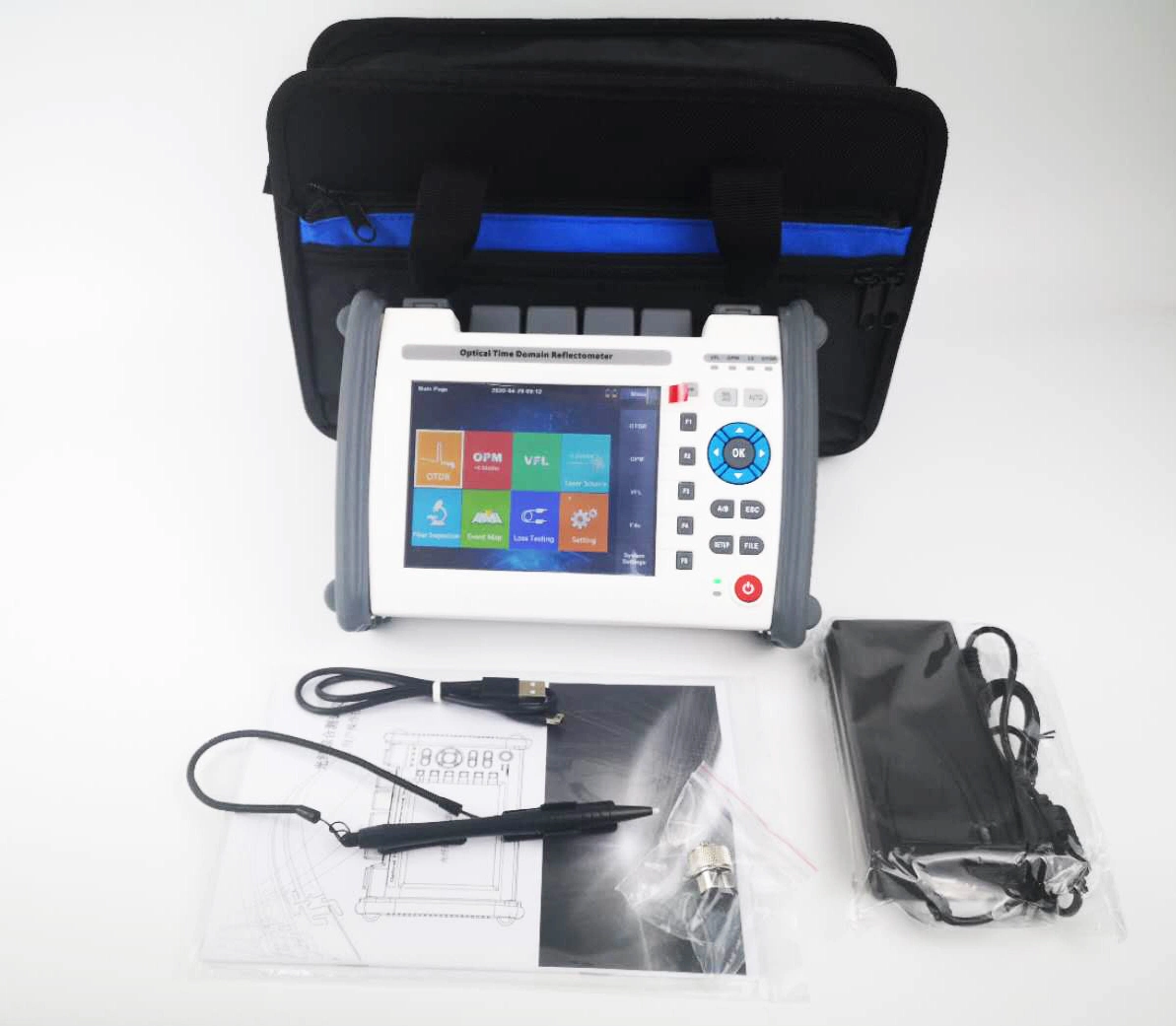

III.Standard Package:
Hard Carrying Case
OTDR with Battery Pack
Calibration & Test Report
SD Card
FC & SC connectors
Belt
AC Adaptor
Power Supply
User Manual & Trace Manage Software (CD)
Contact information: Ms. Ella
FTTx application installation and maintenance, fiber R&D and producing testing.
1. to test the length, fiber loss connector loss and other physical characteristics of fiber.
2. to locate events on fiber cables precisely.
I.Main Features
> Rugged design, light weight and easy operation
> <3m extra-short event dead zone
> Wavelength: 1310/1550nm
> Up to 32/30 dB High Dynamic Range
> Distance Range: 4,8,16,32,64,128,256km
> Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
> USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
> Memory capacity >1000 traces
> Built-in friendly-environment lithium battery with high capacity for over 8 hours of operating life
> Display:640×480, 6.5 inch low-reflection TFT-LCD (touch screen)
> One year Warranty
> With Calibration Certificate and CE Certificate
> Support English & Spanish
> Can do OEM according to customer's requirement: add your logo or language
II. Specifications
| Model | T-OT750-S-A32 |
| Dynamic (1) | 32/30 |
| Wavelength (±20 nm) | 1310/1550 |
| Pulse width (ns) | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |
| Display | 6.5 inch TFT LCD touch screen |
| Event blind zone (m) | 3 |
| Attenuation blind zone (m) | 13 |
| Linearity (dB/dB) | ±0.05 dB/ dB |
| Loss threshold (dB) | 0.05 |
| Loss resolution ratio (dB) | 0.01 |
| Sampling resolution ratio (m) | 0.125 to 8 |
| Sampling point | 32k |
| Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) |
| Distance scope (km) | 0.3 to180 |
| Memory capacity of trace | SD Card (4G), > 10000 pieces |
| Duration of measurement | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
| Optical interface | FC/UPC+SC/UPC+LC/UPC |
| Data interface | USB interface, SD card interface |
| Visual Fault Locator | Available |
| Power supply | Lithium battery; continuing working duration ≥ 8 hours |
| Warranty period | 12 months |
III.Standard Package:
Hard Carrying Case
OTDR with Battery Pack
Calibration & Test Report
SD Card
FC & SC connectors
Belt
AC Adaptor
Power Supply
User Manual & Trace Manage Software (CD)
Contact information: Ms. Ella
