Mini Tx 1310 1490 1550 1610 Nm 10MW Optical Fiber Transmitter CATV Laser Transmitter
1310-1610nm Mini Fiber Optic Transmitter CATV TransmitterDescriptionFTTH MINI CATV Optical Transmitter,(DTMT-13/14/15/16-xxMW), Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm, Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode, Frequency Range:40-1000MHz,Inpu......
Send Inquiry
Product Description
1310-1610nm Mini Fiber Optic Transmitter CATV Transmitter
Description

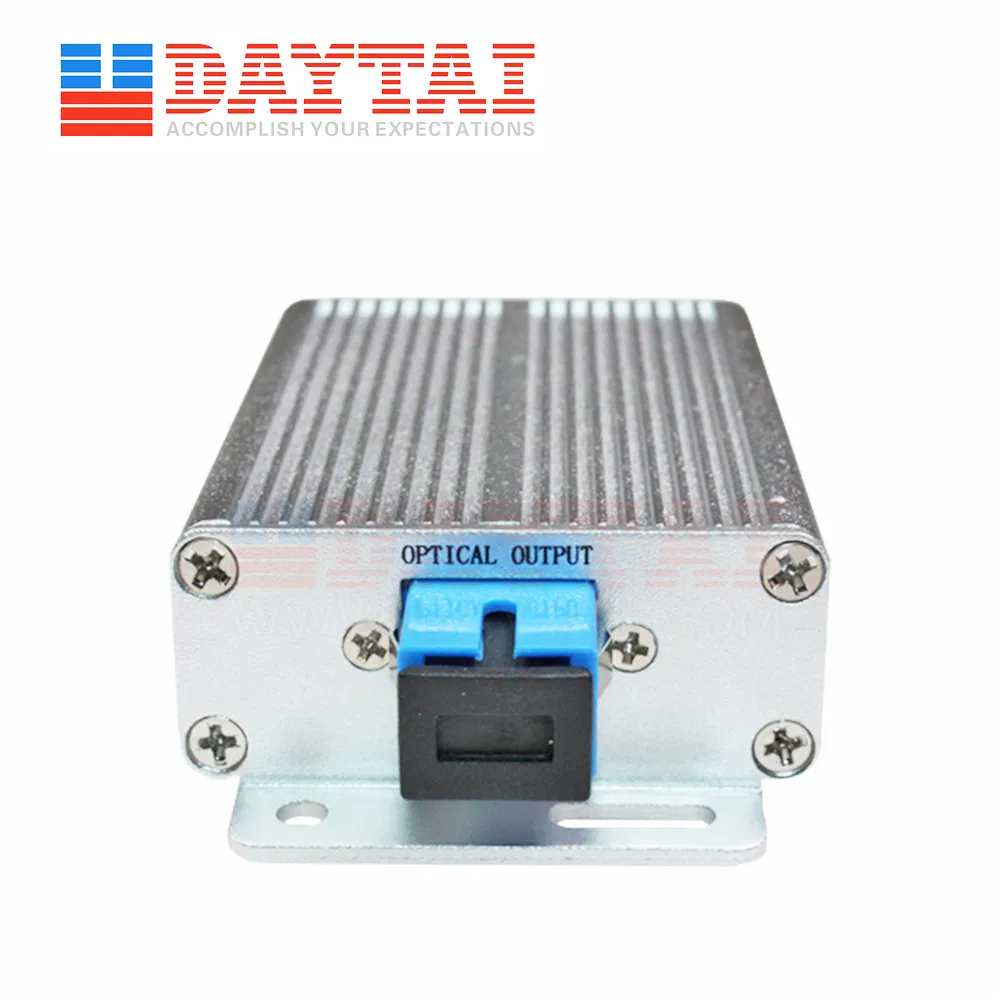

FTTH MINI CATV Optical Transmitter,(DTMT-13/14/15/16-xxMW),
Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm,
Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,
Frequency Range:40-1000MHz,Input Level:65-85dBuV,C/N:52dbc,

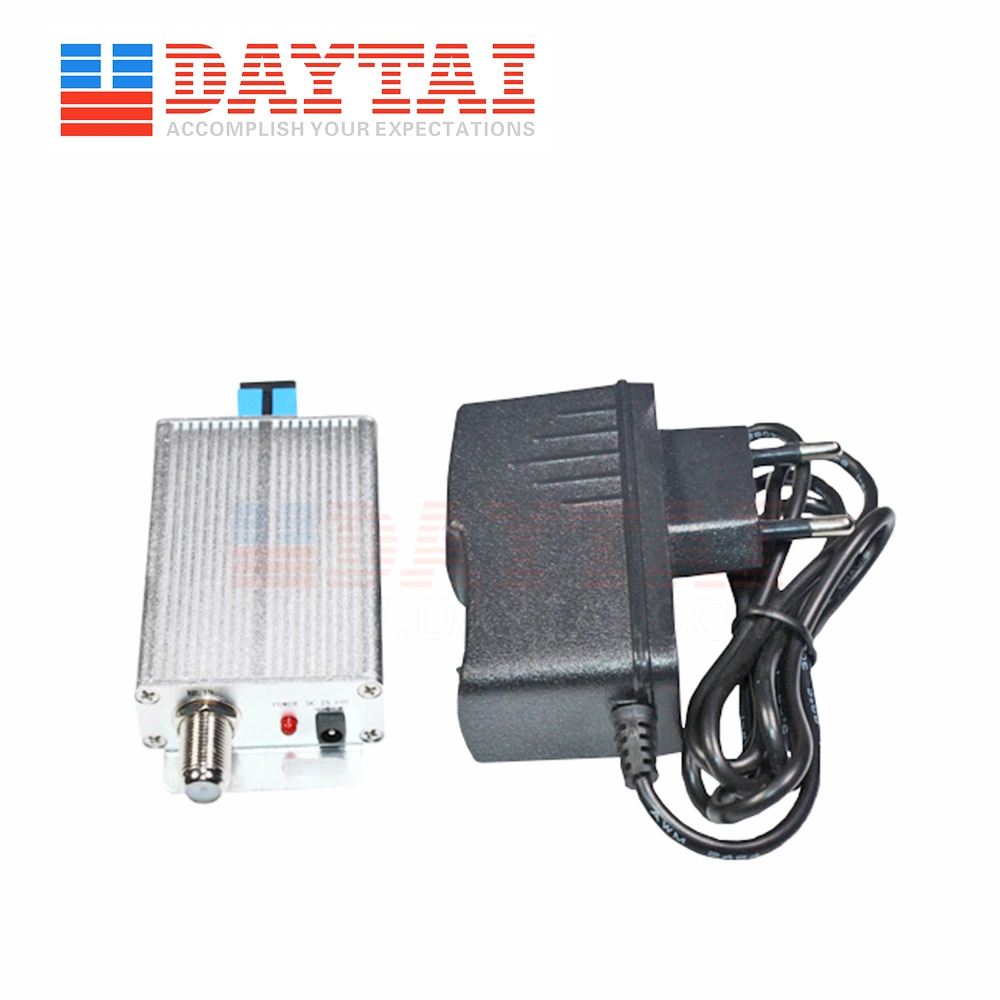

Power Input Voltage:+6V~18V,Dimensions:90*45*19mm,Net weight:0.066Kg.
Feature
1.Model Number: DTMT-13/15-xxMW
2. GaAs Active Devices,designed For FTTH(Fiber To The Home Network)
3. Voltage supply: +6V~18V(DC)
4. Frequency range 40-1000MHz.
5.Excellent Linearity and flatness
6. Aluminum Profiles housing,excellent heat dissipation performance
7.Smaller size and easier to install
8. Red-LED Power Indication
9 . RF "F" Connector In and Optical Wavelength Output 1310nm & 1550nm or customized
Specification

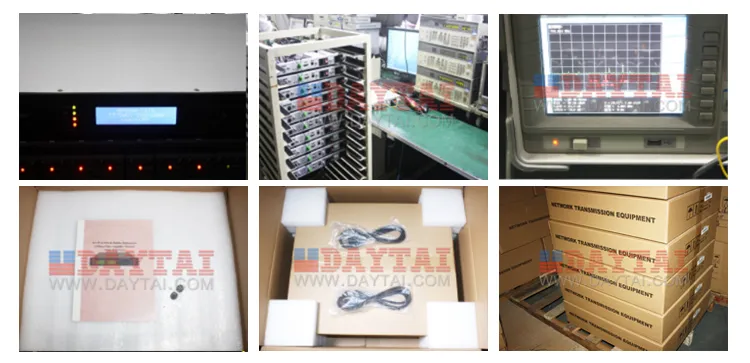

Our Workshop
Our advantages
* As a world class manufacturer we can ensure you are getting world class quality at a competitive price.
* We pride ourselves on earning our clients repeat business. We ensure customer satisfaction by ensuring all out products meet world ISO 9001, SGS, CE standards and best manufacturing practices.
* We also pride ourselves by ensuring we give you our client the best service and experience dealing with a reputable manufacturer.
Customer first, service foremost
If you have any other questions, please feel free to contact with me.
I will reply you at my first time.
Thank you for visiting our products, have a good day:)
Description
FTTH MINI CATV Optical Transmitter,(DTMT-13/14/15/16-xxMW),
Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm,
Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,
Frequency Range:40-1000MHz,Input Level:65-85dBuV,C/N:52dbc,
Power Input Voltage:+6V~18V,Dimensions:90*45*19mm,Net weight:0.066Kg.
Feature
1.Model Number: DTMT-13/15-xxMW
2. GaAs Active Devices,designed For FTTH(Fiber To The Home Network)
3. Voltage supply: +6V~18V(DC)
4. Frequency range 40-1000MHz.
5.Excellent Linearity and flatness
6. Aluminum Profiles housing,excellent heat dissipation performance
7.Smaller size and easier to install
8. Red-LED Power Indication
9 . RF "F" Connector In and Optical Wavelength Output 1310nm & 1550nm or customized
Specification
| Number Item | Unit | Description | Remark | ||||||
| Output Optical Wavelength:1310 or 1550nm (Can be customized) | |||||||||
| 1310nm Wavelength Output Power :1mW,3mW ,6mW ,10mW is optional (Usually the Standard power is 6mw or 10mw) | |||||||||
| 1550nm Wavelength Output Power :1mW,3mW ,5mW,6mW is optional (MAX is 6mW,Usually the Standard power is 6mw) | |||||||||
| Customer Interface | |||||||||
| 1 | RF Connector | 75Ω"F" connector | |||||||
| 2 | Optical Connector | SC/APC | Can be customized | ||||||
| 3 | DC Supply | DC Adapter | |||||||
| Optical Parameter | |||||||||
| 4 | Optical Return Loss | dB | >45 | ||||||
| 5 | Output Optical Wavelength | nm | 1310 or 1550 or 1470 or 1610 nm | Can be customized | |||||
| Output Optical Power | mW | ≤10 | Can be customized | ||||||
| 6 | Optical Fiber Type | Single Mode | |||||||
| RF Parameter | |||||||||
| 7 | Frequency Range | MHz | 40-1000 | ||||||
| 8 | Flatness | dB | ±0.5 | ||||||
| 9 | Input Level | dBuV | 65-85 | ||||||
| 10 | Output Impedance | Ω | 75 | ||||||
| 11 | C/N | dBc | 52 | ||||||
| Other Parameter | |||||||||
| 12 | Power Input Voltage | VDC | +6V~18V | Factory Supply 9V DC Adaptor | |||||
| 13 | Power Consumption | W | <1.5 | ||||||
| 14 | Dimensions | mm | 90*45*19 | ||||||
| 15 | Net weight | KG | 0.066 | Not Include Power Adaptor | |||||
