Product Description

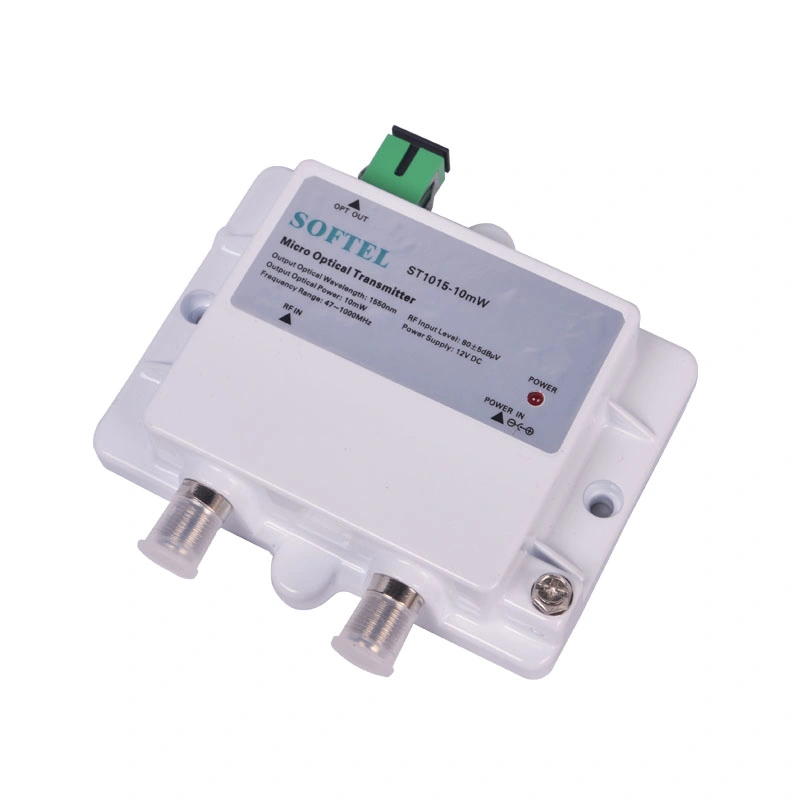

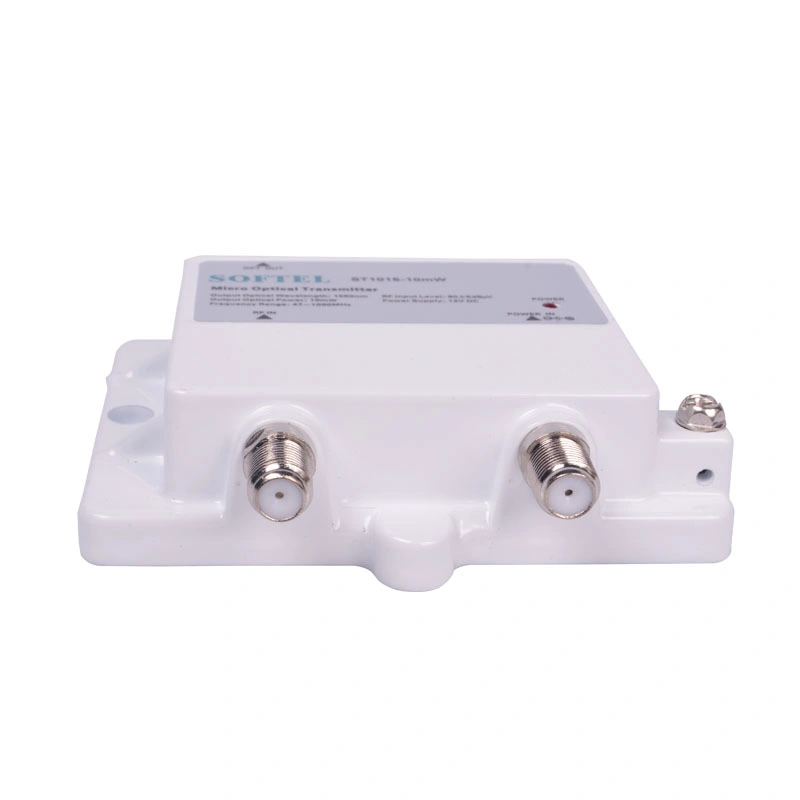

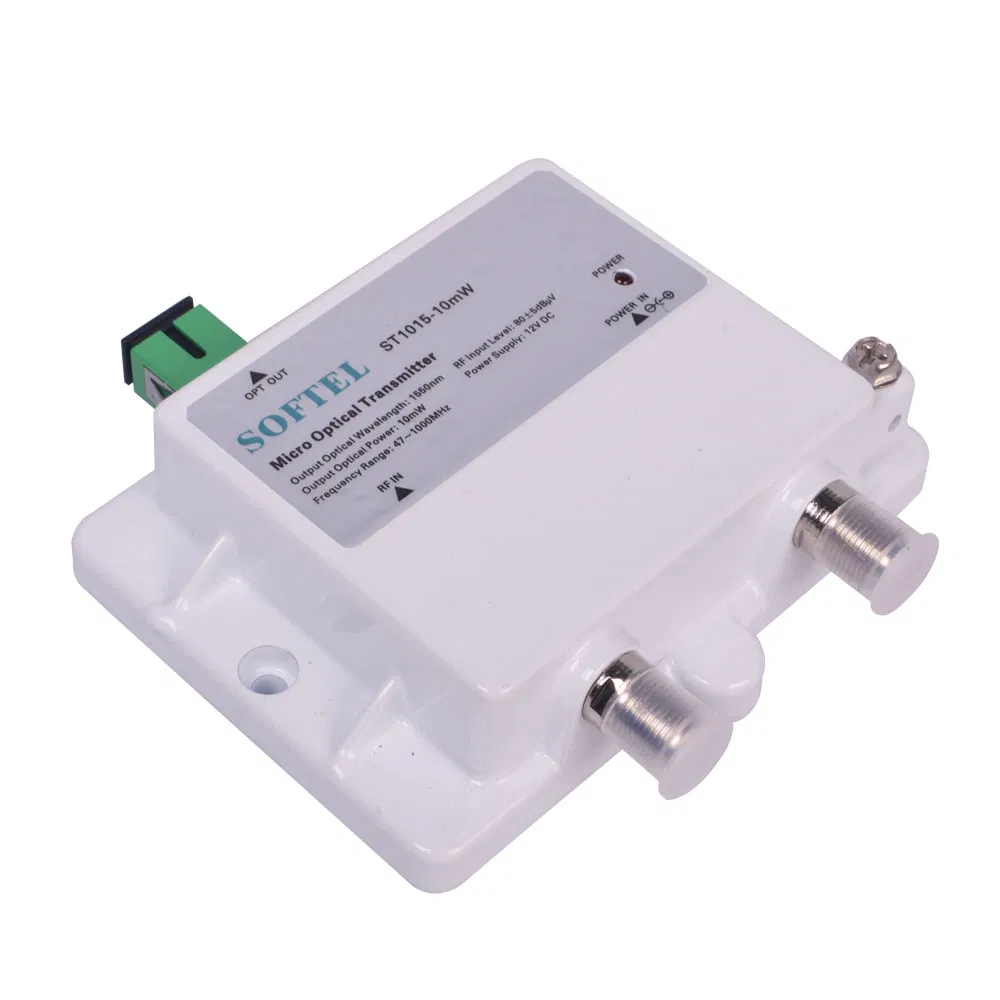

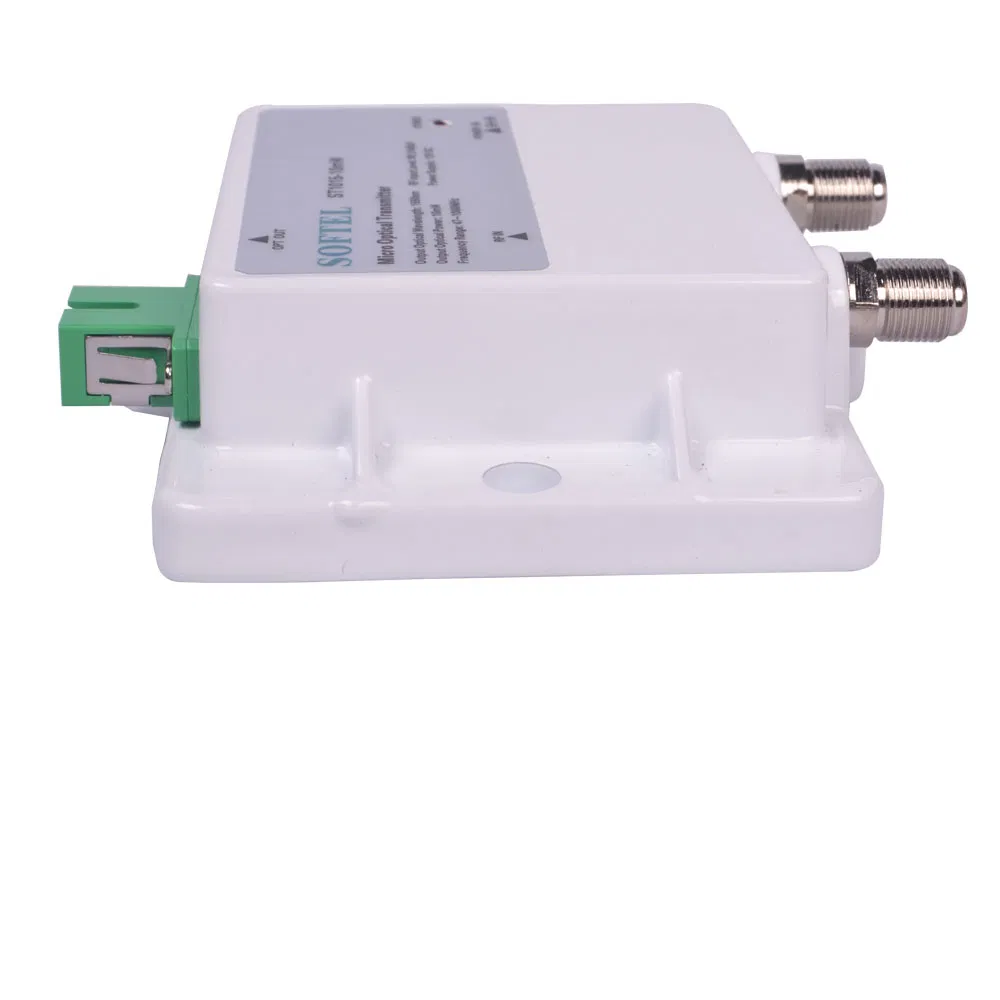

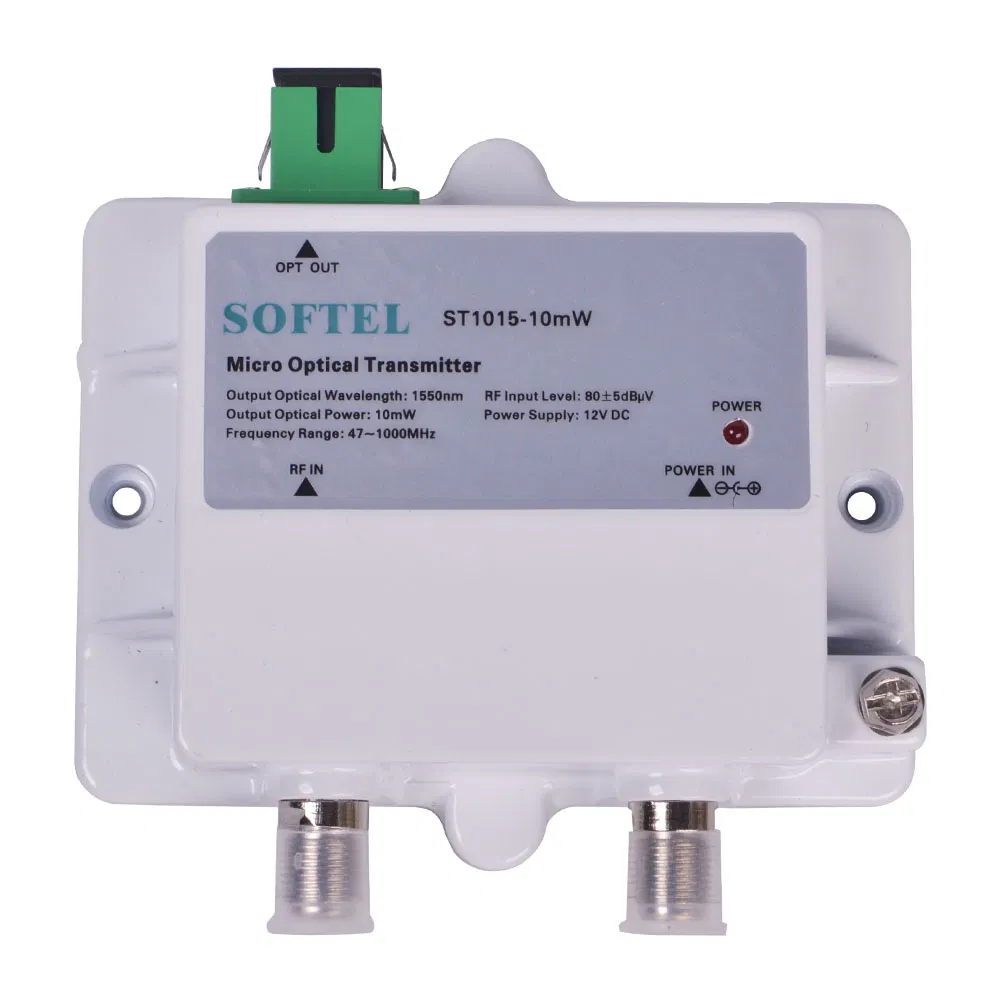

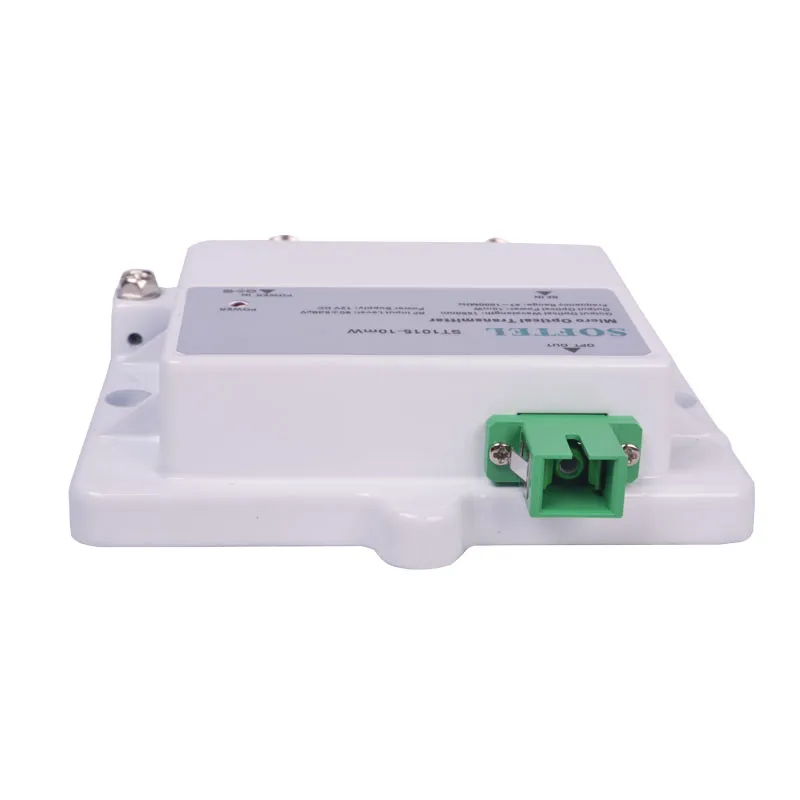

Mini 10W TV Transmitter 1550 optical transmitter
Characteristic
1. Designed for FTTH(Fiber To The Home)Networks
2. Excellent Linearity and flatness
3. Single-mode fiber high return loss
4. Using GaAs amplifier active devices
5. Ultra low noise technology
6. Using DFB coaxial small package laser
7. Smaller size and easier install
8. Red-LED for power indication
Parameters
| Performance | Index | Supplement | ||
| Customer interface | RF Connector | F-Female | ||
| optical connector | SC/APC | |||
| power supply | F-Female | |||
| Optic feature | output optical wavelength | nm | 1550 | |
| Output optical power | mW | 10 | ||
| Optic fiber type | single mode | |||
| Return loss | dB | ≥45 | ||
| RF feature | Frequency range | MHz | 47-1000 | |
| Input level | dBmV | 80±5 | ||
| Flatness | dB | ±0.75 | ||
| Return loss | dB | >16 | ||
| Input impedance | Ω | 75 | ||
| C/N | dB | ≥52 | ||
| CTB | dB | ≥63 | ||
| CSO | dB | ≥60 | ||
| Other parameter | Size | mm | 100×98×28 | |
| Power supply | VDC | 12 | ||
| Power Consume | W | ≤2 | ||
