Matching Corning Optitap Connector, Hoptic to Scapc Patch Cord

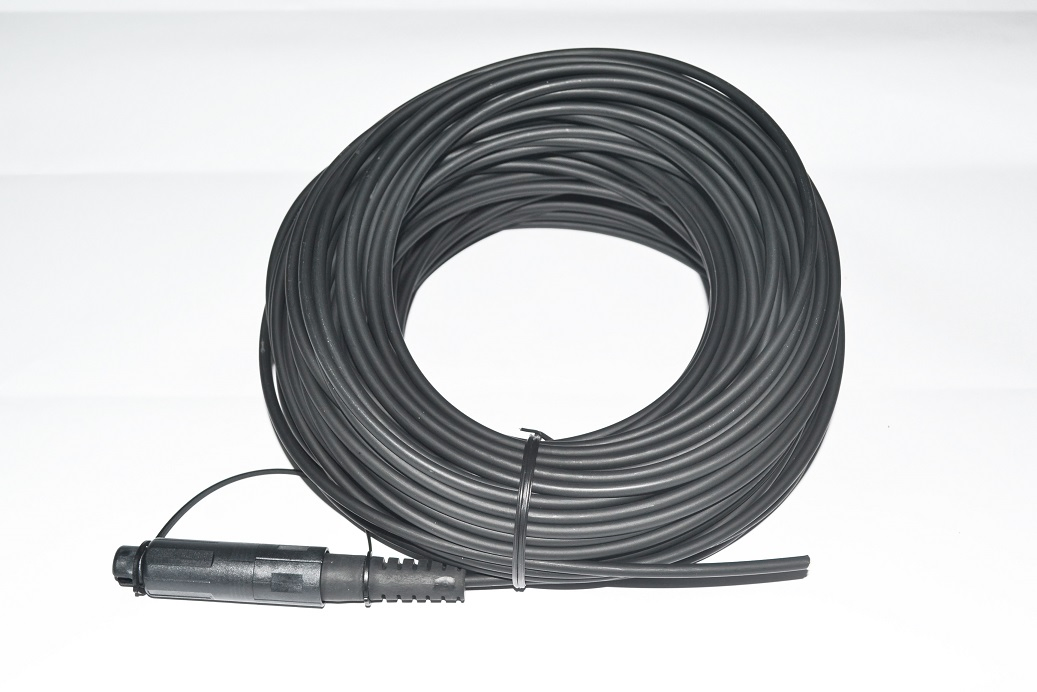

H connector - SC/APC fiber optic outdoor patch cord

Compatible with Corning Optitap

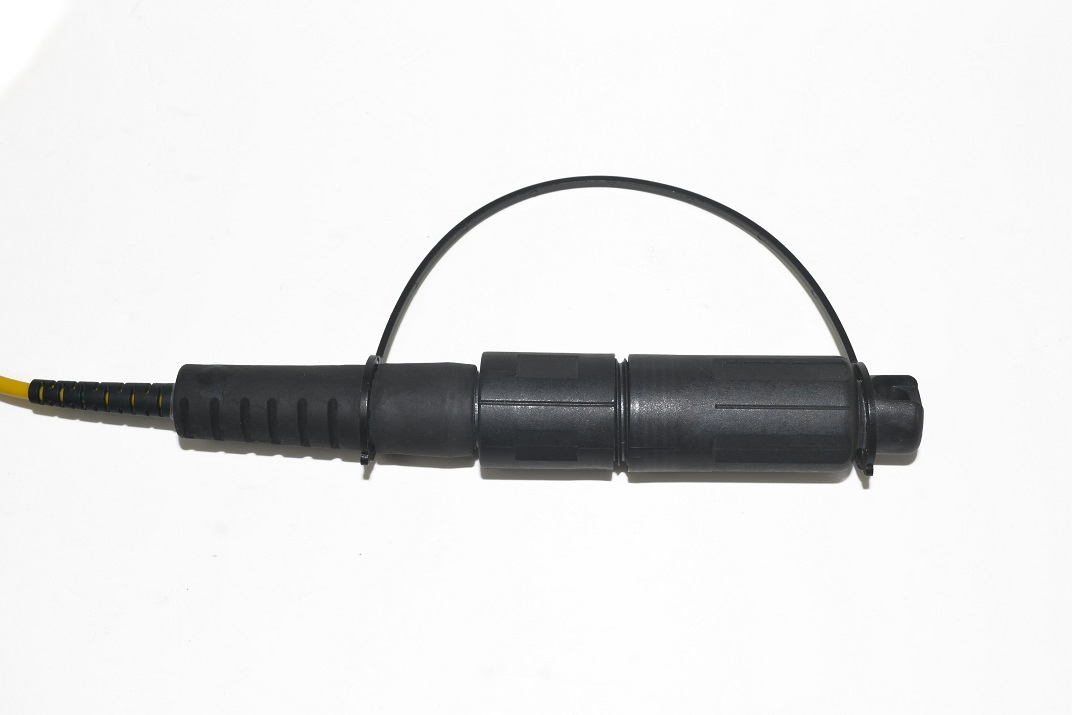

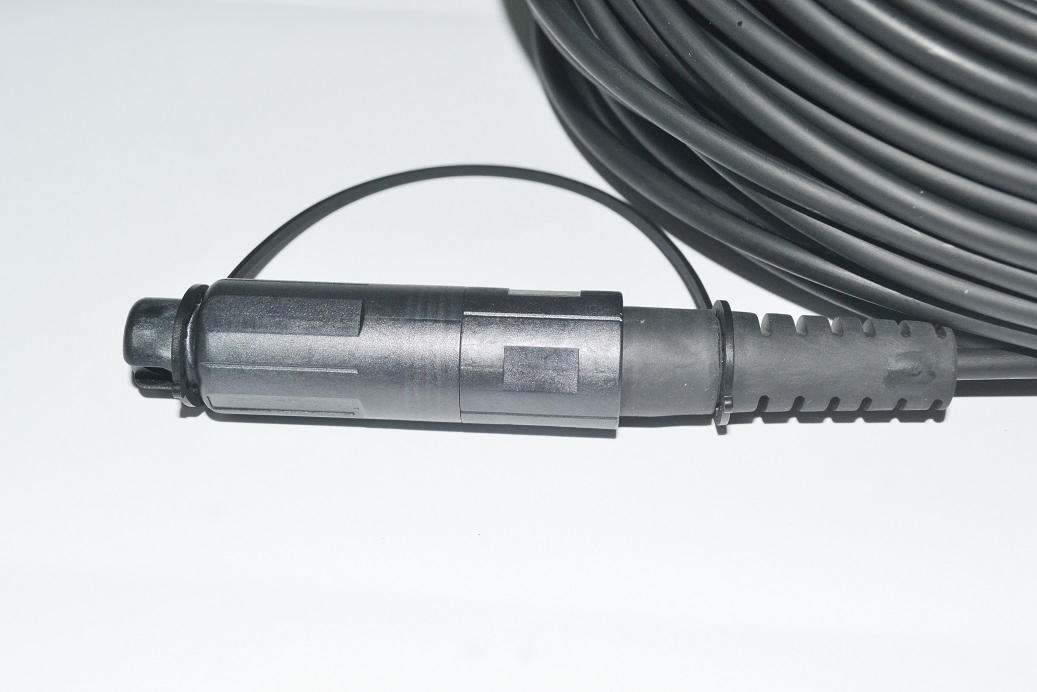

Description of H connector

• H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

• The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.

• The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications

Benefits

Allows flexibility to use factory terminated assemblies

Provides superior weather resistance for FTTH and other outdoor applications

Ensures functionality in harsh weather environments

Can be used with industry standard cable designs

Easily installs without special tooling

Threaded style coupling

Provides bend protection for installation and long term use

Features

Single fiber, SC-based connector

Bird proof and rodent resistant

IP68 water and dust protection

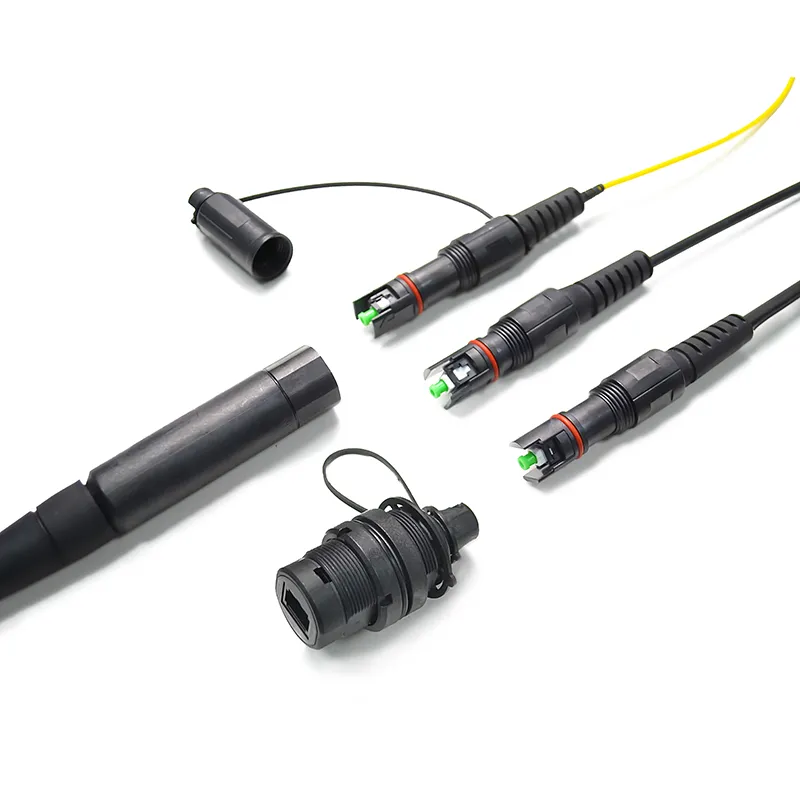

Low profile in-line receptacle available

No installation tools required

100 minimum mating cycles

In-line connection available

Operating temperature: -40° to 85°C

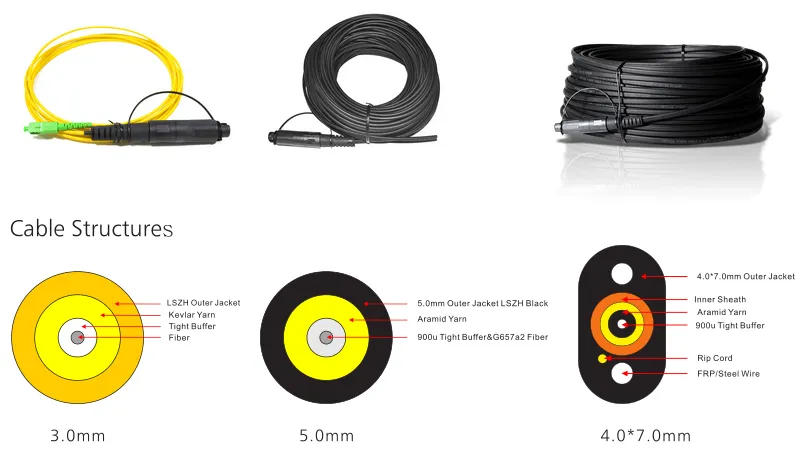

Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm

33 lb. axial cable retention (150N)

Applications

FTTH
Outdoor Areas

Harsh Environment


Insertion Loss:

≤ 0.15dB Typical Singlemode

≤ 0.23dB Typical APC

≤ 0.50dB Typical Multimode

Return Loss:

Ultra (UPC) ≤ -55dB

Angle (APC) ≤ -65dB

Durabilty:

< 0.2dB change, 100 mating cycles

Temperature:

<0.3dB change, -40 to +85°C

Company Profile

Shenzhen DYS Fiber Optic Technology,The leading company in developing and manufacturing advanced fiber optic products,mainly offer below:

CPRI outdoor cable assemblies
MPO/MTP series products
Standard fiber optic patch cable&pigtail
Fiber optic PLC Splitter
Fiber optic Fast Connector
FTTH box

DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.

Over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

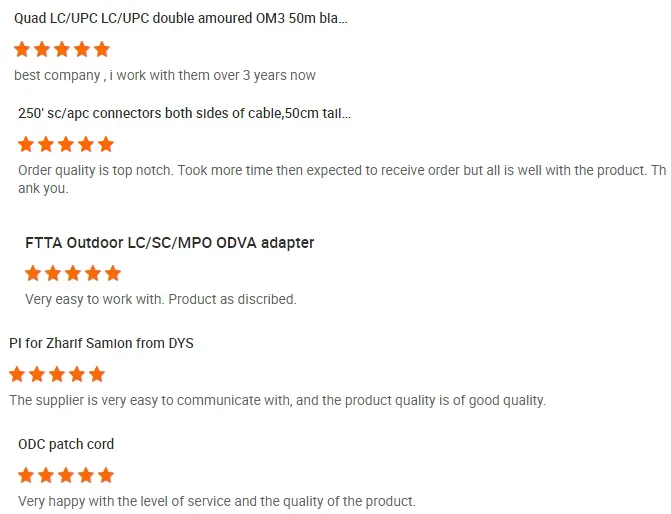

Customers comments
