Low Insertion Loss 50GHz 100GHz Max 96CH Athermal AWG Mux Demux DWDM
Low Insertion Loss 50GHz 100GHz Max 96CH Athermal AWG Mux Demux DWDMAthermal modules are packaged using athermalization techniques with no electrical power and no temperature control units, can perform MUX/DeMUX functions.The 40ch Mux Demux is a high density, low loss and standalone passive optical ......
Send Inquiry
Product Description
Athermal modules are packaged using athermalization techniques with no electrical power and no temperature control units, can perform MUX/DeMUX functions.

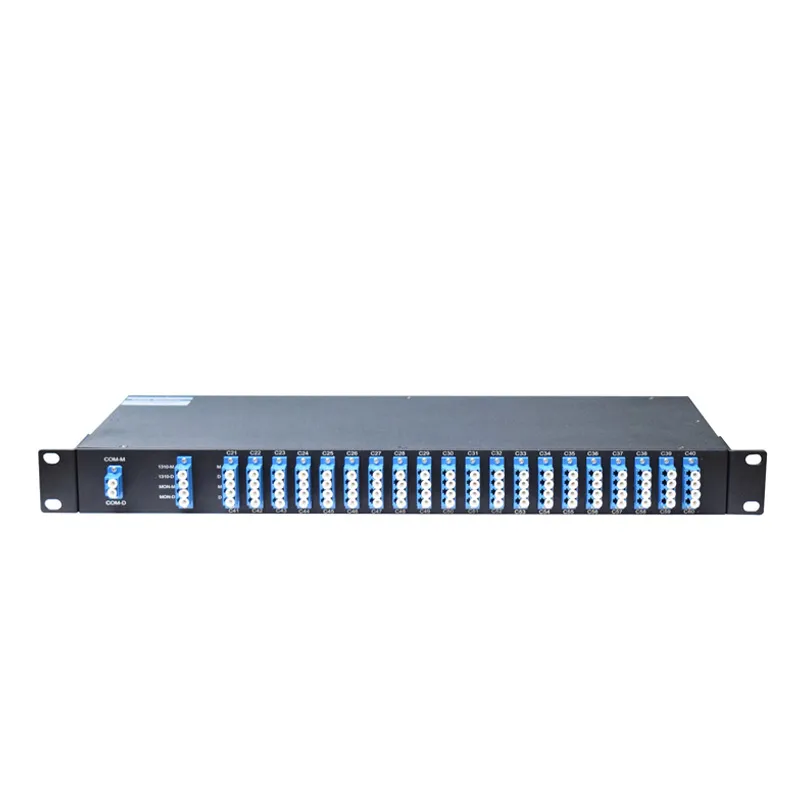

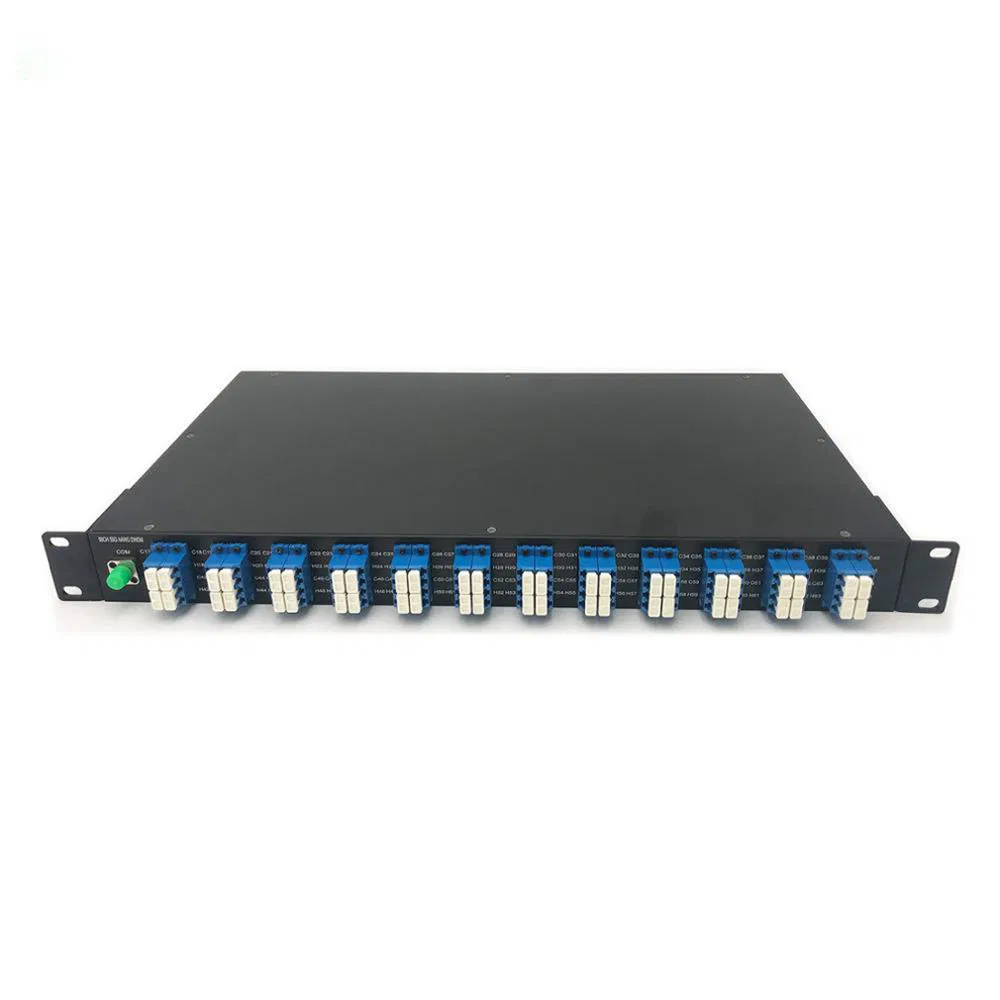

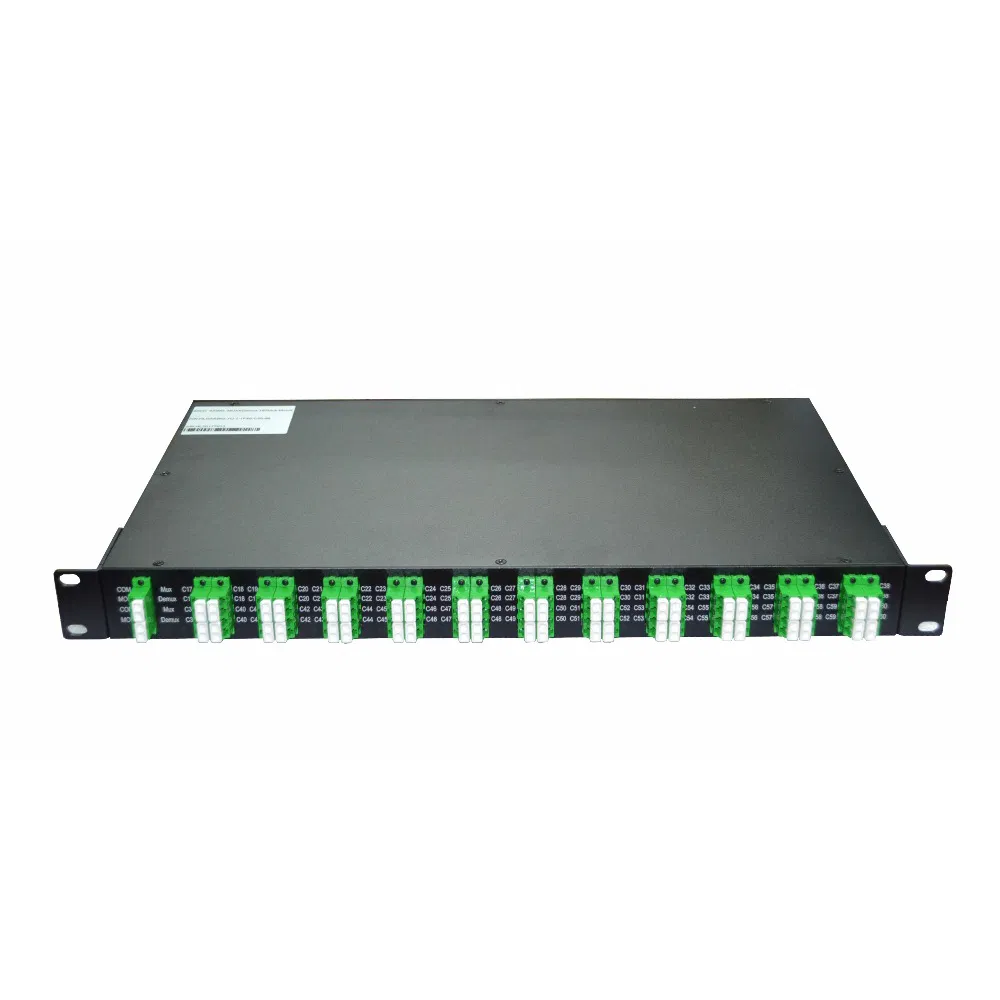

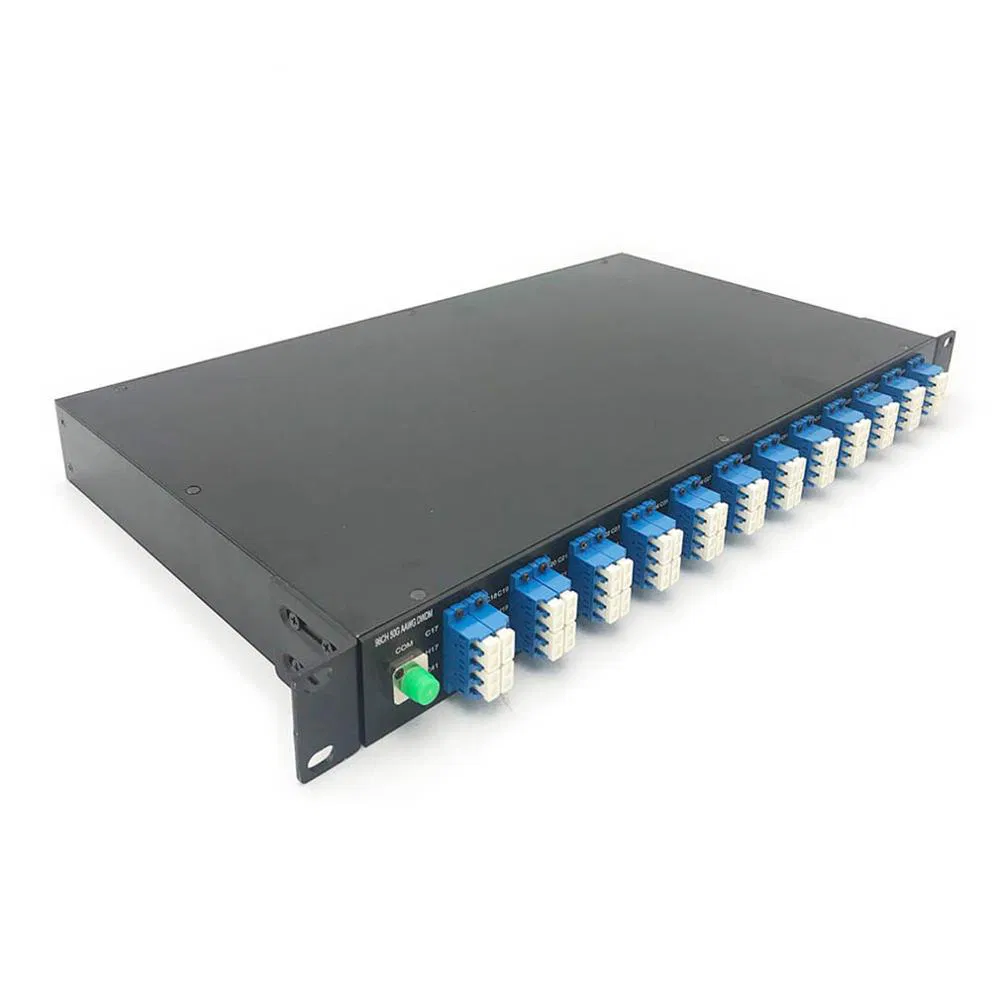

The 40ch Mux Demux is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG technology with Gaussian shaped pass bands. By providing access up to forty 100GHz spaced channels in a 1U package, this unit maximizes the capacity of the C-band range. In conjunction with the transponders and amplifiers, the 40ch mux demux supports a wide range of architectures from simple point-to-point to amplified ring configurations
Features
Athermal design operates over operating temperature range
Large channel number
Compact size
High stability and reliability
Low insertion loss, high isolation increase system margin
Applications
1. WDM transmission
2. Metro and long haul network
3,Data Center
Our Services (optional:
1,Single fiber and dual fiber
2,module or 1U/2U Rack Mount
3,Gaussian type or flatop type
We also can manufacture other WDM Series product,such as Thin Film Filter WDM, Fused WDM.
2. Optical Specifications
All specifications guaranteed over the operating temperature range.
| Parameter | Specifications | Unit | Comment | ||
| Min | Max | ||||
| Input Channel | 1 | ||||
| Output Channel | 40 | 32, 48 channels available | |||
| Channel Spacing | 100 | GHz | |||
| Reference Passband | -12.5 | 12.5 | GHz | ||
| Wavelength Accuracy | -50 | 50 | pm | Relative to ITU Grid | |
| 1dB Bandwidth | 0.2(G) 0.4(F) | nm | G-Gaussion Type F-Flat top Type | ||
| 3dB Bandwidth | 0.4(G) 0.6(F) | nm | |||
| I.L | 6 | dB | Worst case in ITU passband | ||
| I.L UNI. | 1 | dB | |||
| Ripple | 0.7 | dB | Loss variation in ITU passband | ||
| PDL | 0.5 | dB | Max. value in ITU passband | ||
| Adjacent Crosstalk | 25 | dB | Worst case in ITU passband | ||
| Non-Adjacent Crosstalk | 30 | dB | Worst case in ITU passband | ||
| Total Crosstalk | 22 | dB | Cumulative crosstalk of all other channels | ||
| Return Loss | 40 | dB | |||
| Maximum Continuous Optical Power | 250 | mW | Maximum input optical power | ||
| Chromatic Dispersion(CD) | -20 | +20 | ps/nm | ||
| PMD | 0.5 | ps | |||
