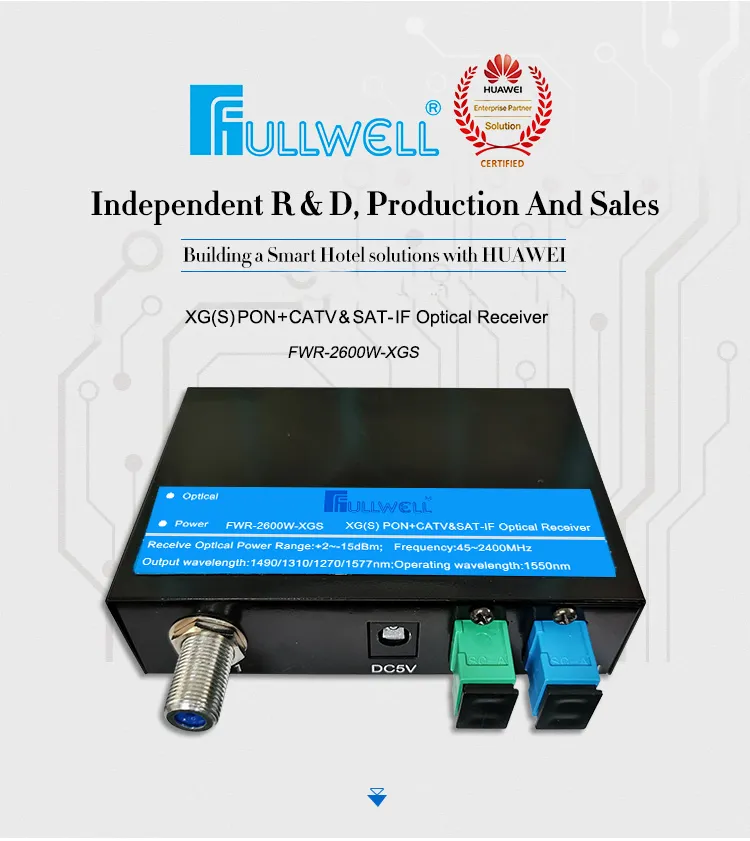

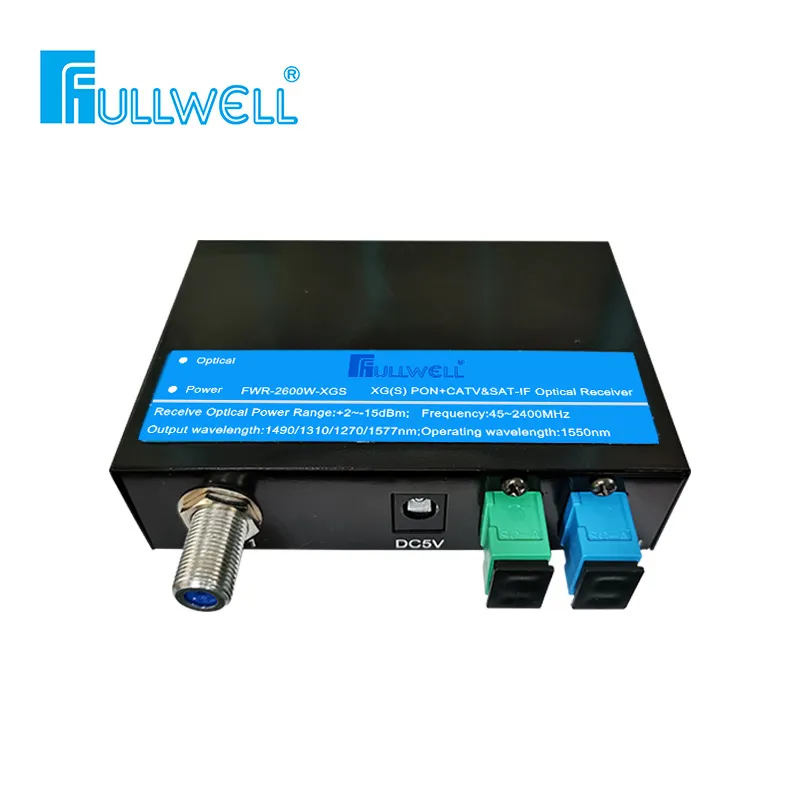

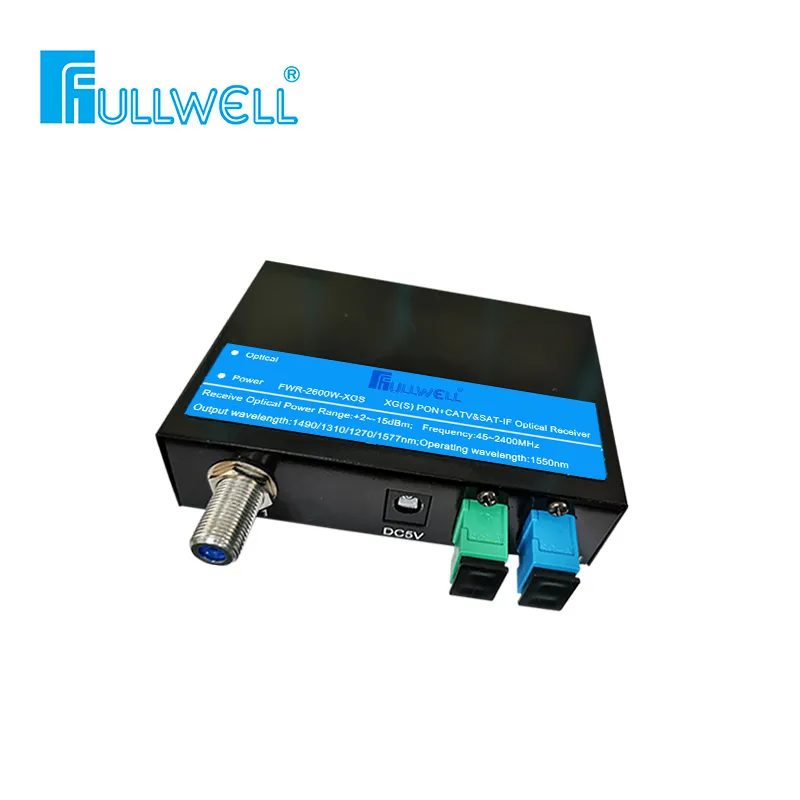

FWR-2600W-XGS, CATV+Satellite TV Optical Receiver With WDM

1. Product Description

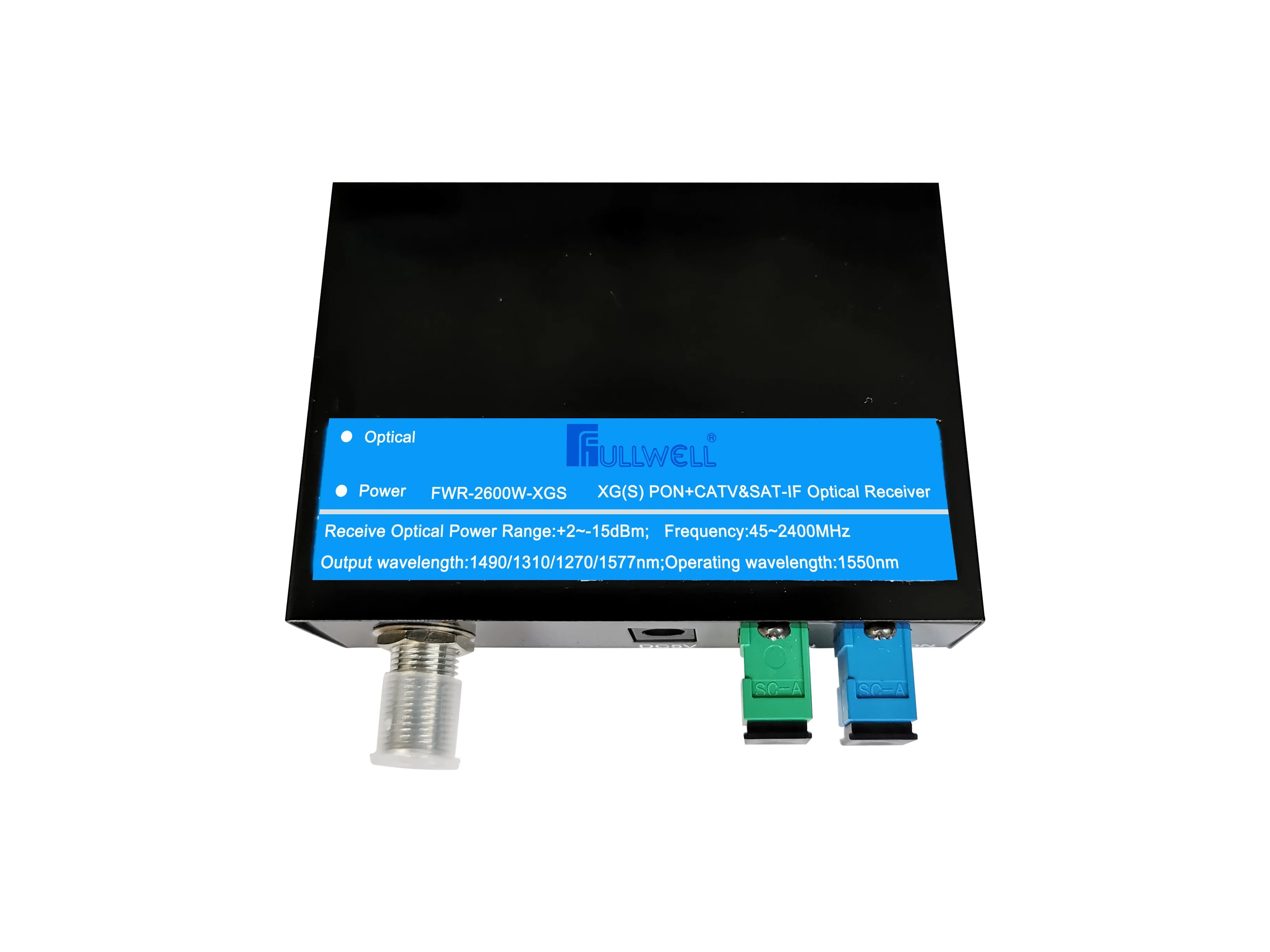

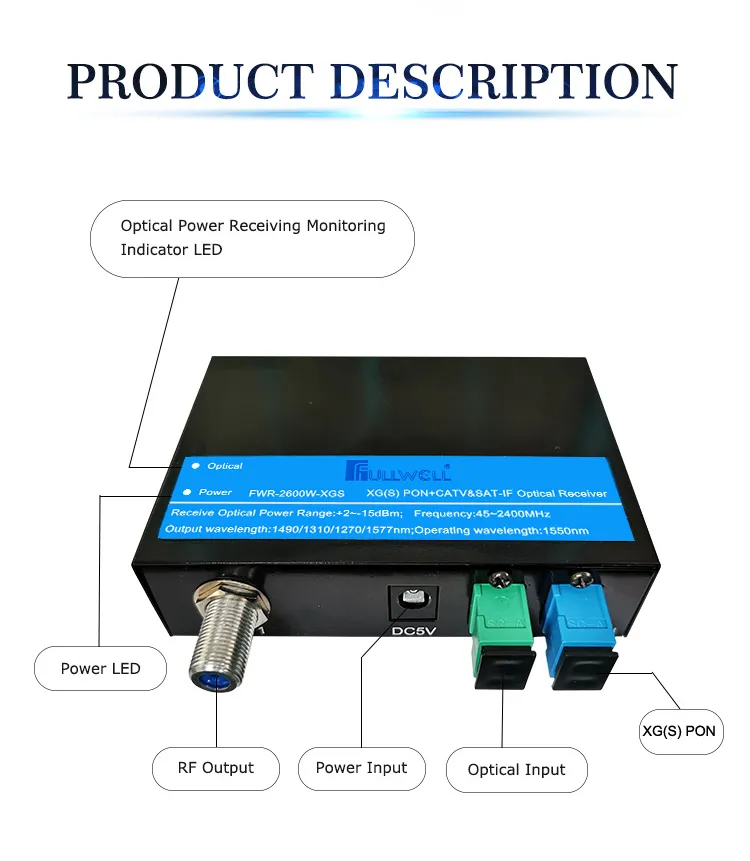

FWR-2600W-XGS optical receiver is an FTTH CATV + SAT IF high-performance optical transmission equipment, suitable for CATV and satellite live TV transmission on the same network. Use high-bandwidth, high-sensitivity photocells, low-noise matching circuits and GaAs amplification, the device has receiving range -15 ~ + 2dBm, and AGC stable output: -12 ~ -2dBm. In order to facilitate the use of the user, the device is also equipped with a working power and light power receiving monitoring LED indicator on the panel.

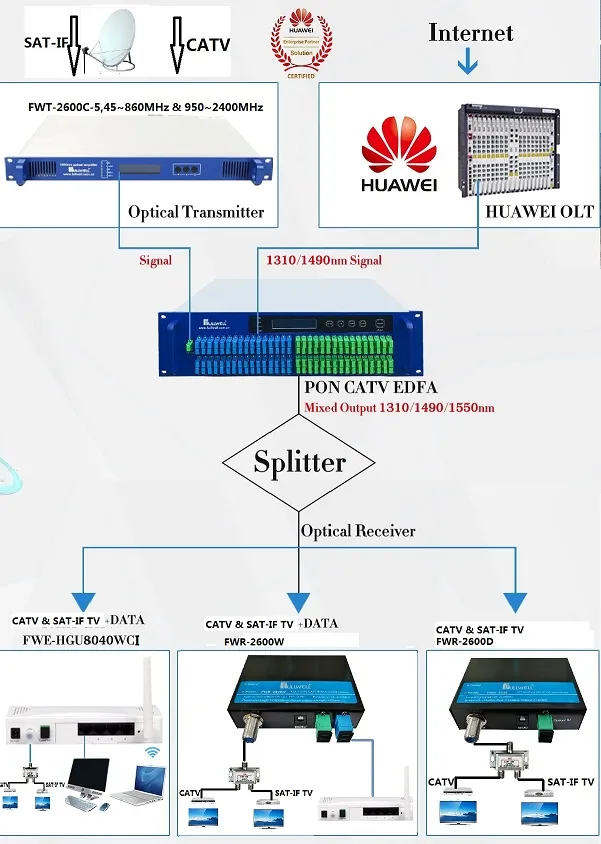

FWR-2600W-XGS WDM optical receiver, with PON interface, can be compatible with any FTTx PON technology, which achieves multi-network integration of CATV + satellite TV (DVB-S) + Internet. It can be used along with Fullwell WDM EDFA for large-area FTTH triple play transmission and coverage.

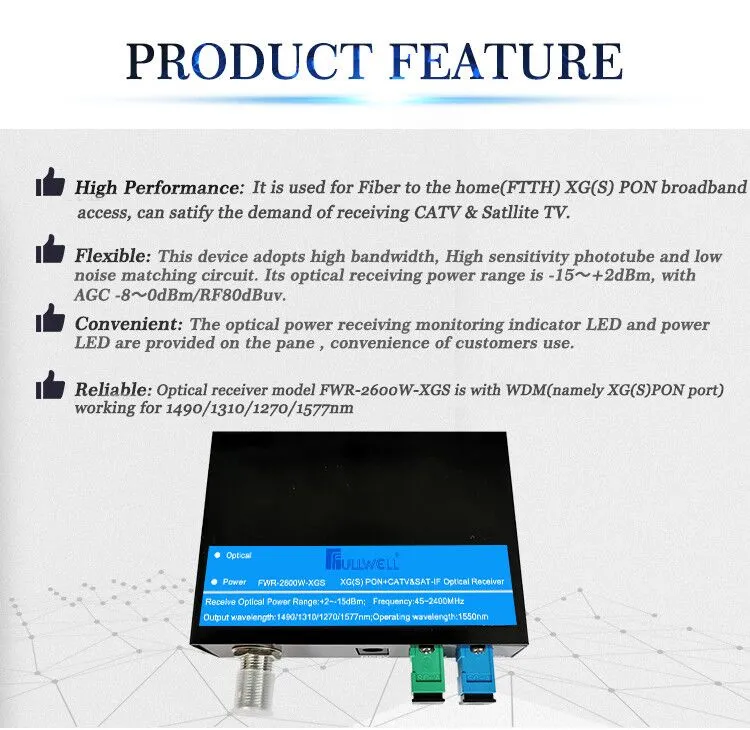

2.Product Feature
1) PIN receiving optical power, -1dBm receiving sensitivity, AGC receiving range: -2 ~ -12dBm, stable output level: 82dBuv.
2) Wide bandwidth: 47 ~ 2600MHz working bandwidth.
3) One fiber can receive 10CH of Analog TV, Digital TV (DVB-C), Satellite TV (DVB-S) signal and CATV radio frequency RF signal at the same time.
4) It can be used along with WDM EDFA for long-haul and large-area transmission of FTTH triple play integration.
5) Industry-leading 5V power adapter, non-stop work design for more than 5 years.
6) Can be integrated and compatible with any FTTx PON triple play.

3. Technical Parameters

Items			Unit	Performance Index	Note
IF		Frequency Range	MHz	950~2600	Benchmark: 950~2400
		Output Level	dBuV	82±1	AGC:-2~-12dBm
		Flatness	dB	-1.5~+1.5	-1.0~+1.0/950~2400MHz
		Output Return Impedance	dB	12	14/950~2400MHz
		Channel Load	CH	10	Analogue TV
				64QAM	Digital TV
				36	QPSK or FM
		IM3	dB	-65
		HUM	dB	-60
		IP1	dBm	18
		Output Impedance	Ω	75	50Ω Optional
		RF Connector		75Ω/F-female	50Ω/SMA-F
Optical Index	Receiving Wavelength		nm	1310,1490,1270,1577,1535,1600,1550,
	PON Wavelength		nm	1310/1490
	CATV Wavelength		nm	1540~1565
	Isolation		dB	≥40
	Responsivity		A/W	≥0.9
	Input Optical Power Range		dBm	+2~-15
	Return Loss		dB	≥55
	Input Connector		/	SC/APC
	PON Connector		/	SC/UPC	SC/APC Optional
RF	Bandwidth/Flatness		MHz/dB	47-1000	≤±1
	Output Level		dBuv	AGC: 82±1	AGC:-2~-12dBm
	Return Loss		dB	≥14	75Ω Characteristic Impedance
	CNR/MER		dB	≥44/34	PAL-D60CH,OMI3.8%,-9dBm
	CTB/CSO/HUM		dB	≥65/≥60/≥60	-1dBm receive
General Parameter	Power Supply/Consumption		V/W	AC90~250V→DC5/3	Non-stop Work Design For More Than 5 Years
	Working / Storage Temperature		ºC	-35~50/-40~75	Humidity 5~90%
	Dimension		mm	92×82×23
