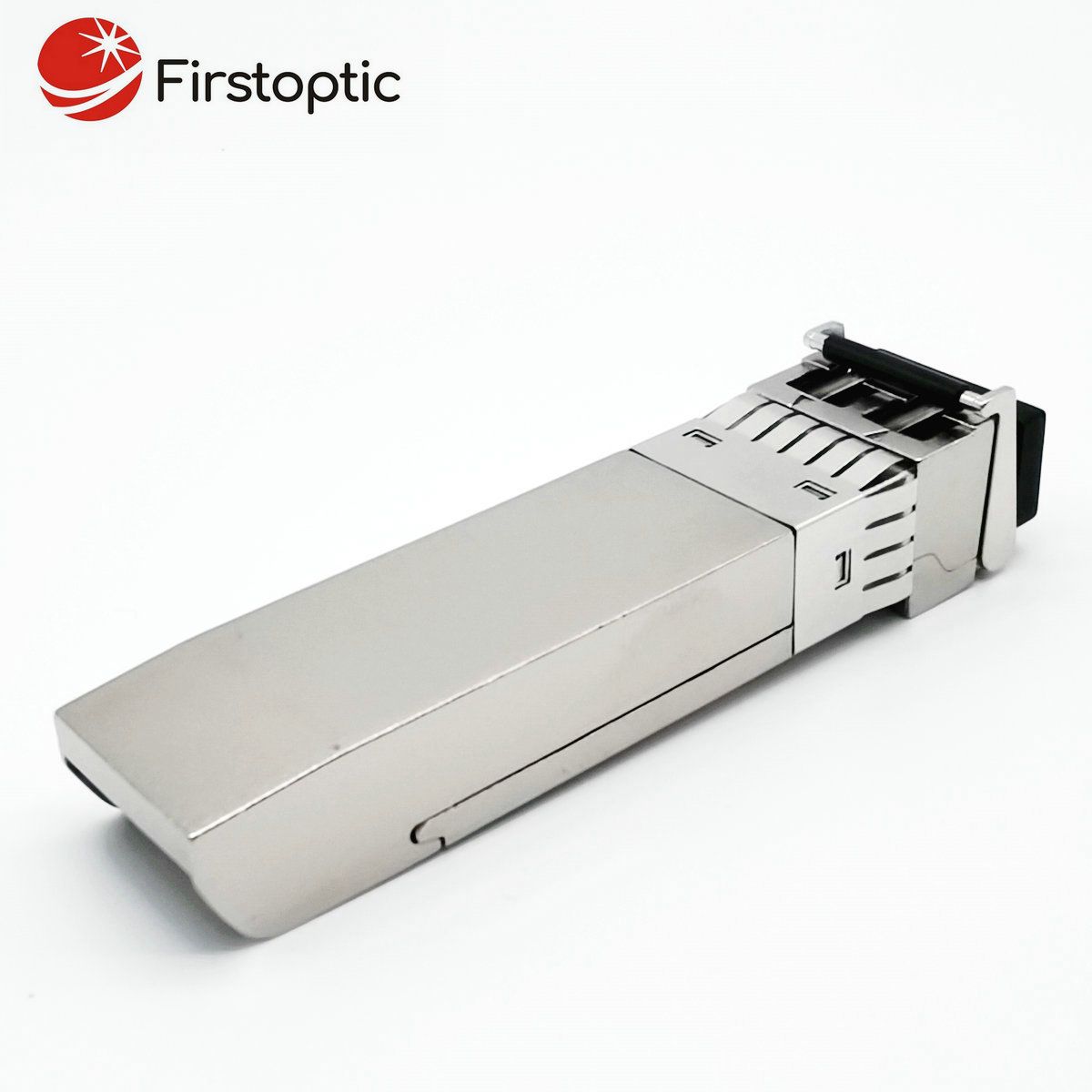

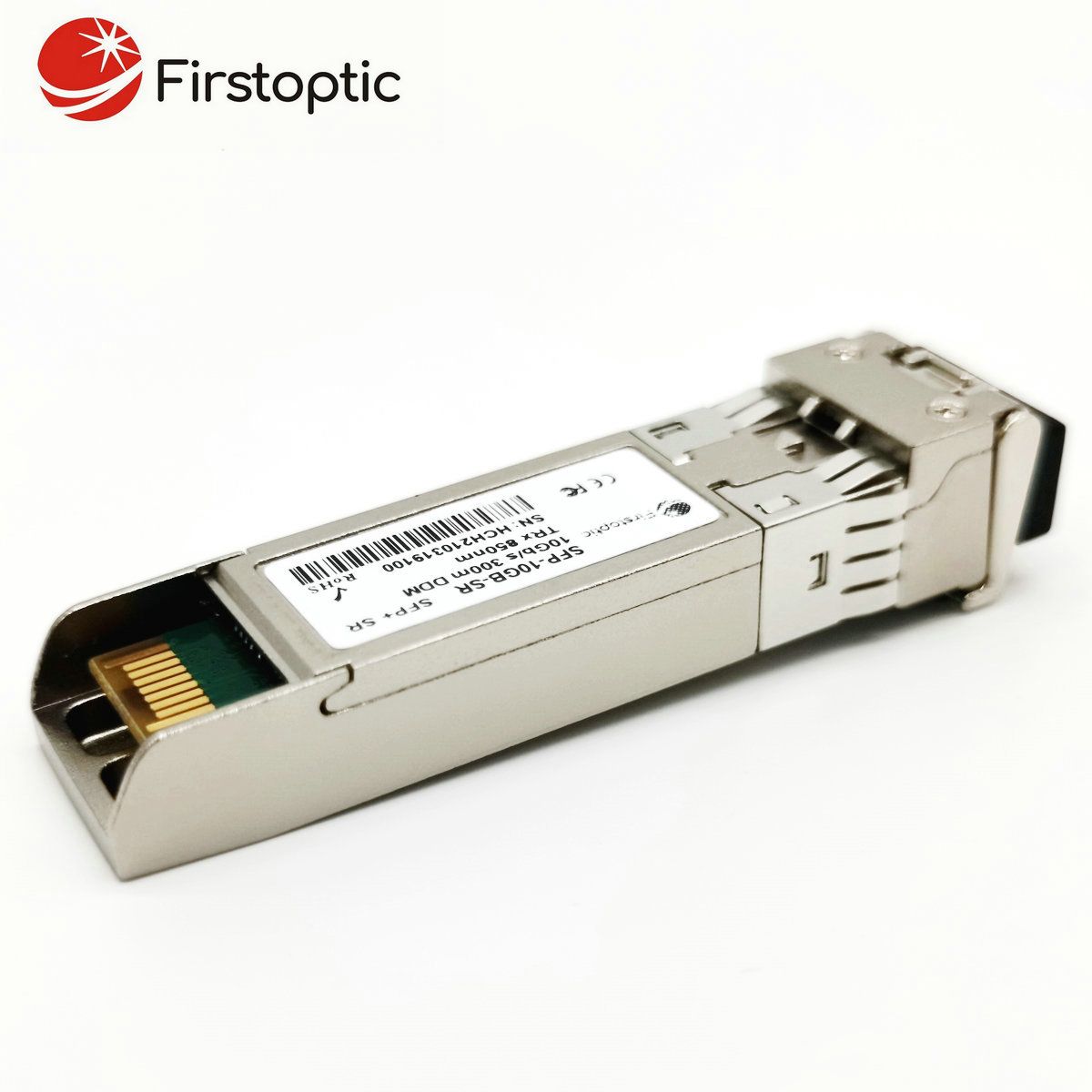

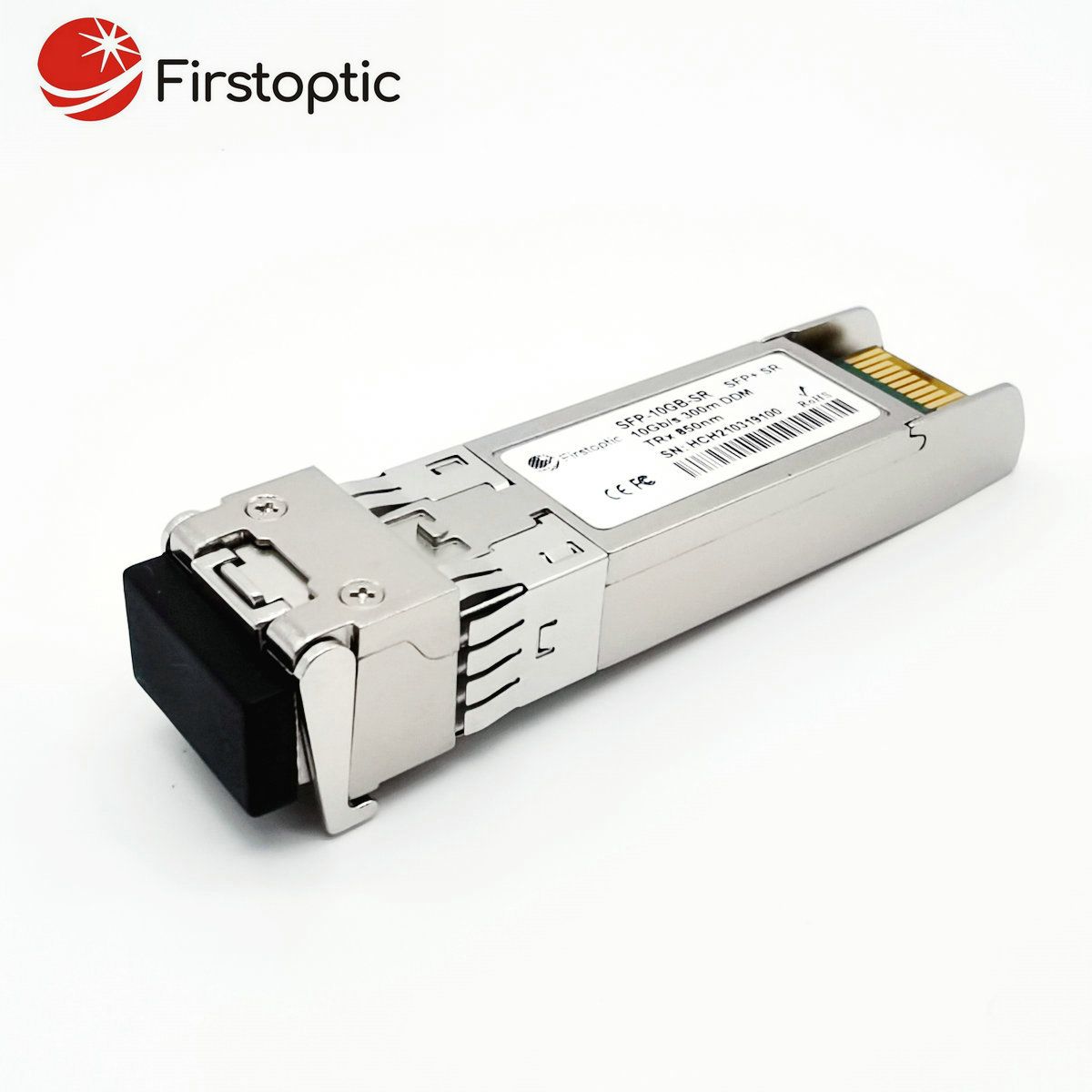

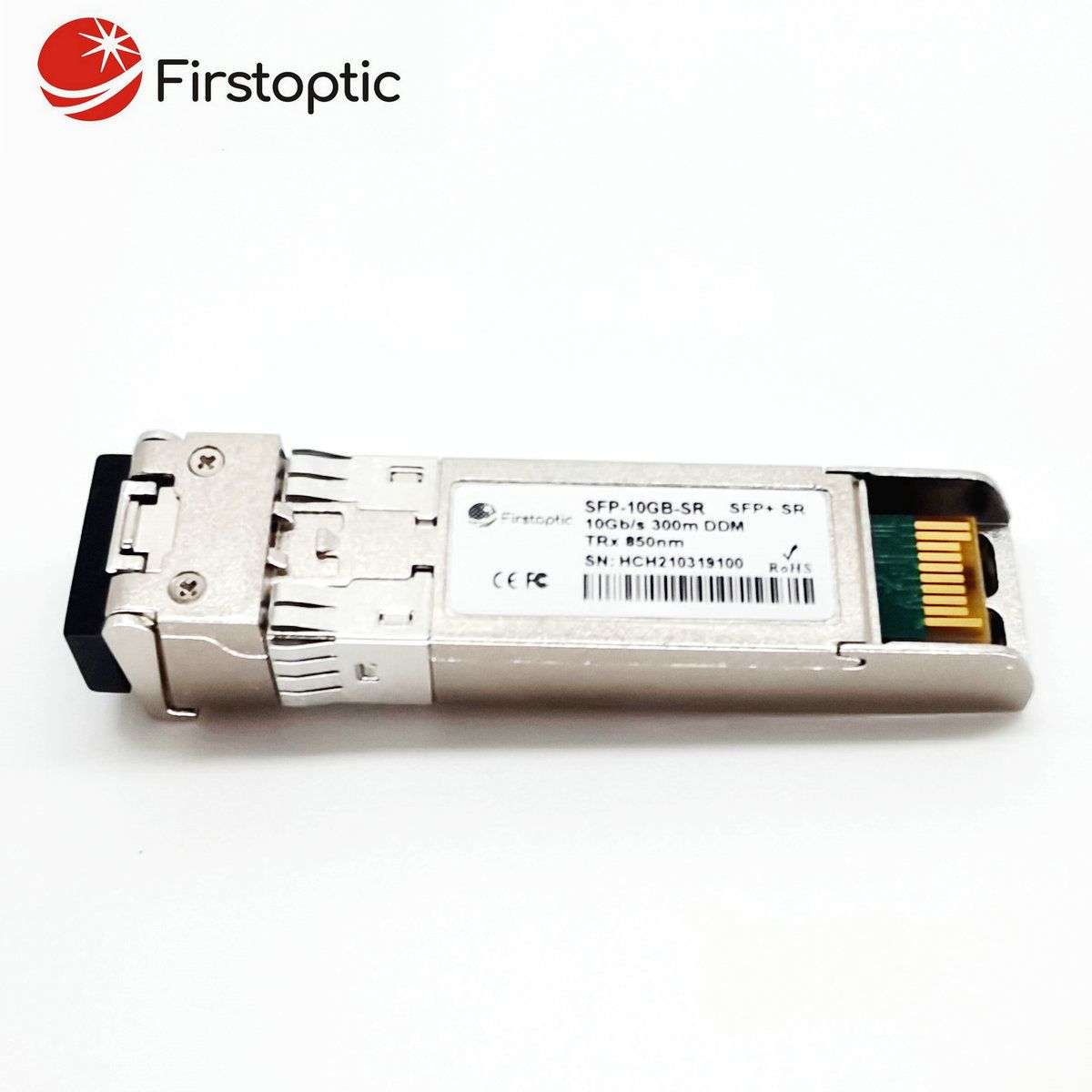

JD092B HPE H3C Compatible 10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module for HPE FlexNetwork, FlexFabric and Altoline Switch Series
SpecificationsJD092B HPE H3C Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)HPE CompatibleJD092BVendor NameHCHForm FactorSFP+Max Data Rate10.3125GbpsWavelength850nmMax Cable Distance 300m@OM3/400m@OM4ConnectorLC DuplexMediaMMFTransmitter TypeVCSELReceiver TypePINDDM/DOMSupp......
Send Inquiry
Product Description
Specifications
JD092B HPE H3C Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
| HPE Compatible | JD092B | Vendor Name | HCH |
| Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm | Max Cable Distance | 300m@OM3/400m@OM4 |
| Connector | LC Duplex | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | -5 to 70°C (23 to 158°F) |
| TX Power | -7.3~-1dBm | Receiver Sensitivity | < -11.1dBm |
| Typical Power Consumption | ≤0.6W | Receiver Overload | 0.5dBm |
| Bit Error Ratio (BER) | 1E-12 | Extinction Ratio | >3dB |
| EMC (Electro Magnetic Compatibility) | Supported | MTBF | 1,000,000 Hours |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 3 Years |
Describe
8.5G&10G SFP+ series contain 8.5G multi-rate FC SFP+ with 150M to 40KM transmission, 10G SDH/SONET/ Ethernet SFP+ with a range of 300M to 100KM. This series of products adopt LC interface, compatible with IEEE 802.3ba. It is characterized by low power consumption, small volume and wide temperature range.It is mainly used in SDH/SONET/FC transmission and other environments.
Features
* Duplex LC Connector
* 2-wire Interface for Management and Diagnostic Monitor
* Single 3.3 V Power Supply
* Compliant with SFP+ MSA
* Compliant with 8G FC
* Support Multi-rate for 8G/4G/2G FC
* Compliant with IEEE 802.3ae 10GBASE
* Compliant with SONET OC-192 / SDH STM-64
* Operation Temperature Range 0~70°C or -40~85°C optional
* Low Power Dissipation
* RoHS-6 Compliant

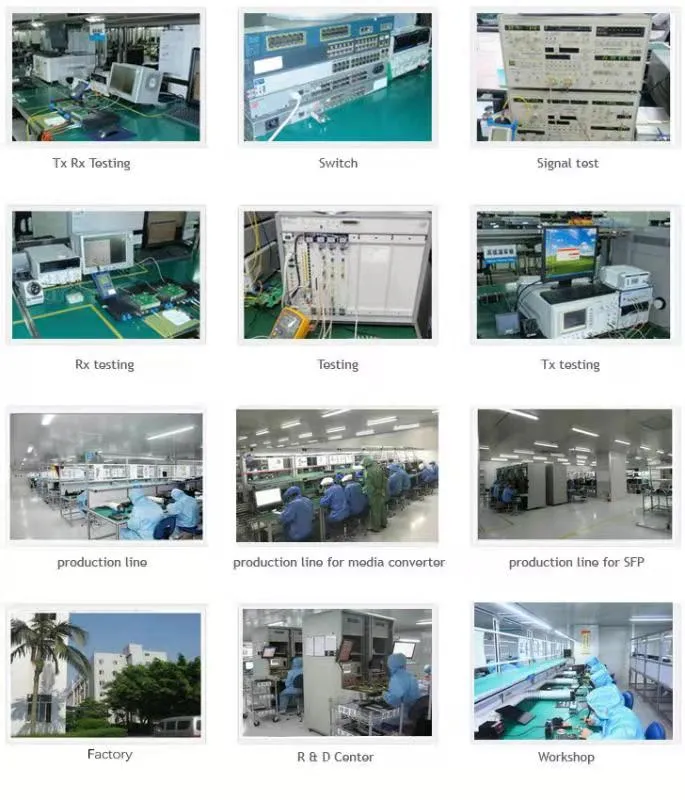

Our Company
