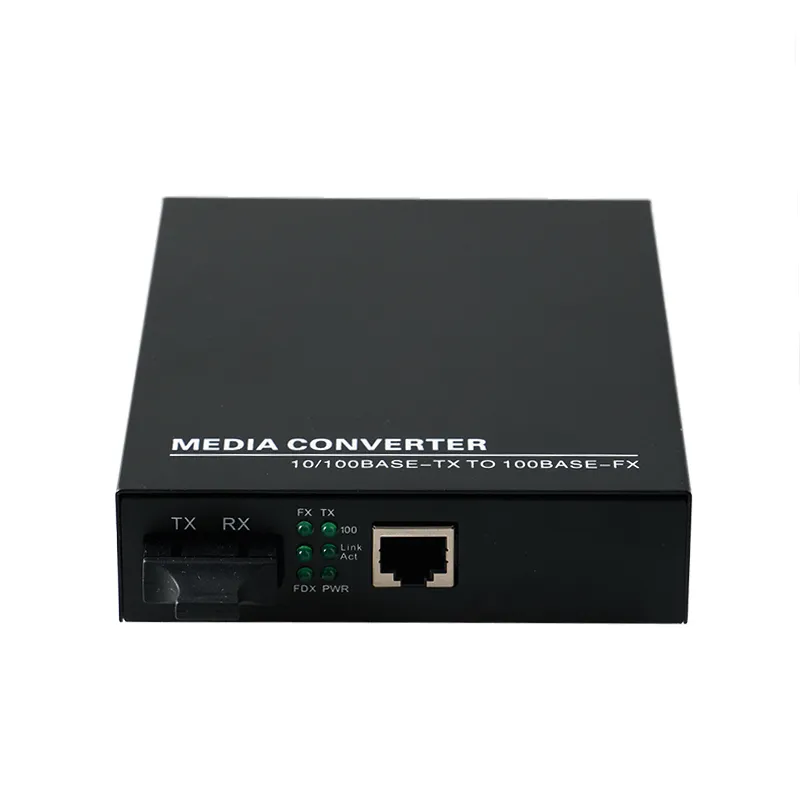

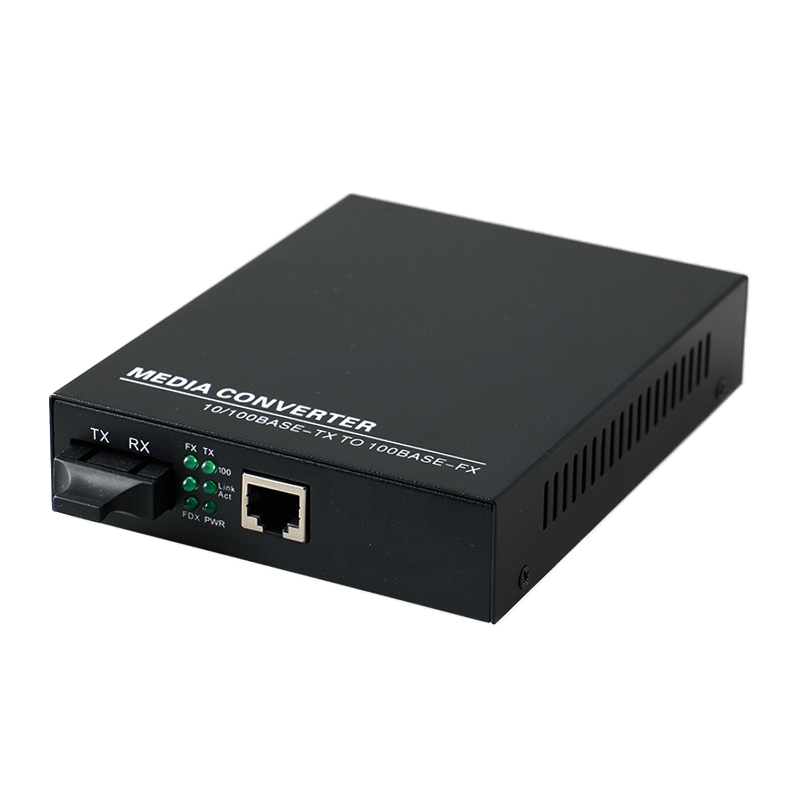

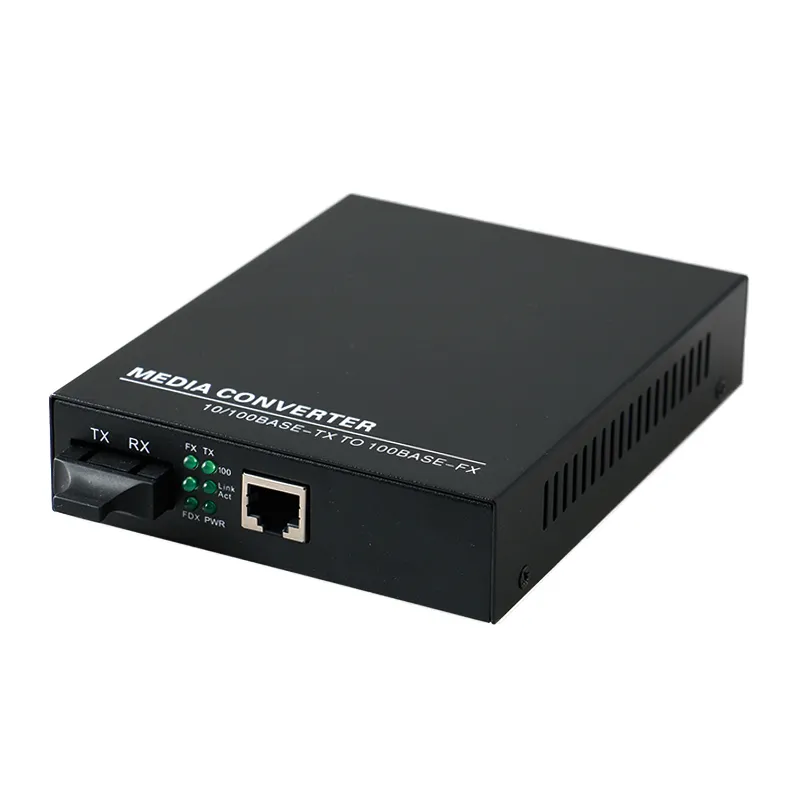

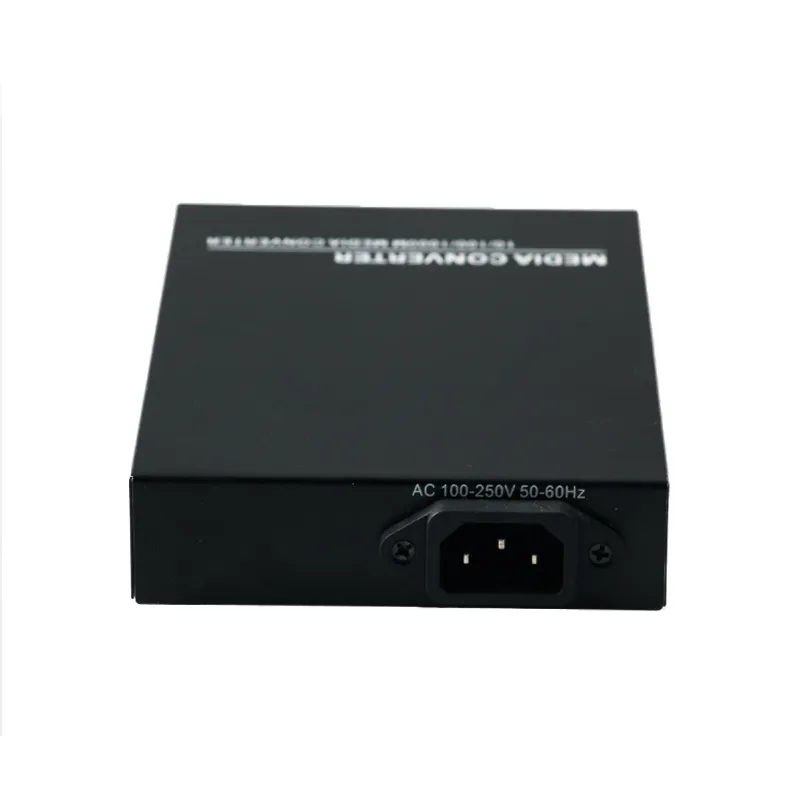

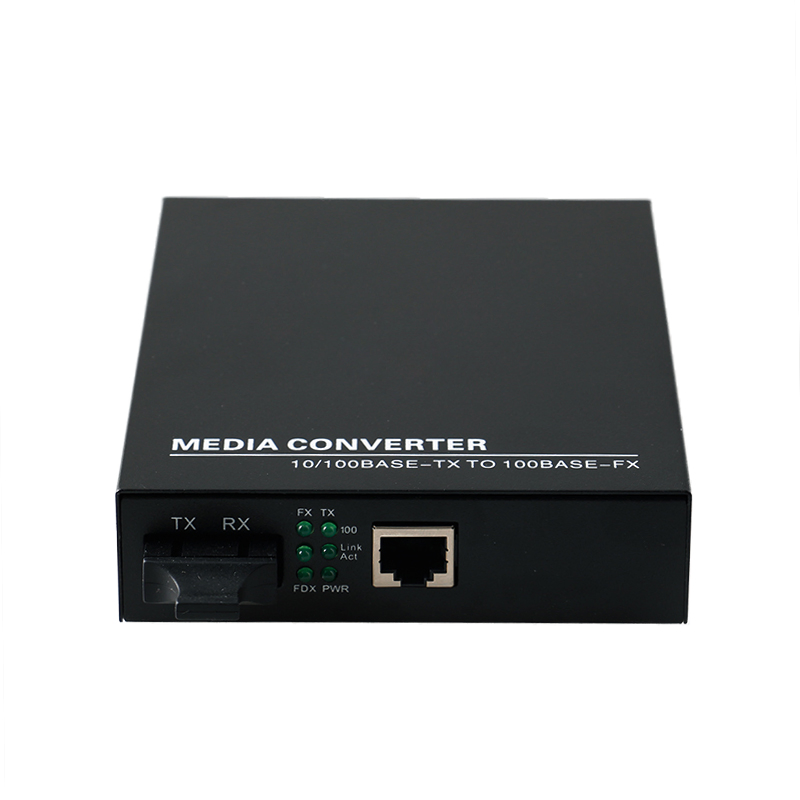

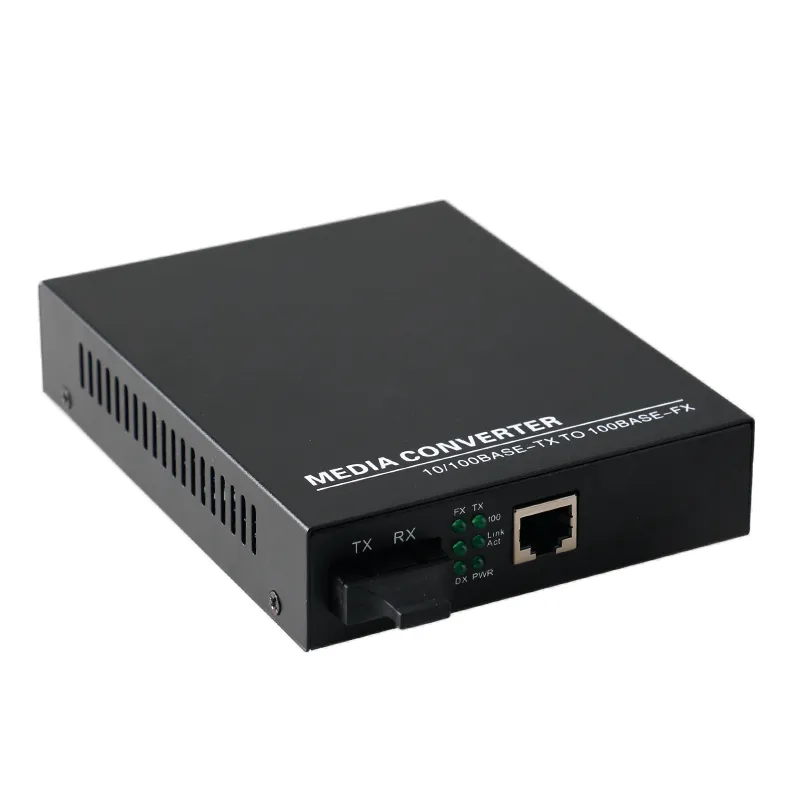

Internal Power Supply Gigabit Media Converter Single Mode 20km (Mc1004sc)
Gigabit Dual Fiber Media ConverterFeature Card-type or stand-alone, apply in centralized management 2U aluminum chassis Using WDM wavelength 1310nm and 1550nm to achieve single fiber bi-directional transmission Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and for......
Send Inquiry
Product Description
Gigabit Dual Fiber Media Converter
Feature
Card-type or stand-alone, apply in centralized management 2U aluminum chassis
Using WDM wavelength 1310nm and 1550nm to achieve single fiber bi-directional transmission
Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating echanism
Cache is 512KB, MAC address table is 4KB
Ethernet 10Base-Tx to 10 Base-Fx or 100Base-Tx to 100Base- Fx or 1000Base-Tx-1000Base-Fx fiber media Converte
Support IEEE 802.3af, IEEE 802.3U, IEEE 802.1X,IEEE 802.3Z/AB, IEEE 802.1d protocol
Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability
TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)
Provide remote link loss diagnostics,TP port and FX port link connection diagnostic,dynamic data transmission,full / half duplex,rate indicator
Provide single RJ-45 port , and support automatically cross-recognition, connected with switch,set line
FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc
Excellent after-sales service, providing three years quality assurance and life-long maintenance services
Application
Harsh industrial environment or higher requirements for lightning protection
Urban Intelligent Traffic Monitoring System (ITS), Safe City
highway monitoring system, electronic road monitoring, network cameras
large industrial enterprise security monitoring systems, network multifunction system
Remote multimedia teaching / campus monitoring, remote network video conference system
| Technical parameter list | |
| Product Name | Dual Fiber Gigabit Media Converter with SC Fiber Port with Internal Power Supply |
| Product Model | ZRN-GE-20 |
| Connector Type | 1x copper cable RJ45 port +1x fiber SC port |
| Bandwidth | Fiber bankwidth 1.25G; Ethernet Bandwith:1.6Gbps (non-blocking) |
| MTBF | 190,000 hours (about 21 years) |
| Network Protocol | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| Optical Fiber | Single mode dual fiber, SC port |
| Optical Distance | 20km |
| Wavelength | 1310nm |
| Interface Rate | 10/100/1000M |
| LED Display | System, Power, Connecting, working status |
| Power Consumption | AC220V |
| Dimension | 15×11×3cm |
| Working Environment | Working Temperature:-20°~ 75°C; Storage Temperature: -40°~ 85°C; Working Humidity: 5%~95%, non-condensing; Storage Humidity: 5%~95%, non-condensing; Operational Altitude: 3000m (10,000ft); Storage Altitude: 3000m (10,000ft) |
| Certification | CE,FCC,Rohs |
| Warranty | 2 year warranty |
