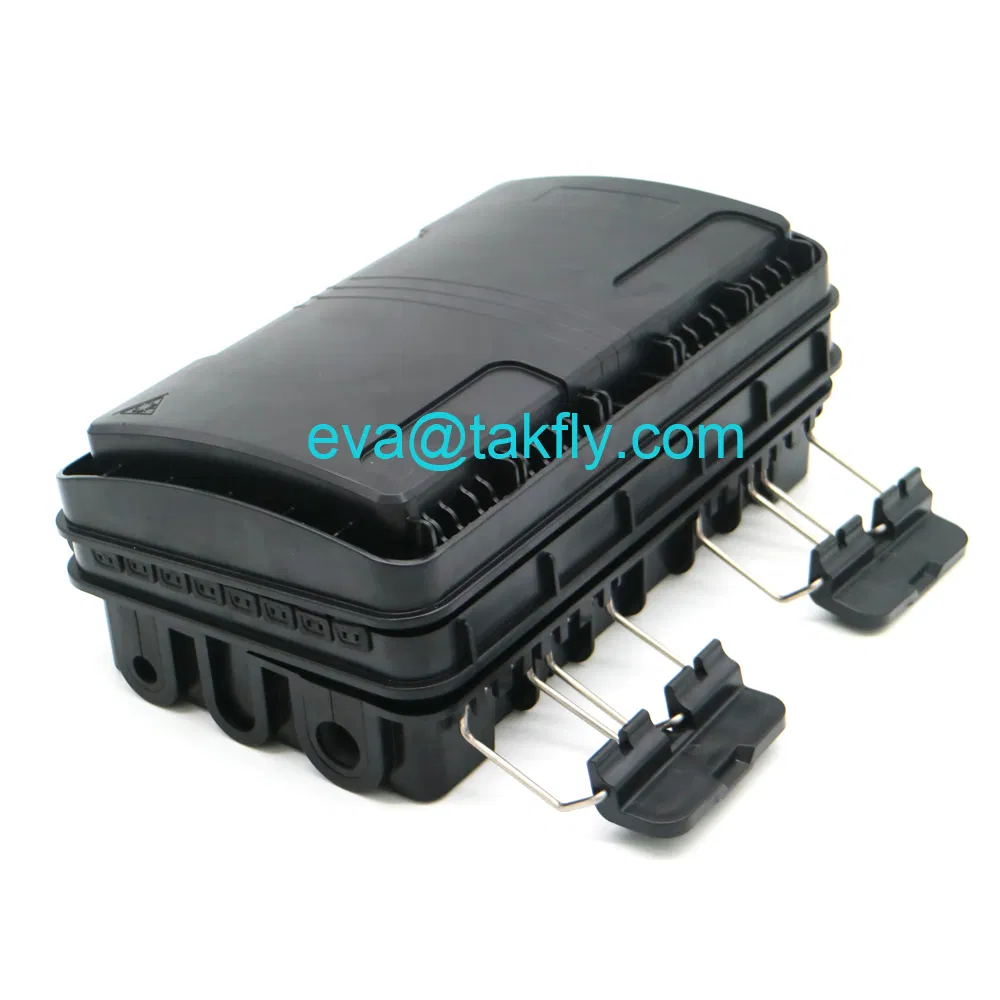

Inline Fiber Distribution Box 8 Port Aerial Fiber Splice Closure
inline fiber distribution box 8 port aerial fiber splice closure DescriptionThis new design fiber distribution box is designed for in-line application to provide a protected access point between the distribution cable and drop cable. This product can keep internal components away from outdoor envir......
Send Inquiry
Product Description
inline fiber distribution box 8 port aerial fiber splice closure
Description
This new design fiber distribution box is designed for in-line application to provide a protected access point between the distribution cable and drop cable. This product can keep internal components away from outdoor environmental damage. Its flexible configuration support 3 cable in and 3 cable out. Cassette type optical splitter could be build-in. Good performance is useful in harsh environment.it integrates the splitting and distribution function in one termination box, can realize the splicing and branch of the optical cable, and is suitable for the cable connection of the optical communication equipment. Through the adapter of the termination box, the signal is drawn by the optical fiber jumper to realize the optical fiber distribution function; Also suitable for fiber cable and pigtails protective connection. The unique design of the box-shaped structure of the box can be used as a fiber splitting or splice box; the flip core can be turned over 180 degrees, which is more convenient to install the box and maintenance, after remove the flipping core it can be a splice closure to meet the user's different choices.
Feature
Pictures
Takfly certifications:
Takly booth at global fairs:
Takfly workshops:
If you want to know more detail,please contact:
This new design fiber distribution box is designed for in-line application to provide a protected access point between the distribution cable and drop cable. This product can keep internal components away from outdoor environmental damage. Its flexible configuration support 3 cable in and 3 cable out. Cassette type optical splitter could be build-in. Good performance is useful in harsh environment.it integrates the splitting and distribution function in one termination box, can realize the splicing and branch of the optical cable, and is suitable for the cable connection of the optical communication equipment. Through the adapter of the termination box, the signal is drawn by the optical fiber jumper to realize the optical fiber distribution function; Also suitable for fiber cable and pigtails protective connection. The unique design of the box-shaped structure of the box can be used as a fiber splitting or splice box; the flip core can be turned over 180 degrees, which is more convenient to install the box and maintenance, after remove the flipping core it can be a splice closure to meet the user's different choices.
Feature
>> The closure casing is made ofindustrial plastic PP+GF.
>> Outdoor application and good UV resistant.
>> Double sided drop cable outlet, drop cable can lead in at both sides, easy to deploy.
>> 9 adapters with LGX cassette,1 for splitter inlet and 8 for outlets.
>> 3 layers structure, easy for future expansion and maintenance.
>> Buckle lock design for the easy access of aerial installation.
>> 1pcs of 1*8 LGX Splitter can be installed as an option.
>> Support ADSS cable and self-support fiber cable.
>> Protection grade: IP65.
>> Protection grade: IP65.
>> The application on NAP in the distributed split PON architecture
Configuration
| Model | Material | Size | Max Splice | Adapter(SC) | PLC Splitter | Weight | Color |
| TK-1806-24EJ | PP+GF | A*B*C(mm) 285*175*110 | 24 cores | 9 | 1 x 1:8 LGX Cassette Type | 1.7KG | Black |

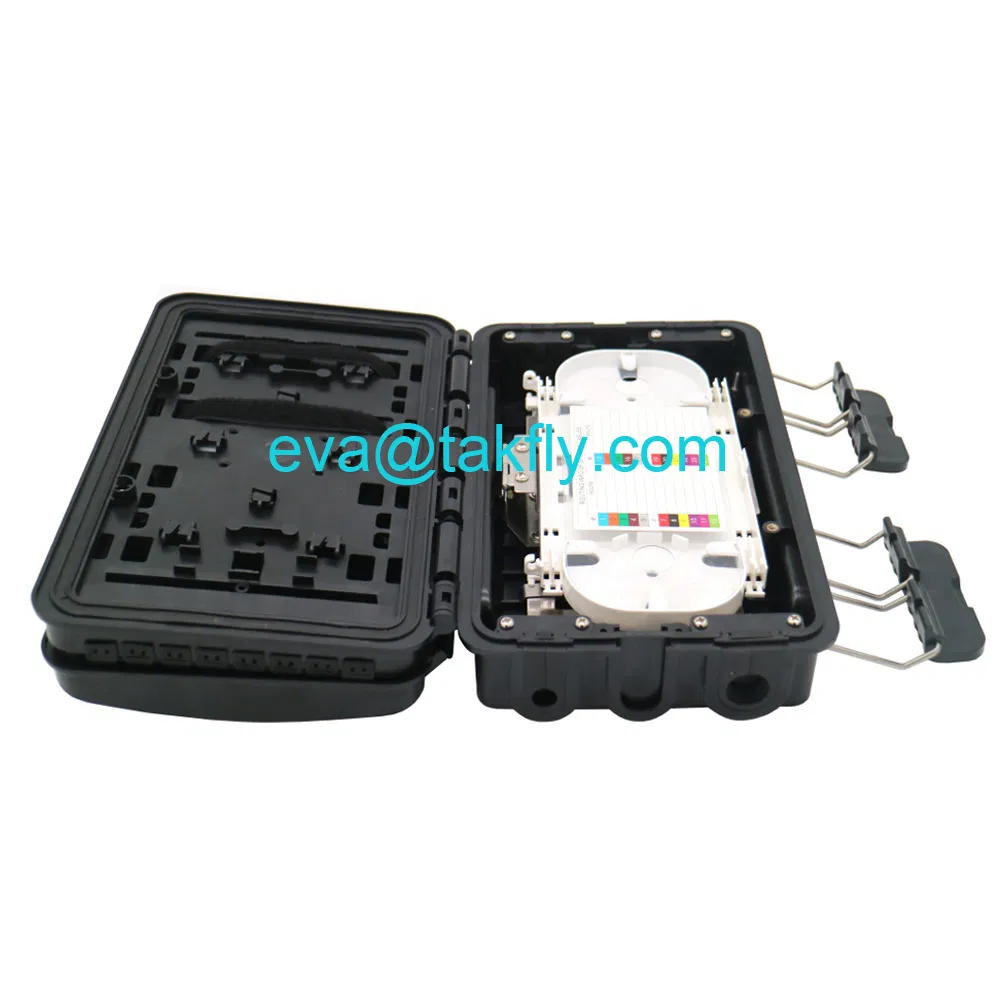

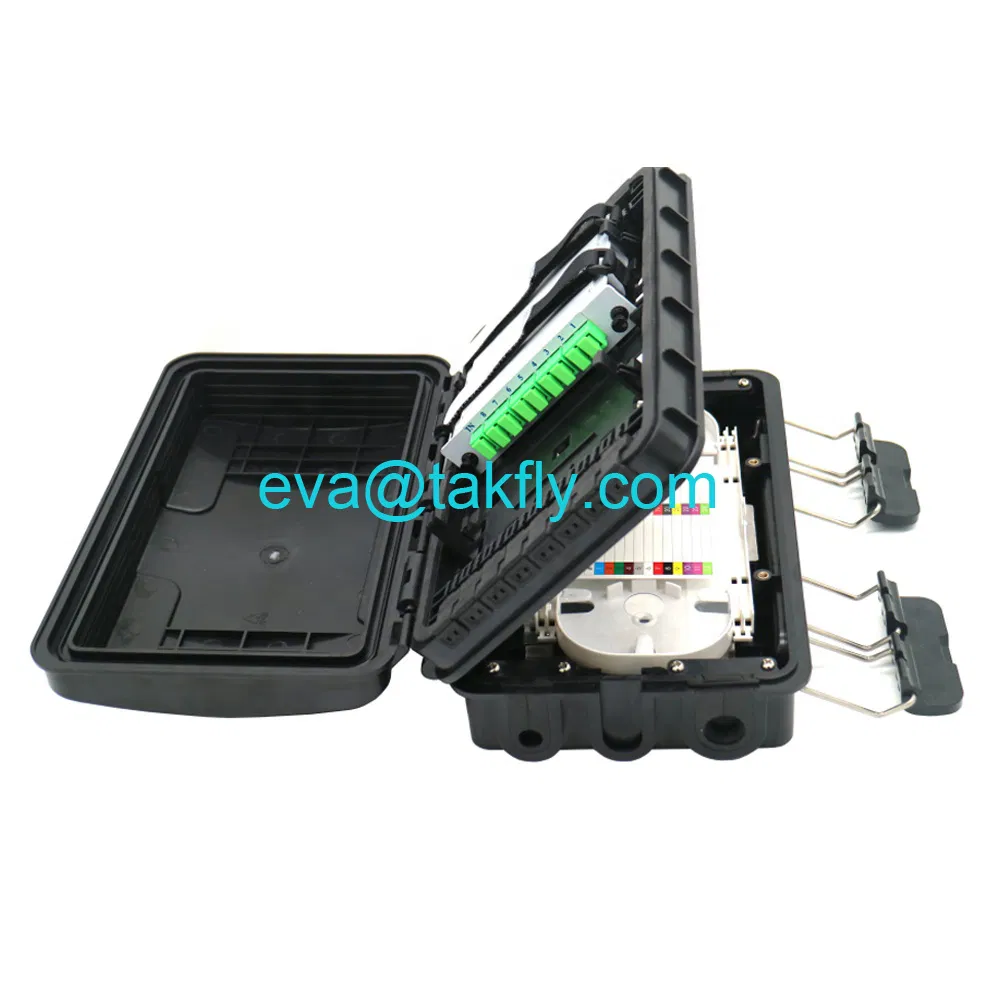

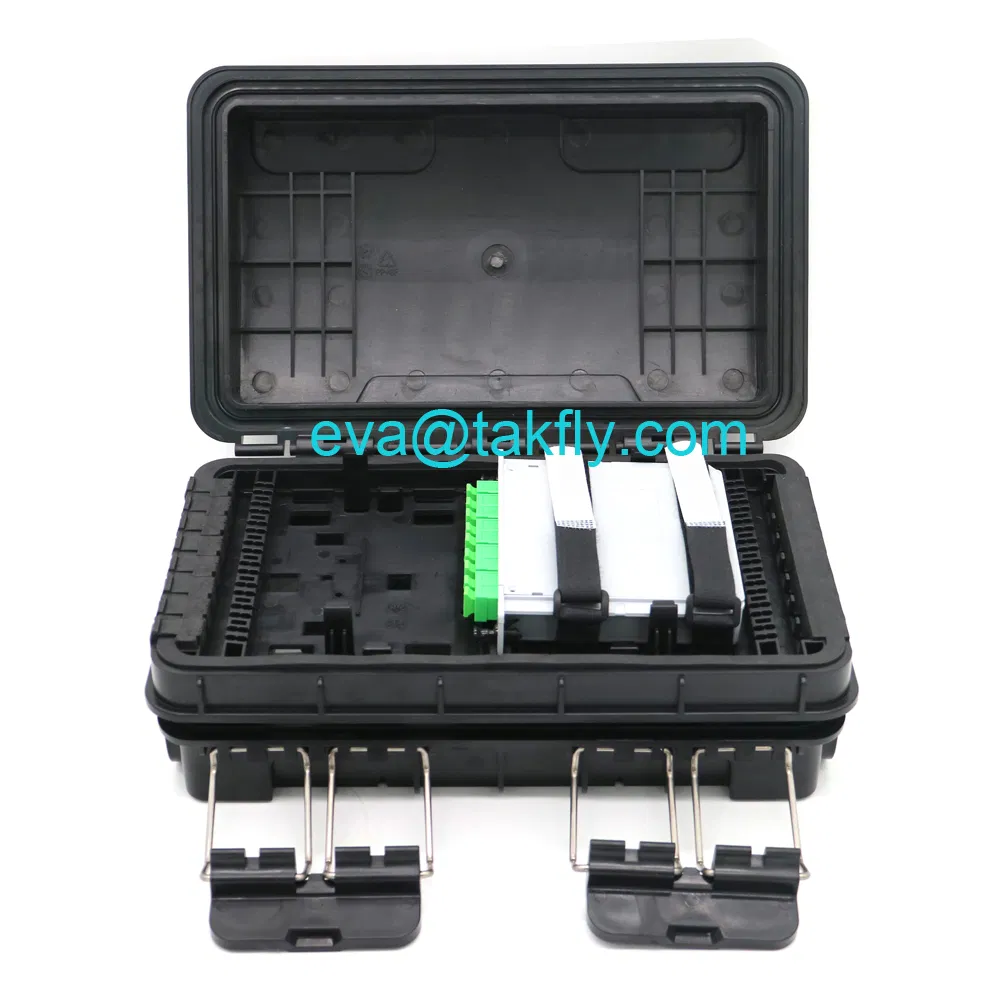

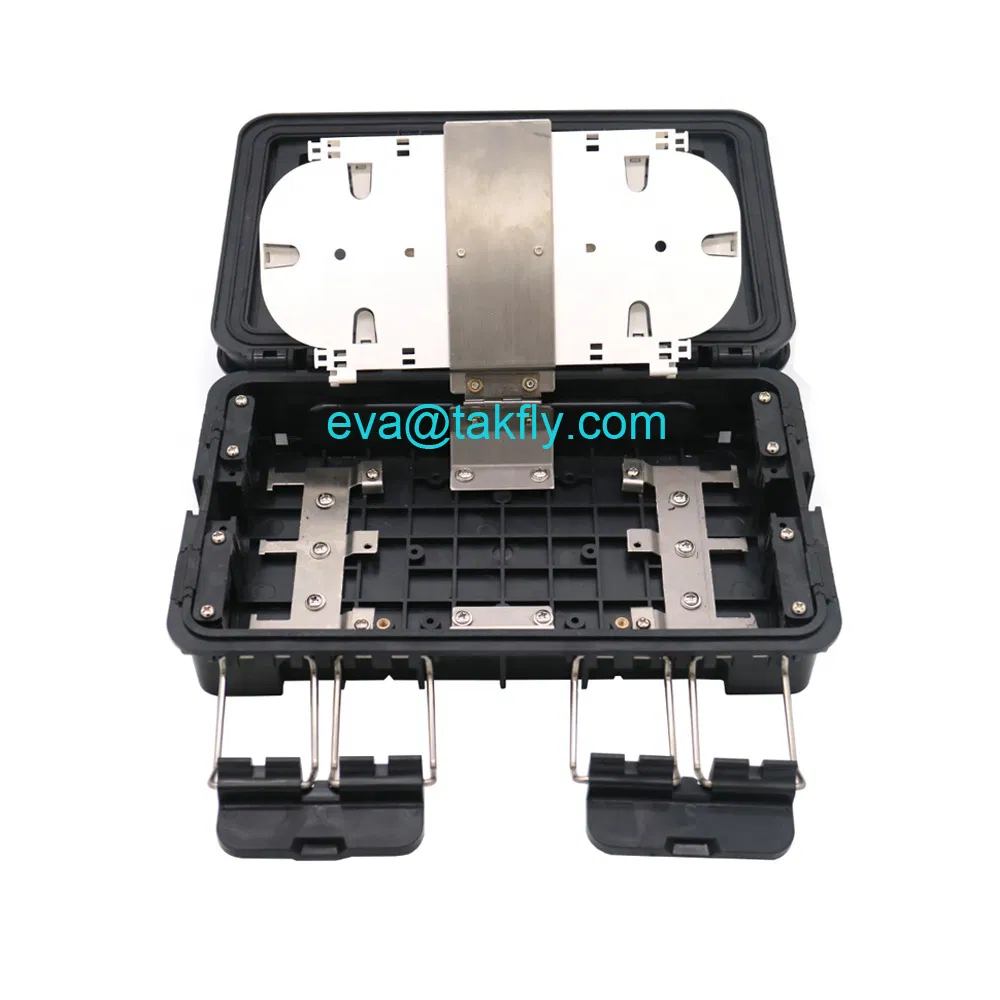

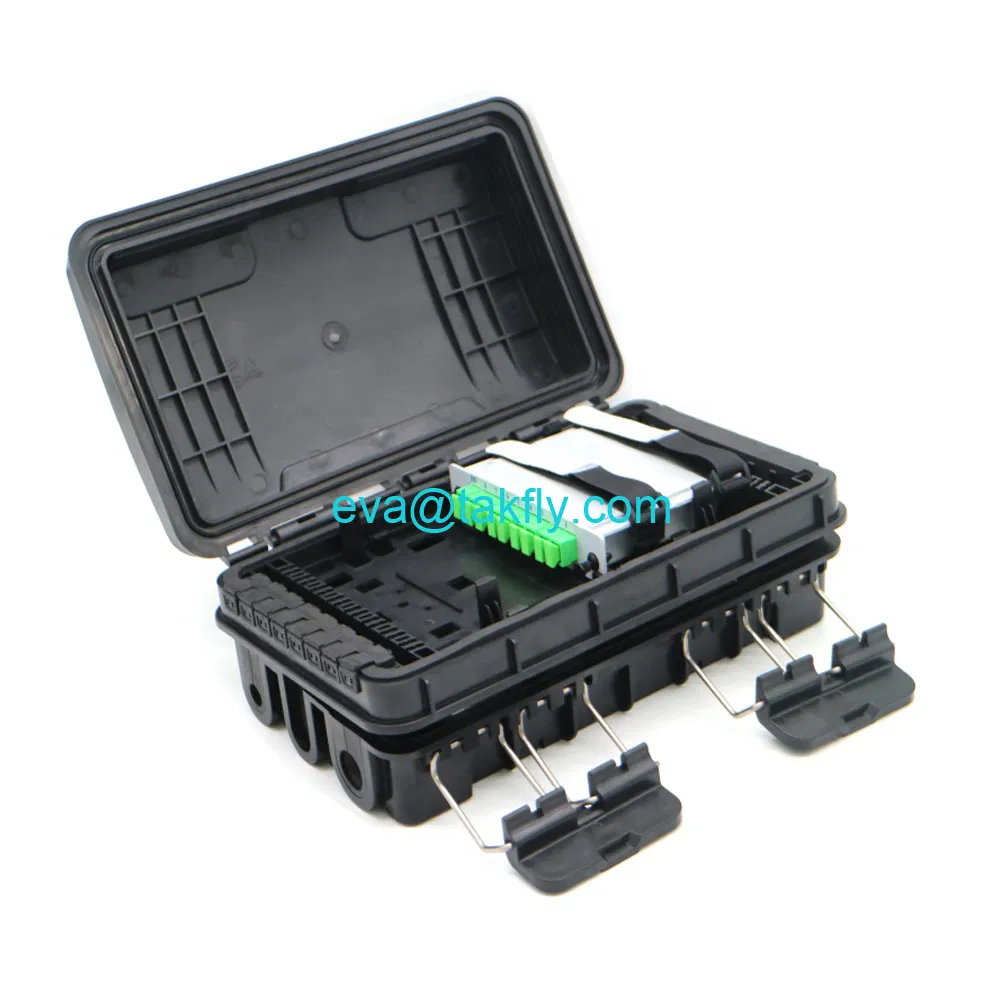

Pictures

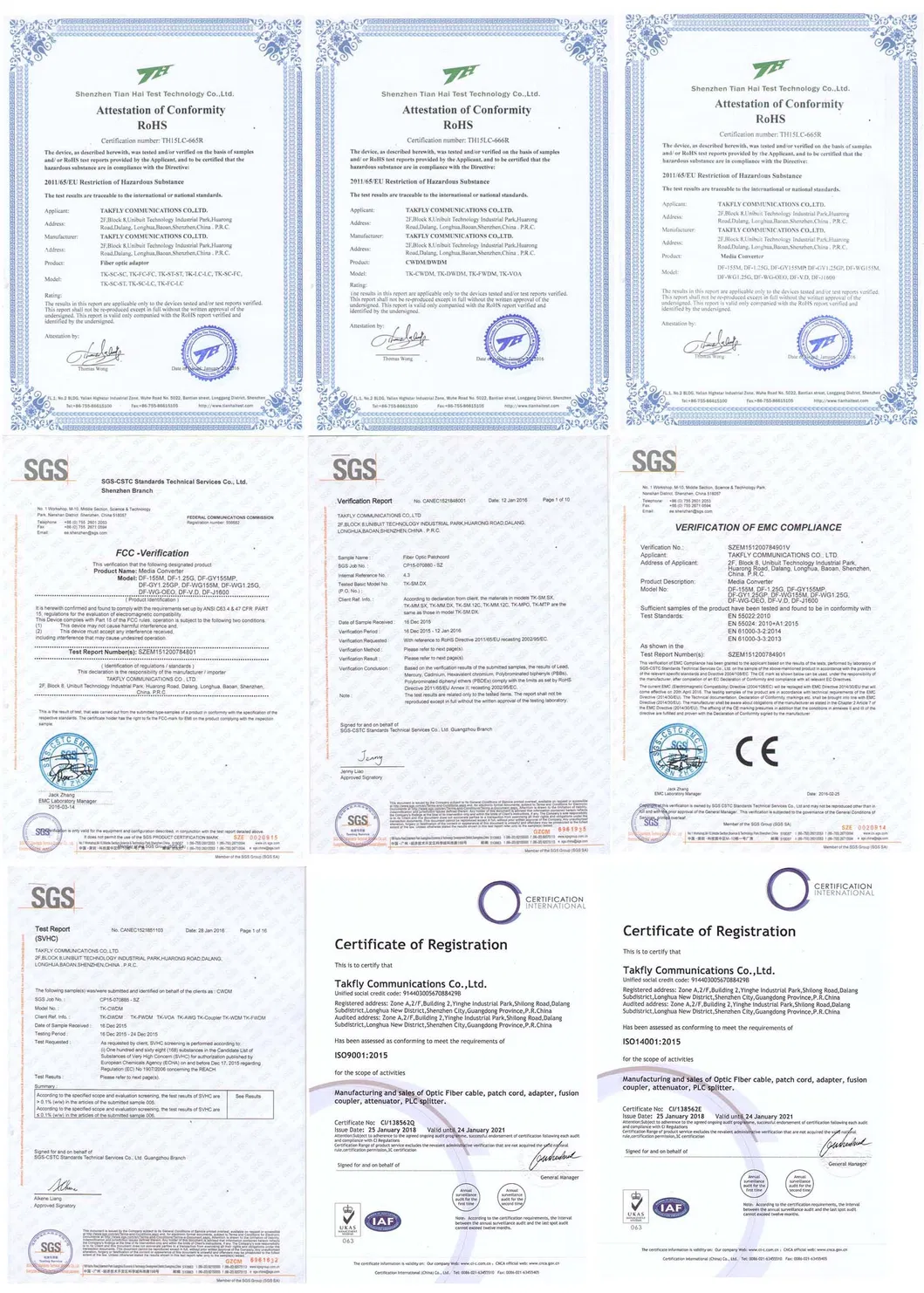

Takfly certifications:
Takly booth at global fairs:

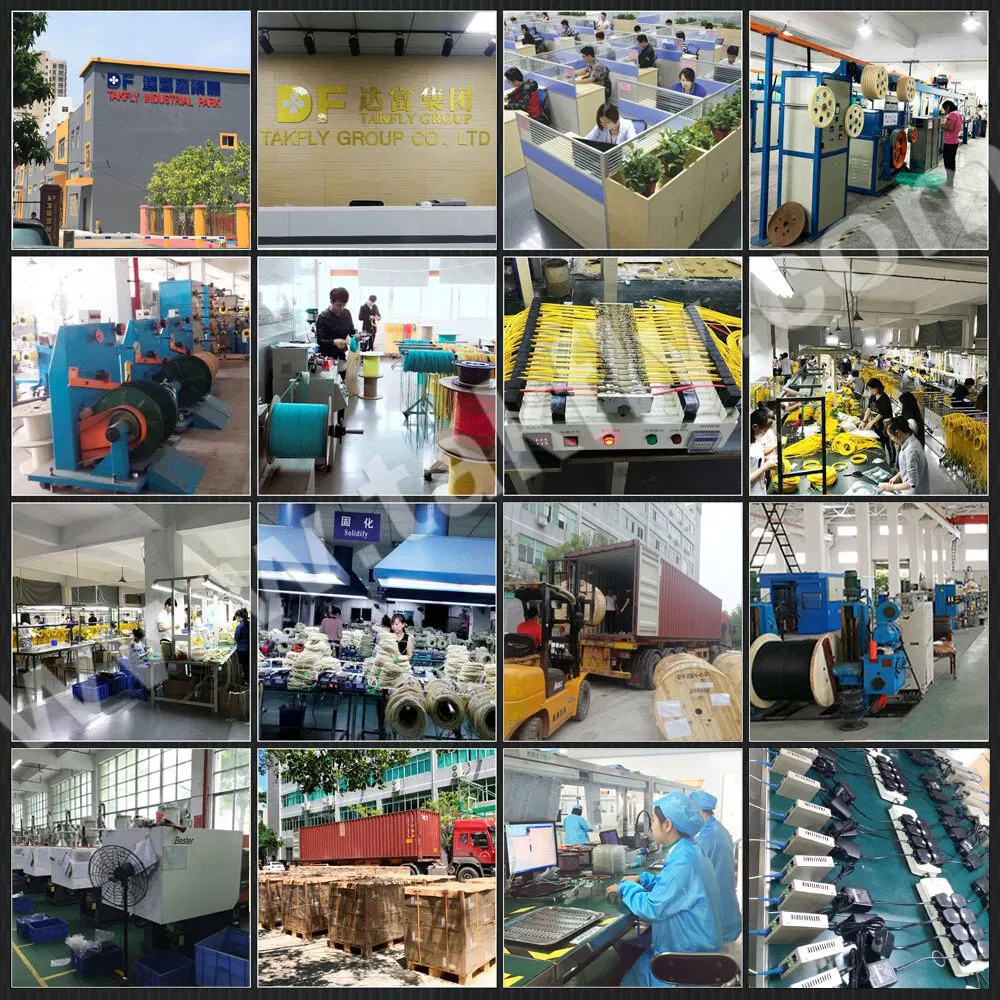

Takfly workshops:
If you want to know more detail,please contact:
