Huawei Style Enclosure 10g Speed Xgs-Pon Wdm CATV Amplifier
FWAP-XGS Series, XG(S)-PON + CATV WDM EDFA (2 Inputs with main and redundant path)Product Description "Quality Broadband" has become the consensus of the development of the global broadband industry. Meeting the needs of users for 10G bandwidth has become a challenge for operators. To meet......
Send Inquiry
Product Description

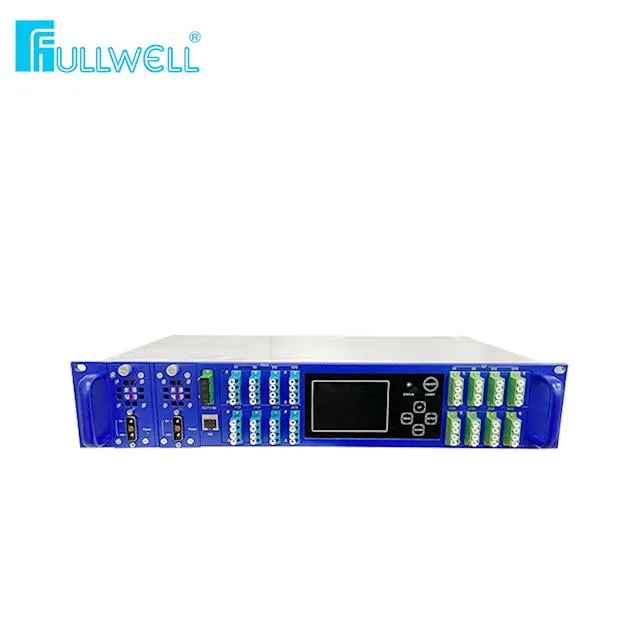

FWAP-XGS Series, XG(S)-PON + CATV WDM EDFA (2 Inputs with main and redundant path)
Product Description
"Quality Broadband" has become the consensus of the development of the global broadband industry. Meeting the needs of users for 10G bandwidth has become a challenge for operators. To meet the challenges faced by operators, Huawei's next-generation large-capacity distributed intelligent OLT platform MA5800 provides a single service board that supports XGS-PON, XG-PON, and GPON mixed access application scenarios.
Fullwell is a certified solution partner of Huawei. In order to cater to the integration of triply play network and move towards 10G bandwidth, Fullwell has developed the product of XG (S ) -PON + CATV EDFA high power EDFA. Which its CATV signals and XGS-PON, XG-PON and GPON signals can be accessed on one fiber at the same time, helping operators to create all-optical , automated and intelligent FTTH integrated access network, continuously improve user experience, enable quality broadband, help operators CATV and home broadband become possible, while reducing the cost of operator investment.
FWAP-XGS series is the latest optical transmission system equipment of XG (S) -PON + CATV FTTH / FTTP triple play network integration, and it is the function of combining OLT XG (S) -PON broadband signal and CATV 1550nm optical signal after amplification. Input ports: 2 CATV inputs with main and redundant path + 32/64 XGS-PON / XG-PON and GPON, combined 32/64 outputs: 1310 / 1490nm & 1270 / 1577nm + 1550nm, of which the total output power range of 1550nm is 27 ~ 45dBm. Multiply output ports can be customized. Compatible with XG (S) -PON / ONU, such as Huawei, ZTE, and Fiberhome, without losing of data, and has a high cost performance.

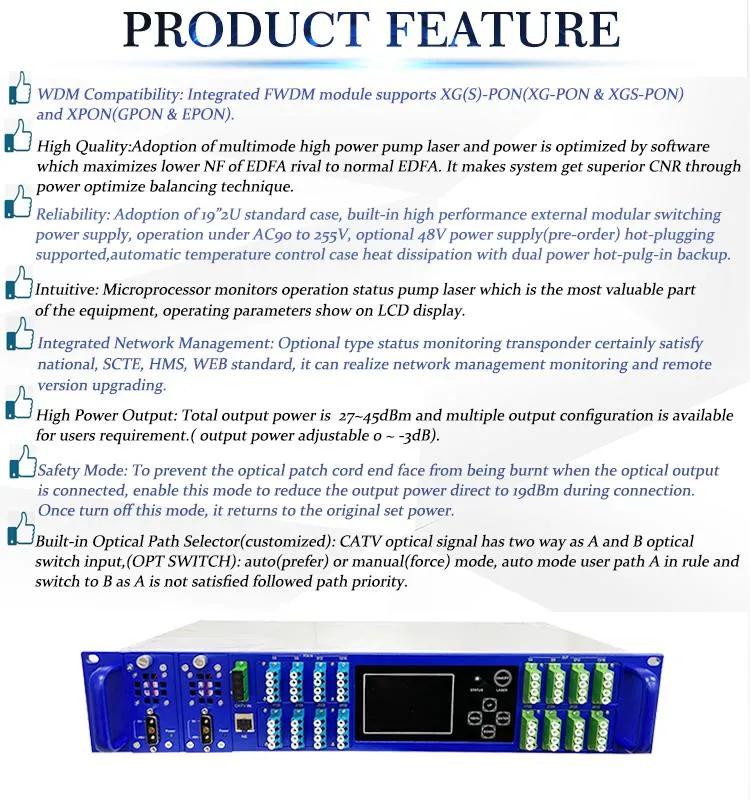

Product feature
1. Top quality: Adopt JDSU multi-mode high-power pump laser and the power is optimized through software, which makes the system achieving excellent CNR AND minimizing the NF of EDFA.

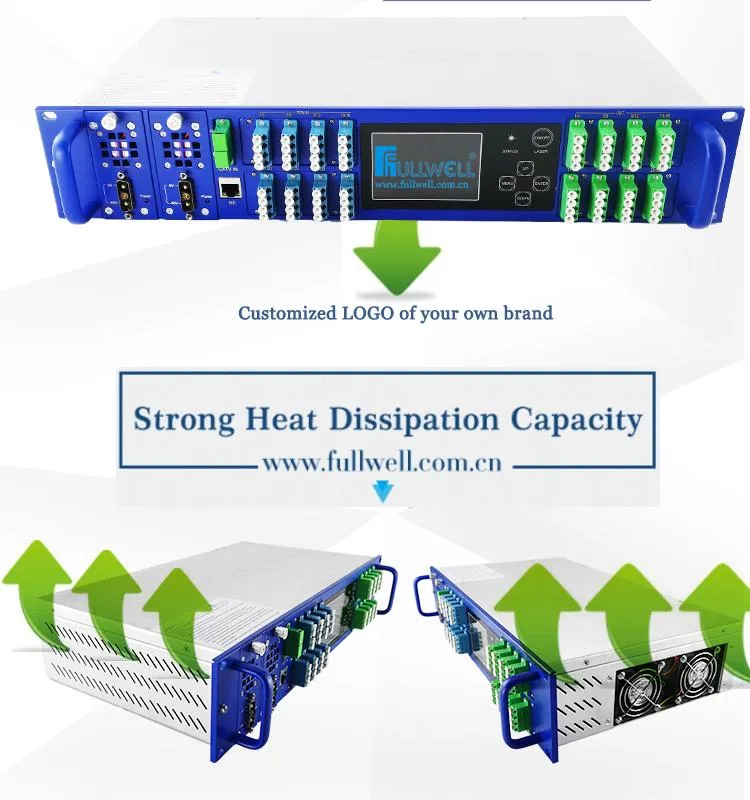

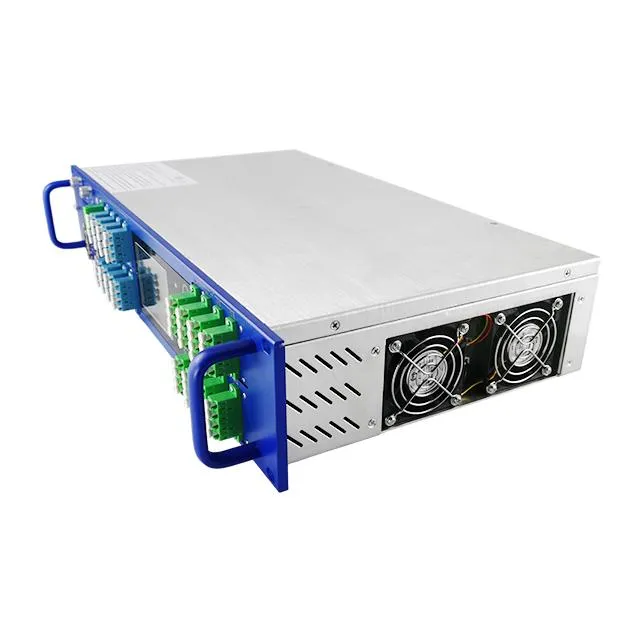

2. Reliability: It adopts a 19 ″ 2U telecommunication style small chassis, the depth of which is the same as that of Huawei's frame-type OLT, which is convenient for storage in the telecommunications room cabinet. It has a built-in high-performance plug-in DC 48V dual switching power supply with Chassis automatic heat dissipation control.

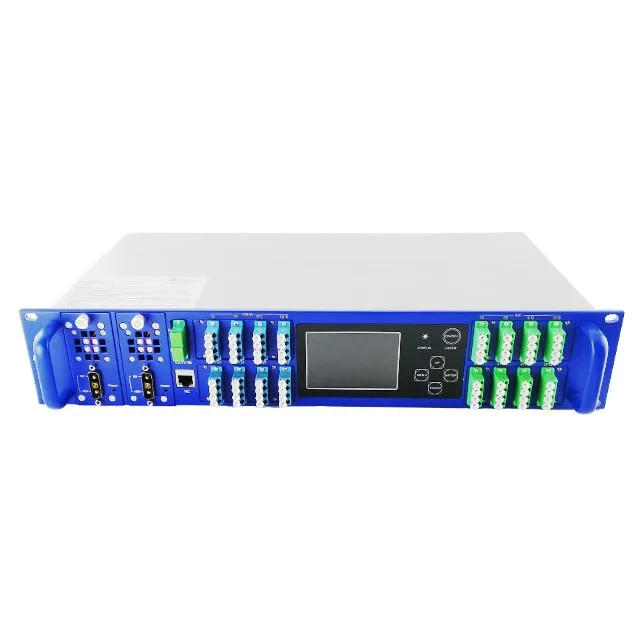

3. Intuitive: JDSU multi-mode pump laser is the most expensive component in the device. The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.

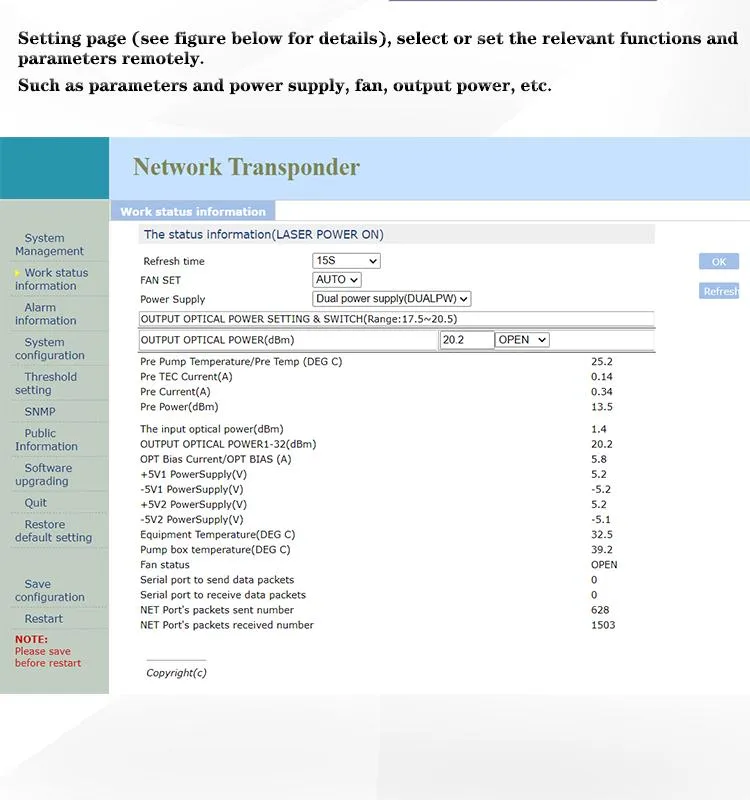

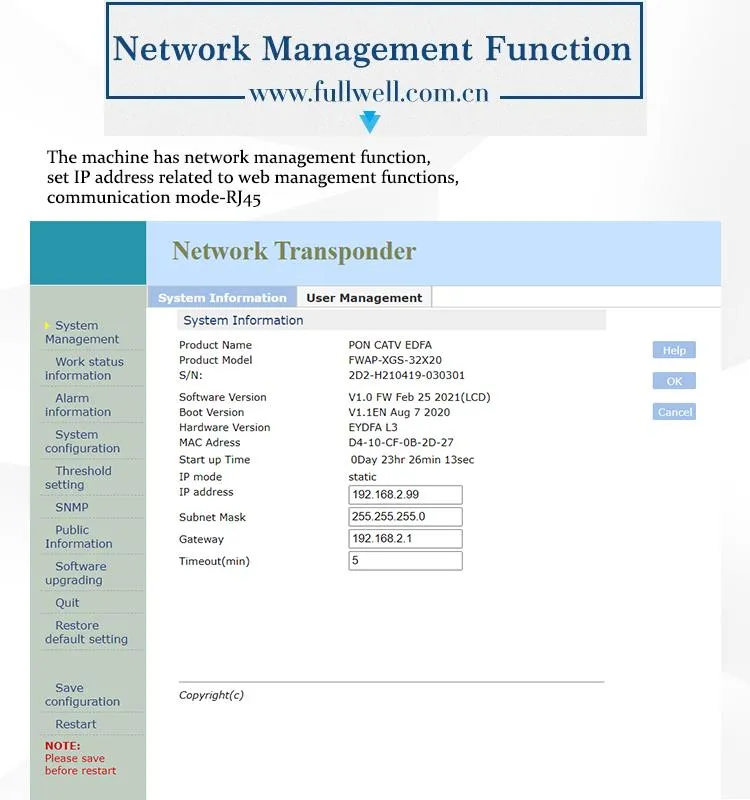

4. Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function.
5. Customizable 2X1 optical switch: built-in optical path selector, 2 optical inputs, can be set to manual or automatic mode for the selection of main and redundant path.

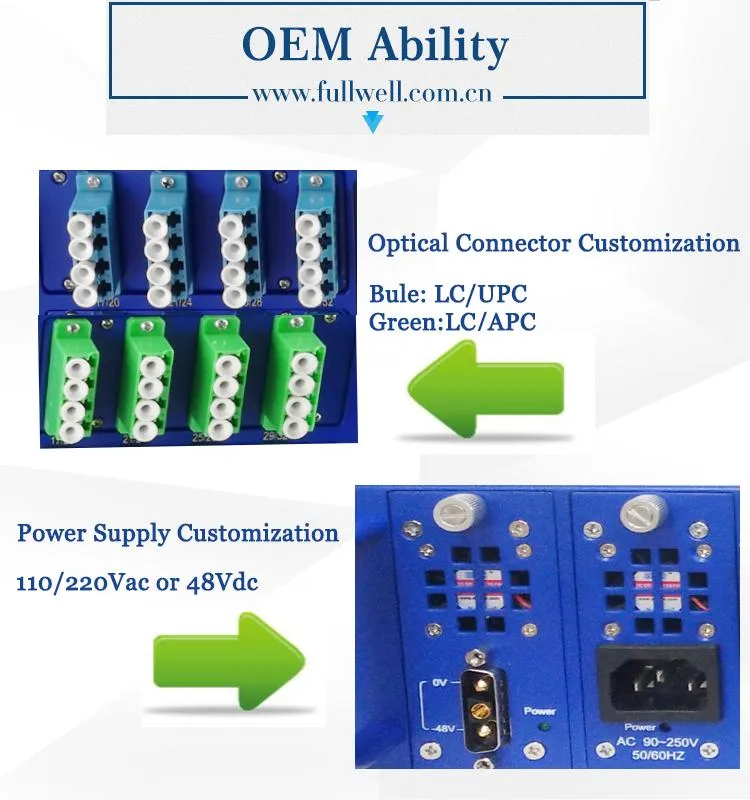

6. Integrated WDM of XGS-PON, XG-PON and GPON, optical port: XGS-PON, XG-PON and GPON input: LC / UPC, 1 port of 1550nm CATV optical input port: SC / APC, XG (S) -PON + CATV 1550nm EDFA output optical port: LC / APC.
Technical Parameters
Product Model Series
If you have another question, please feel free to contact me directly as below:
Hangzhou Fullwell Optoelectronic Equipment Co., Ltd
Add:A2-1305,Qimeng Science & Innovation Park,No.1899,Gudun Road,Hangzhou, China
Contact person: Leo Yao
"Design and manufacture the most reliable and efficient FTTH CATV equipment products in the industry."
Product Description
"Quality Broadband" has become the consensus of the development of the global broadband industry. Meeting the needs of users for 10G bandwidth has become a challenge for operators. To meet the challenges faced by operators, Huawei's next-generation large-capacity distributed intelligent OLT platform MA5800 provides a single service board that supports XGS-PON, XG-PON, and GPON mixed access application scenarios.
Fullwell is a certified solution partner of Huawei. In order to cater to the integration of triply play network and move towards 10G bandwidth, Fullwell has developed the product of XG (S ) -PON + CATV EDFA high power EDFA. Which its CATV signals and XGS-PON, XG-PON and GPON signals can be accessed on one fiber at the same time, helping operators to create all-optical , automated and intelligent FTTH integrated access network, continuously improve user experience, enable quality broadband, help operators CATV and home broadband become possible, while reducing the cost of operator investment.
FWAP-XGS series is the latest optical transmission system equipment of XG (S) -PON + CATV FTTH / FTTP triple play network integration, and it is the function of combining OLT XG (S) -PON broadband signal and CATV 1550nm optical signal after amplification. Input ports: 2 CATV inputs with main and redundant path + 32/64 XGS-PON / XG-PON and GPON, combined 32/64 outputs: 1310 / 1490nm & 1270 / 1577nm + 1550nm, of which the total output power range of 1550nm is 27 ~ 45dBm. Multiply output ports can be customized. Compatible with XG (S) -PON / ONU, such as Huawei, ZTE, and Fiberhome, without losing of data, and has a high cost performance.
Product feature
1. Top quality: Adopt JDSU multi-mode high-power pump laser and the power is optimized through software, which makes the system achieving excellent CNR AND minimizing the NF of EDFA.
2. Reliability: It adopts a 19 ″ 2U telecommunication style small chassis, the depth of which is the same as that of Huawei's frame-type OLT, which is convenient for storage in the telecommunications room cabinet. It has a built-in high-performance plug-in DC 48V dual switching power supply with Chassis automatic heat dissipation control.
3. Intuitive: JDSU multi-mode pump laser is the most expensive component in the device. The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.
4. Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function.
5. Customizable 2X1 optical switch: built-in optical path selector, 2 optical inputs, can be set to manual or automatic mode for the selection of main and redundant path.
6. Integrated WDM of XGS-PON, XG-PON and GPON, optical port: XGS-PON, XG-PON and GPON input: LC / UPC, 1 port of 1550nm CATV optical input port: SC / APC, XG (S) -PON + CATV 1550nm EDFA output optical port: LC / APC.

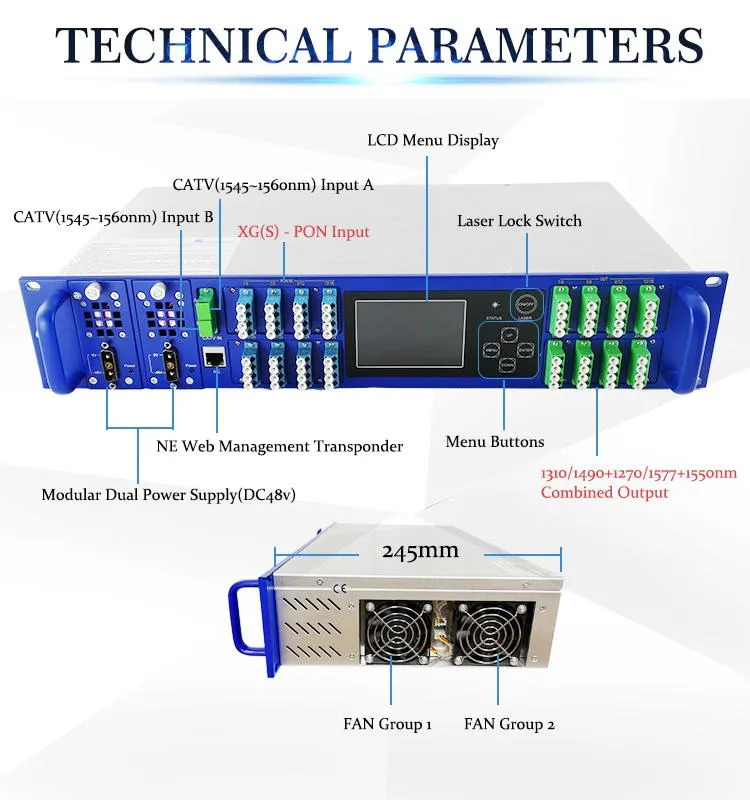

Technical Parameters
| Items | Unit | Performance Index | |
| Optical Operating Wavelength | nm | 1535~1565 | |
| Input Optical Power Range | dBm | -10~+10 | |
| Noise Ratio | dB | ≤5.0 (0 dBm,@1550nM) | |
| Gain Flatness | dB | <±0.3 | |
| Optical Power Output Stability | dB | <±0.5 | |
| Polarization Sensitivity | dB | <0.2 | |
| Polarization Mode Dispersion | Ps | <0.5 | |
| Input End Pump Leakage Power | dB | ≤-30 | |
| Output End Pump Leakage Power | dB | ≤-30 | |
| Optical Input, Output Return Loss | dB | >45(APC Stepped Face) | |
| Pump Operating Number | PCs | 2~5 | |
| Rated Output Power | dBm | 27~45 | |
| Linker(IN) | - | SC/APC | |
| Linker(OUT) | - | LC/APC | |
| Power Supply/Consumption | V/W | DC-48/20 | |
| Operating/Storage Temperature | ºC | -20~65/-30~70 | |
| Operating/Storage Humidity | % | 5~90 | |
| Case Size | mm | 530×486×88 (2U) | |
| Network Management Connector | / | RJ45(following national network management standard, supports WEB) | |
| XG(S)- PON Wavelength | nm | 1310/1490 & 1270/1577 | |
| XG(S)- PON Linker | / | LC/UPC | |
| Uplink optical ports | pcs | 32 | |
| Output ports | Pcs | 32 | |
| XG(S)- PON Insertion Loss | dB | <1.2 | |
| 1550 Port Insertion Loss | dB | <0.7 | |
| Optical isolation between CATV&OLT | dB | 40 | |
| Optical Switch | Insertion Loss | dB | <1 |
| Harass | dB | <-60 (isolation between A and B) | |
| Switch Time | ms | <10 | |
| Switched Power Threshold Range | dBm | -5~10 | |
Product Model Series
| Model Number | Total Output Power dBm(mW) | Output No. | Each Output Power (dBm) |
| FWAP-XGS-16x14 | 28dBm(640mW) | 16 | 14 |
| FWAP-XGS-32x10 | 32 | 10 | |
| FWAP-XGS-16x15 | 29dBm(800mW) | 16 | 15 |
| FWAP-XGS-32x11 | 32 | 11 | |
| FWAP-XGS-16x16 | 30dBm(1000mW) | 16 | 16 |
| FWAP-XGS-32x12 | 32 | 12 | |
| FWAP-XGS-16x17 | 31dBm(1300mW) | 16 | 17 |
| FWAP-XGS-32x13 | 32 | 13 | |
| FWAP-XGS-16x18 | 32dBm(1600mW) | 16 | 18 |
| FWAP-XGS-32x14 | 32 | 14 | |
| FWAP-XGS-16x19 | 33dBm(2000mW) | 16 | 19 |
| FWAP-XGS-32x15 | 32 | 15 | |
| FWAP-XGS-16x20 | 34dBm(2500mW) | 16 | 20 |
| FWAP-XGS-32x16 | 32 | 16 | |
| FWAP-XGS-16x21 | 35dBm(3000mW) | 16 | 21 |
| FWAP-XGS-32x17 | 32 | 17 | |
| FWAP-XGS-16x22 | 36dBm(4000mW) | 16 | 22 |
| FWAP-XGS-32x18 | 32 | 18 | |
| FWAP-XGS-16x23 | 37dBm(5000mW) | 16 | 23 |
| FWAP-XGS-32x19 | 32 | 19 | |
| FWAP-XGS-32x20 | 38dBm(6000mW) | 32 | 20 |
| FWAP-XGS-64x16 | 64 | 16 | |
| FWAP-XGS-32x21 | 39dBm(8000mW) | 32 | 21 |
| FWAP-XGS-64x17 | 64 | 17 | |
| FWAP-XGS-32x22 | 40dBm(10000mW) | 32 | 22 |
| FWAP-XGS-64x18 | 64 | 18 | |
| FWAP-XGS-32x23 | 41dBm(13000mW) | 32 | 23 |
| FWAP-XGS-64x19 | 64 | 19 |
