Product Description

★Description

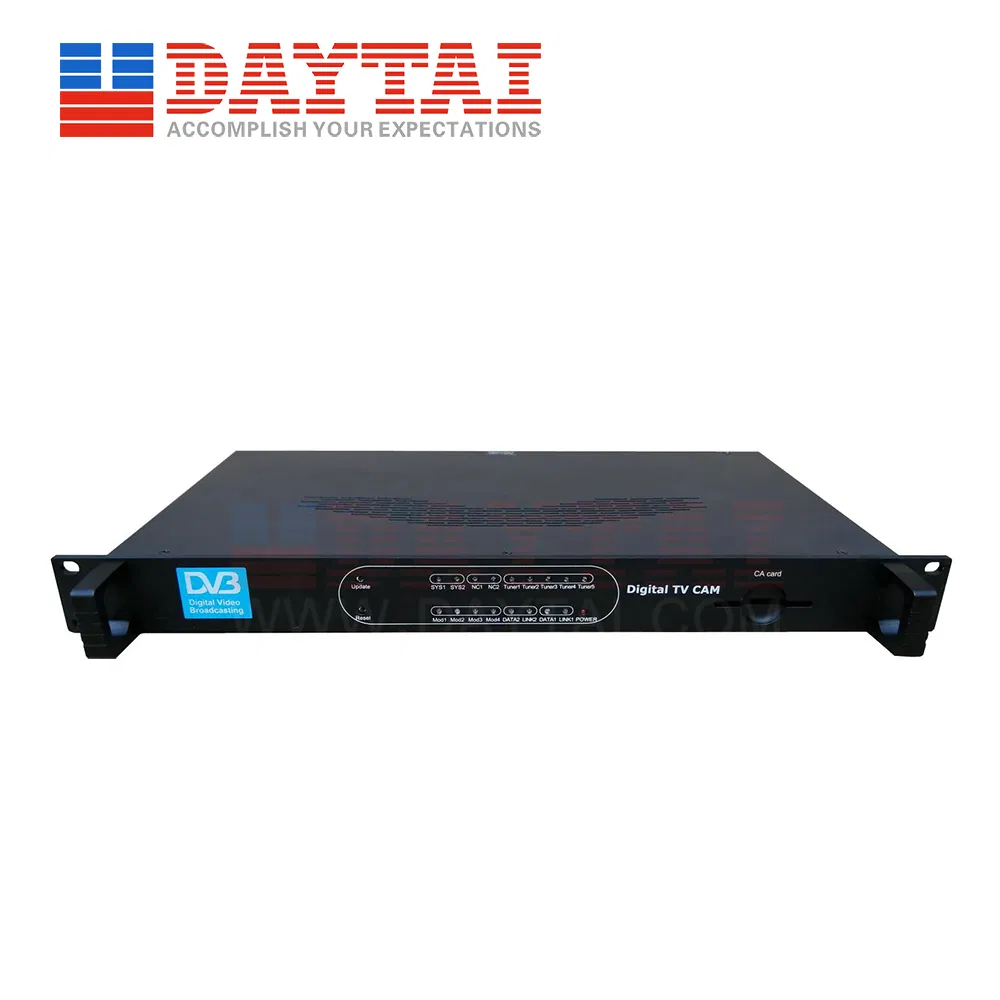

This product is a digital TV program gateway device. It can collect encrypted/free satellite/cable/terrestrial channels, convert them into HTTP IPTV output, UDP multicast output. The output signal can be watched by IPTV STB. IP output signal also can be sent to DVB-T or DTMB modulator. The modulator output DVB-T signal can be watched by DVB-T STB, or DVB-T TV directly.

★Feature

⊙ 5 Tuner inputs (DVB-C, T, S/S2 Optional)
⊙ Support maximum 128 PID mapping per input
⊙ IP (48 SPTS) over UDP and RTP/RTSP output;
⊙ Remote control and Firmware, NMS management
⊙ One CAM can decrypt multiple programs from Tuners/ASI/IP

HTTP IPTV Digital TV Program Gateway Device Digital TV Cam

★Specification

Items		Specifications
Input

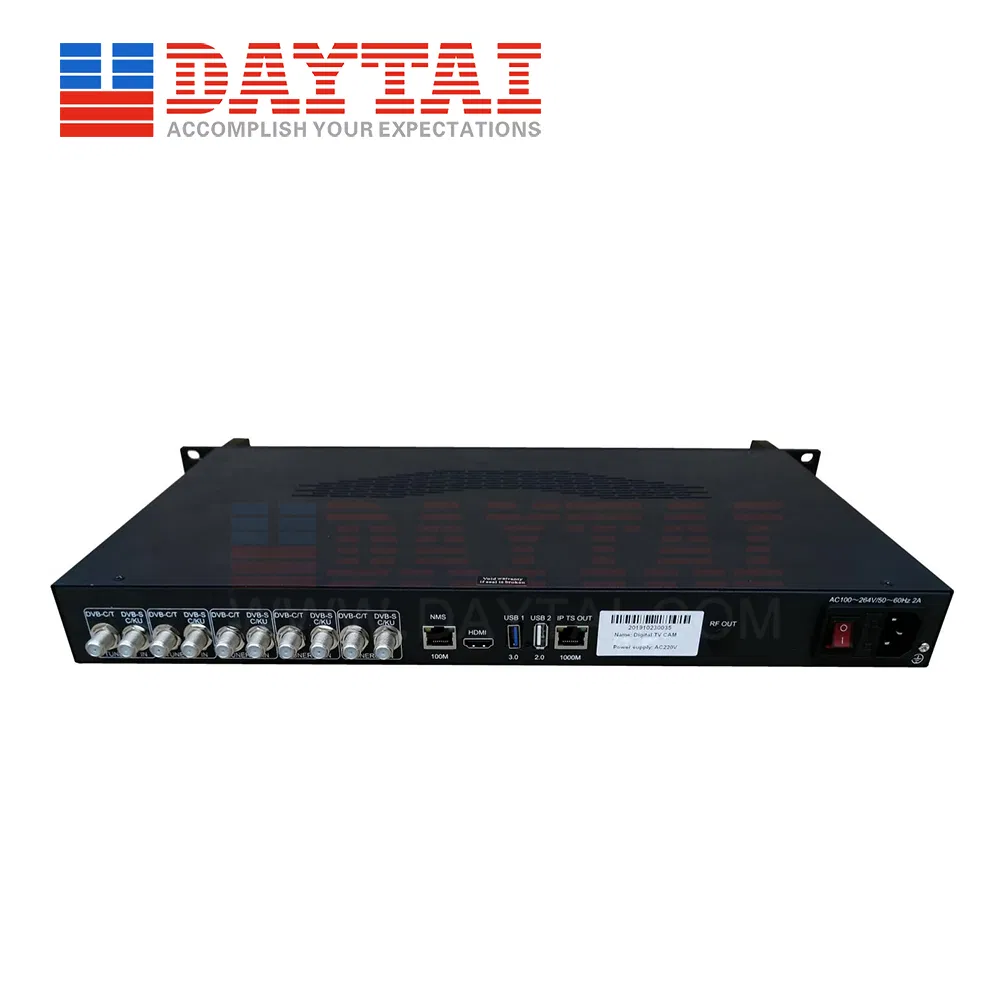

Input		5x RF (DVB-C, T/T2, S/S2 optional), F type
Tuner input
DVB-C	Standard	J.83(DVB-C), J83B, J.83C
	Input frequency	85~860MHz
	Constellation	16/32/64/128/256 QAM
DVB-T	Input Frequency	85~860 MHz
	Bandwidth	6/7/8 M
DVB-S	Input Frequency	950~2150MHz
	Symbol rate	2-45Msps
	Signal Strength	- 65- -25dBm
	Constellation	1/2, 2/3, 3/4, 5/6, 7/8 QPSK
DVB-S2	Input Frequency	950~2150MHz
	Symbol rate	QPSK 1~45Mbauds; 8PSK 2~30Mbauds
	Code rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	Constellation	QPSK, 8PSK
Output
IP TS		48*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast)
System
Local interface		Indicator light
Remote management		NMS Management
Language		English
General
Power supply		AC 100V~240V
Power consumption		<20W(max)
Operation temperature		0~45ºC
Storage temperature		-20ºC~80ºC
Humidity		10%~90%
Dimensions		48330045mm
Weight		3 kgs
