Guangtai CATV Multi-Ports Full Function Output High Power Optical Amplifier Module Hhoa-F5000
Product DescriptionHHOA-F5000 series is a kind of multi-port output, high power, full-function optical amplifier module and is suitable for CATV with low noise. Its total output power is 27~40dBm (0.5W~10W) optional and its optical output port can reach to 64 pieces at most. The module has standard ......
Send Inquiry
Product Description
HHOA-F5000 series is a kind of multi-port output, high power, full-function optical amplifier module and is suitable for CATV with low noise. Its total output power is 27~40dBm (0.5W~10W) optional and its optical output port can reach to 64 pieces at most. The module has standard RS232 interface, adopts high reliable and low power consumption design as well as adopts APC, AGC control mode. The product has two series:
HHOA-F5100 Booster amplifier, input power range: +3~+15dBm
HHOA-F5200 Pre-booster amplifier, built-in low noise pre-amplifier, input power range: -10~+10dBm
The output power of Huatai HHOA-F5000 high power optical amplifier module can be chosen in the range of 27dBm~40dBm. According to different output power, Huatai HHOA-F5000 adopts two latest technical solutions. One is to use single mode high power 980nm pump laser with cooling and EDF, multi-pump synthesis technique. The other is to use multi-mode high power 980nm pump laser without cooling and double-clad Er-Yb doped fiber-optic technology. It provide a whole set of high reliability, low cost, low noise and low power consumption solutions for the application of high power, multi-port output amplifier. It can be widely used in CATV head-end or FTTx distribution network.
1. Compact Full Function High Power multi-port output EYDFA module
2. Easy to operate. Can work immediately when power up
3. APC, ACC control mode
4. The total output power is 27dBm~40dBm optional
5. Optical output port: 4~64 optional
6. Low noise figure <5.0dB (Typ<4.5dB, Pin=0dBm)
7. Extended operation temperature 0~50ºC (with heat sink and air-cooled)
8. Input/output optical power detection
9. Input/output optical isolation
10. Industry standard RS232 communication interface and excellent software function
11. Output optical power adjustable (through RS232)
12. High reliable, low power consumption
13. The excellent P/P ratio in the field
1. FTTx Pon(FTTP, FTTH)
2. Triple-play
3. CATV
| Performance | Index | Supplement | ||||
| Min. | Typ. | Max. | ||||
| Optical feature | Operating wavelength | (nm) | 1540 | 1563 | ||
| Operating mode | Continuous CW | |||||
| Input power | (dBm) | +3 | +6.0 | +15 | HHOA-F5100 | |
| -10 | 0.0 | +10 | HHOA-F5200 | |||
| Total output power | (dBm) | 27 | 39 | |||
| Each port output power | (dBm) | 11 | 22.5 | |||
| Number of output ports | 4 | 32 | Option 64 ports | |||
| Difference each of output power | (dB) | -0.5 | +0.5 | |||
| Noise figure | (dB) | 4.5 | 5.0 | HHOA-F5100 (Pin=6dBm) | ||
| 4.5 | 5.0 | HHOA-F5200 (Pin=0dBm) | ||||
| System CNR deterioration | (dB) | 1.0 | Pin=6dBm | |||
| Polarization dependence gain | (dB) | 0.3 | ||||
| Polarization mode dispersion | (ps) | 0.4 | ||||
| Input / output isolation | (dB) | 30 | ||||
| Input/output pump power leakage | (dBm) | -35 | ||||
| Input/output echo loss | (dB) | 45 | ||||
| Control mode | APC, ACC | |||||
| Optical power adjustable range | (%) | 55 | 100 | |||
| Power stability | (% rms) | 1 | 8 hours, 25 ºC | |||
| Input/output fiber | SMF28 900 μ m | |||||
| Optical fiber length | (m) | 0.5 | 0.8 | 1.5 | ||
| Optical connector | SC/APC, LC/APC | |||||
| General feature | Serial interface | RS232 | ||||
| Power supply | (V) | 5 | 5 | 12 | ||
| Power consumption | (W) | 30 | ||||
| Work temp. | ( ºC ) | 0 | 50 | |||
| Storage temp. | ( ºC ) | -40 | 85 | |||
| Working relative humidity | (%) | 5 | 95 | |||
| Size (W) × (D) × (H) | ( mm ) | 250 × 160 × 32 | Without heatsink | |||
| 270 × 160 × 72 | With heatsink | |||||
1. What are the payment terms of payment?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 5-7 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we will deliver the goods via international Express like FedEx , DHL,TNT and UPS and so on. Door to door delivery service will be provided; while the goods have high weight and volume, we suggest using air or sea shipment.
4. Can you do OEM for us?
Yes. if there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
5. What are the advantages of your products?
A. Good quality and competitive prices
B. Strict quality control during production process.

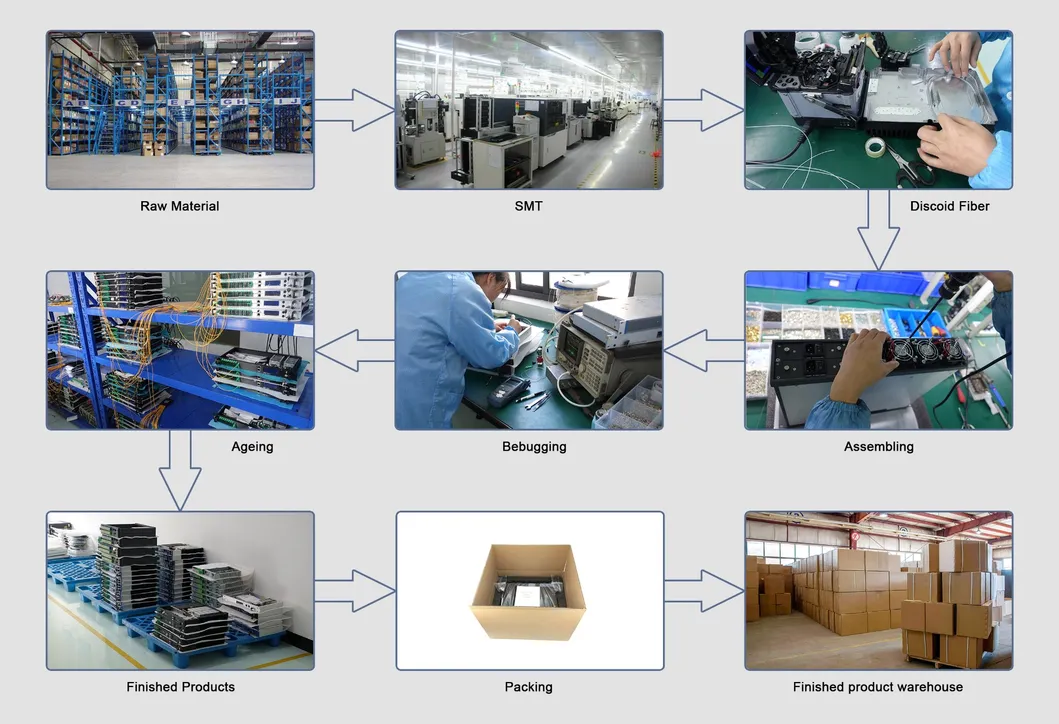

C. Professional operations in processes of production, sales, assembling, packaging and shipping
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
