Guangtai CATV 1550 External Modulated Optical Transmitter Ht8500h

Product Description

CATV 1550 External Modulated Optical Transmitter
HT8500H

GT is the well-known manufacture in analog externally modulated optical transmitter in the world. Huatai HT8500H that accords with current international industry technique standard is a 1550nm Externally Modulated Optical Transmitter. The whole unit light source adopts narrow bandwidth ( 0.65MHz ), low noise, continuous wave DFB laser, which is propitious to reduce the influence of dispersion. The whole unit signal modulation adopts CATV special LiNbO3 external modulator of American company and Huatai optimized control technology with independent intellectual property , so it can reach high index of back to back CNR ≥ 54dB, CTB ≤ -65dB, CSO ≤ -65dB, SBS: 13, 16, 18dBm adjustable . The whole unit is equipped with perfect RS232 communication interface, SNMP network management, 1+1 back-up power supply , hot-plug function available, chassis temperature auto-control.
HT8500H, standard type externally modulated optical transmitter with it's high index, high reliability and excellent cost performance, is applicable for main links and distribution network links in large and middle CATV station head-end.

1. High performance: Externally modulated technology, no laser chirp, low dispersion distortion, high extinction ratio, with excellent characteristic within 47~862MHz.
2. 1+1 powers supply back , up hot-plug function available.
3. Narrow bandwidth (0.65MHz), lower noise, DFB continuous wave laser, is propitious to reduce the influence of the dispersion.
4. The operating bandwidth is up to 47~1000MHz .
5. CNR ≥ 53dB and excellent CTB, CSO index.
6. SBS: 13, 16, 18dBm adjustable.
7. ITU standard wavelength, ±200GHz (±1.6nm) adjustable.
8. AGC/MGC mode is optional at spot. OMI can be optimized at spot.
9. Perfect RS232 communication interface.
10. Advanced SNMP network management function.
11. Casing temperature auto-control.
12. Excellent P/P ratio.

1. Used in main links and distribution network links in large and middle CATV station head-end.
Analog digital hybrid transmission >200Km (with dispersion compensation).
Pure digital transmission (without dispersion compensation) >400Km,
(with dispersion compensation) >700Km.
2. HT8500HU ITU wavelength adjustable, applicable to the value-added service of DWDM fiber optic CATV system and CFG dispersion compensation system.

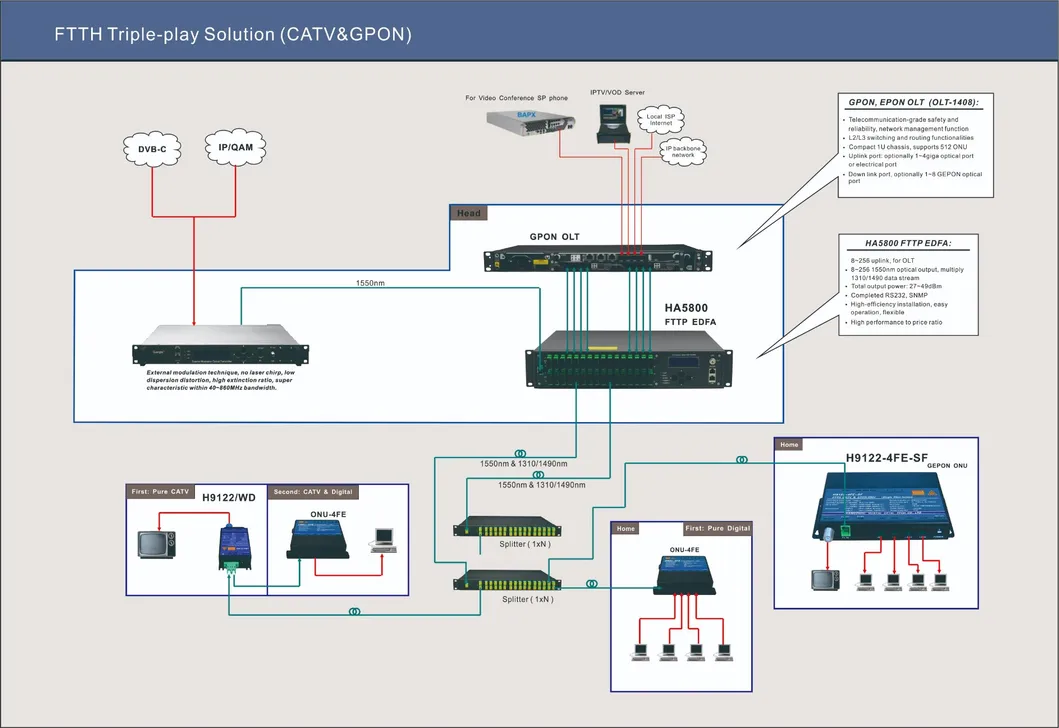

3. It can be used in branch FTTH that has high system index demand. Point to Point>65Km, CSO ≤ -65dB. It can provide high qualified and reliable value-added service such as RFTV, IPTV and VOD for the secondary users. It can also avoid the limitation of CSO deterioration and transmission distance caused by laser chirp for adopting 1550nm direct modulated optical transmitter.

Performance			Index		Supplement
Optical feature	Operating wavelength	(nm)	1548~1563		HT8500HC
	Operating wavelength	(nm)	ITU-TG.692		HT8500HU
	Wavelength ADJ. range	(nm)	±1.6 ( ±200GHz )		HT8500HU
	Wavelength ADJ. mode		±0.05nm stepping		HT8500HU
	Wavelength stability	(Pm/ºC)	-1~0		Tc=20~70ºC
	Linewidth	(MHz)	Typ.=0.65		FWHM( △λ ) ( -3dB fullwidth )
	Side mode suppression ratio	(dB)	≥45		SMSR
	Equivalent noise intensity	(dB/Hz)	≤-160		RIN ( 20~1000MHz )
	Number of output port		2
	Output power of each port	(dBm)	13, 12, 11, 10, 8.5, 7.0, 4.5		2×5,2×7, 2×9, 2×10, 2×11 , 2×12 , 2×13
	Return loss	(dB)	≥50
	Optical fiber connector		SC / APC		Optional LC / APC,FC / APC
RF feature	Work bandwidth	(MHz)	47-862		Optional 47~ 1000MHz
	Input level	(dBmV)	18~28		AGC
	Flatness	(dB)	≤±0.75		47~862MHz
	Flatness	(dB)	≤±1.5		862~1000MHz ( Optional )
	Return loss	(dB)	>16
	Input impedance	(Ω)	75
	RF port		F-Female
Link feature	Transmit channel		PAL-D / 60CH	PAL-D / 99CH
	CNR1	(dB)	≥53.0	≥51.5	Back to back
	CNR2	(dB)	≥51.5	≥49.5	65Km optical fiber, 0dBm receive
	CTB	(dB)	≤-65	≤-65
	CSO	(dB)	≤-65	≤-65
	SBS restrain	(dBm)	13, 16, 18		Adjustable
General feature	SNMP network management interface		RJ45
	Communication interface		RS232
	Power supply	(VAC)	90~265		50 / 60 Hz
	Power supply	(VDC)	-48		30~72
	Power Consume	(W)	≤50		Single power works
	Work temp.	(ºC)	-5~65		Machine temp. control automatically
	Storage temp.	(ºC)	-40~85
	Relative humidity	(%)	5~95
	Size (W)x(D)x(H)		19×15.2×1.75		S-Type
	Size (W)x(D)x(H)		19×17.9×1.75		L-Type
