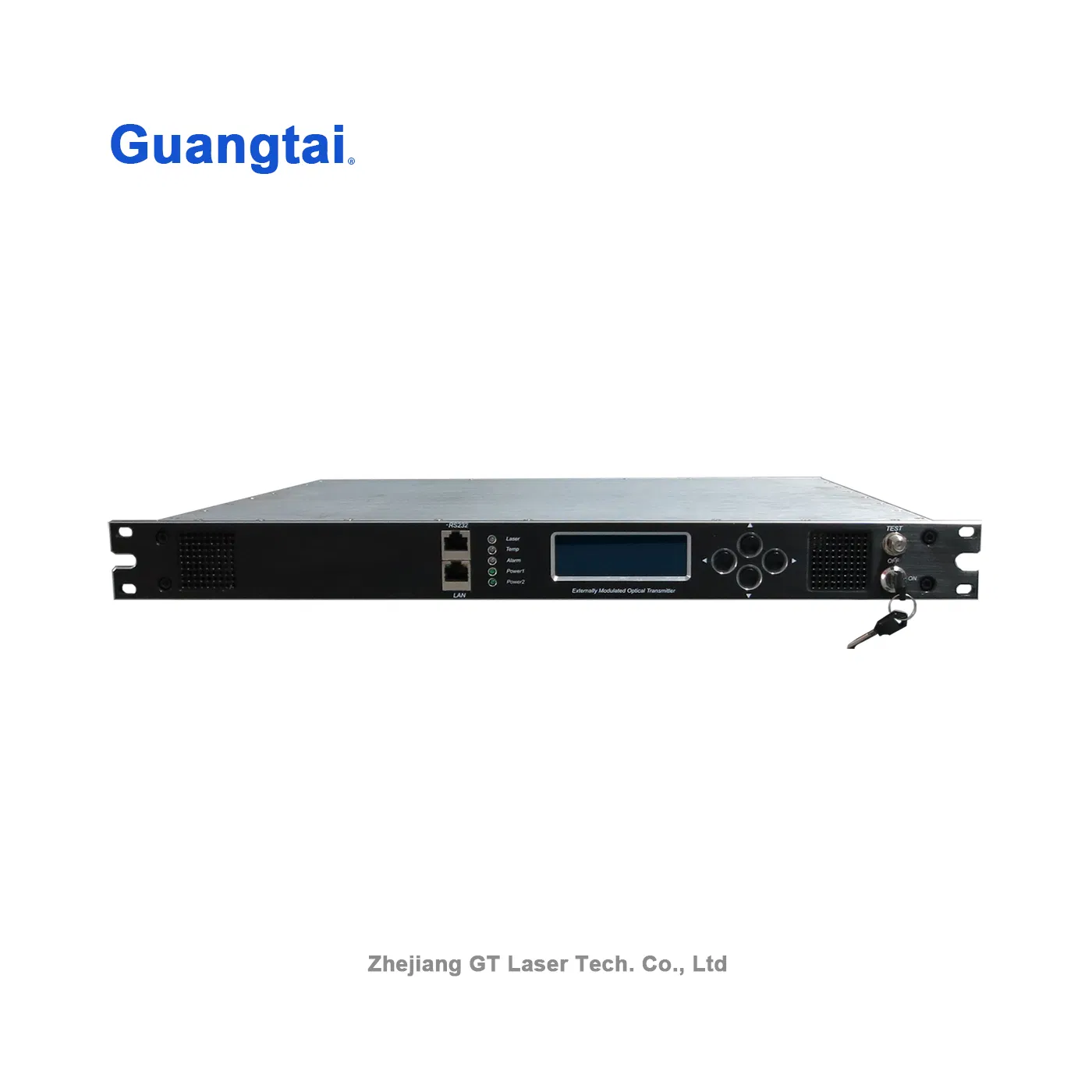

Guangtai 1550nm Full C-Band Tunable Fiber Optical Transmitter Ht8800
Product DescriptionGT HT8800 all C band tunable CATV external modulation optical transmitter, is an industry-leading and pioneer product. The tunable range of wavelength: 1528.77~1563.86nm, the adjustable wavelength: >35nm. With the traditional ITU standard wavelength ±0.8nm( &plus......
Send Inquiry
Product Description
GT HT8800 all C band tunable CATV external modulation optical transmitter, is an industry-leading and pioneer product. The tunable range of wavelength: 1528.77~1563.86nm, the adjustable wavelength: >35nm. With the traditional ITU standard wavelength ±0.8nm( ±100GHz ) can tunable, is a completely new concept and application ranges.
A HT8800 including all C band's useable wavelength, Its database stores 89 ITU standard wavelength channels ( C band 0.4nm gallery interval ). Users can achieve the selection, switch and route etc wavelength management function quickly, accurately. High wavelength accuracy, high wavelength stability, fast tuning rate, perfectly adapt the NGB DWDM system. It's high wavelength flexibility and replaceability will become the development direction of next generation broadcast television network ( NGB ) external modulation optical transmitter.
The new generation fiber optical communication technology with DWDM nuclear technology should be the NGB's development direction. The DWDM technology can provide large-capacity backbone network and metropolitan area networks for NGB, while PON ( passive optical network ) should be the mainstream technology of NGB subscriber access network.
The DWDM technology can take full advantage of existing fiber optical resource, large-capacity, the network with high flexibility, economic and high reliability. The wavelength can be convertible and management is the DWDM system's core equipment of external modulation optical transmitter.
1. Full C-Band tunable, tunable range >35nm
2. 0.4nm interval, 89 ITU channels, database storage
3. ITU cord, Frequency, Wavelength three tunable ways, flexible and convenient
4. Fleible tunable speed (<20mS)
5. High wavelength(frequency) lock precision(±0.02nm)
6. High wavelength(frequency) stability (±0.012nm)
7. Excellent side mode suppression, high extinction ratio
8. Low noise, narrow linewidth ( Typ.=0.3MHz )
9. Excellent system CNR,CTB,CSO index
10. SBS threshold 13 ~ 19dBm continuously adjustable
11. The safety reliability & network management of the telecommunication level
12. High level wavelength flexibility and replaceability
13. 10/100M Ethernet interface, support SNMP, and WEB remote control and management
14. 1+1 power backup, support hot plug-ing
15. Excellent cost performance
1. Next Generation Broadcasting ( NGB )

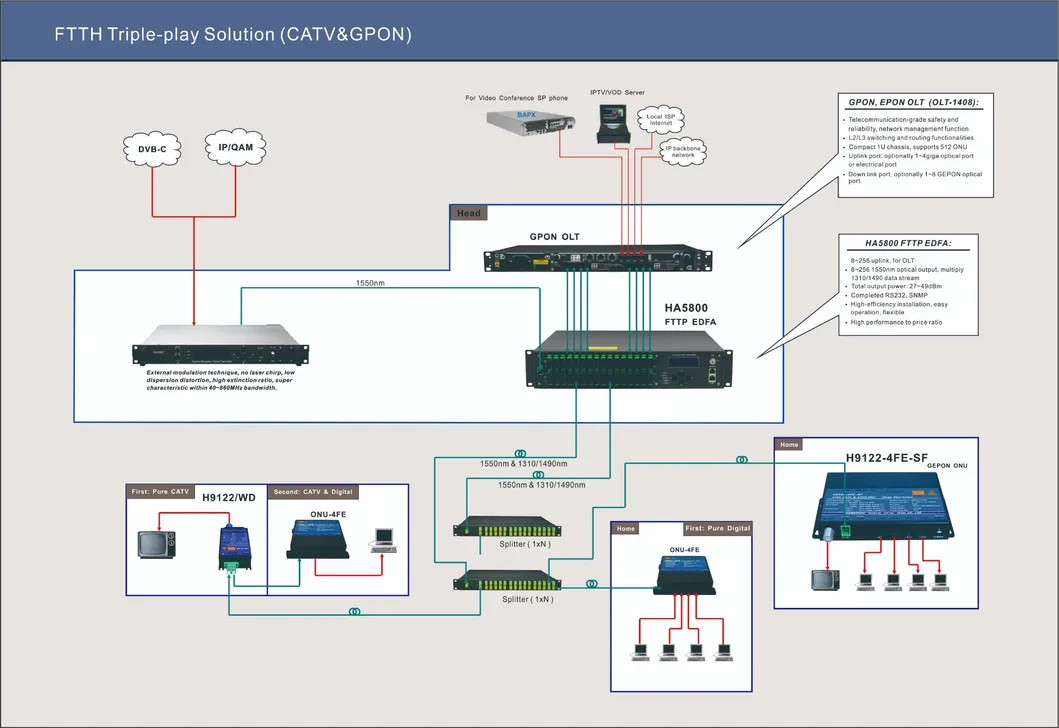

2. FTTH, FTTx PON, RFoG, Triple-play
3. Narrow plug data service as VOD, IP/QAM, etc
4. Replacing traditional fixed wavelength 1550nm external modulation optical transmitter
5. Providing highly wavelength flexible and replace ability
6. As an alternate machine of ITU fixed-wavelength optical transmitter, to reduce the amount of inventory reserves
7. Fully use of existing fiber resources, achieving network upgrades and expansion
8. The CATV network with super capacity backbone and metropolitan area networks
9. Dynamic wavelength configuration, wavelength conversion, wavelength routing
10. Optical path protection, DWDM line back up
11. Dynamic optical add-drop multiplexing (OAOM)
12. DWDM system test
| Performance | Index | Supplement | ||||
| Min. | Typ. | Max. | ||||
| Optic feature | Tuning Range | (nm) | 35 | C-Band | ||
| Wavelength tuning Range | (nm) | 1528.77 | 1563.86 | |||
| Frequency tuning Range | (THz) | 191.7 | 196.1 | |||
| Number of ITU grid locking | 89 | 50GHz spacing | ||||
| Channels Spacing | (nm) | 0.4 | 50GHz spacing | |||
| Locked wavelength Accuracy | (nm) | -0.02 | +0.02 | ± 2.5 GHz | ||
| Wavelength stability | (nm) | -0.012 | +0.012 | ± 1.5GHz | ||
| Tuning Speed | (mS) | 20 | ||||
| Number of Output port | 2 | |||||
| Output power of each port | (dBm) | 4.5 | HT8825 | |||
| 5.5 | HT8826 | |||||
| 6.5 | HT8827 | |||||
| 7.5 | HT8828 | |||||
| 8.5 | HT8829 | |||||
| Power ripple | (dB) | -0.25 | ±0.15 | +0.25 | Over tuning range | |
| Line width | 0.35 | 1 | FWHM ( △λ ) , ( -3dB full width ) | |||
| Side Mode Suppression ratio | (dB) | 45 | 50 | SMSR | ||
| Relative Intensity Noise (RIN) | (dB) | -160 | RIN ( 20~1000MHz ) | |||
| Return loss | (dB) | 50 | ||||
| Optical connector | SC/APC | Optional FC/APC, LC/APC | ||||
| RF feature | Work bandwidth | (MHz) | 47 | 862 | ||
| Input level | (dBmV) | 18 | 28 | AGC | ||
| Flatness | (dB) | -0.75 | +0.75 | |||
| Return loss | (dB) | 16 | ||||
| Input impedance | (Ω) | 75 | ||||
| RF connector | F-Female | |||||
| Link feature | SBS restrain | (dBm) | 13 | 19 | Adjustable | |
| Transmit channel | PAL-D / 60CH | PAL-D / 99CH | ||||
| CNR1 | (dB) | ≥54.0 | ≥52.5 | Back to back | ||
| CNR2 | (dB) | ≥52.5 | 50.5 | 65Km optical fiber, 0dBm receive | ||
| CTB | (dB) | ≤-65 | ≤-65 | |||
| CSO | (dB) | ≤-65 | ≤-65 | |||
| General feature | 10 / 100M Ethernet interface | RJ45 | ||||
| Net working protocol | SNMP | |||||
| Communication interface | RS232 | |||||
| Power supply | (VAC) | 90 | 265 | 50 / 60Hz | ||
| (VDC) | -72 | -48 | -36 | |||
| Power Consume | (W) | 50 | Single power works | |||
| Operating temp. | (ºC) | -5 | 65 | Machine temp. control automatically | ||
| Storage temp. | (ºC) | -40 | 85 | |||
| Relative humidity | (%) | 5 | 95 | |||
| Size (W)x(D)x(H) | (") | 19×15.2×1.75 | ||||
CNR1: Tx to Rx, 0dBmReceiving.
CNR2: 16dBm EDFA (NF4.5~5.5dB), 65kmfiber, 0dBm receiving.
