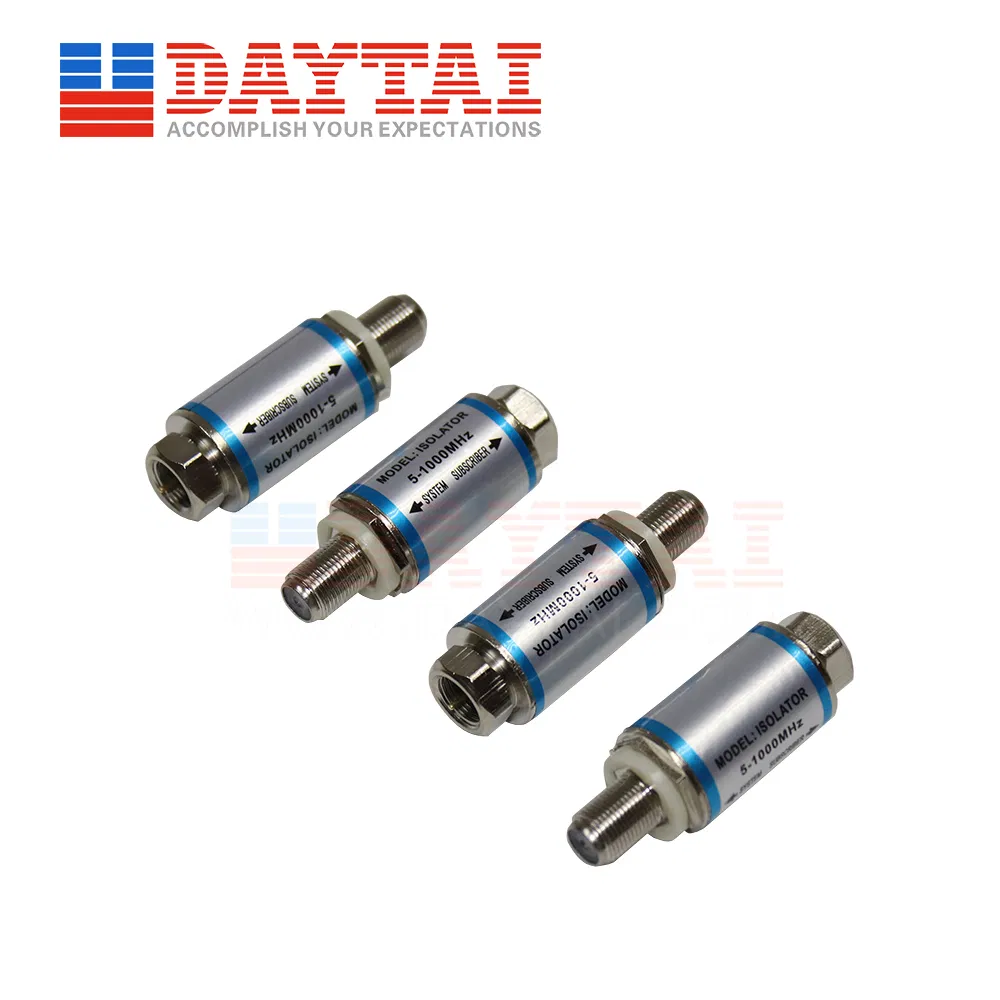

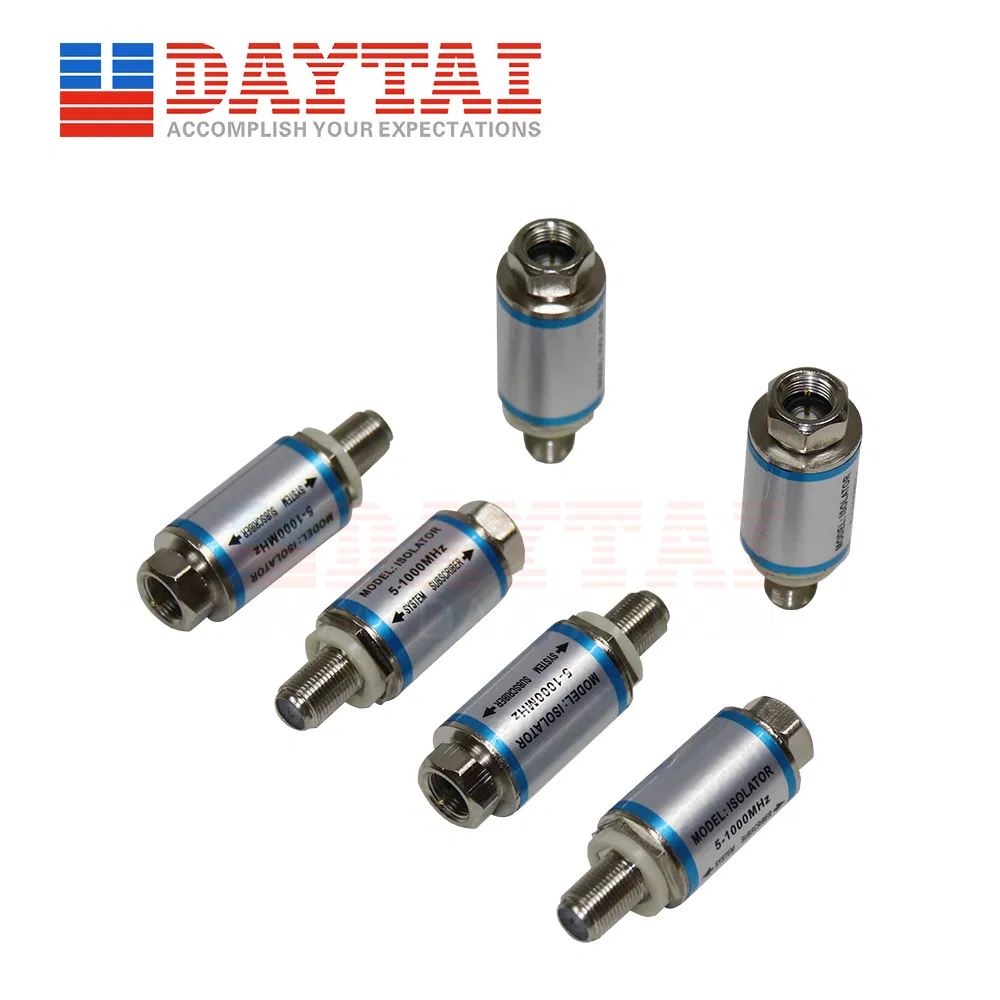

Ground Isolator Fmto FF Surge Protector 6kv 1000MHz
Description CATV Ground Isolator With Surge Protector,Frequency Range:5-1000MHz,Frequency Range:5-1000MHz,Impedance:75Ω,Insertion Loss (5-1000MHz):0.3dB (typ) / 0.8 dB (max),Return Loss (5-1000MHz):18dB (typ) / 16dB (min),F Male to F Female Connector,Firing Voltage:65V,Dimensions:19(&P......
Send Inquiry
Product Description
★Description
CATV Ground Isolator With Surge Protector,Frequency Range:5-1000MHz,
Frequency Range:5-1000MHz,Impedance:75Ω,Insertion Loss (5-1000MHz):0.3dB (typ) / 0.8 dB (max),Return Loss (5-1000MHz):18dB (typ) / 16dB (min),F Male to F Female Connector,Firing Voltage:65V,Dimensions:19(Φ)×52(L)mm,Weight:40g.
★Features
⊙ Low Insertion Loss
⊙ Return Loss 22dB (typ)
⊙ Frequency Range Up To 1.5GHz
⊙Voltage Withstanding AC 2kV (Max)
⊙ DT-ISO-MF6-1G65 with Surge Protector Firing Voltage 65V
★Product Specification
★Ordering Information
CATV Ground Isolator With Surge Protector,Frequency Range:5-1000MHz,
Frequency Range:5-1000MHz,Impedance:75Ω,Insertion Loss (5-1000MHz):0.3dB (typ) / 0.8 dB (max),Return Loss (5-1000MHz):18dB (typ) / 16dB (min),F Male to F Female Connector,Firing Voltage:65V,Dimensions:19(Φ)×52(L)mm,Weight:40g.
★Features
⊙ Low Insertion Loss
⊙ Return Loss 22dB (typ)
⊙ Frequency Range Up To 1.5GHz
⊙Voltage Withstanding AC 2kV (Max)
⊙ DT-ISO-MF6-1G65 with Surge Protector Firing Voltage 65V
★Product Specification
| Parameter | Specifications | |
| Impedance | 75Ω | |
| F Connector Type | Male to Female | |
| Frequency Range | 5 - 1000MHz | |
| Insertion Loss | 5-1000MHz | 0.3dB (typ) / 0.8 dB (max) |
| Return Loss | 5-1000MHz | 18dB (typ) / 16dB (min) |
| Current Suppression | 500amps (@2/10μs) | |
| Response Time | 1ns | |
| Firing Voltage (choose) | 65Volts | |
| Isolation Voltage | AC1,500V (1 minute) | |
| Dimensions | 19(Φ)×52(L)mm | |
| Weight | 40g | |
| Impedance | 75Ω | |
★Ordering Information
| Model | Firing Voltage |
| DT-ISO-MF6-1G65 | 65V |
