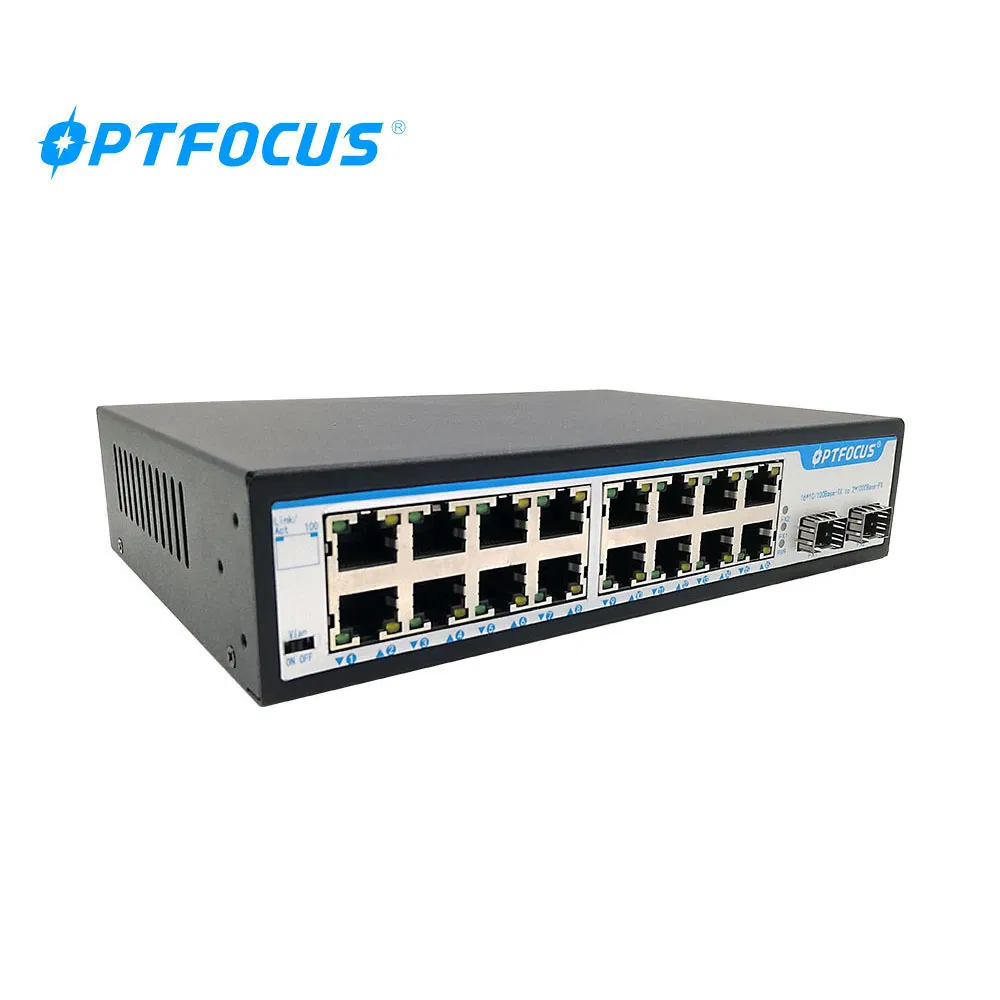

Gigabit Unmanaged Rack Mount 16 Port Poe Network Switch
Gigabit Unmanaged rack mount 16 Port POE Network SwitchThe series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps Optical fiber ports and 16*10/100/1000MbpsRJ45 ports.It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high perf......
Send Inquiry
Product Description

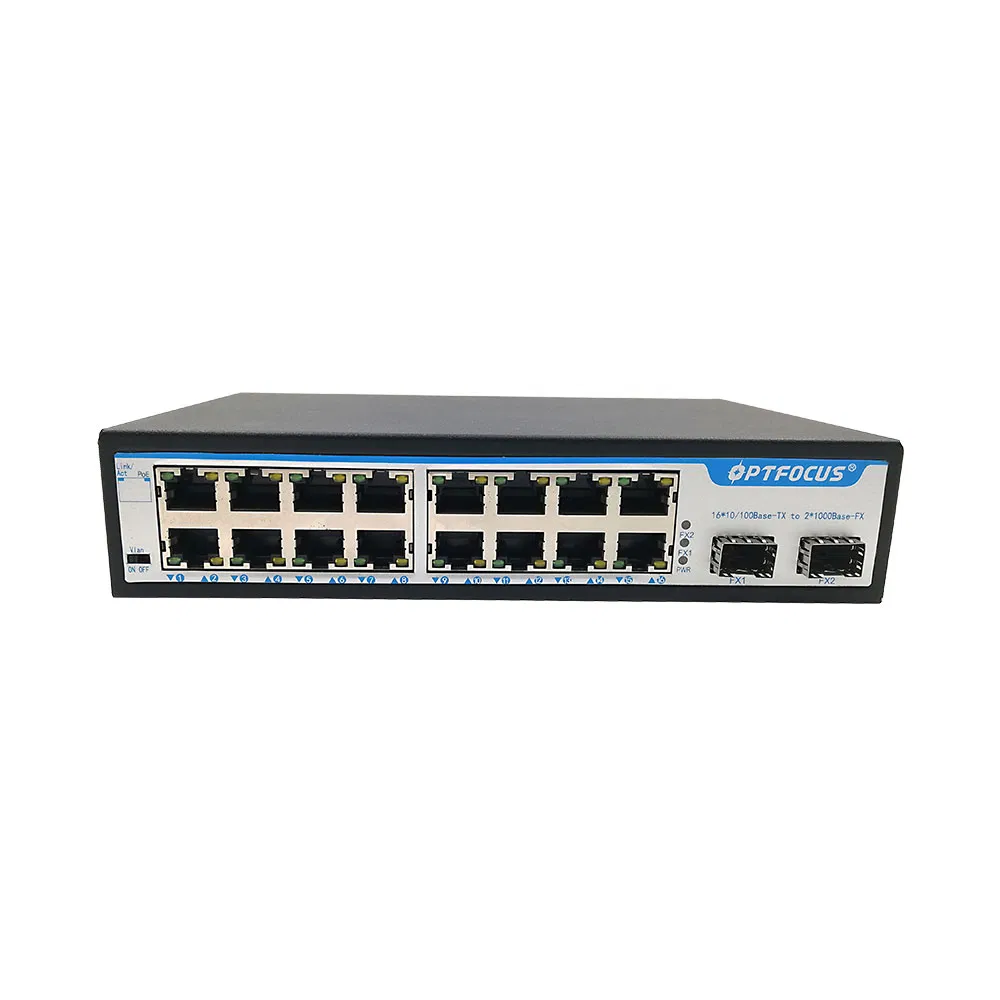

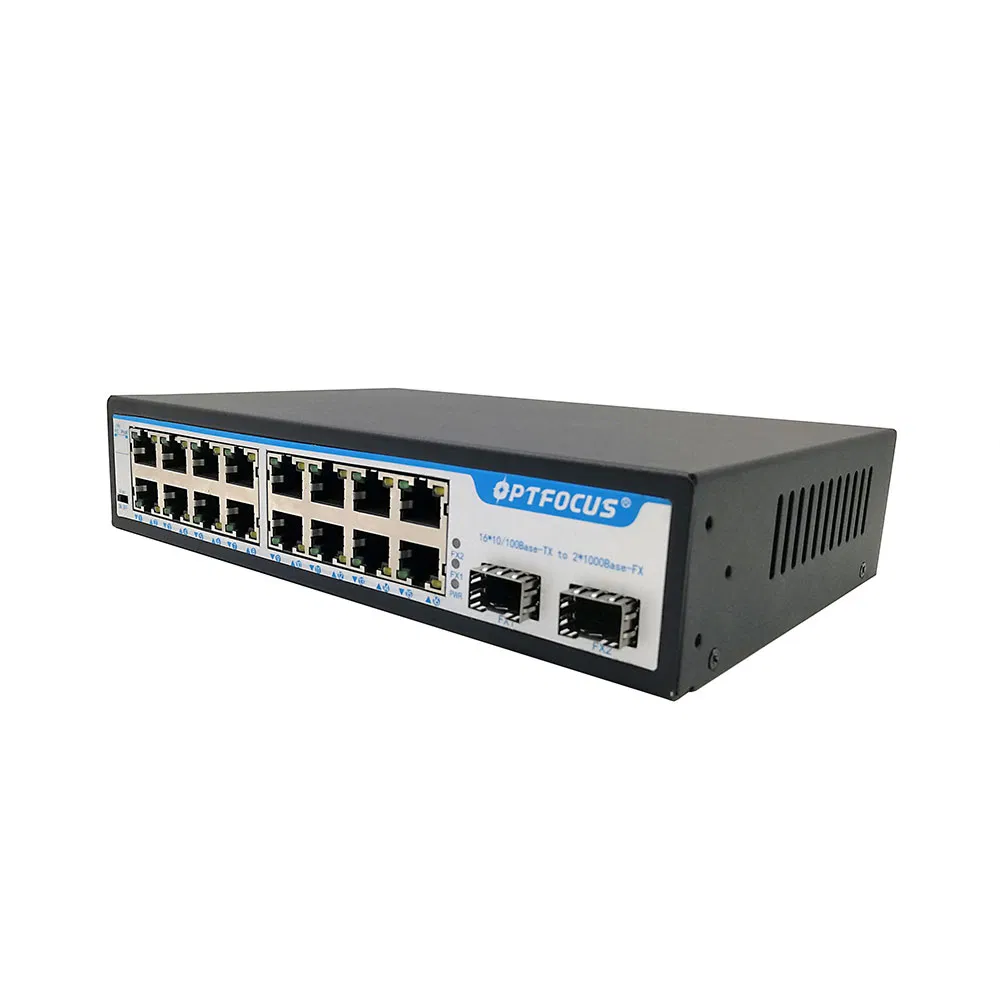

The series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps Optical fiber ports and 16*10/100/1000MbpsRJ45 ports.
It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
OFS-GSF1T8AB-20's high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.
Features
Ø 16 port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps Fiber Slot
Ø Automatic MAC address learning and aging
Ø 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
Ø LED indicators for monitoring power/link/activity
Ø Supports10/100/1000Mbps-Full/Half-duplex
Ø Excellent heat elimination without cooling fan.
Ø Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Ø Support dual power redundancy(optional)
Ø The built-in 12V lead acid battery charging circuit. (optional)
Technical parameter list
| Product Name | 16-port 10/100/1000Mbps + 2-port 1000Mbps Fiber Slot |
| Product Model | OFS-GSF1T16-20 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Fiber port | LC,SC,ST,FC Optional |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100/120KM |
| Performance Specification | Bandwidth: 20Gbps Packet Forwarding Rate:1488000pps/port MAC Address Table:4K |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8) |

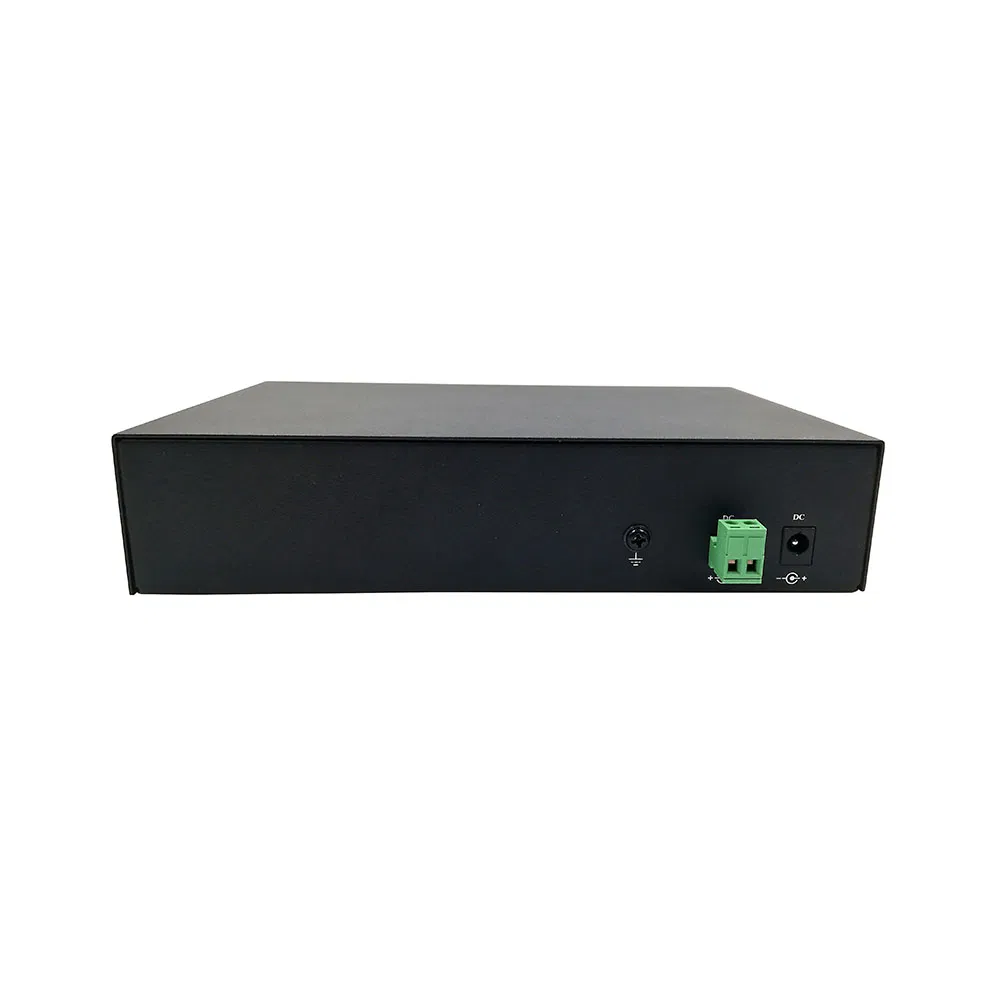

| Power Supply | Input: AC100 ~ 250V, Output:DC12~15V. |
| Max power | 7W |
| Environment temperature | 0 ~ +55ºC |
| Storage temperature | -20 ~ +70ºC |
| Humidity | 5% ~ 90% |
