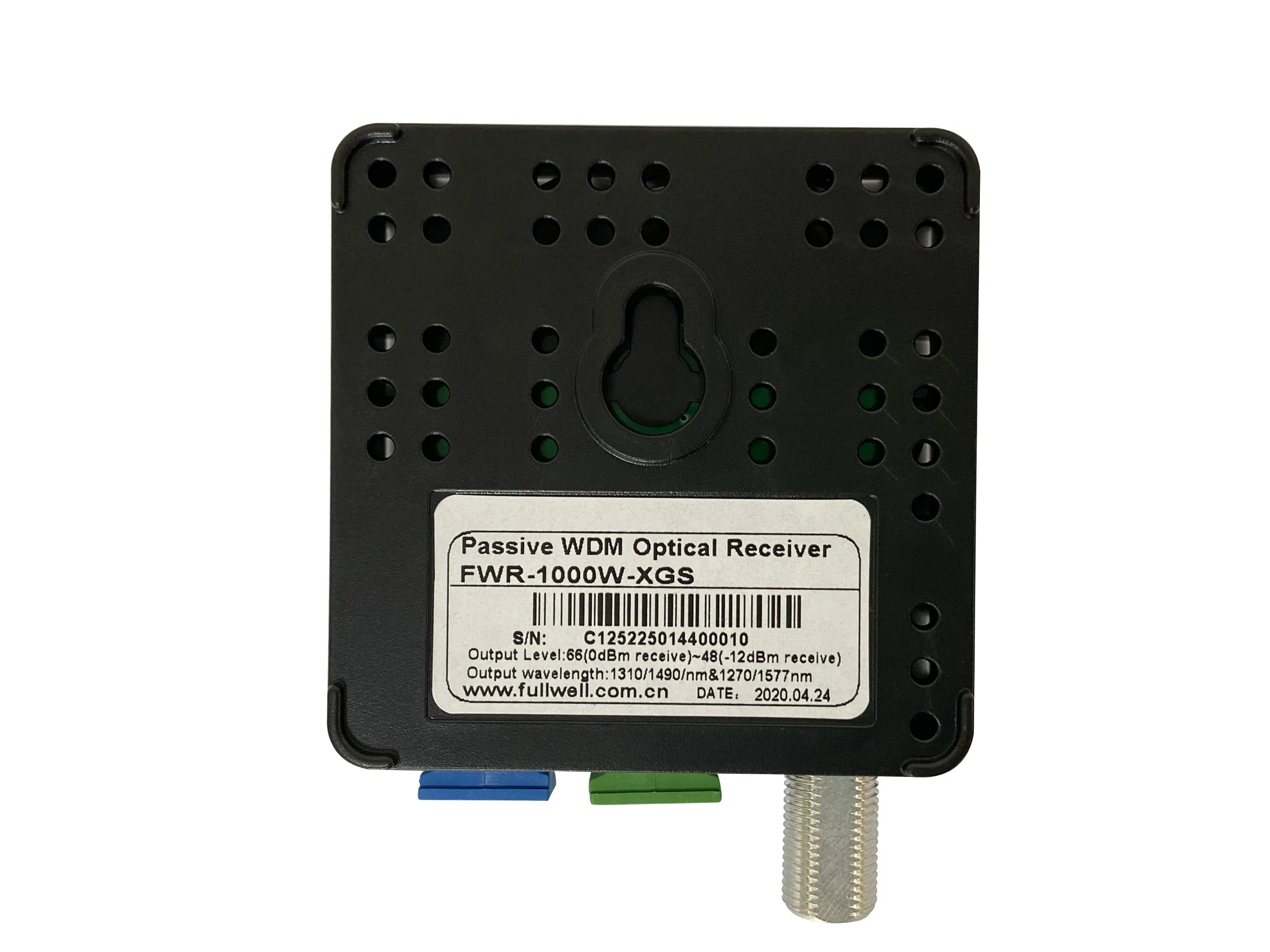

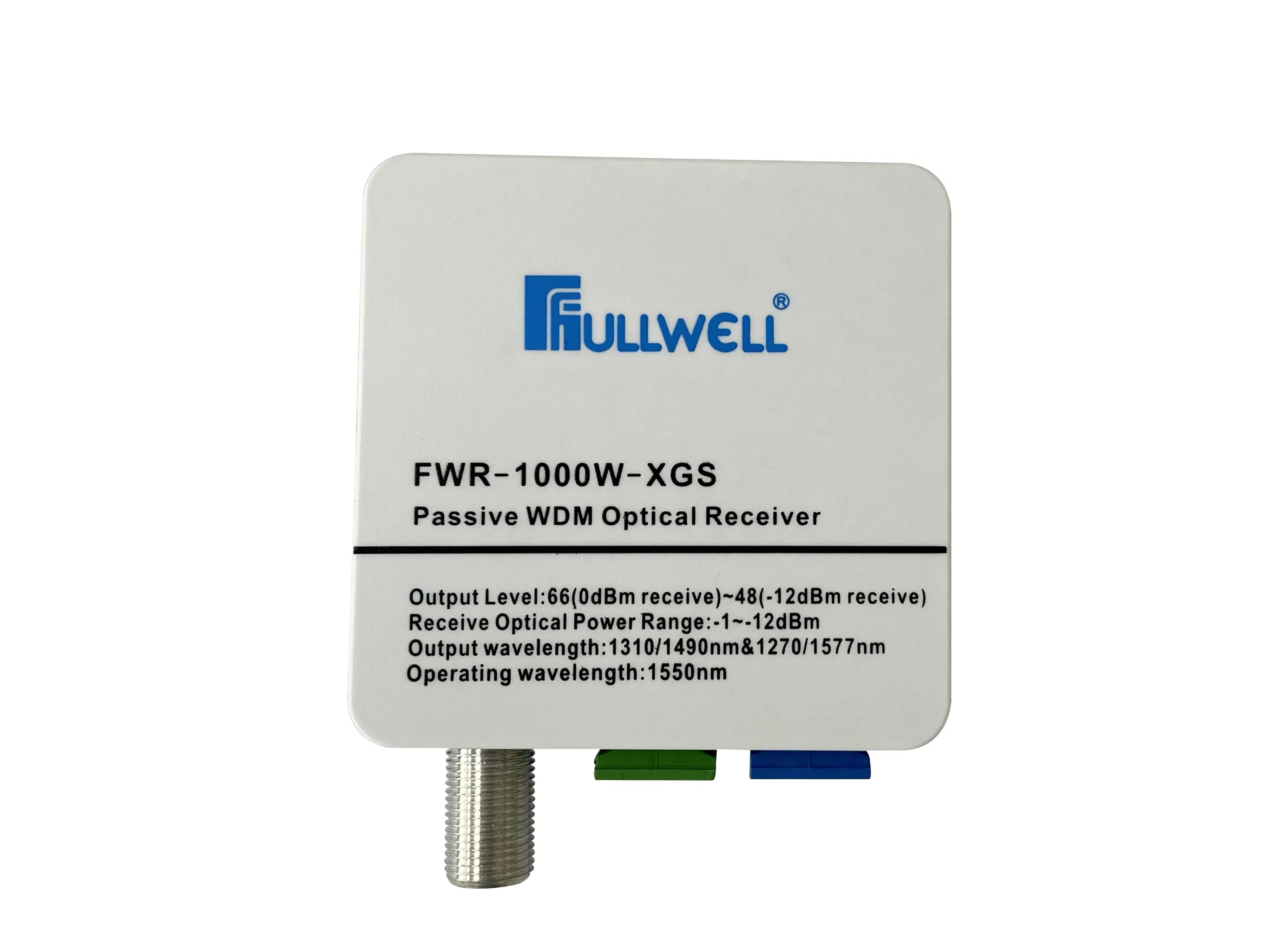

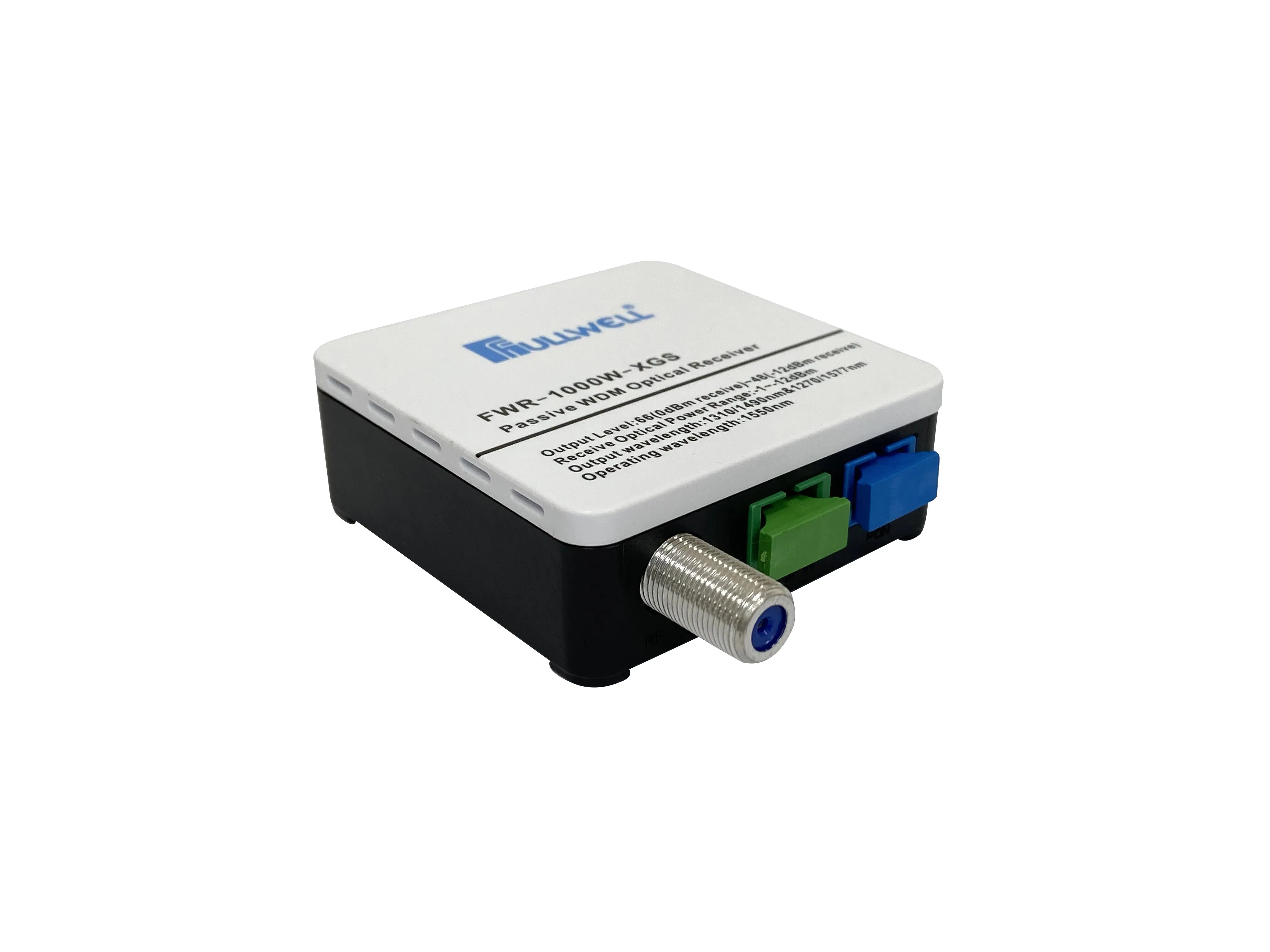

Fullwell Xgs-Pon Passive Optical Receiver CATV Pon FTTH Mini Optical Node with Wdm Without Power Supply

The WDM optical receiver is based on HUAWEI and FULLWELL in 2013 to create a smart hotel solution: a convenient, safe and easy-to-maintain network construction solution that carries hotel voice, broadband Internet access, CATV and other information on a single network. With its industry-leading triple play equipment, FULLWELL has produced a series of telecommunication-grade products of WDM optical receiver.

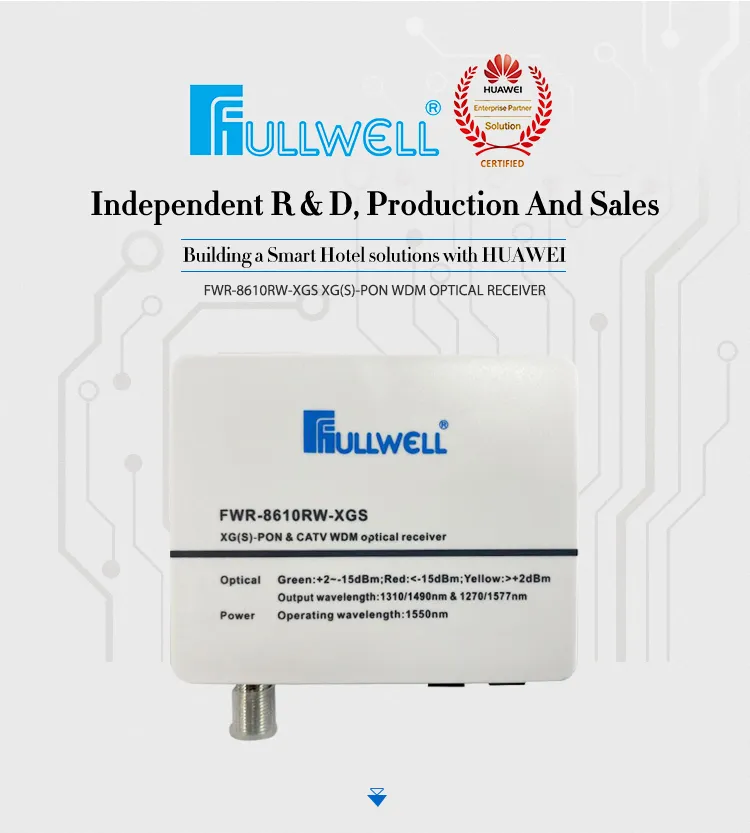

FWR-8610RW WDM optical receiver adopts high isolation and WDM technology to separate CATV and 10 Gigabit ONU signals, which can meet FTTH requirement of CATV + XG (S) -PON optical network, receiving 1550nm CATV signal and PON output signals (1310 / 1490nm & 1270 / 1577nm).

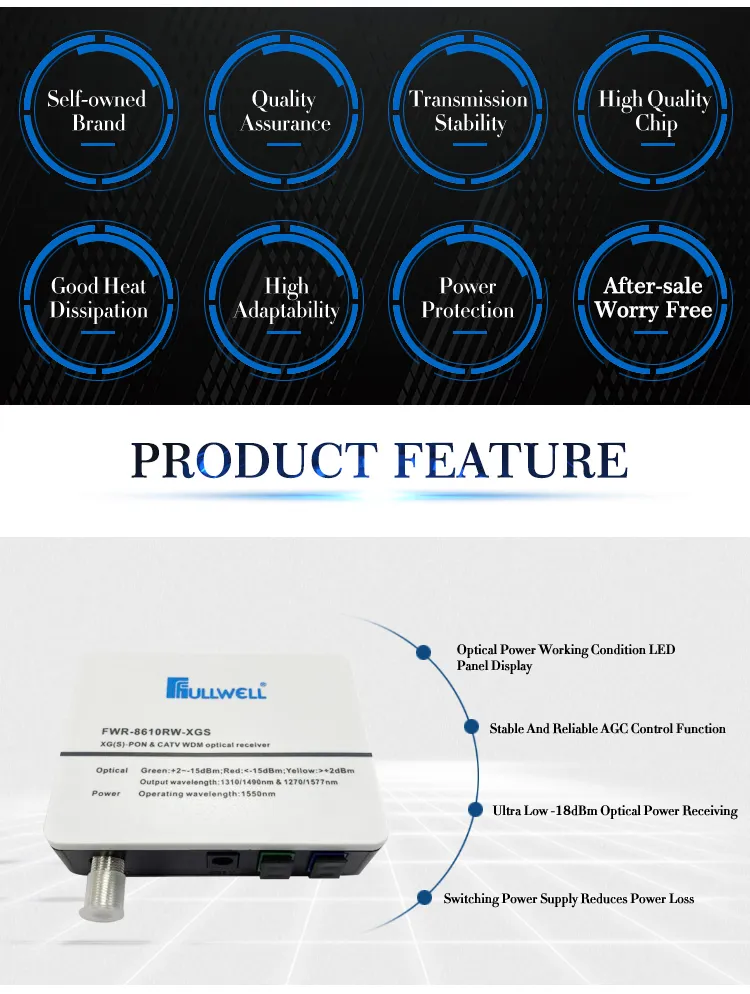

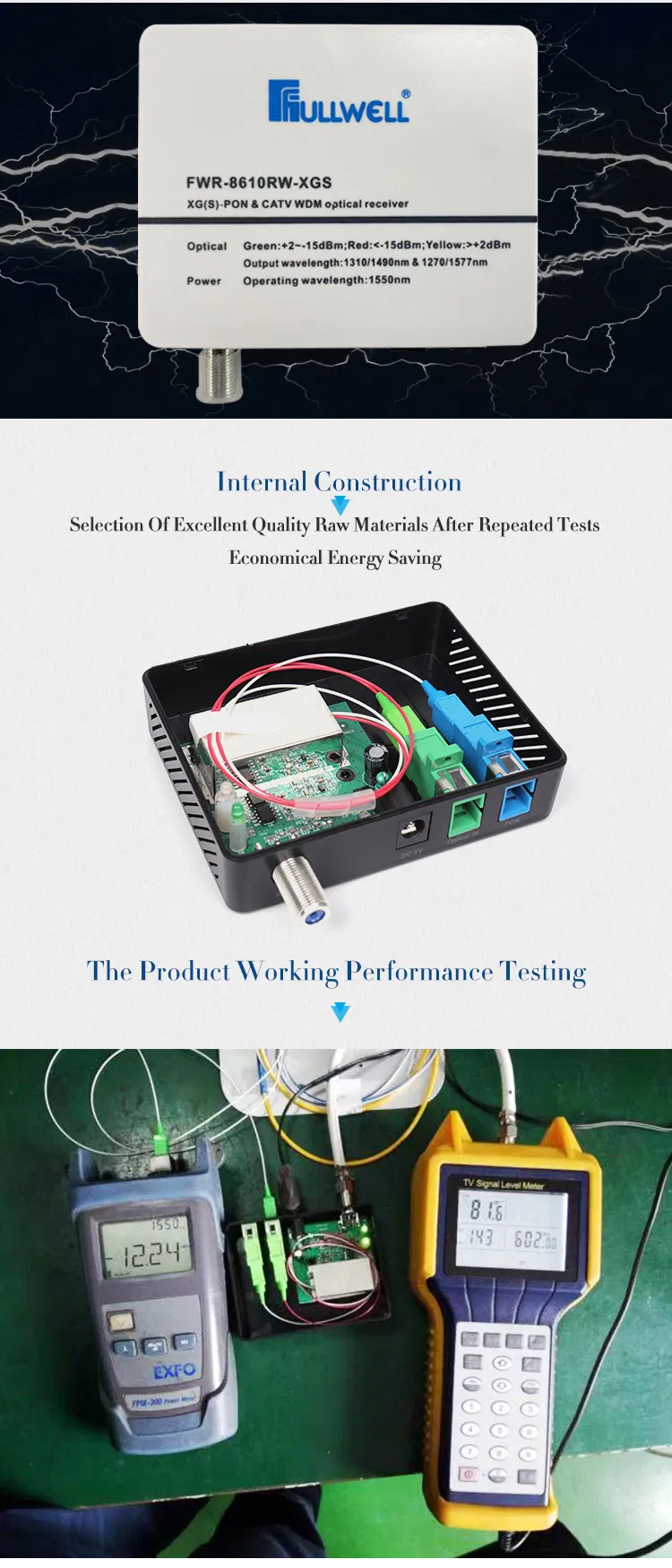

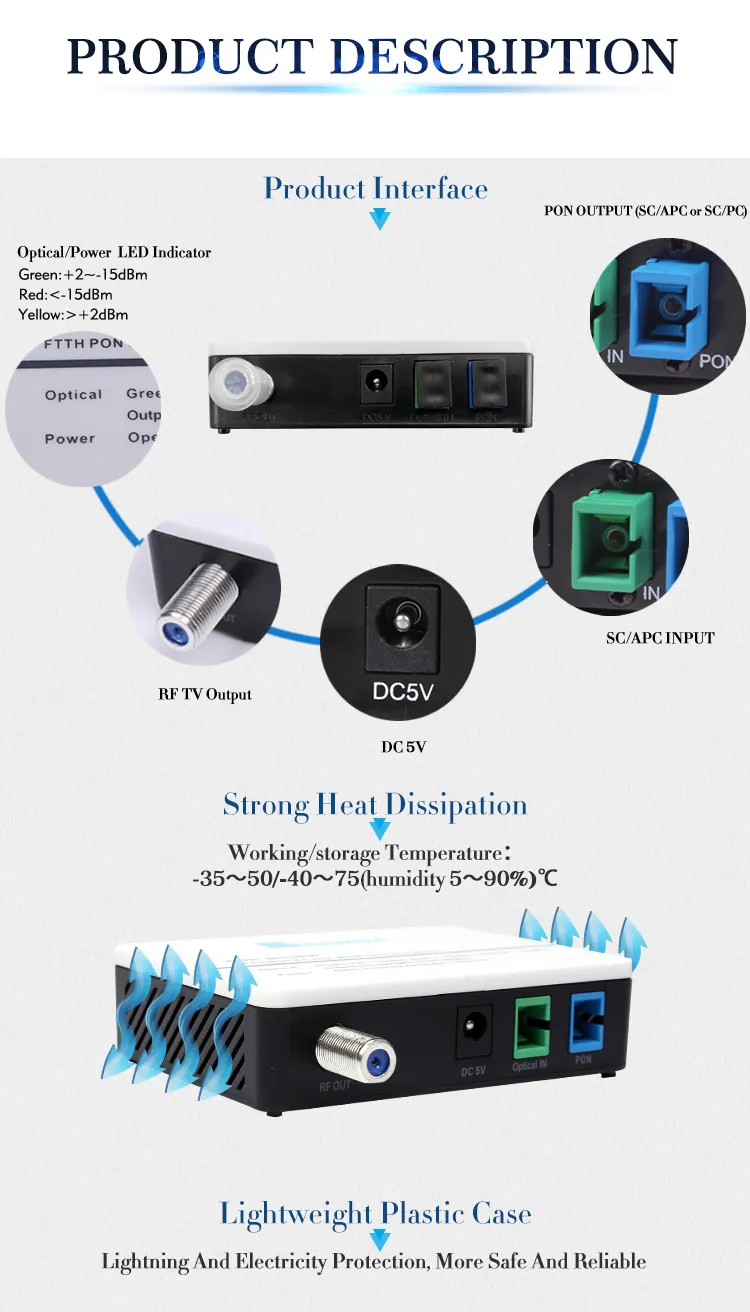

FWR-8610RW WDM optical receiver uses high-bandwidth and high-sensitivity photocells, low-noise matching circuits, GaAs amplification, low optical power receiving and RF-AGC technology. Receiving power range from -18 to + 2dBm, Light control AGC: -12~-2dBm, RF rated output 82dBuv, and there is also an optical power receiving monitoring LED indicator (≥-15dBm) on the panel. Industry-leading 5V power adapter, non-stop work design for more than 5 years, FWR-8610RW is an ideal WDM optical receiver for FTTH single fiber to home network.
