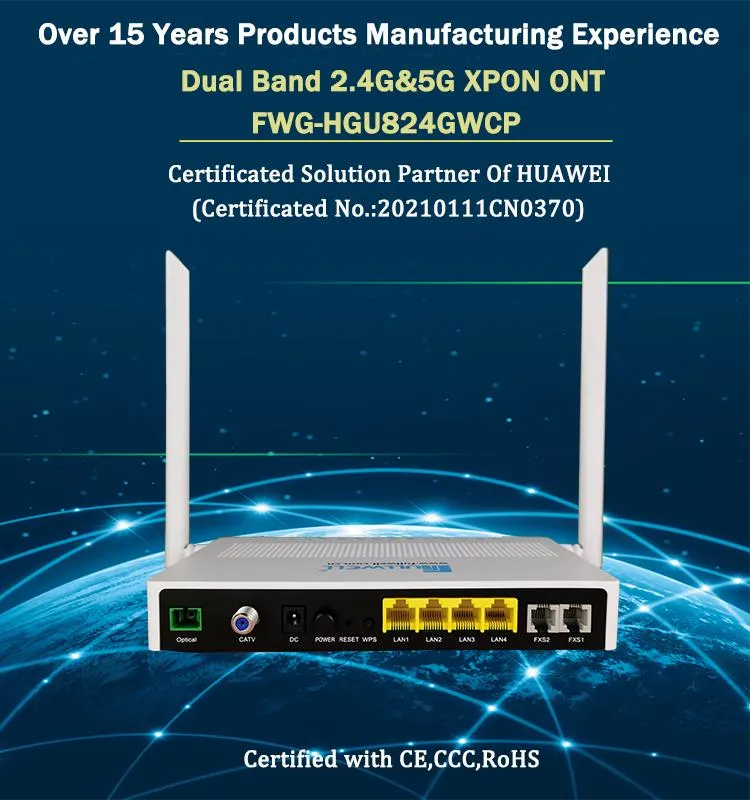

Fullwell 4ge+2tel+RF+WiFi (2.4G&5G) Dual Band Gpon ONU Compatible with Huawei/Zte Olt
FWE-HGU824GWCP GPON ONT4GE+2POTS+CATV Single FiberWIFI: 2T2R for 2.4 GHz and 2T2R for 5GHzOverviewTo deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, FWE-HGU824GWCPGPON ONT incorporates interoperability, key customers' specific requirement......
Send Inquiry
Product Description
FWE-HGU824GWCP GPON ONT
4GE+2POTS+CATV Single Fiber
WIFI: 2T2R for 2.4 GHz and 2T2R for 5GHz
Overview

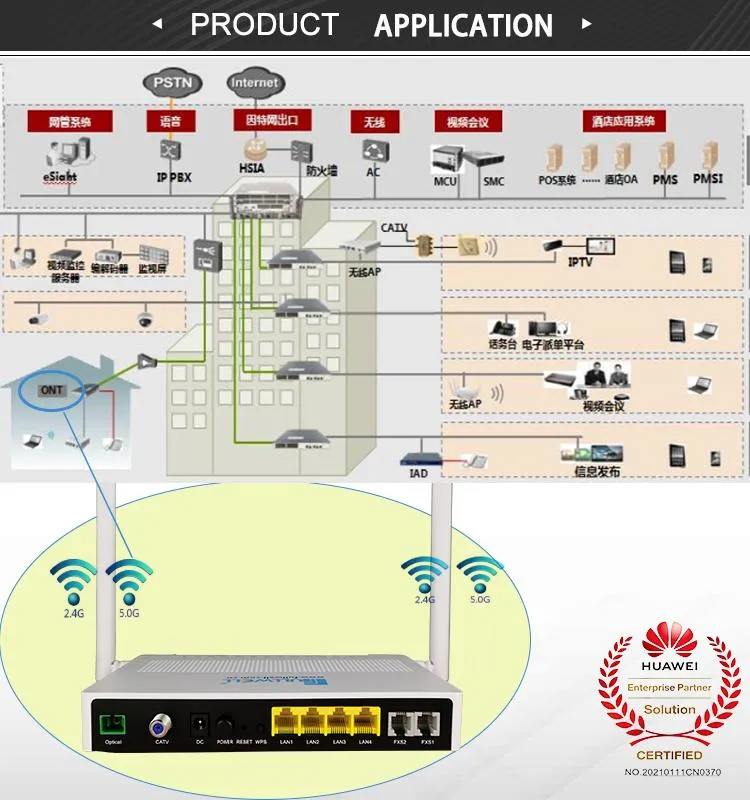

To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, FWE-HGU824GWCPGPON ONT incorporates interoperability, key customers' specific requirements and cost-efficiency.
Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface, the GPON ONT supports the full of services including voice ,video(CATV&IPTV), and high speed internet access.
Compliant with standard OMCI definition, FWE-HGU824GWCPGPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface, the GPON ONT supports the full of services including voice ,video(CATV&IPTV), and high speed internet access.
Compliant with standard OMCI definition, FWE-HGU824GWCPGPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
Service
Data

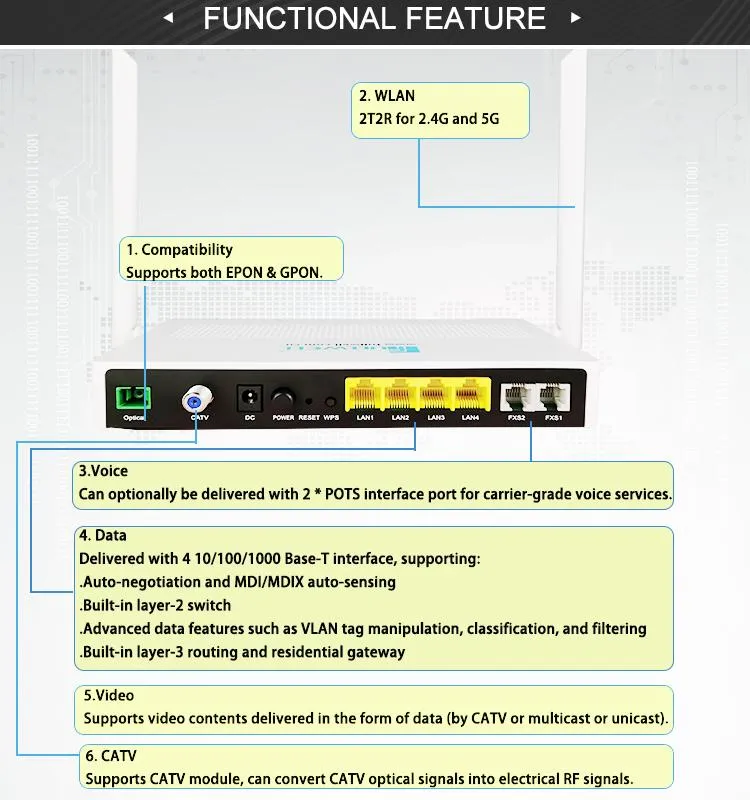

The FWE-HGU824GWCP ONT is delivered with 4 10/100/1000 Base-T interface, supporting:
- Auto-negotiation and MDI/MDIX auto-sensing
- Built-in layer-2 switch
- Advanced data features such as VLAN tag manipulation, classification, and filtering
- Built-in layer-3 routing and residential gateway
- USB 3.0 * 1 , USB2.0 * 1
- WLAN
- 2T2R for 2.4 GHz and 4T4R for 5G
- 4 SSIDs, SSID-1 for customer, other SSIDs for other services.
- Video
The ONT supports video contents delivered in the form of data (by CATV or multicast or unicast).
- Voice
The ONT can optionally be delivered with 2 * POTS interface port for carrier-grade voice services.
CATV
The ONT supports CATV Module,can convert CATV optical signals into electrical RF signals.
Specification
| IC | CPU | RTL9607C-VA7-CG (With 4G bit SDRAM embedded) | |
| FLASH | 2Gbit | ||
| DDR | (CPU embedded) | ||
| Optical SPEC | Working wavelength | nm | PON:TX1310,RX1490; CATV:1150~1600 |
| The light emitting power | dBm | 1 ~ +4(GPON) | |
| The light receiving sensitivity | dBm | ≥ -27 | |
| Optical fiber connector | / | SC/APC Single Fiber with Three Waves | |
| CATV optical power range | dBm | +2~-18 | |
| CATV optical reflection loss | dB | ≥45 | |
| CATV responsetity | A/W | ≥0.9 @1550nm | |
| Broadband/roughness | MHz/dB | 45~1005/≤ ±0.75(@-15~-10dBm) | |
| Output level | dBuv | ≥75 (@-15~-3dBm, 3.5%) | |
| Reflection loss | dB | ≥16( 75Ω) | |
| CNR/MER | dB | ≥45/32(-9dBm,PAL-D 60CH,OMI3.8%) | |
| CTB/CSO/HUM | dB | ≥60/≥60/≥46 | |

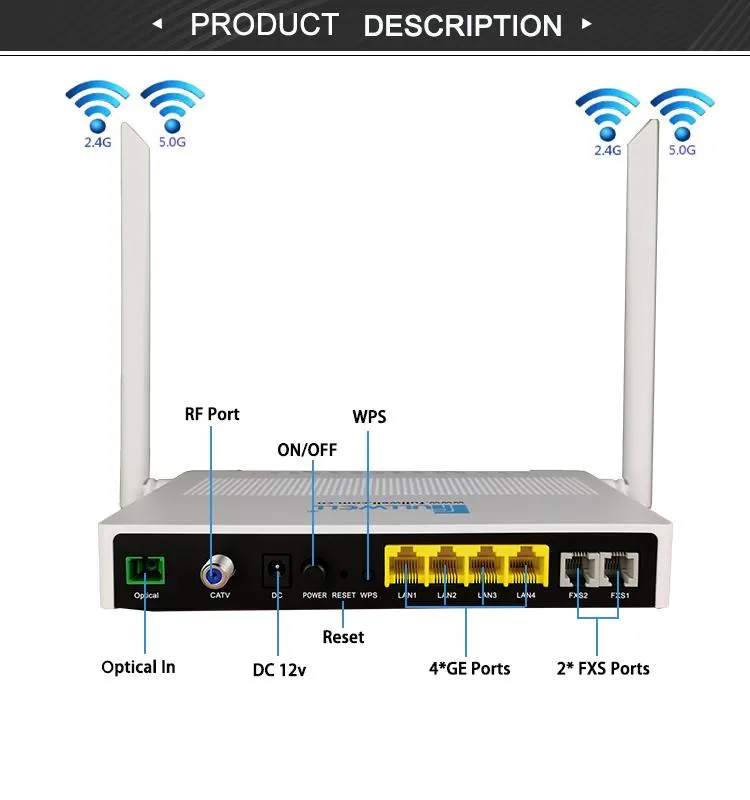

| Other Port | The user side Ethernet ports | / | 4GE |
| USB(3.0) | / | 1 | |
| POTS | / | 2 | |
| WiFi | Standard | / | 802.11 b/g/n/ac |
| 2.4G | / | 2T2R 300Mbps | |
| 5G | / | 4T4R 1733Mbps | |
| Antenna | / | External 6 antennas (5 dBi) | |
| Power | Power on board for 2.4 GHz : 15.0 dBm ±1 dBm Power on board for 5 GHz :21.0 dBm ±1 dBm | ||
| Cover | / | / | White Color |
| Button | / | / | Power Button |
| Key | / | / | Reset, WLAN, WPS |
| Others | The power supply | V/A | AV110~255V→DC12V2A |
| Work temperature | ºC | -5~45 | |
Power Supply
- 12V /2A (External AC/DC adapter)
- 2-PIN power adaptor input
- Dying Gasp support
- Power switch
GPON Interface
- Compliant with ITU-T G.984 GPON standards
- BoSA on board optical solution
- 1.244Gbps Burst Mode Upstream Transmitter
- 2.488 Gbps Downstream Receiver
- Compliant with ITU-T G.984.2 Amd1, Class B+
- Wavelengths: US 1310nm, DS 1490nm
- Multiple T-CONTs per device
- Multiple GEM Ports per device
- Flexible mapping between GEM Ports and T-CONT
- Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
- AES-128 Decryption with key generation and switching
- FEC (Forward Error Correction) in both directions
- DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)
- Mapping of GEM Ports into a T-CONT with priority queues based scheduling
- Support Multicast GEM port and incidental broadcast GEM port.
Ethernet Interface
- 4GE
- Ethernet port auto negotiation or manual configuration
- MDI/MDIX automatically sense
- Virtual switch based on 802.1Q VLAN
- VLAN tagging/detagging per Ethernet port

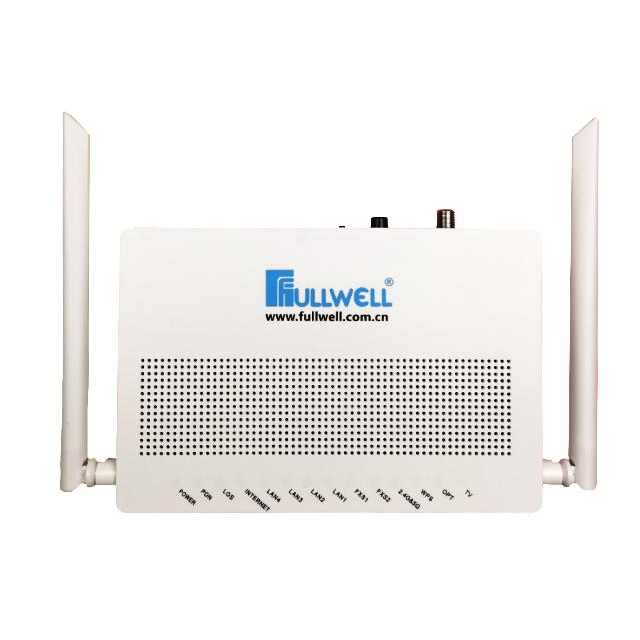

LED
- POWER
- PON
- LOS
- WAN
- LAN1 ~LAN4
- 2.4G
- 5G
- WPS
- Phone1
- Phone2
- CATV
- USB
OAM
- Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.988
- Alarming and performance monitoring
- Remotely software image download over OMCI, as well as activation and rebooting
- Hold two software sets with software image integrity checking and automatic rollback
- Support TR-069 remote management.
Fullwell Manufacturer Service
1. Mature technical support
2. Perfect sell service
3. Free OEM service, laser your logo
If you have another question, please feel free to contact me directly as below:
Hangzhou Fullwell Optoelectronic Equipment Co., Ltd
Add:A2-1305,Qimeng Science & Innovation Park,No.1899,Gudun Road,Hangzhou, China
Contact person: Leo Yao
"Design and manufacture the most reliable and efficient FTTH CATV equipment products in the industry."
