Functions

  1.Automatic Measurement Mode:Operators do not need to choose the test distance and pulse width, the tester will automatically judge the length, and choose suitable dynamic range as well as pulse width to complete the work; The storage of event trace can be saves manually or automatically which will be convenient for data analysis
  2.Multiple Wavelengths Measurement Mode:In order to use different wavelengths to execute the loss calculation in one fiber, we can choose duplex wavelengths test mode from parameter settings, the tester will switch wavelengths automatically

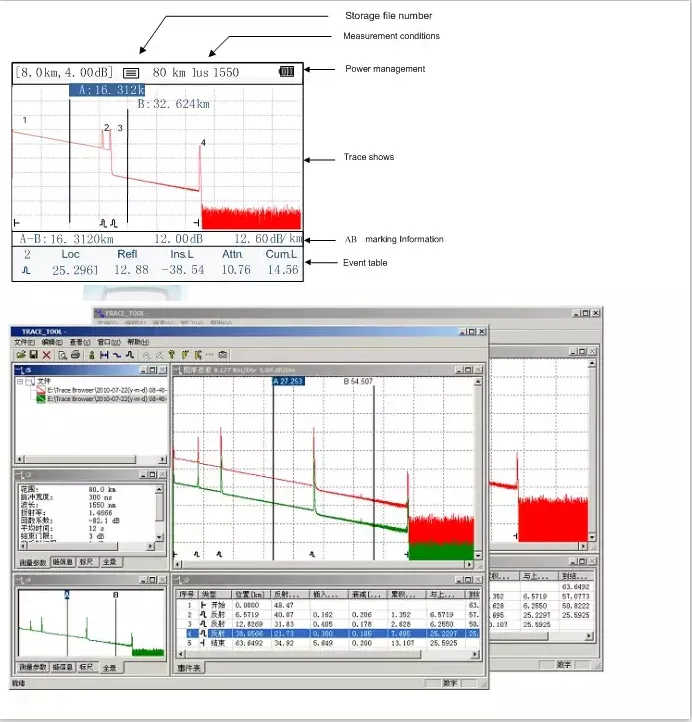

  3 .Multiple Trace Analysis:Simultaneous display 4 traces, operators can compare the traces and make analysis of any ones among the traces
  4.Online Test:This will protect the test instruments and equipment
  5. Duplex Operation Mode: Pure operation through touch screen ; or pure operation through the pressing keys
  6 .Data Analysis:
  Save and generator standard trace file(. Sor), more than 20000 groups storage capacity:
Print the analysis report and traces which make the acceptance or work easily;

Feature

1.5.6-Inch outdoor-enhanced touchscreen, 7.4V/4.4Ah Lithium battery
2.Event Dead zone as lower as 1.5meter
3.Combined multi-dynamic range and wavelengths
4.Muti measurement mode, support Touching LCD and pressing keys
5.Warning function could prevent OTDR module from being damaged by optical signal in fiber.
6.Realtime measuring function, convenient to monitor the splicing process
7.Integrated 10mw Visual Fault Locator
8.Support English/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input
9.Integrated with 8GB internal memory, more than 80,000 groups curve storage
10.PC remote access and control function is available, which support the printing work of the measurement report

Application

1. FTTX test with PON networks
2. CATV network testing
3. Access network testing
4.LAN network testing
5. Metro network testing
6. Lab and Factory testing
7. Live fiber troubleshooting

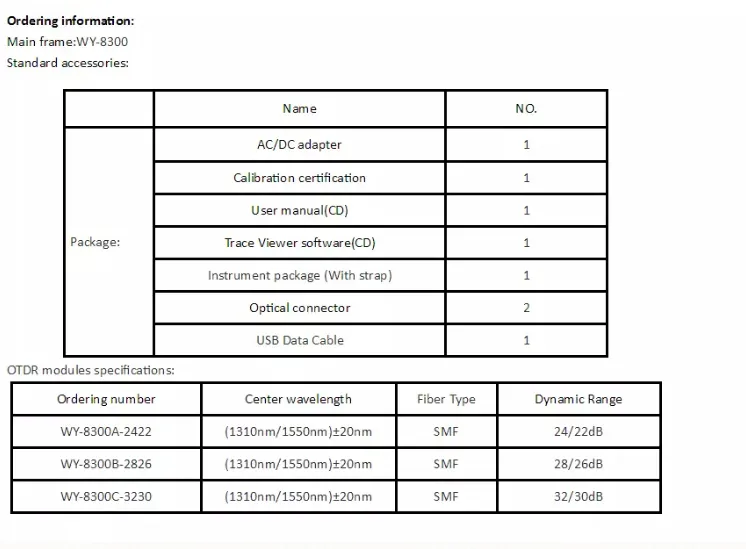

Specification
