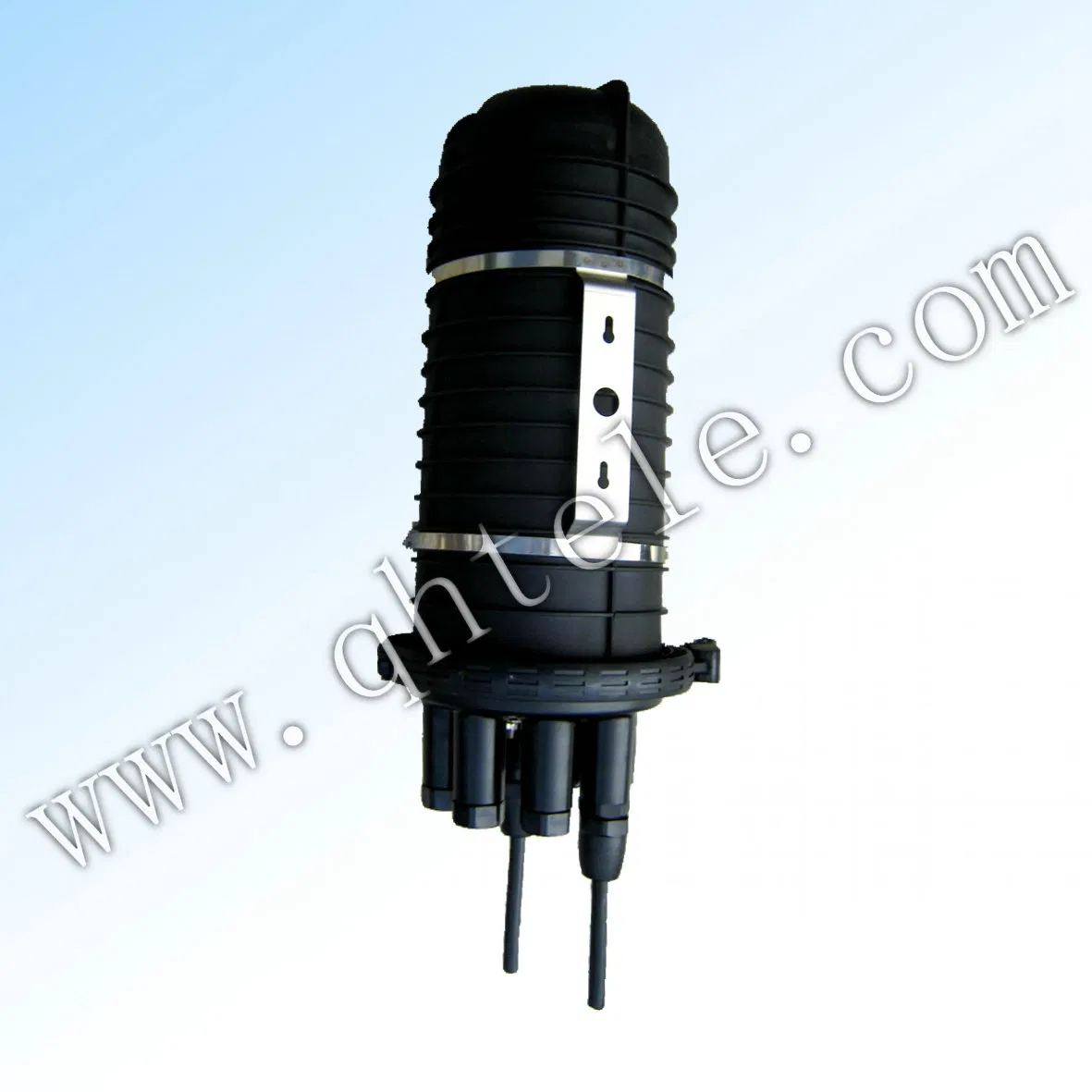

FTTH Mechanical Dome Type Fiber Optic Splice Closure
GJS03-M9AX-JX Mechanical Sealing Optic Cable Splice Closure Introduction: This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems,CATV cable TV and so on.It adopts scientifically formulated engineering plastic and be shaped......
Send Inquiry
Product Description
GJS03-M9AX-JX Mechanical Sealing Optic Cable Splice Closure
Introduction:
This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems,
CATV cable TV and so on.It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging,
anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence

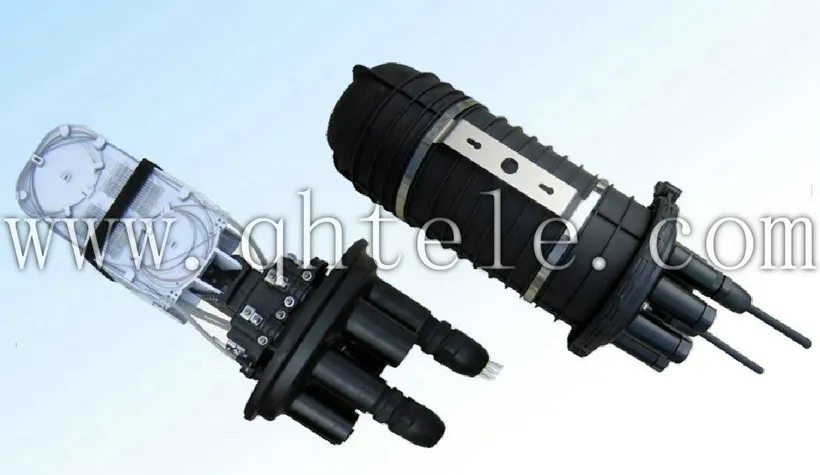

of outdoor environment.Dome-to-base design; the splice trays, hinge for access of any splice without disturbing others trays; Fast and reliable
sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting
or directly buried.

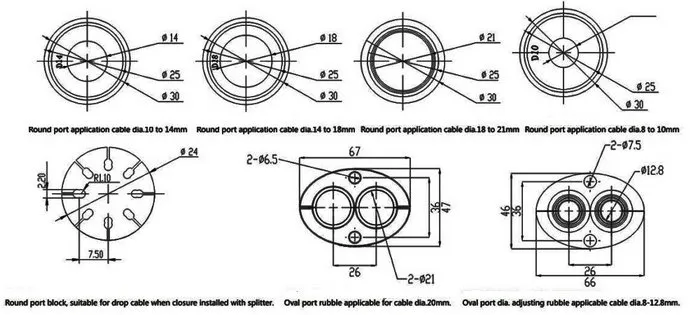

Optional Rubber Dia.
Features:
1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fabricated by mixing the imported material and other chemical assistant agent (ageing resistance & ultraviolet radiation resistance), increase of service life
3. Base-to-dome seals on FOSC are mechanical and heat-shrinkable for ease of installation and reentry. No other sealing adhesive tape is needed
4. Base and dome sealed with clamp and O-ring system

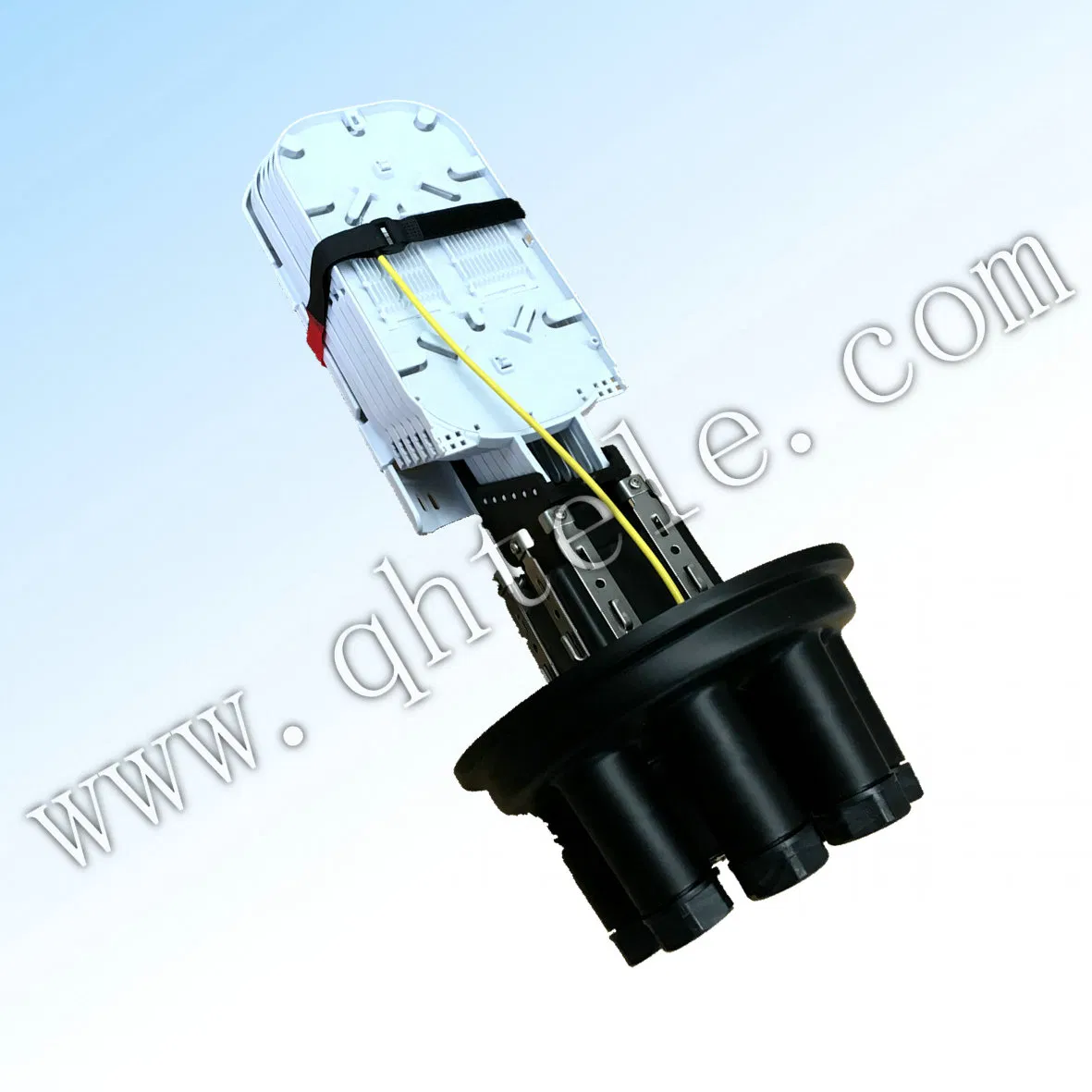

5. The splice trays are hinged for access to any splice without disturbing others trays
6. The inner parts and fixing parts are made of stainless steel
7. FOSC with a earthing device protect it from damage by lightning
8. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular,UNCUT CABLE). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
9. No special tools are needed to open the closure, and it can be opened and used repeatedly.
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+75 degrees centigrade
2. Atmospheric Pressure: 70~106Kpa
3. Axial Tension: >1000N/1min
4. Stretching Resistance: 2000N/10 square centimetre(1min)
5. Insulation resistance: >2*10MΩ
6. Voltage Strength: 15KV(DC)/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss.

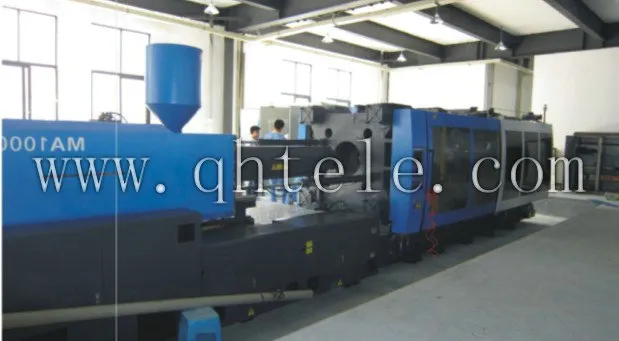

Producing lines:
Introduction:
This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems,
CATV cable TV and so on.It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging,
anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence
of outdoor environment.Dome-to-base design; the splice trays, hinge for access of any splice without disturbing others trays; Fast and reliable
sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting
or directly buried.
| Model: | GJS03-M9AX-JX-288-SRZJ21-W12 (GP1425) | ||
| Size: With clamp's biggest outer dia. | 592.5*271.6 mm | Raw material | Dome,Base: modified PP, Clamp:Nylon +GF Tray: ABS Metal parts:Stainless steel |
| Entry ports number: | 1 oval port, 6 round ports | Available cable dia. | Oval port:available for 2 pcs, with optional rubber for different cable dia. Round ports:with optional seal rubber for different cable dia. |
| Max. tray number | 12 trays | Base sealing method | Mechanical |
| Tray capacity: | 24F | Applications: | Aerial, directly buried, Wall/ pole mounting |
| Max. closure splice capacity | 288 F | ||
Optional Rubber Dia.
Features:
1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fabricated by mixing the imported material and other chemical assistant agent (ageing resistance & ultraviolet radiation resistance), increase of service life
3. Base-to-dome seals on FOSC are mechanical and heat-shrinkable for ease of installation and reentry. No other sealing adhesive tape is needed
4. Base and dome sealed with clamp and O-ring system
5. The splice trays are hinged for access to any splice without disturbing others trays
6. The inner parts and fixing parts are made of stainless steel
7. FOSC with a earthing device protect it from damage by lightning
8. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular,UNCUT CABLE). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
9. No special tools are needed to open the closure, and it can be opened and used repeatedly.
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+75 degrees centigrade
2. Atmospheric Pressure: 70~106Kpa
3. Axial Tension: >1000N/1min
4. Stretching Resistance: 2000N/10 square centimetre(1min)
5. Insulation resistance: >2*10MΩ
6. Voltage Strength: 15KV(DC)/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss.

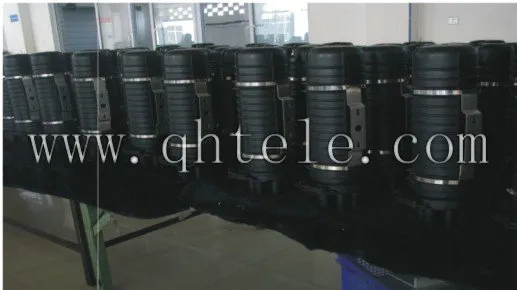

Producing lines:
