Product Description

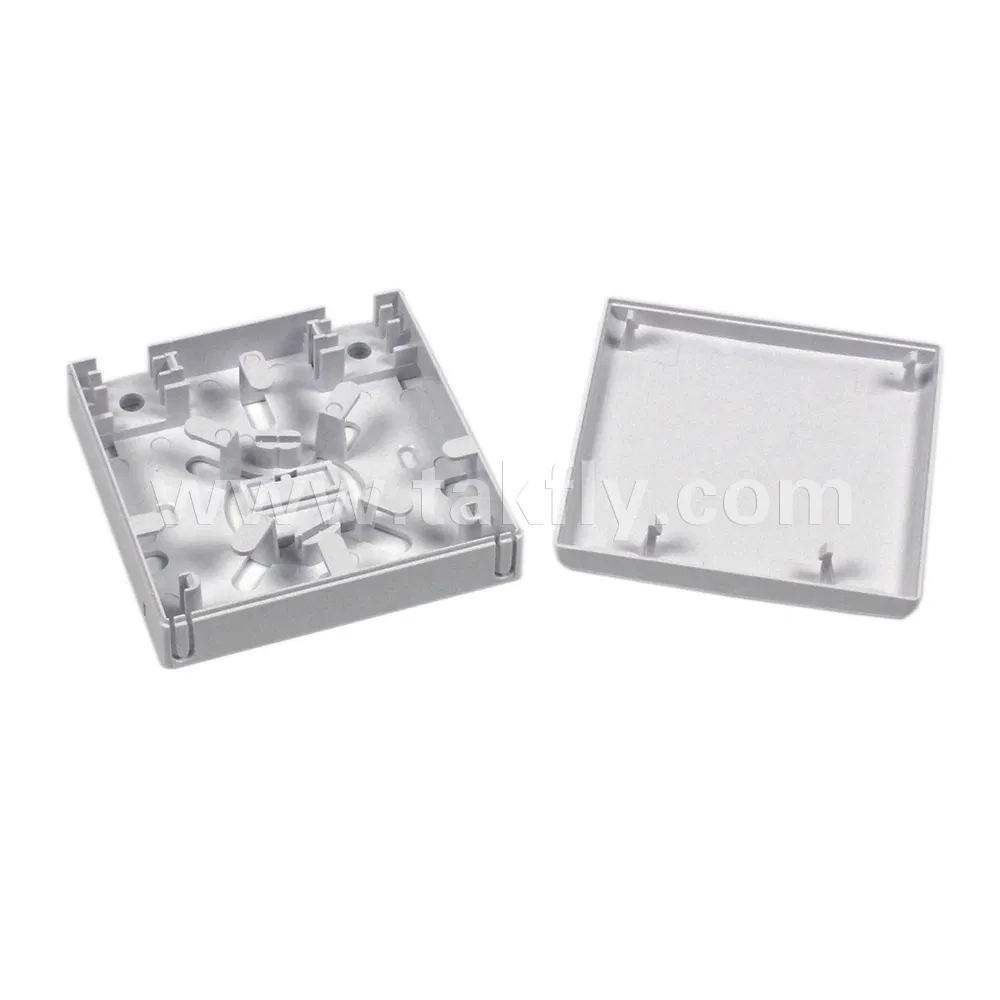

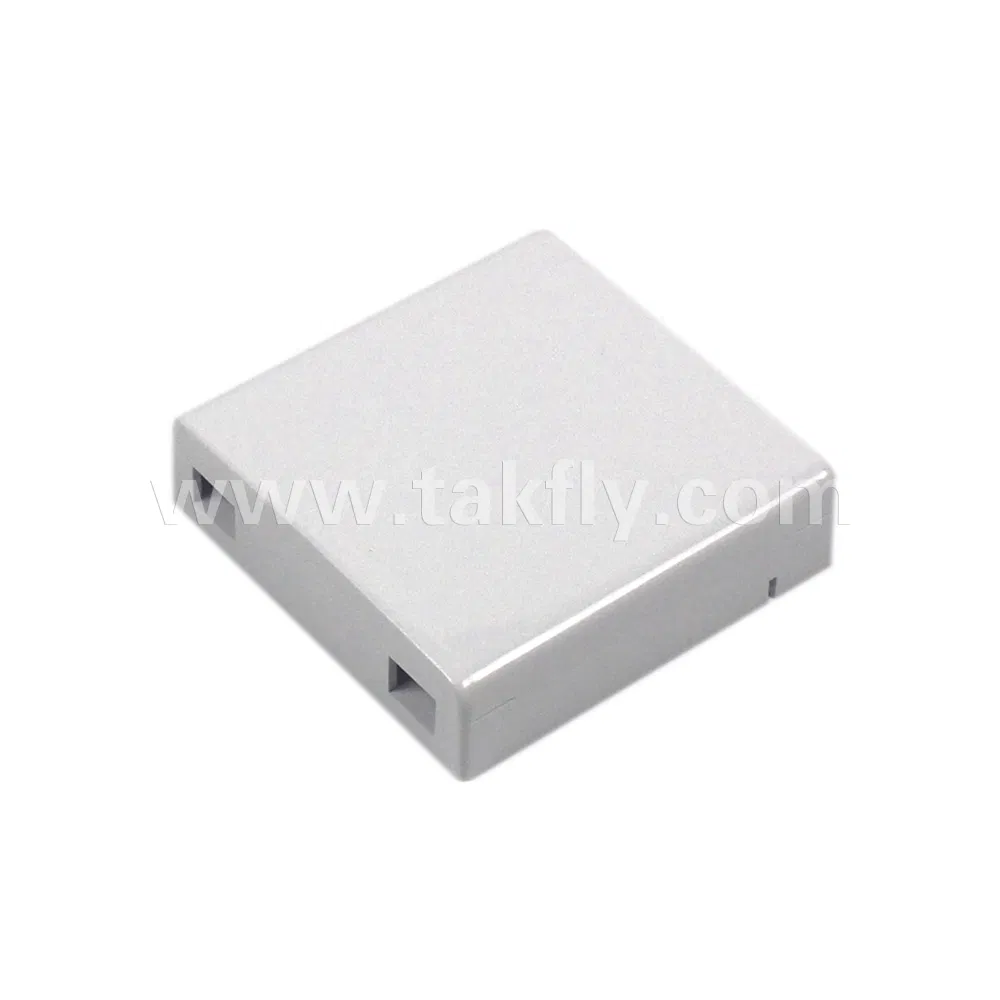

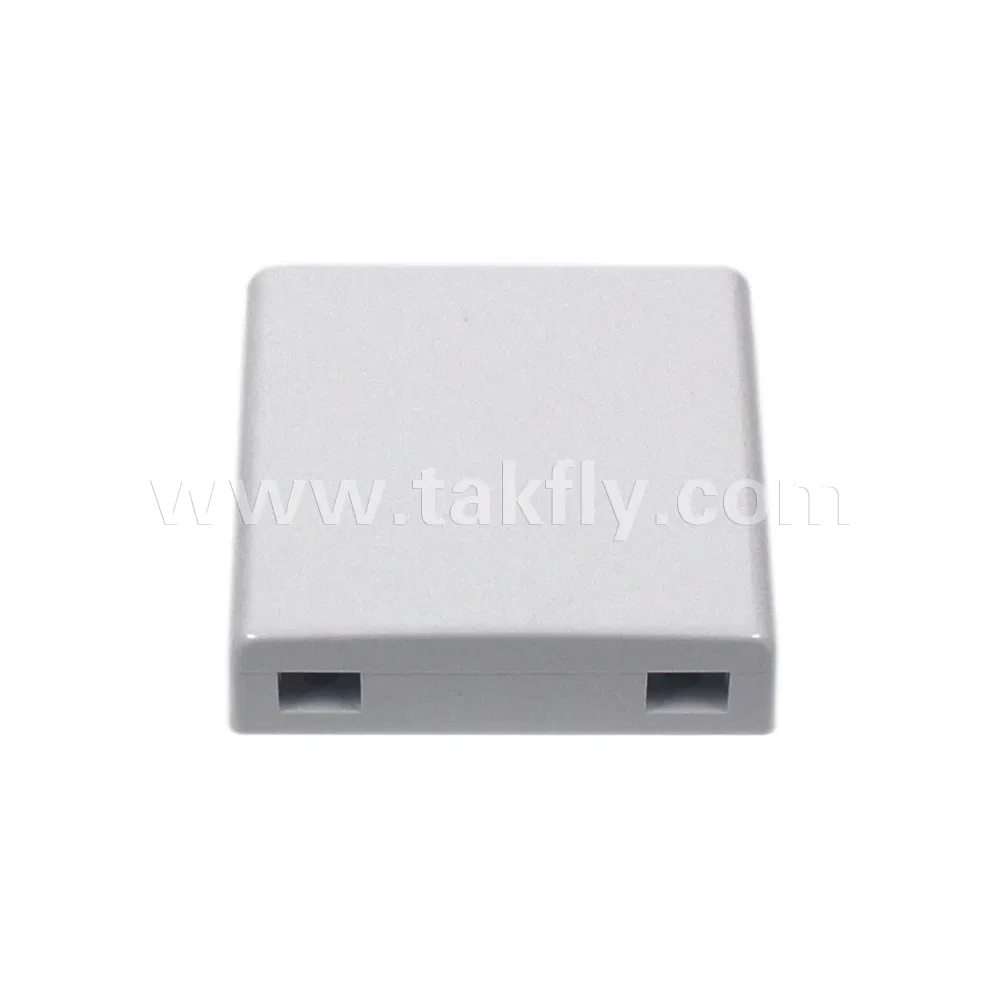

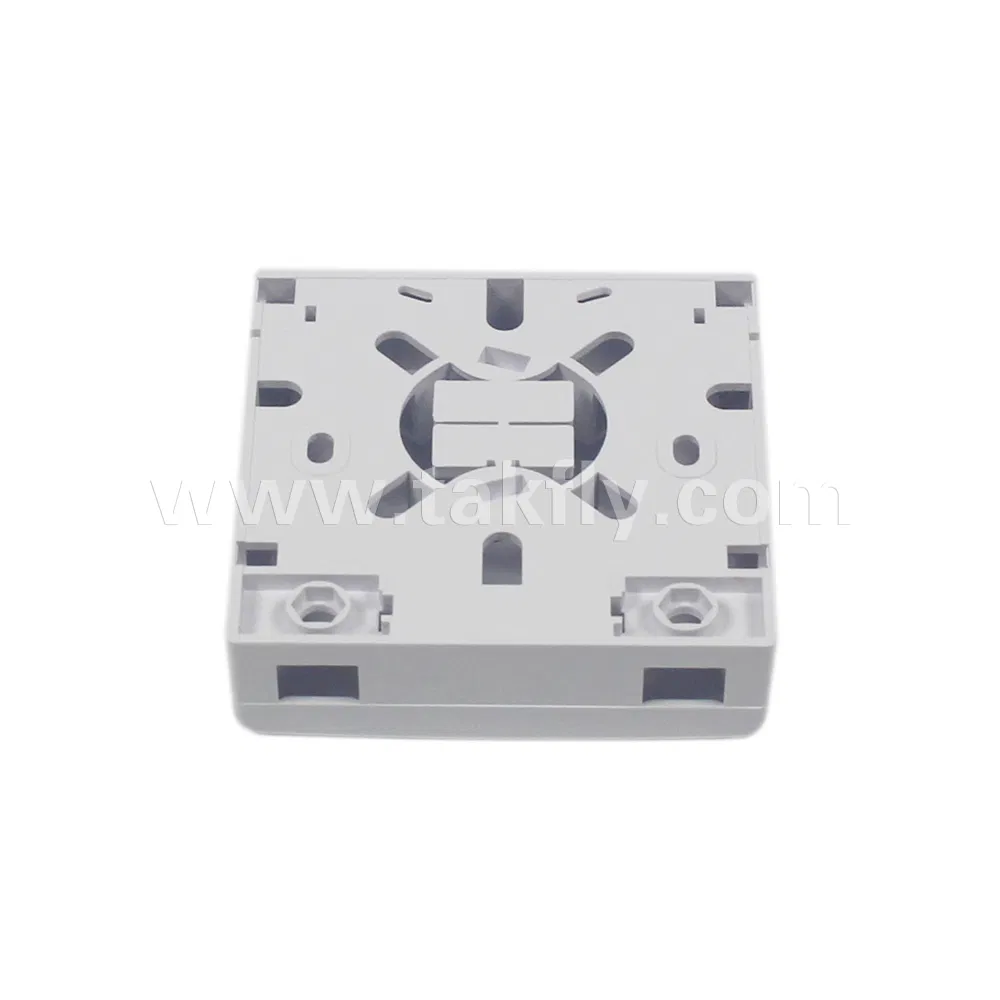

FTTH Fiber Optic Terminal Box Wall outlet
Model No.: TKS-1806-02A
Description
Suitable for multi type module installation, application in the work area routing subsystem
The embedded surface box, installation, convenient disassembly with protective door, dust; according to customer requirements can be printed LOGO
Application of optical fiber with SC / LC simplex, duplex different environment bright dress, flush plate. A combination of all the modules can be according to customer selection and configuration
All modules are free welding mode
Usage range and Application
The telecommunication network, metropolitan area network, optical fiber communication system
Optical fiber test instrument / meter
Optical fiber CATV, fiber optic sensor
Fiber broadband access network, FTTH fiber into the home
Optical fiber distribution frame, frame type and wall hung type optical fiber distribution unit
Specification
Accessory list

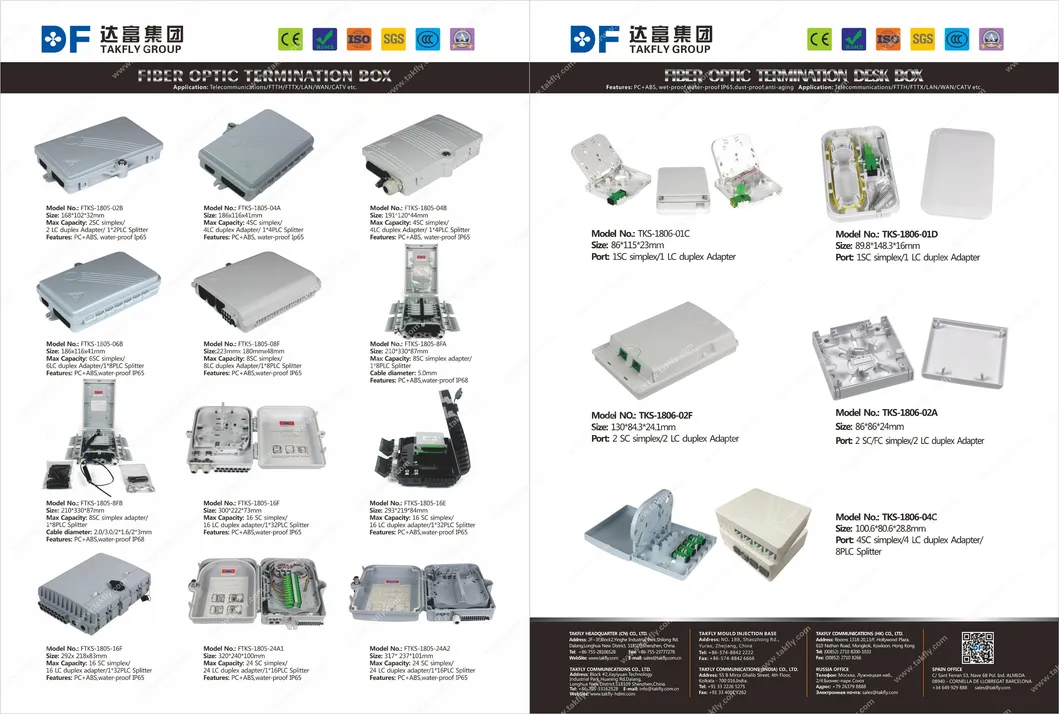

More Fiber Optic Termination Box From Takfly.Model No.: TKS-1806-02A
Description
Suitable for multi type module installation, application in the work area routing subsystem
The embedded surface box, installation, convenient disassembly with protective door, dust; according to customer requirements can be printed LOGO
Application of optical fiber with SC / LC simplex, duplex different environment bright dress, flush plate. A combination of all the modules can be according to customer selection and configuration
All modules are free welding mode
Usage range and Application
The telecommunication network, metropolitan area network, optical fiber communication system
Optical fiber test instrument / meter
Optical fiber CATV, fiber optic sensor
Fiber broadband access network, FTTH fiber into the home
Optical fiber distribution frame, frame type and wall hung type optical fiber distribution unit
Specification
| item | Technical parameters |
| A*B*C(mm)appearance dimension | 86*86*24 |
| D(mm)wall mounting dimension | 60 |
| usage range | 3.0 x 2.0 mm indoor cable |
| fiber diameter | 125μm ( 652 & 657 ) |
| cladding diameter | 250μm & 900μm |
| Applicable mode | Single mode and multimode |
| Tensile strength | >50 N |
| temperature | -40~+85ºC |
| adapter | SC & FC |
| insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output port | 2 |
Accessory list
| NAME | UNIT | QTY | remarks |
| Heat shrinkable tube | L=40mm | 2 | |
| Wall mounting parts | set | 1 |
*****For any interests of FTTH Fiber Optic Terminal Box Wall outlet,please leave me message below.
