FTTH Cassette PLC Splitter 1X32/ 2X32 Fiber Optic PLC Splitter
Our workshopOur productsPictureDescription 1x XXX PLC Splitter Casette type,SM fiber, with SC/APC connector.FeaturesFTTHMonitoringCATV SystemNetwork Protection Access/PON DistributionInsertion Loss- Test Wavelength: 1310-1550 nm- Required Value:P Grade- Test can be performed on any channelReturn Los......
Send Inquiry
Product Description

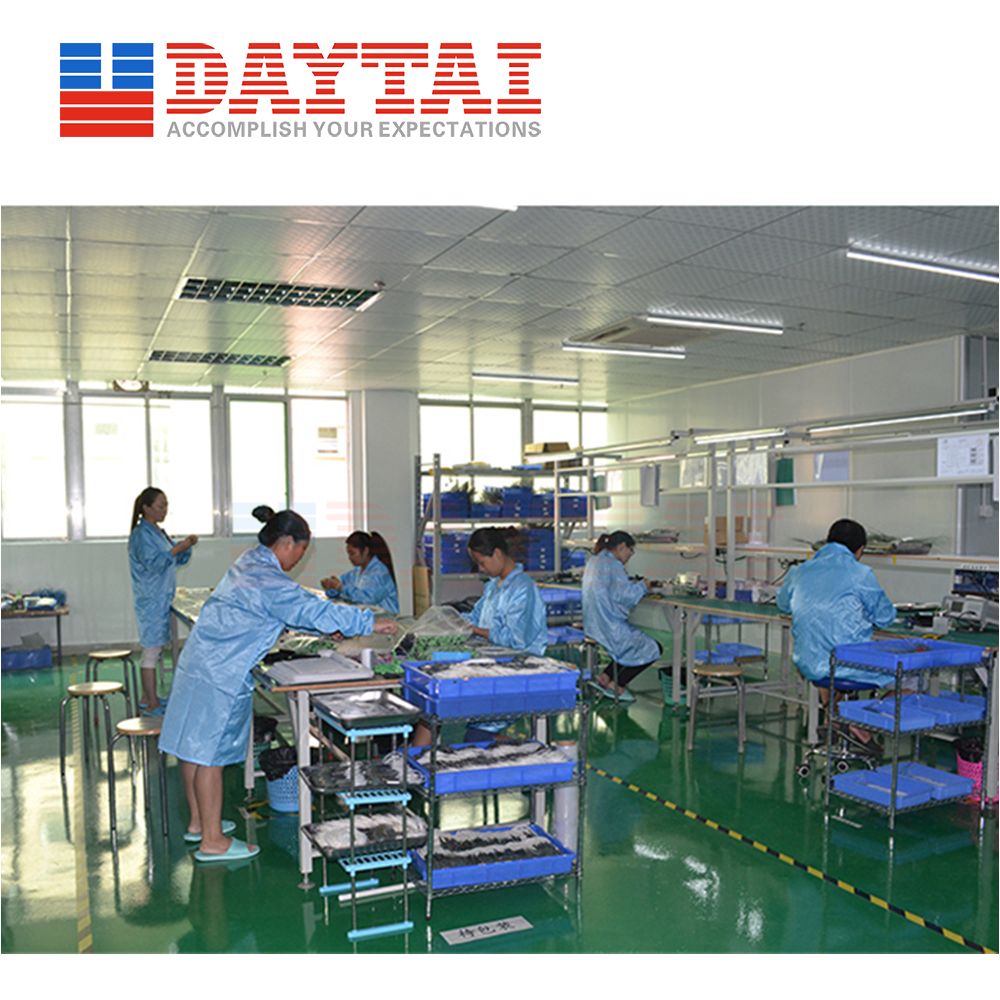

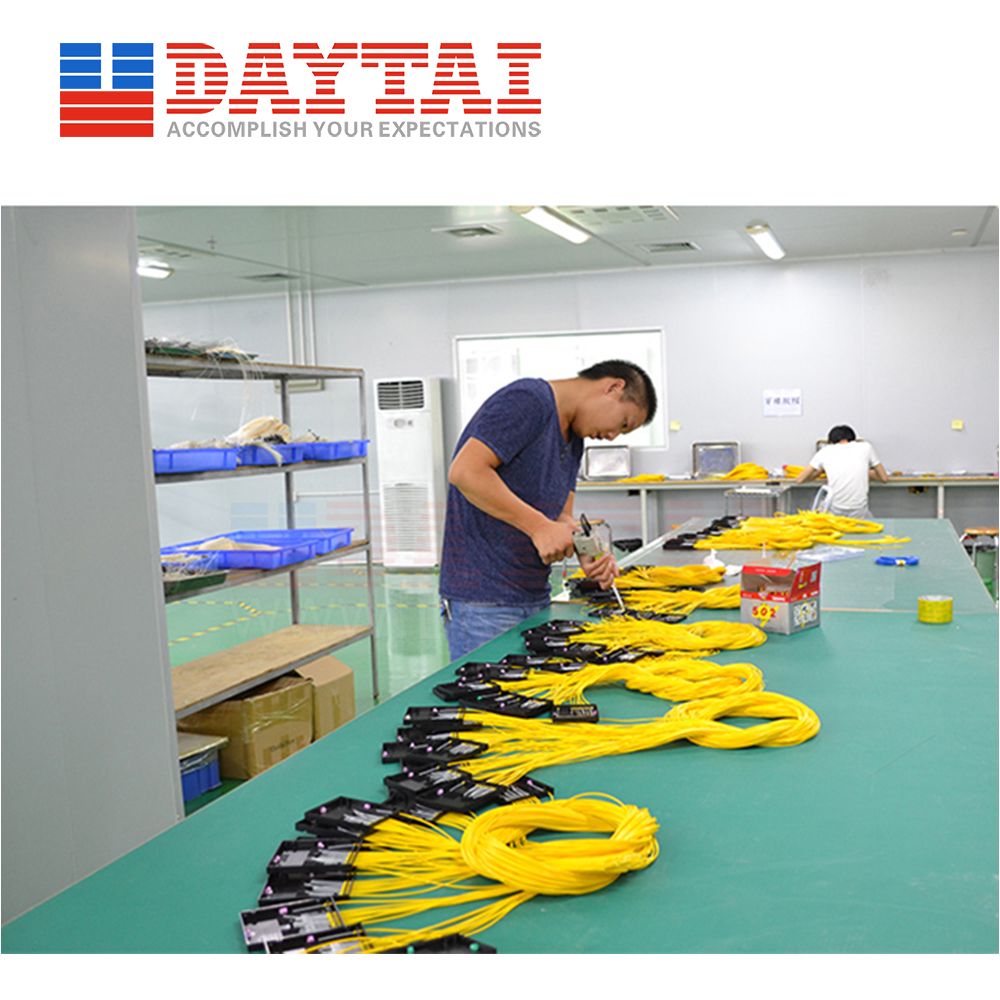

★Our workshop
★Our products

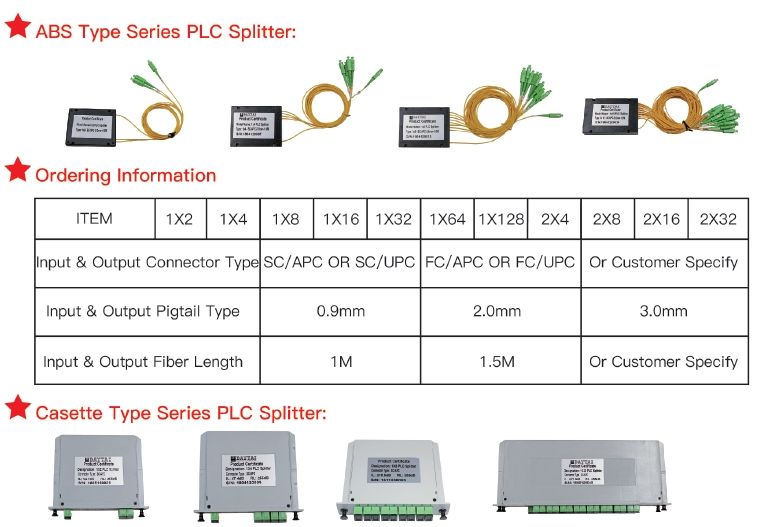

★Picture
★Description

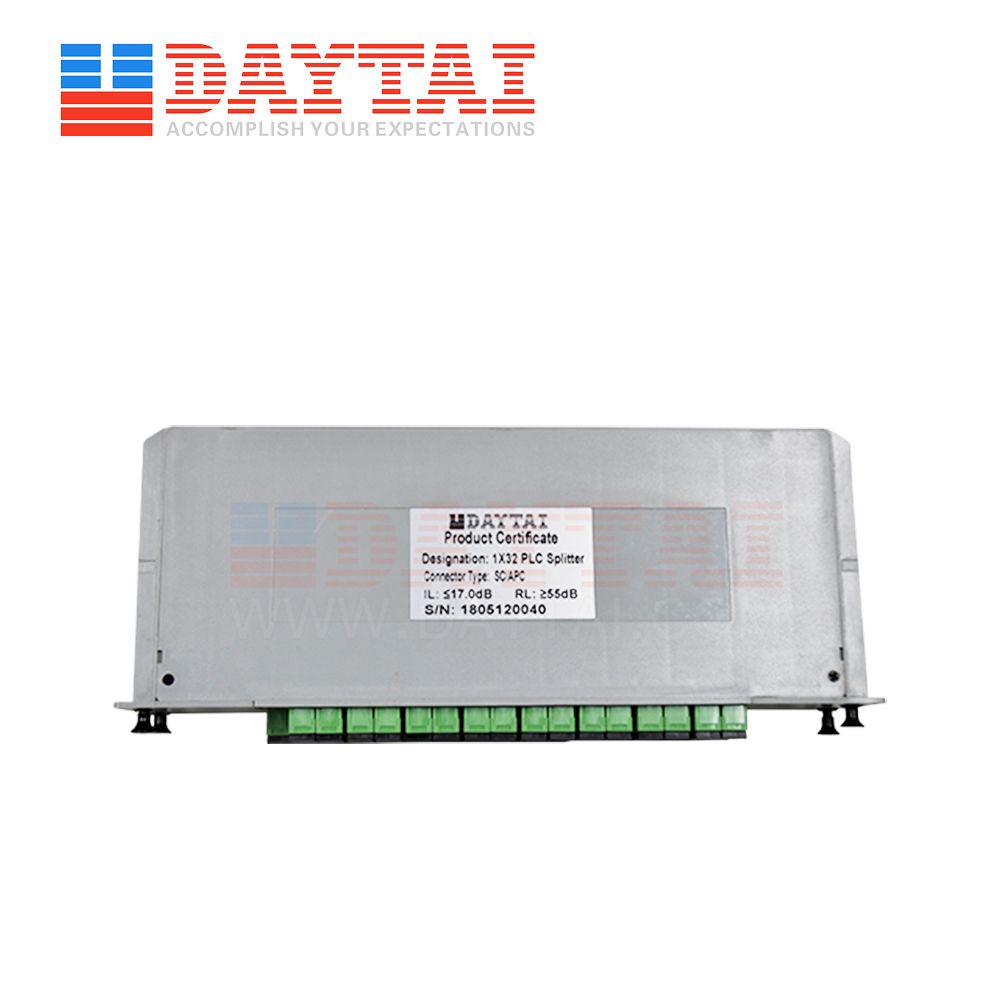

1x XXX PLC Splitter Casette type,SM fiber, with SC/APC connector.
★Features
⊙FTTH
⊙Monitoring
⊙CATV System
⊙Network Protection
⊙Access/PON Distribution
★Insertion Loss
- Test Wavelength: 1310-1550 nm
- Required Value:P Grade
- Test can be performed on any channel
★Return Loss
- Test Wavelength: 1310-1550 nm
- Required Value:>55dB
- Test can be performed on any channel
★Directivity
- Test wavelength: 1310-1550 nm
- Required Value:>55 dB
★On Dependent Loss-PDL
- Test Wavelength: 1310-1550 nm
- Required Value:< 0.2 dB
★Specification
| ITEM | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 |
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Insertion Loss (dB) Max. | ≤4.6 | ≤7.5 | ≤11.0 | ≤14.0 | ≤17.0 | ≤21.0 | ≤4.5 | ≤8.0 | ≤11.7 | ≤14.7 | ≤17.9 |
| Loss Uniformity (dB) Max. | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | ≤1.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 |
| PDL (dB) Max. | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss (dB) | UPC>=50dB;APC>=55dB | ||||||||||
| Directivity (dB) | >=55 | ||||||||||
| Fiber Length (m) | 1.2±0.1 , (Other Requirements Can Be Provide) | ||||||||||
| Fiber Type | Corning SMF-28e, (Other Requirements Can Be Provide) | ||||||||||
| Operation TemperatureºC | -40~+85 | ||||||||||
