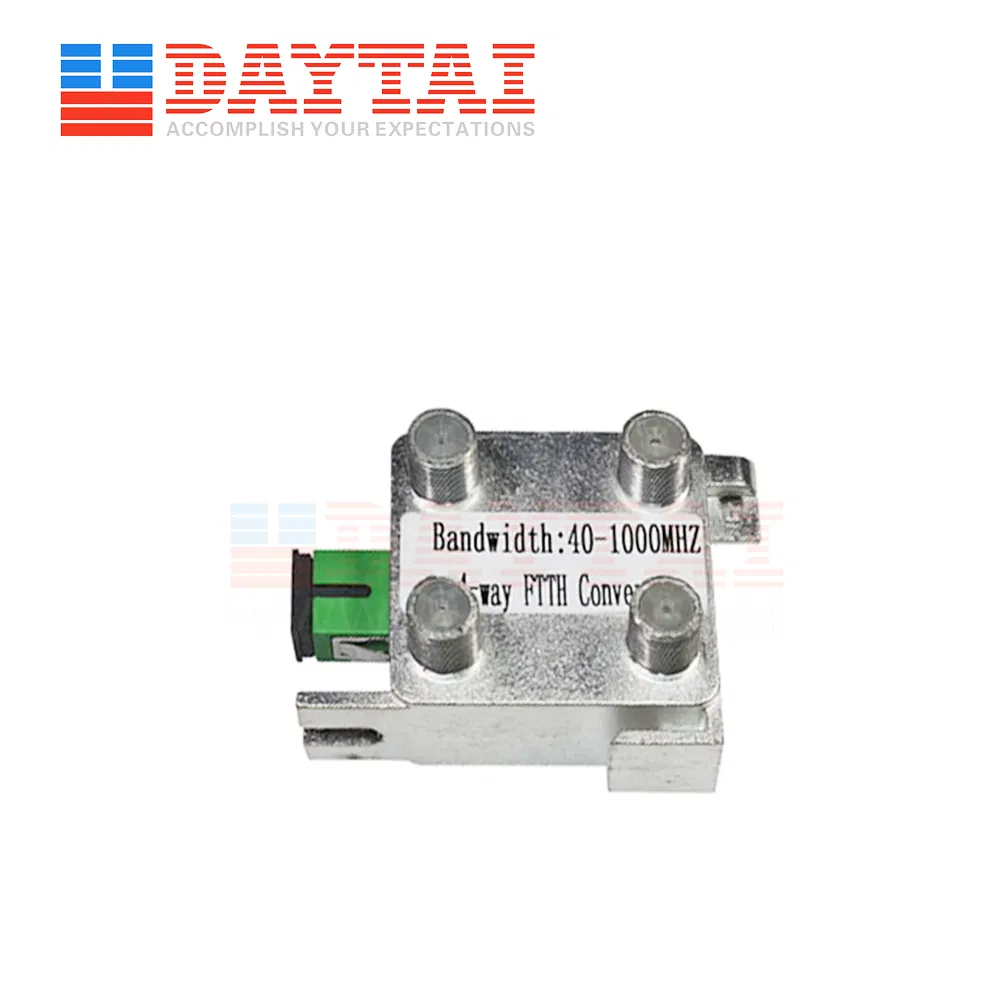

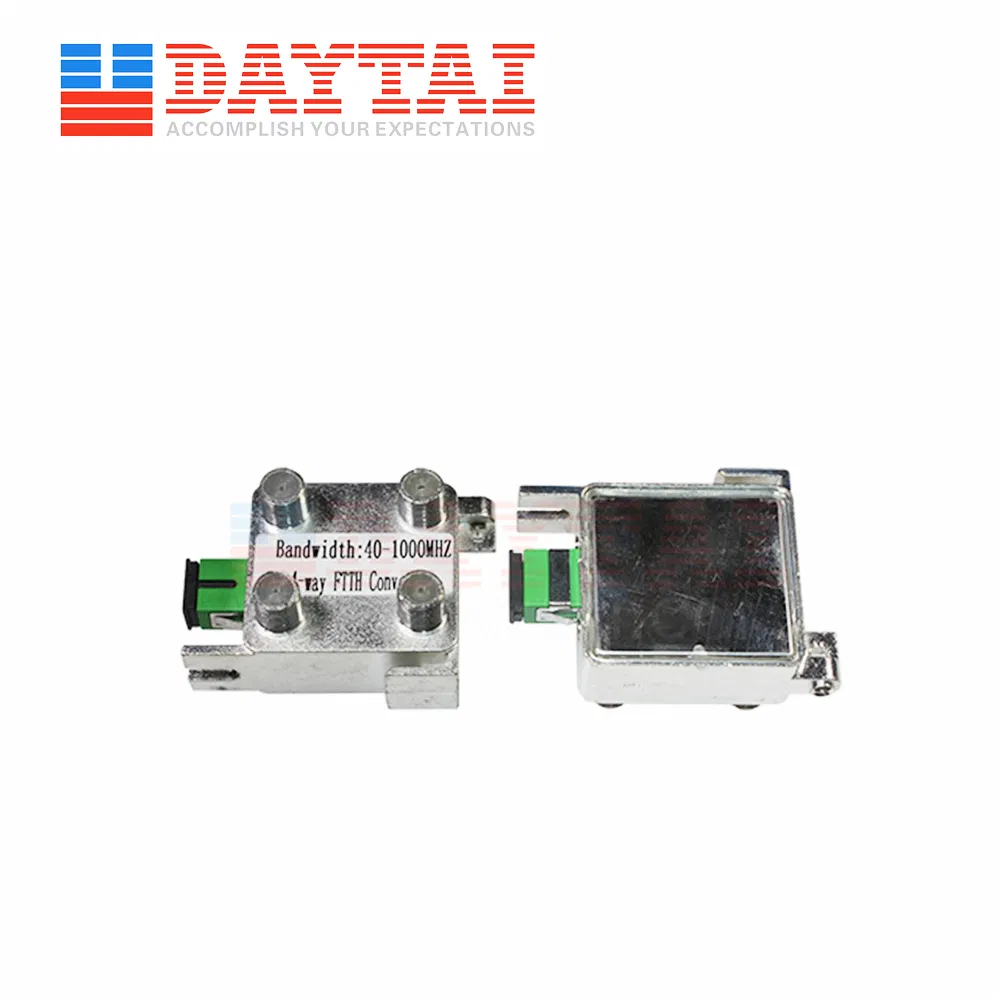

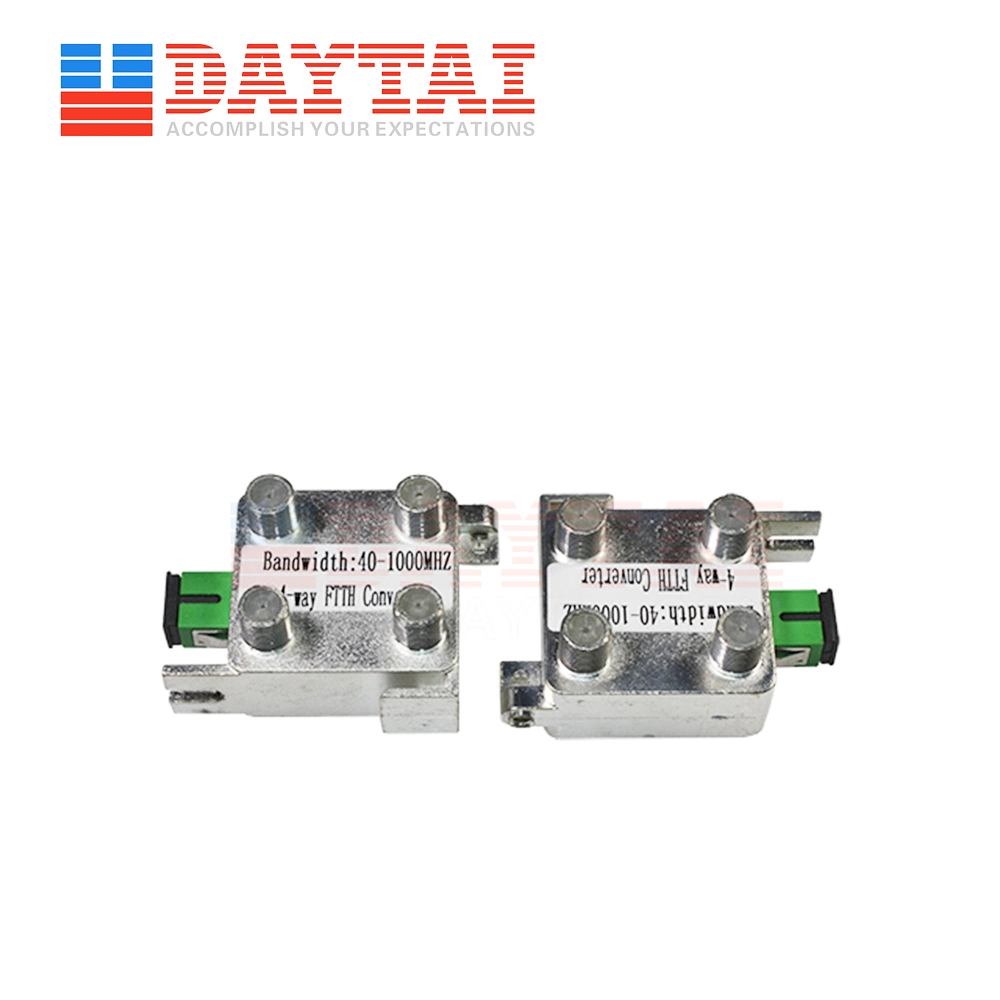

FTTH 4 Way Passive Single Mode Cable TV Optical Receiver/ Node for Digital TV

Description Passive 4 Way FTTH Optical Converter for Digital TV,input Optical Power:0~-15dbm,Optical Return Loss:>45db,Optical Receiver Wavelength:1100~1600 nm,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHZ,SC/APC to F Female connector,Dimensions:45*65*20 mm,Net weight:0.055KG.Features......

Send Inquiry

Product Description

★Description
Passive 4 Way FTTH Optical Converter for Digital TV,input Optical Power:0~-15dbm,Optical Return Loss:>45db,Optical Receiver Wavelength:1100~1600 nm,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHZ,SC/APC to F Female connector,Dimensions:45*65*20 mm,Net weight:0.055KG.

★Features
⊙No Power Required
⊙Optical Connector: SC/APC
⊙Good Linearity and Flatness
⊙Smaller size and easier install
⊙Designed For FTTH (Fiber To The Home Network)
⊙4-Way RF Output with equal out 64dBuV @-1dBm
⊙Frequency range 40-1000MHz For CATV End-users
⊙ Aluminum Profiles casing,excellent heat dissipation performance

★Product Performance

Item	Unit	Description	Remark
Customer Interface
RF Connector		75Ω F-Female" connector
Optical Connector		SC/APC	Can be Customized
Optical Parameter
Input Optical Power	dBm	0~-15	Digital TV
Optical Return Loss	dB	>45
Optical Receiver Wavelength	nm	1100~1600
Optical Fiber Type		Single Mode
RF Parameter
Frequency Range	MHz	40-1000
Flatness	dB	±0.5
Output Level RF¹	dBuV	≥64	-1dBm input power
Output Level RF²	dBuV	≥64	-1dBm input power
Output Level RF³	dBuV	≥64	-1dBm input power
Output Level RF⁴	dBuV	≥64	-1dBm input power
Output Impedance	Ω	75
C/N	dBc	52	-1dBm input power
Other Parameter
Power Input Voltage	VDC	0
Power Consumption	mA	N/A
Dimensions	mm	456520
Net weight	KG	0.055
