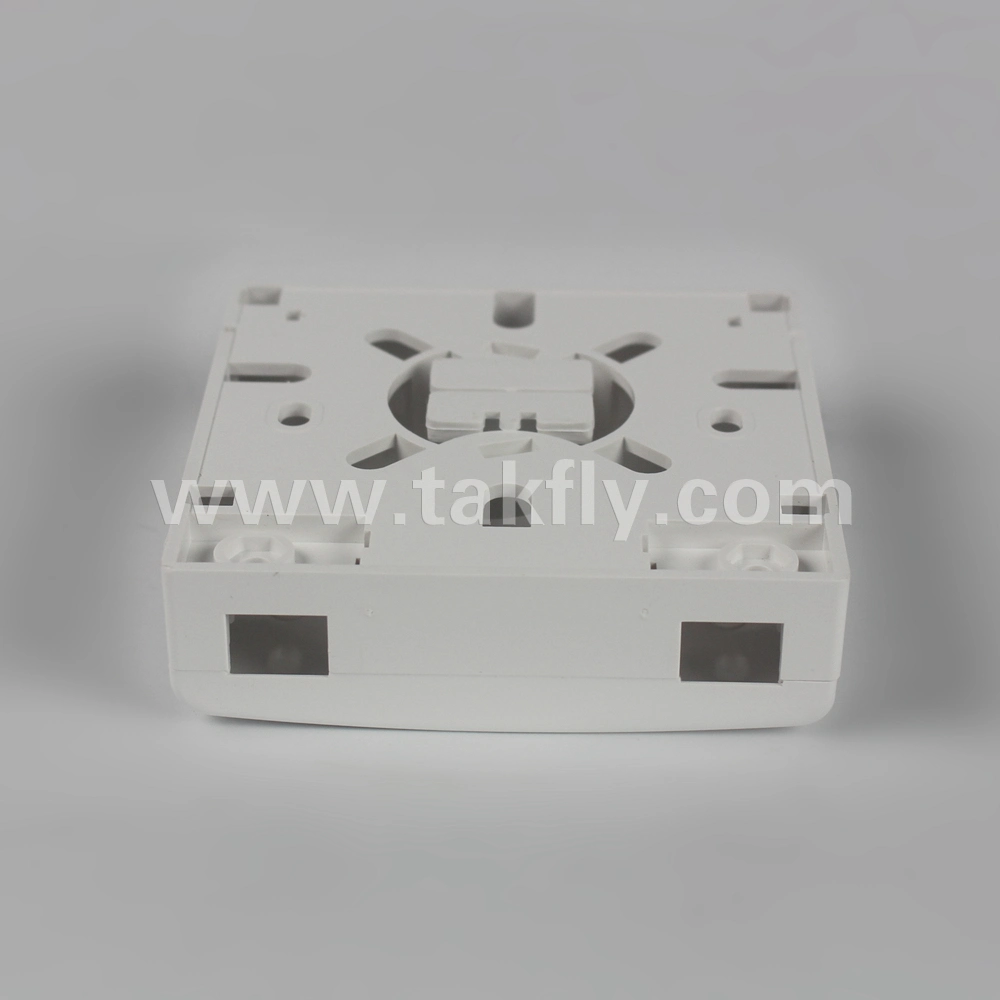

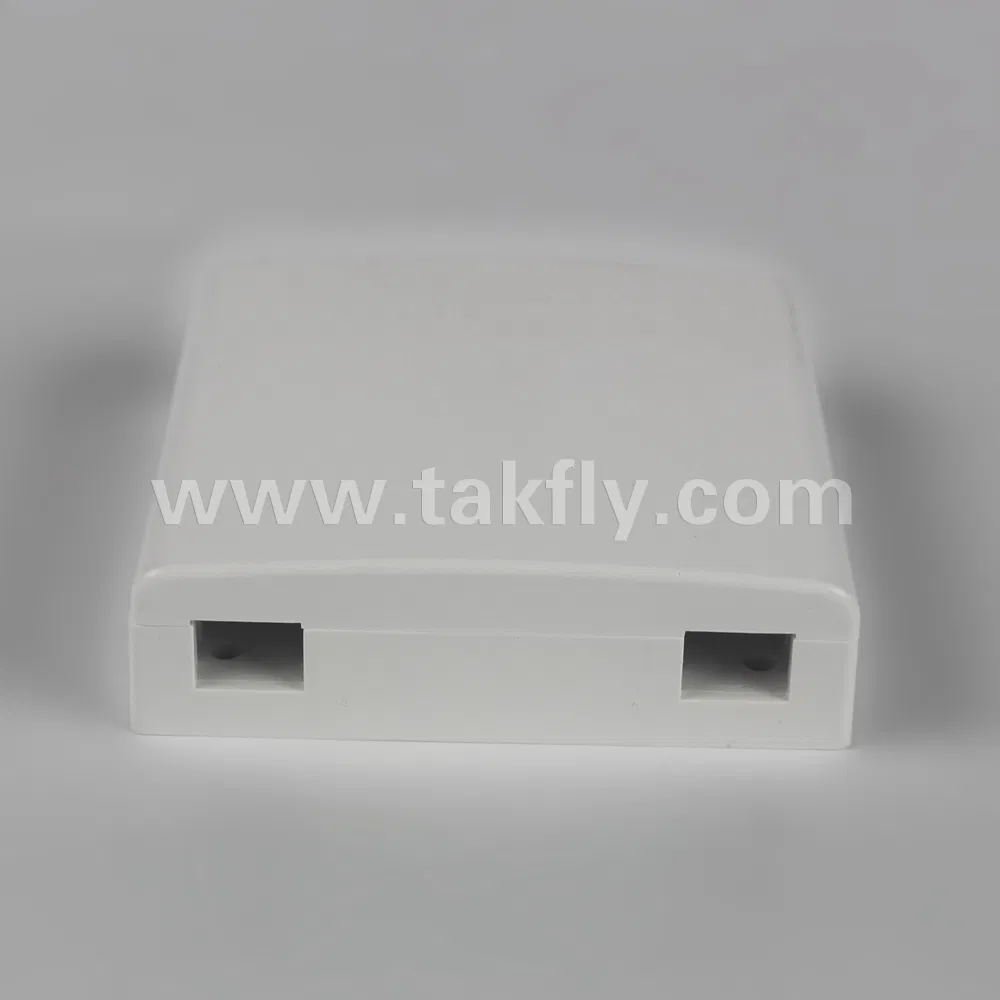

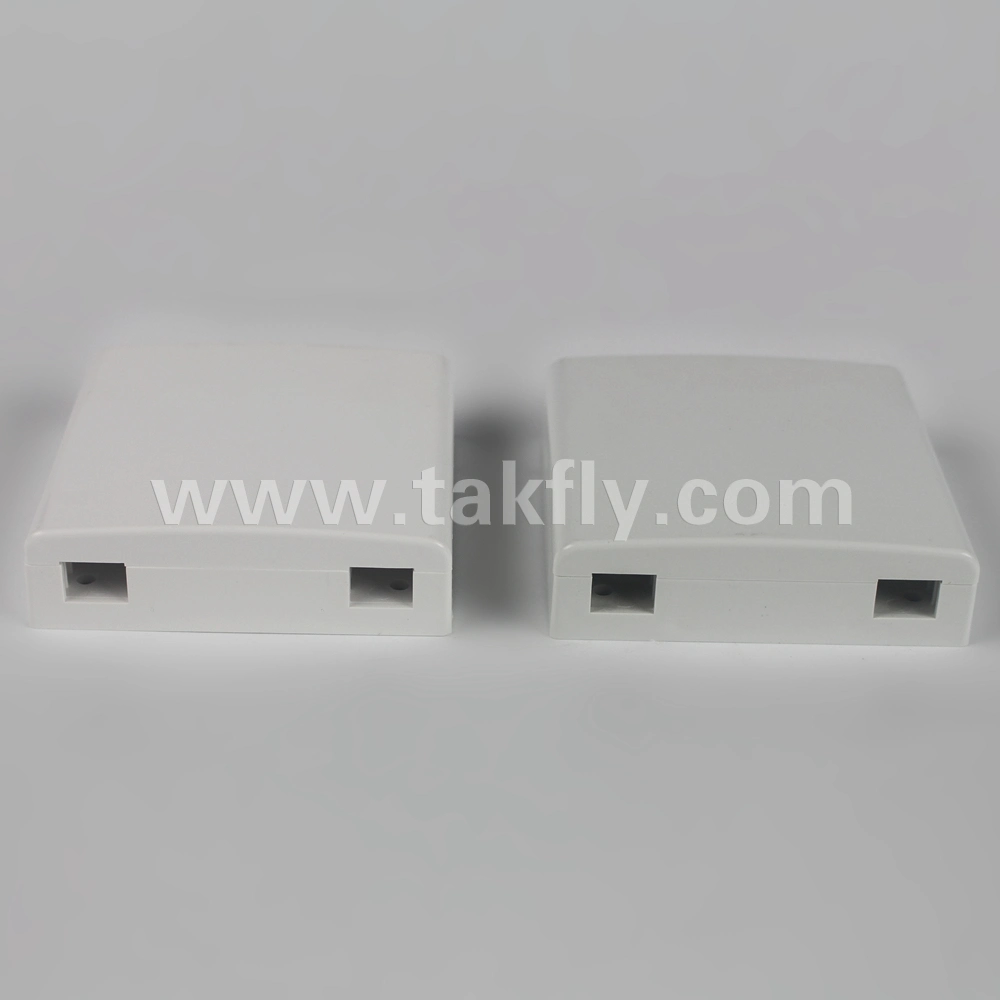

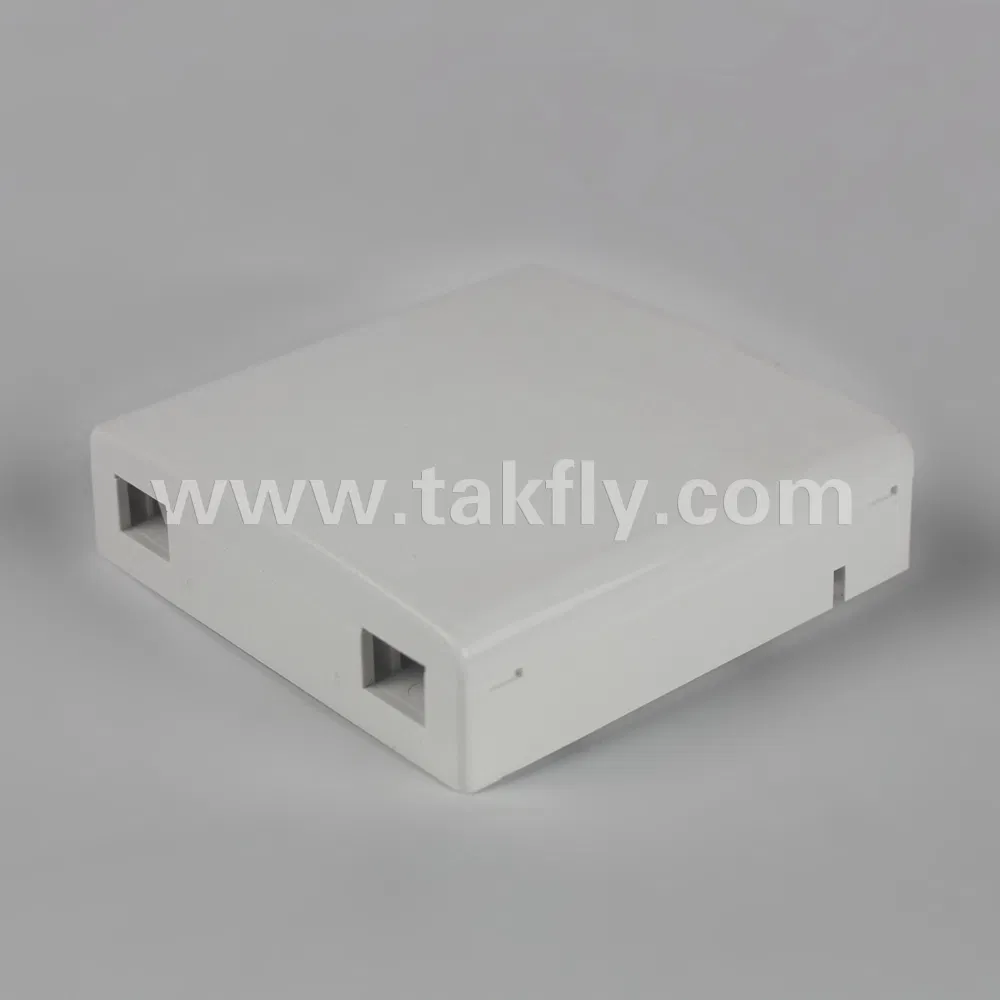

FTTH 2 Ports Optical Fiber Terminal Box with High Quality
FTTH 2 ports Optical Fiber Terminal Box with high qualityDescription:It is used for different kinds of modules and applied to the working area subsystem.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print ......
Send Inquiry
Product Description
FTTH 2 ports Optical Fiber Terminal Box with high quality
Description:
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
All modules are free of welding.
Working area:
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
Takfly Wordwide Exhibition
Takfly Certification
Thanks for refer our products, should any question please feel free to contact me.
Description:
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
All modules are free of welding.
Working area:
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
| Item | Technical data |
| Application | 3.0 x 2.0 mmdrop cable or indoor cable |
| Fiber diameter | 125μm ( 652 & 657 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Single mode & duplex mode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & FC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 2 |
Takfly Wordwide Exhibition
Takfly Certification
Thanks for refer our products, should any question please feel free to contact me.
