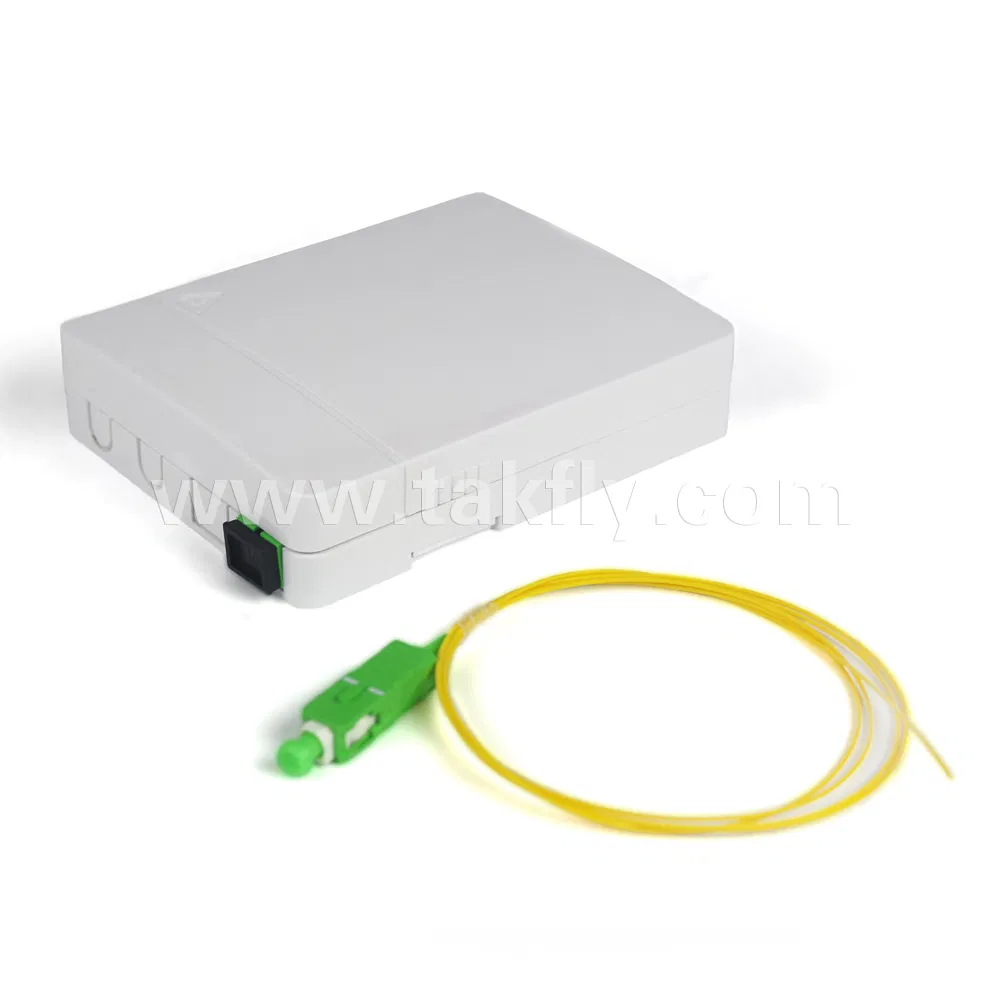

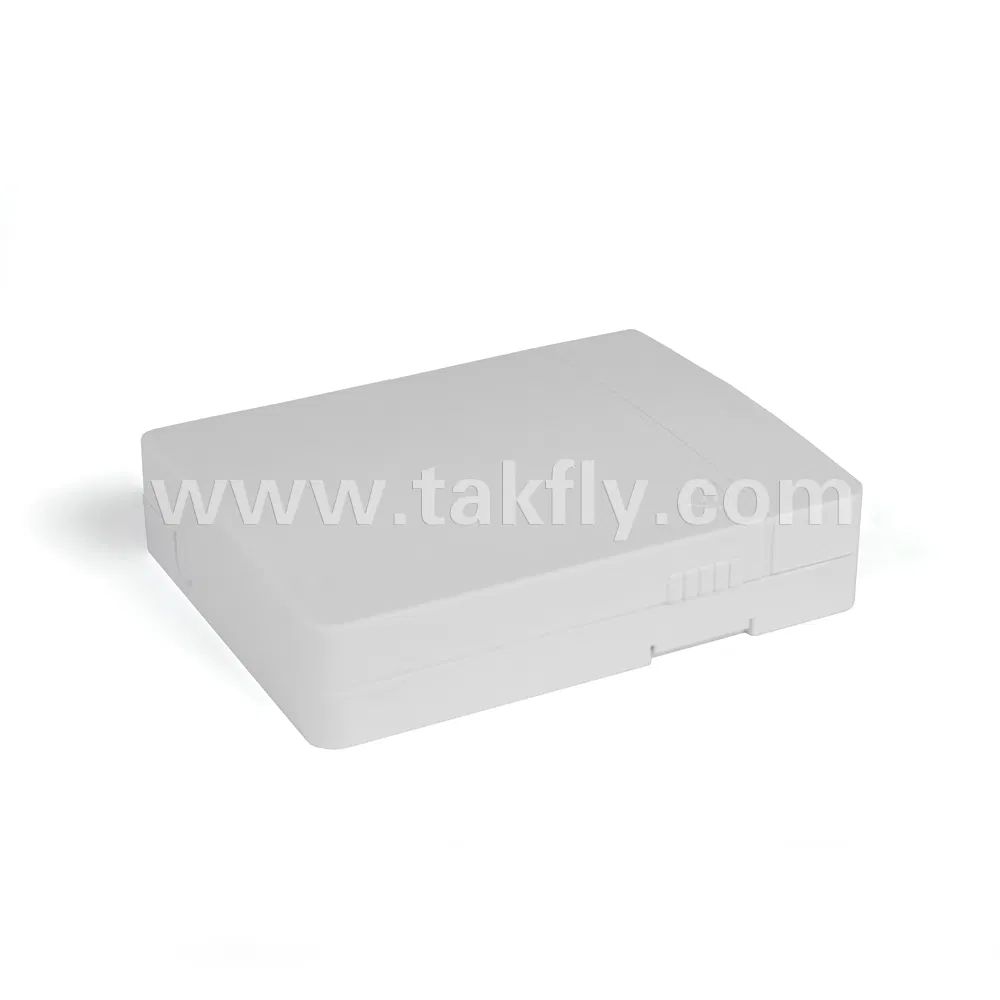

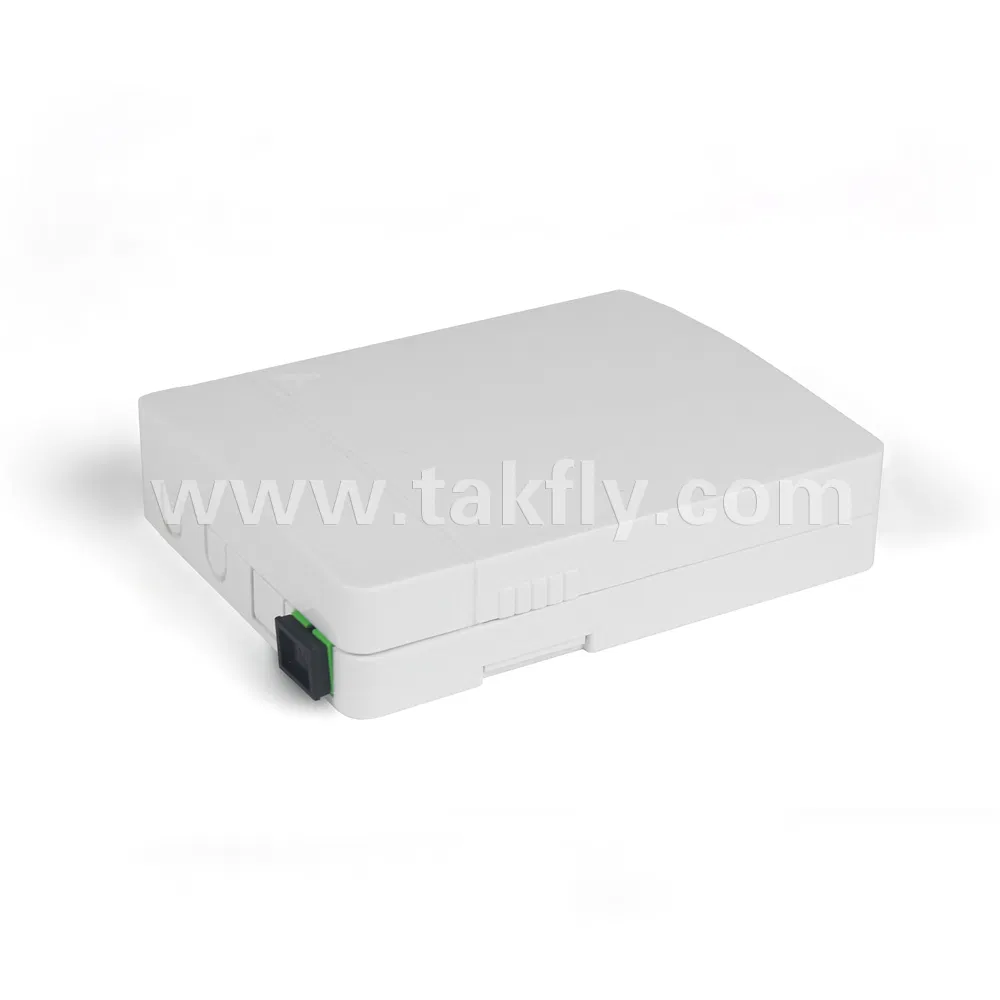

FTTH 2 Cores Indoor Fiber Optic Outlet Otb
FTTH 2 Cores indoor Fiber Optic outlet OTB1.Description1.It is used for different kinds of modules and applied to the working area subsystem;2.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested ......
Send Inquiry
Product Description
FTTH 2 Cores indoor Fiber Optic outlet OTB
1.Description
1.It is used for different kinds of modules and applied to the working area subsystem;
2.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO;
3.With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice;
4.Cable management can be connected without cutting(with express port);
5.All modules are free of welding;
2.Working area
1.The telecommunication network, metropolitan area network, optical fiber communication system;
2.Optical testing equipment/instrument;
3.CATV optical fiber, optical fiber sensor;
4.Optical fiber broadband access network, FTTH optical fiber;
5.Optical fiber distribution frame, frame type and wall type optical fiber distribution unit;
3.Performance index
4.Configuration table
Table 1 Model and configuration
5.Installation
1. Wall-mounted installation;
2. Drill 3 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and use bolt to fasten.(see Pic 4);
6.Accessories
1. User Manual*1;
2. Accessories Bag * 1;
7.Our termination box outlet
8.Our workshop
9.Our OTB families
10.Our workship
11.Company Information
Takfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.
So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.
Takfly can provide empty and full loaded OTB to you. Any interest, you can contact Sophie at any time.
1.Description
1.It is used for different kinds of modules and applied to the working area subsystem;
2.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO;
3.With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice;
4.Cable management can be connected without cutting(with express port);
5.All modules are free of welding;
2.Working area
1.The telecommunication network, metropolitan area network, optical fiber communication system;
2.Optical testing equipment/instrument;
3.CATV optical fiber, optical fiber sensor;
4.Optical fiber broadband access network, FTTH optical fiber;
5.Optical fiber distribution frame, frame type and wall type optical fiber distribution unit;
3.Performance index
| Item | Technical data |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( 652 & 657 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Single mode & duplex mode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 2 |
4.Configuration table
Table 1 Model and configuration
| Model | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | ||
| A*B*C(mm) | SC | LC | PLC | D (mm) | |
| TKS-1806-02D | 82.4*105.4*22.5 | 2 | 4 | 4 | 5.5*30 |
5.Installation
1. Wall-mounted installation;
2. Drill 3 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and use bolt to fasten.(see Pic 4);
6.Accessories
1. User Manual*1;
2. Accessories Bag * 1;

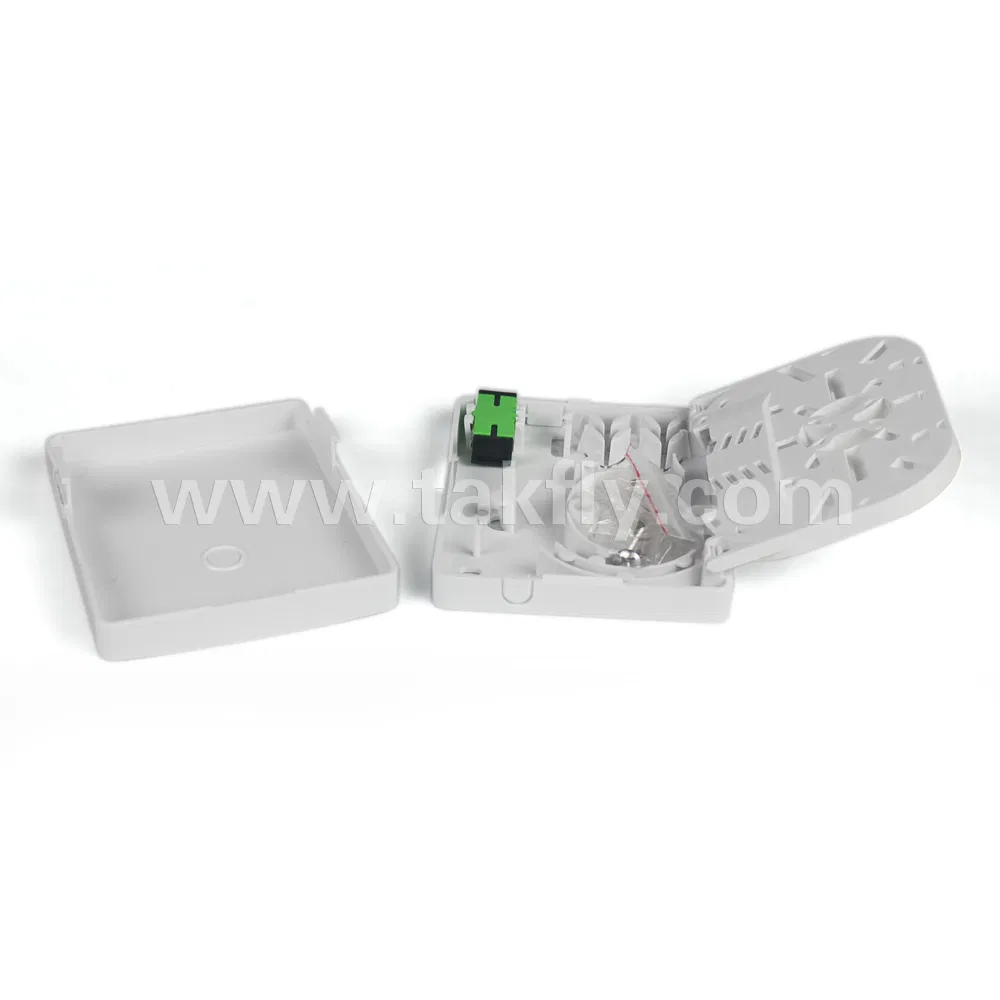

7.Our termination box outlet

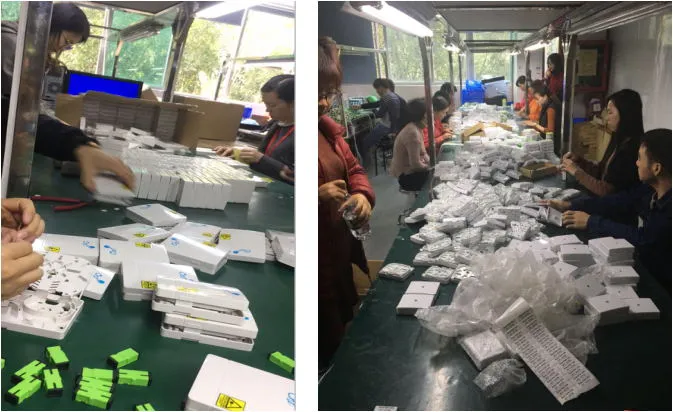

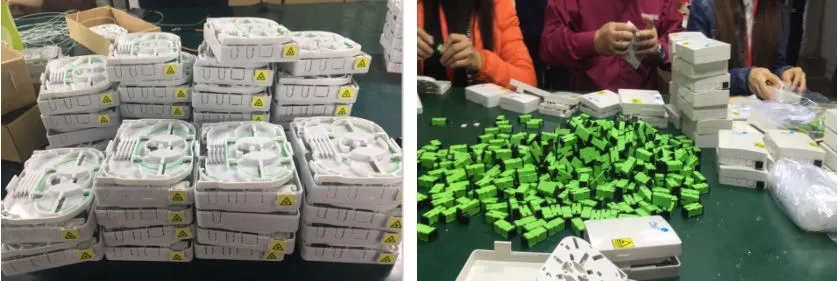

8.Our workshop

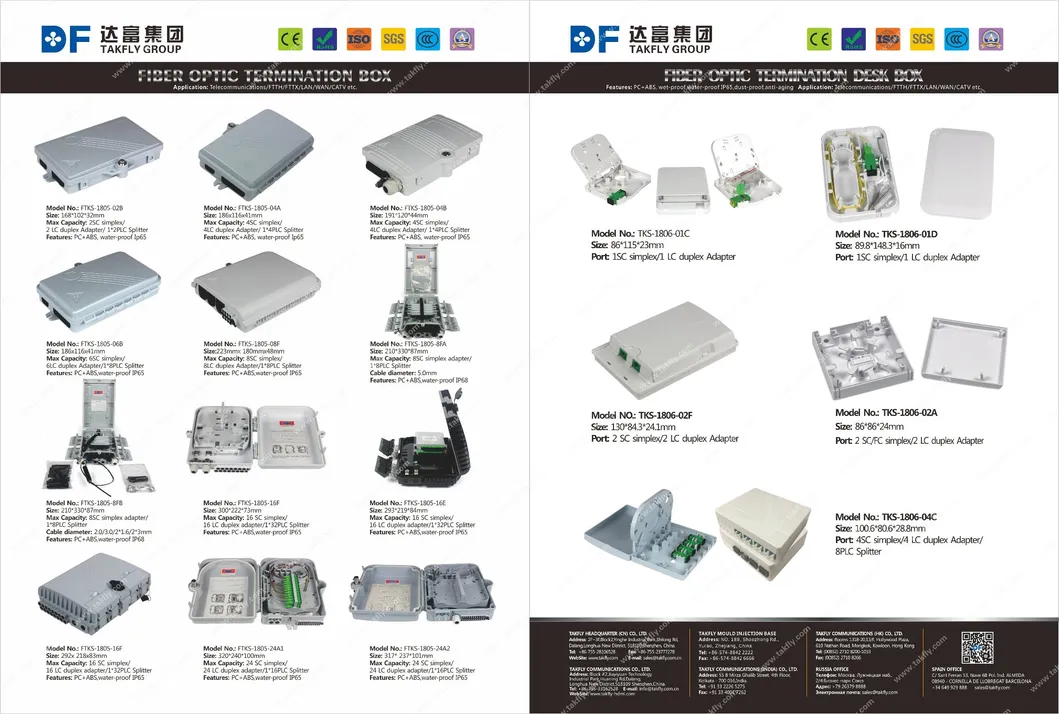

9.Our OTB families

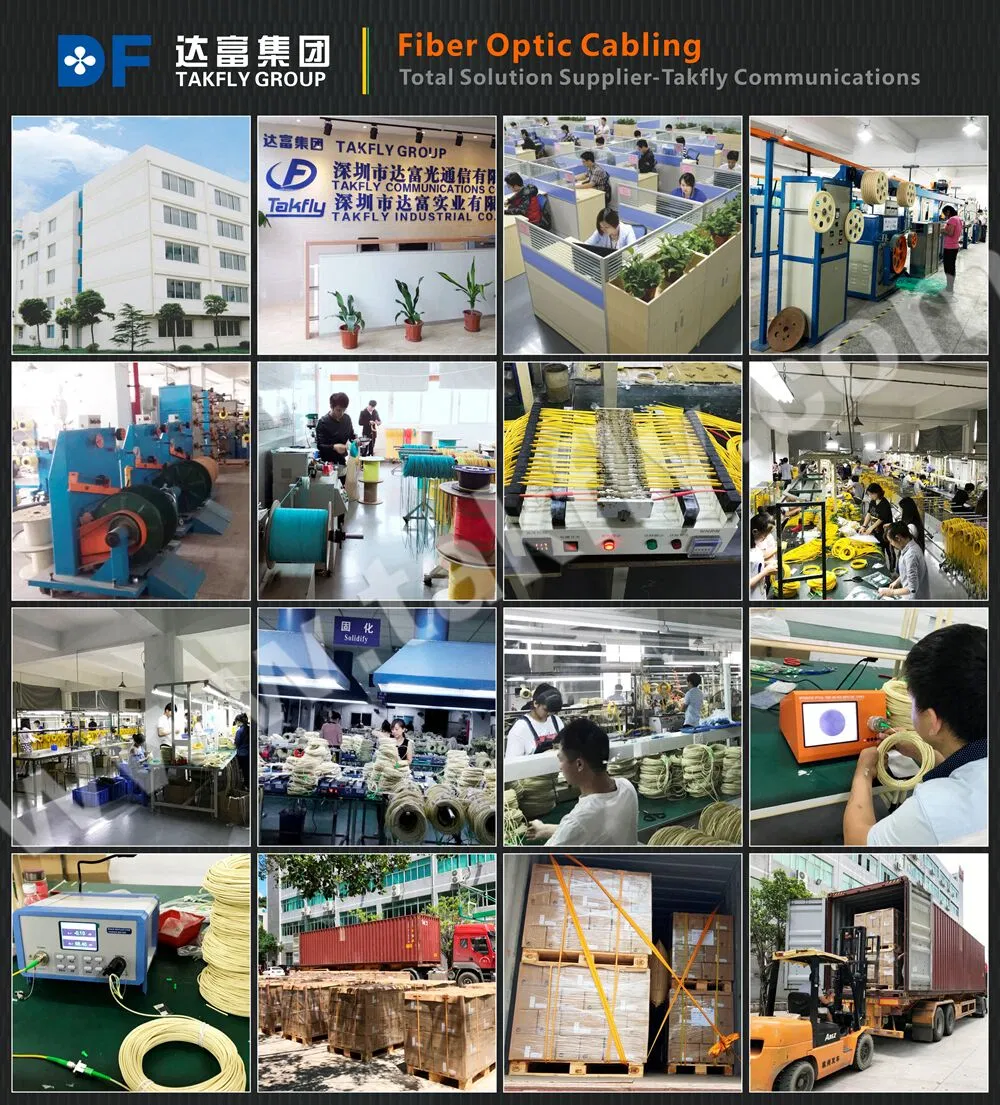

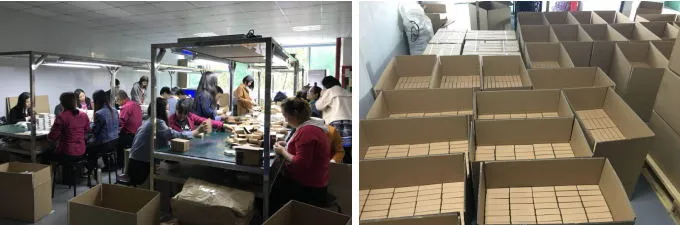

10.Our workship
11.Company Information
Takfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.
So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.
Takfly can provide empty and full loaded OTB to you. Any interest, you can contact Sophie at any time.
