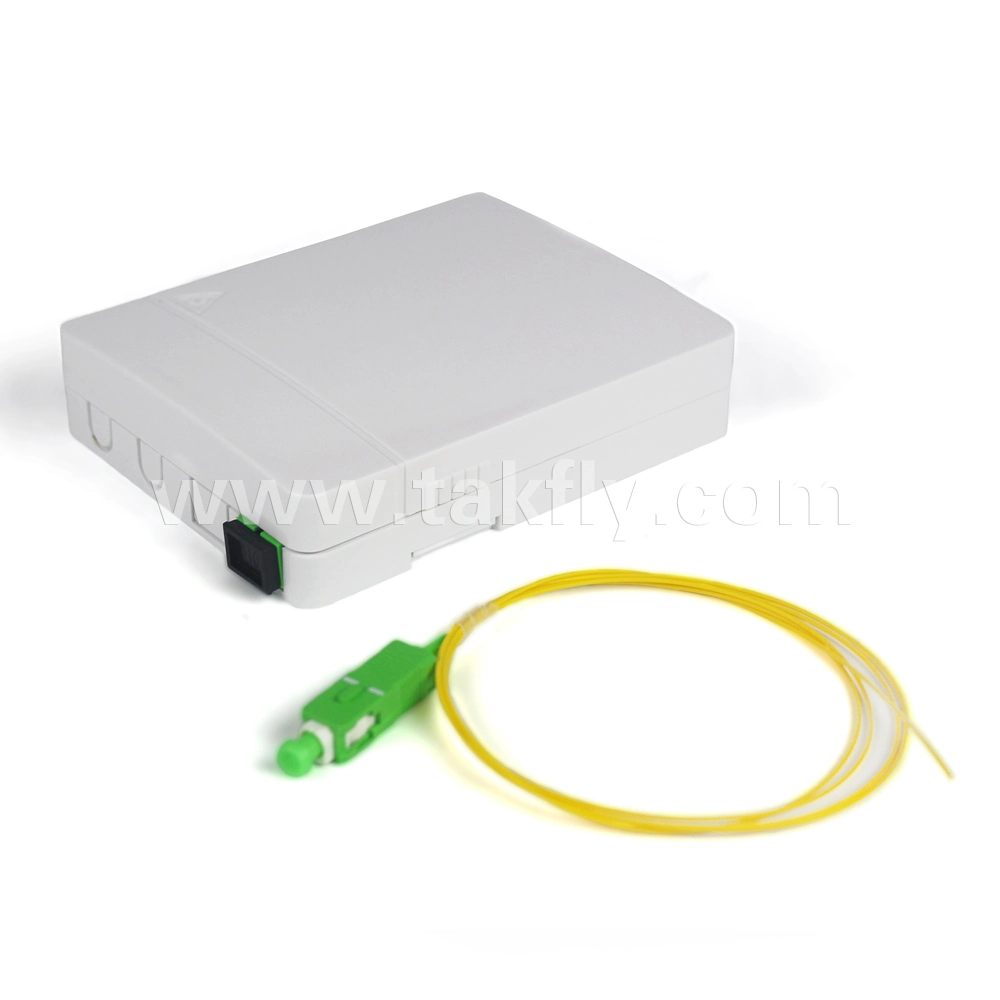

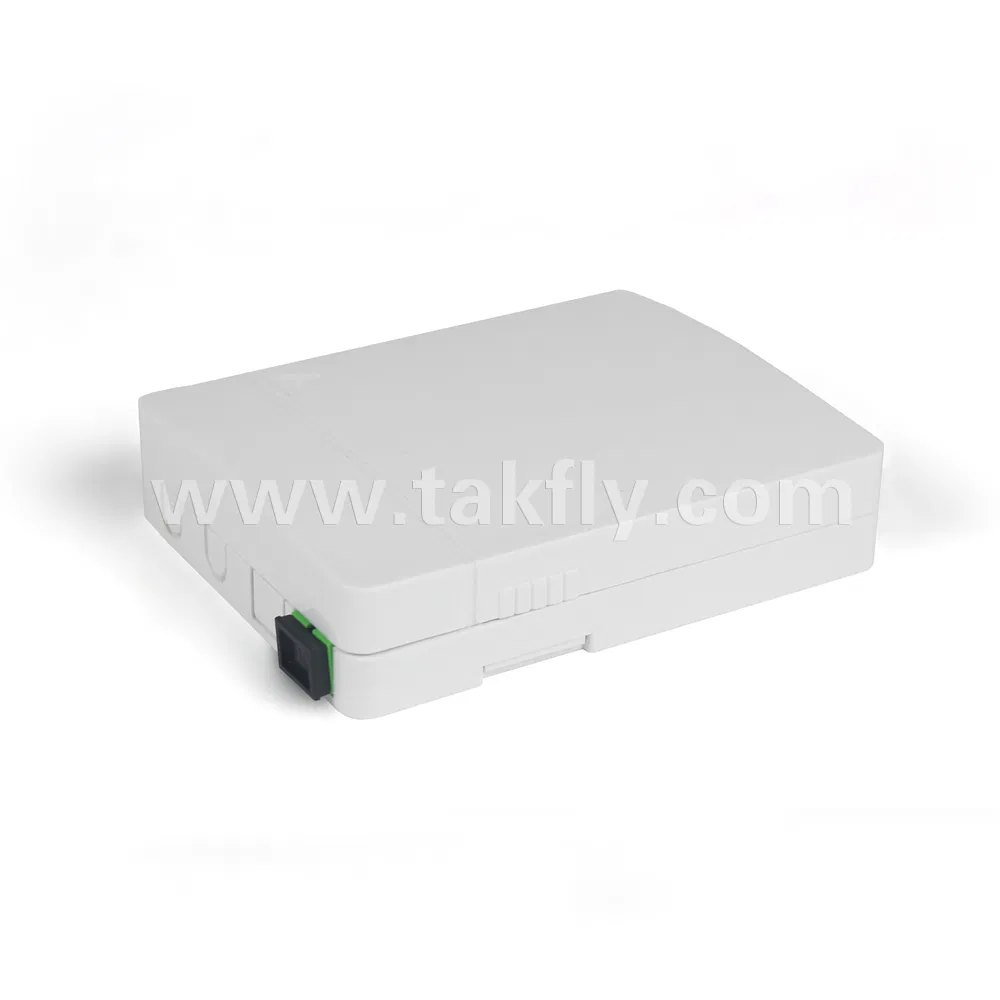

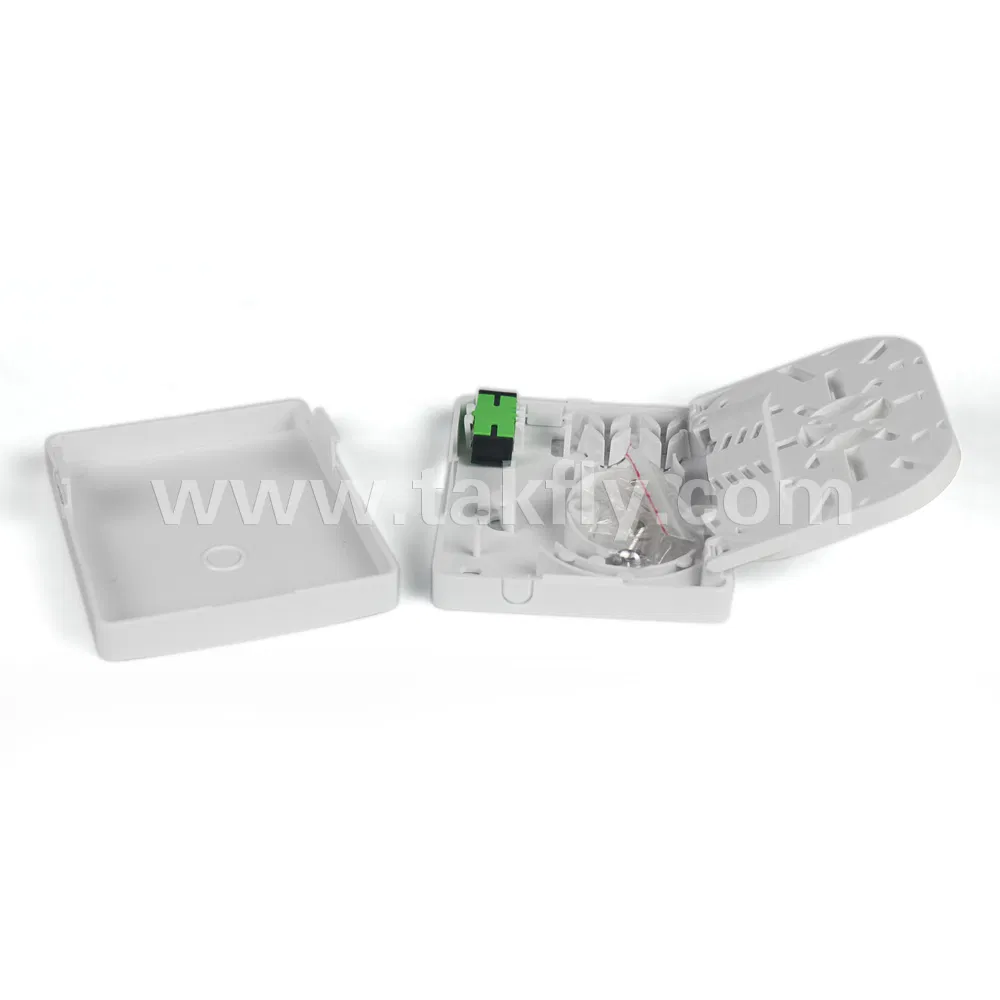

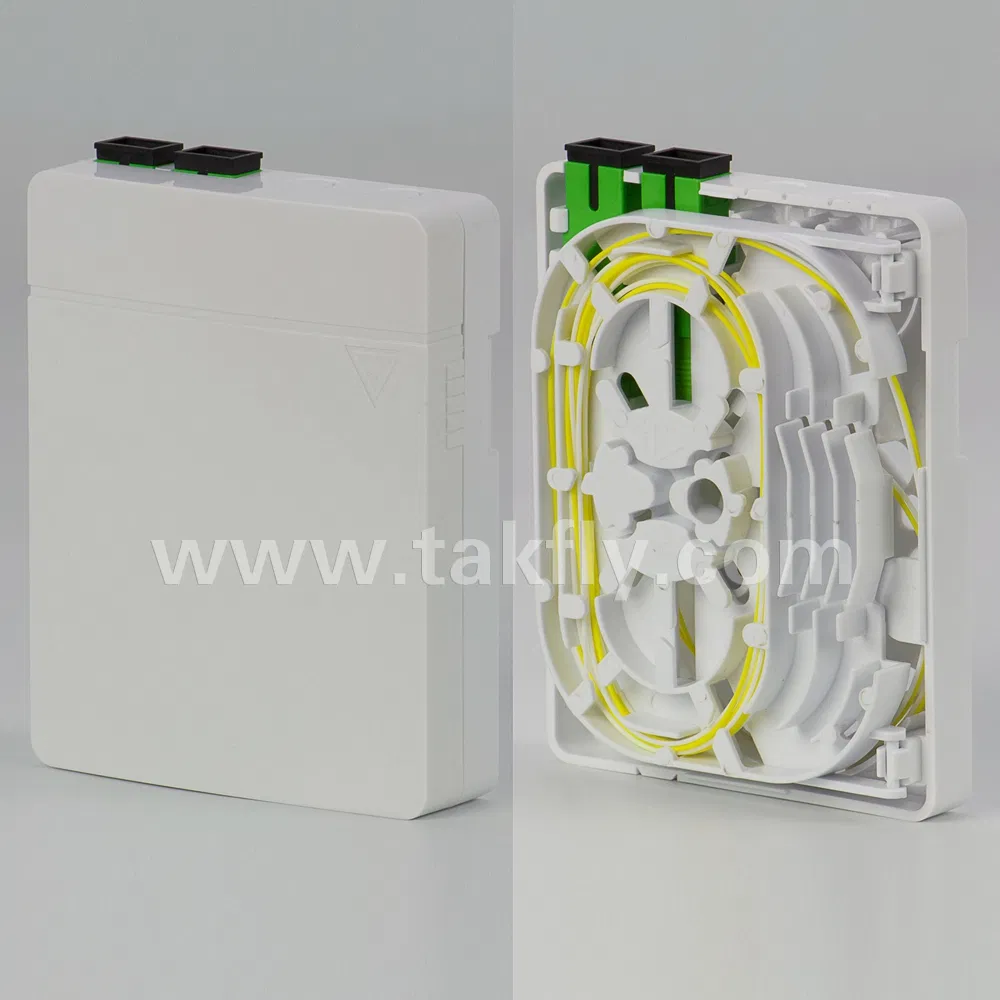

Fiber Optic Wall Socket 2 Ports Optical Rosettes

Product Description

Fiber Optic Wall Socket 2 Ports Optical Rosettes

Model No.: TKS-1806-02D

Description
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM
for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate.
All modules can be configured on customer's choice.
Cable management can be connected without cutting(with express port)
All modules are free of welding.

Working area
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Fiber Optic Wall Socket 2 Ports Optical Rosettes

Performance index

Item	Technical data
Application	3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter	125μm ( 652 & 657 )
Tight cladding diameter	250μm & 900μm
Mode of application	Single mode & duplex mode
Tensile strength	>50 N
End-use temperature	-40~+85ºC
Adaptor	SC & LC
Insertion loss	≤0.3dB(1310nm & 1550nm)
output	2

Configuration table
Table 1 Model and configuration

Model	Size(Pic 1)	Max Capacity			Installation Size(Pic 2)
Model	ABC(mm)	SC	LC	PLC	D (mm)
TKS-1806-02D	8210322	2	4	4

Installation
  1. Wall-mounted installation
  2. Drill 3 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and
     use bolt to fasten.(see Pic 3)

Accessories
  1. Accessories Bag * 1

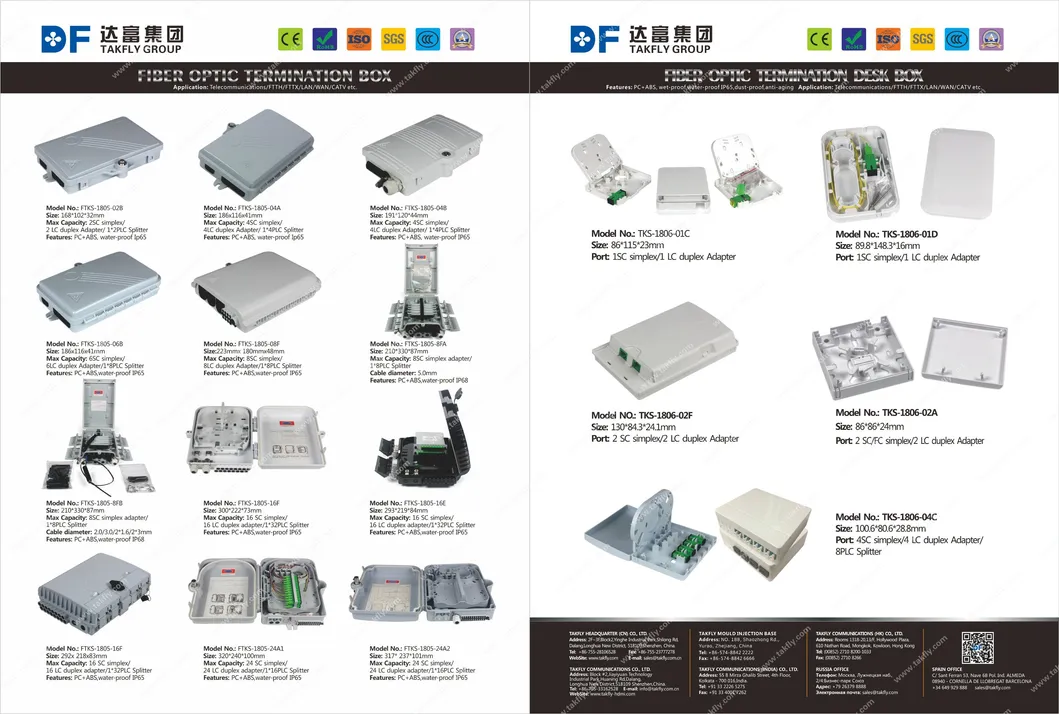

More Termination Boxes from Takfly

Fiber Optic Wall Socket 2 Ports Optical Rosettes
