Fiber Optic Terminal Box 1 Core Optical Outlet
Fiber Optic Terminal Box 1 Core Optical Outlet(TKS-1806-01D)DescriptionIt is used for different kinds of modules and applied to the working area subsystem.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and prin......
Send Inquiry
Product Description
Fiber Optic Terminal Box 1 Core Optical Outlet
(TKS-1806-01D)
Description

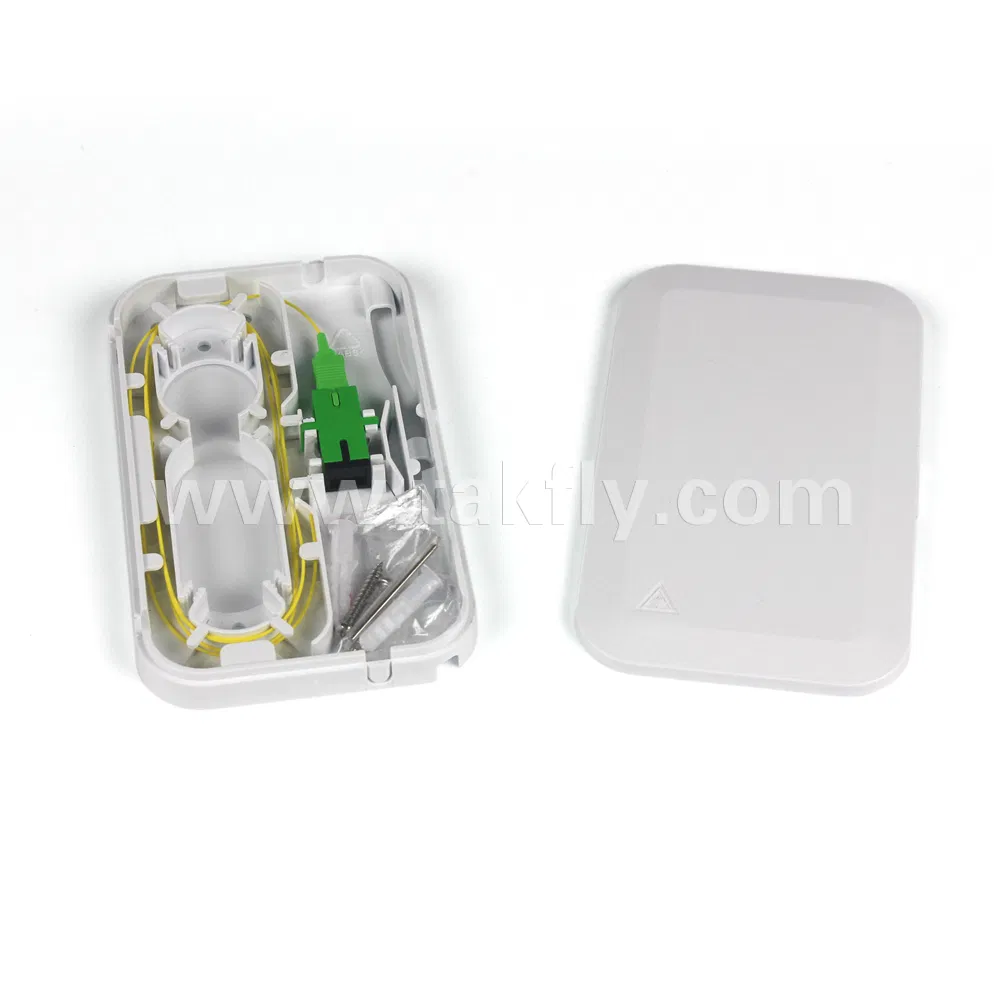

It is used for different kinds of modules and applied to the working area subsystem.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO. With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.Cable management can be connected without cutting (with express port). All modules are free of welding.
Working area
Performance index
Configuration table
Table 1 Model and configuration
Installation
1.Wall-mounted installation
Drill 2 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and use bolt to fasten.(see Pic 4)
Accessories
1. User Manual*1.
2. Accessories Bag * 1
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Services
1,We provide professional offer, detailed products test report and related specifications.
2,We provide professional technology support to meet the requirements of customers.
3,Within 12 hours of the corresponding customer inquiry,we will promptly get in touch with customers.
4,we supply free samples if necessary.
5,We supply ODM/OEM products & services.

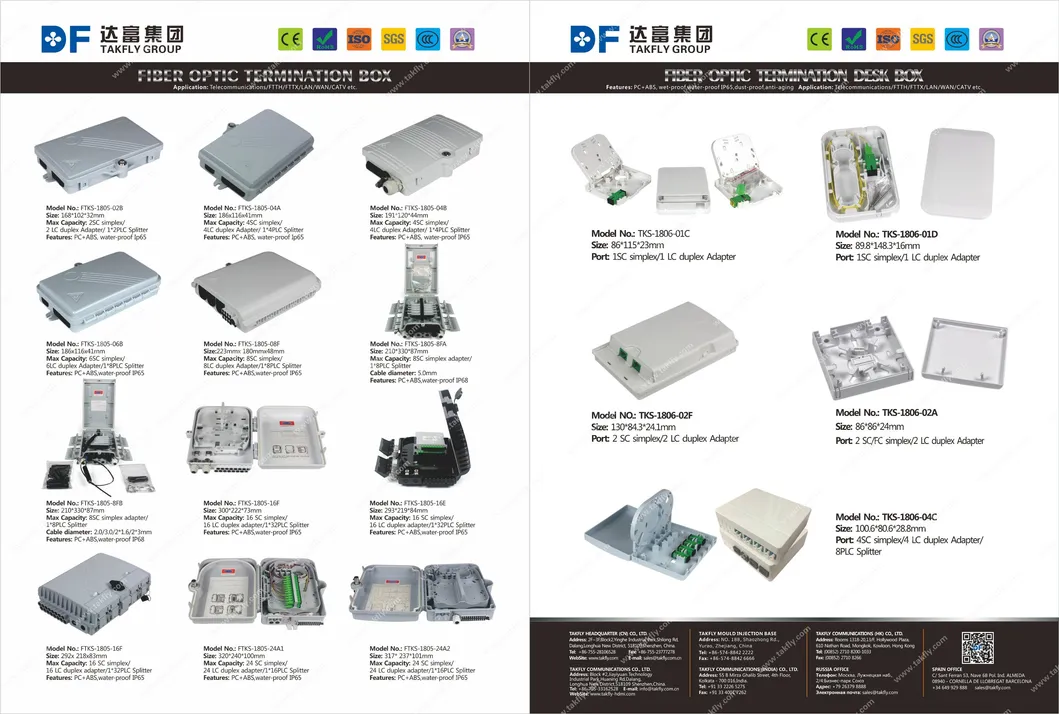

More Fiber Optic Termination Box From Takfly.(TKS-1806-01D)
Description
It is used for different kinds of modules and applied to the working area subsystem.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO. With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.Cable management can be connected without cutting (with express port). All modules are free of welding.
Working area
- The telecommunication network, metropolitan area network, optical fiber communication system.
- Optical testing equipment/instrument.
- CATV optical fiber, optical fiber sensor.
- Optical fiber broadband access network, FTTH optical fiber.
- Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index
| Item | Technical data |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( 652 & 657 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Single mode & duplex mode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 1 |
Configuration table
Table 1 Model and configuration
| Model | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | |
| A*B*C(mm) | SC | LC | D (mm) | |
| TKS-1806-01D | 89.8*148.3*16 | 1 | 2 | 102 |
Installation
1.Wall-mounted installation
Drill 2 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and use bolt to fasten.(see Pic 4)
Accessories
1. User Manual*1.
2. Accessories Bag * 1
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Services
1,We provide professional offer, detailed products test report and related specifications.
2,We provide professional technology support to meet the requirements of customers.
3,Within 12 hours of the corresponding customer inquiry,we will promptly get in touch with customers.
4,we supply free samples if necessary.
5,We supply ODM/OEM products & services.
*****For any interests of Fiber Optic Terminal Box ,1 Core Optical Outlet,please leave me message below.
