Fiber Optic Splice Closure for Optic Cable Joints
Fiber Optic Splice Closure for Optic Cable Joints ( RoHS)The optic fiber splice closures (fiber enclosures) are widely apply for the connecting of optical cable can accommodate up to 24--576 fiber.Main model : GJS 03S, GJS 03A, GJS 03B, GJS 03D -- with 4 round port and 1 oval port.GJS 03 E, GJS 03F,......
Send Inquiry
Product Description

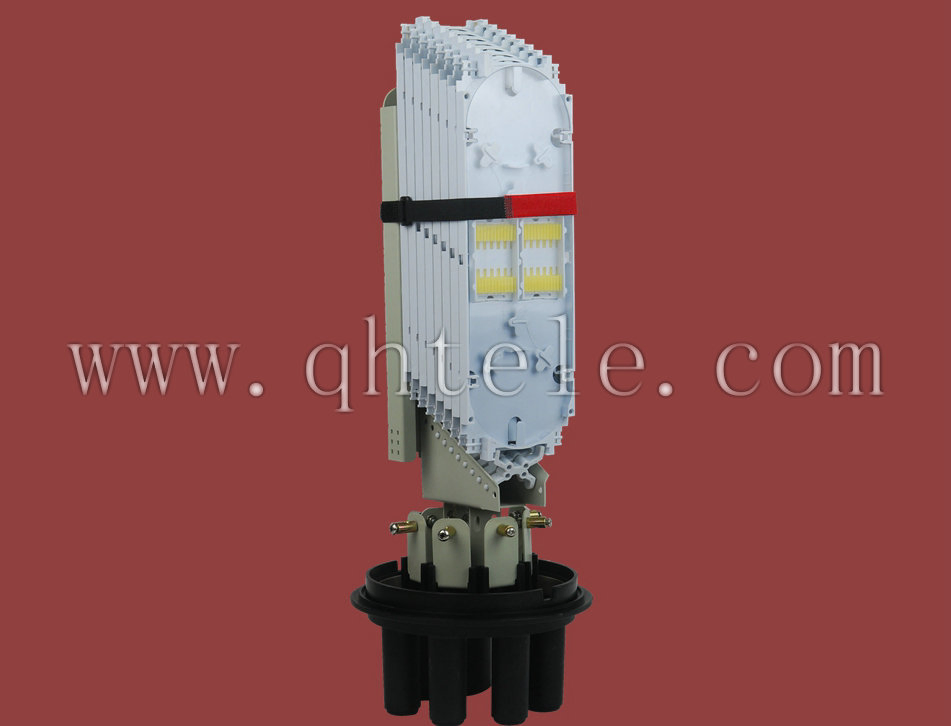

Fiber Optic Splice Closure for Optic Cable Joints ( RoHS)
The optic fiber splice closures (fiber enclosures) are widely apply for the connecting of optical cable can accommodate up to 24--576 fiber.

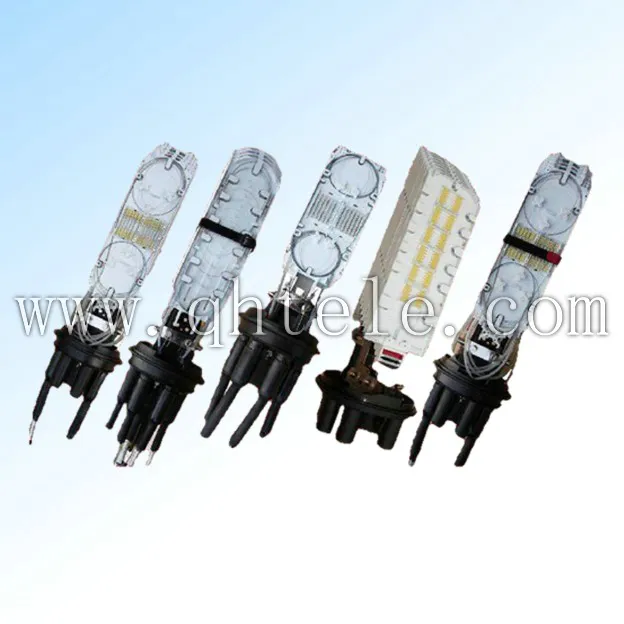

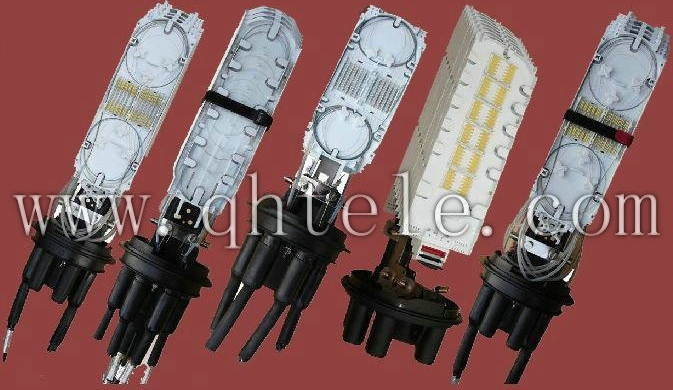

Main model :
GJS 03S, GJS 03A, GJS 03B, GJS 03D -- with 4 round port and 1 oval port.
GJS 03 E, GJS 03F, GJS03 M -- with 5 round port and 1 oval port.
GJS 03G, GJS 03H, GJS 03K -- with 8 round port and 1 oval port
GJS 03- M5AX-288 -- with 16 round port and 1 oval port
GJS 03 I -- tubular Closure
Standard :
TLC, CE, ISO 9001:2000, ISO 14000, RoHS.
Features:
1. The material of closure body: Ageing resistance & ultraviolet radiation resistance

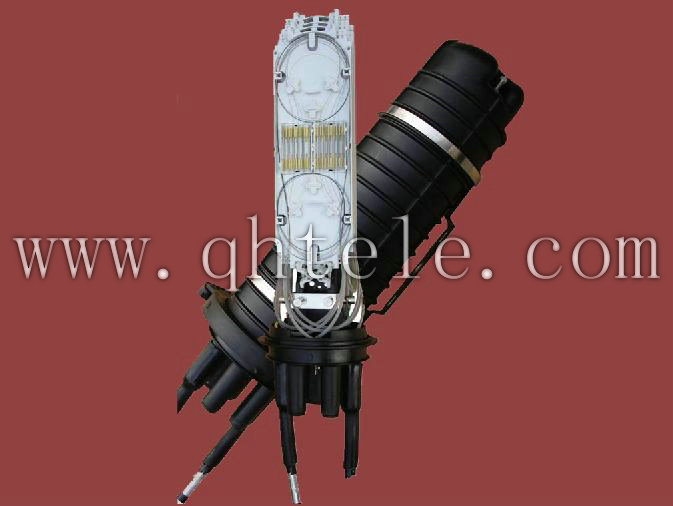

2. Base-to-dome seals on closure are mechanical and heat-shrinkable for ease of installation and reentry.
3. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular).
And the product can be used in any environment (aerial, buried, handhole, manhole)and in Many applications(tap-off, expressed, branch, and repair)
4. No special tools are needed to open the closure, and it can be opened and used repeatedly.
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss

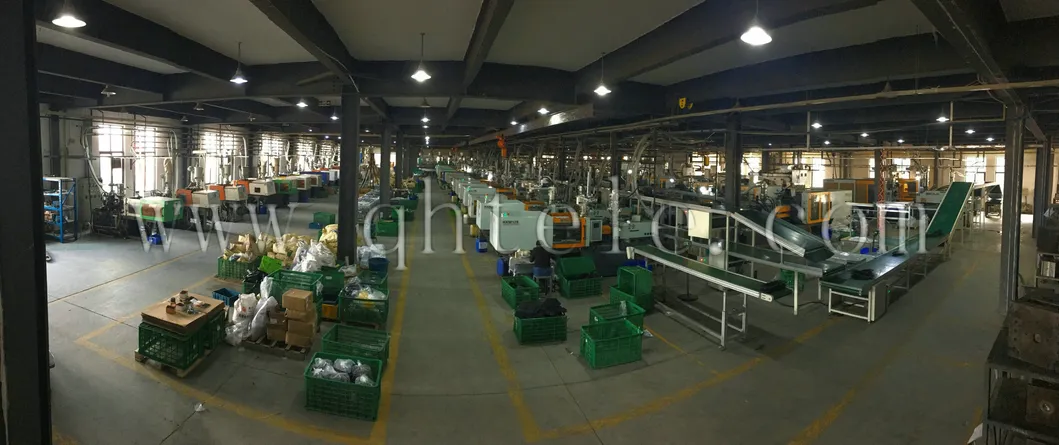

Producing Lines:
The optic fiber splice closures (fiber enclosures) are widely apply for the connecting of optical cable can accommodate up to 24--576 fiber.
Main model :
GJS 03S, GJS 03A, GJS 03B, GJS 03D -- with 4 round port and 1 oval port.
GJS 03 E, GJS 03F, GJS03 M -- with 5 round port and 1 oval port.
GJS 03G, GJS 03H, GJS 03K -- with 8 round port and 1 oval port
GJS 03- M5AX-288 -- with 16 round port and 1 oval port
GJS 03 I -- tubular Closure
Standard :
TLC, CE, ISO 9001:2000, ISO 14000, RoHS.
Features:
1. The material of closure body: Ageing resistance & ultraviolet radiation resistance
2. Base-to-dome seals on closure are mechanical and heat-shrinkable for ease of installation and reentry.
3. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular).
And the product can be used in any environment (aerial, buried, handhole, manhole)and in Many applications(tap-off, expressed, branch, and repair)
4. No special tools are needed to open the closure, and it can be opened and used repeatedly.
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss
Producing Lines:
