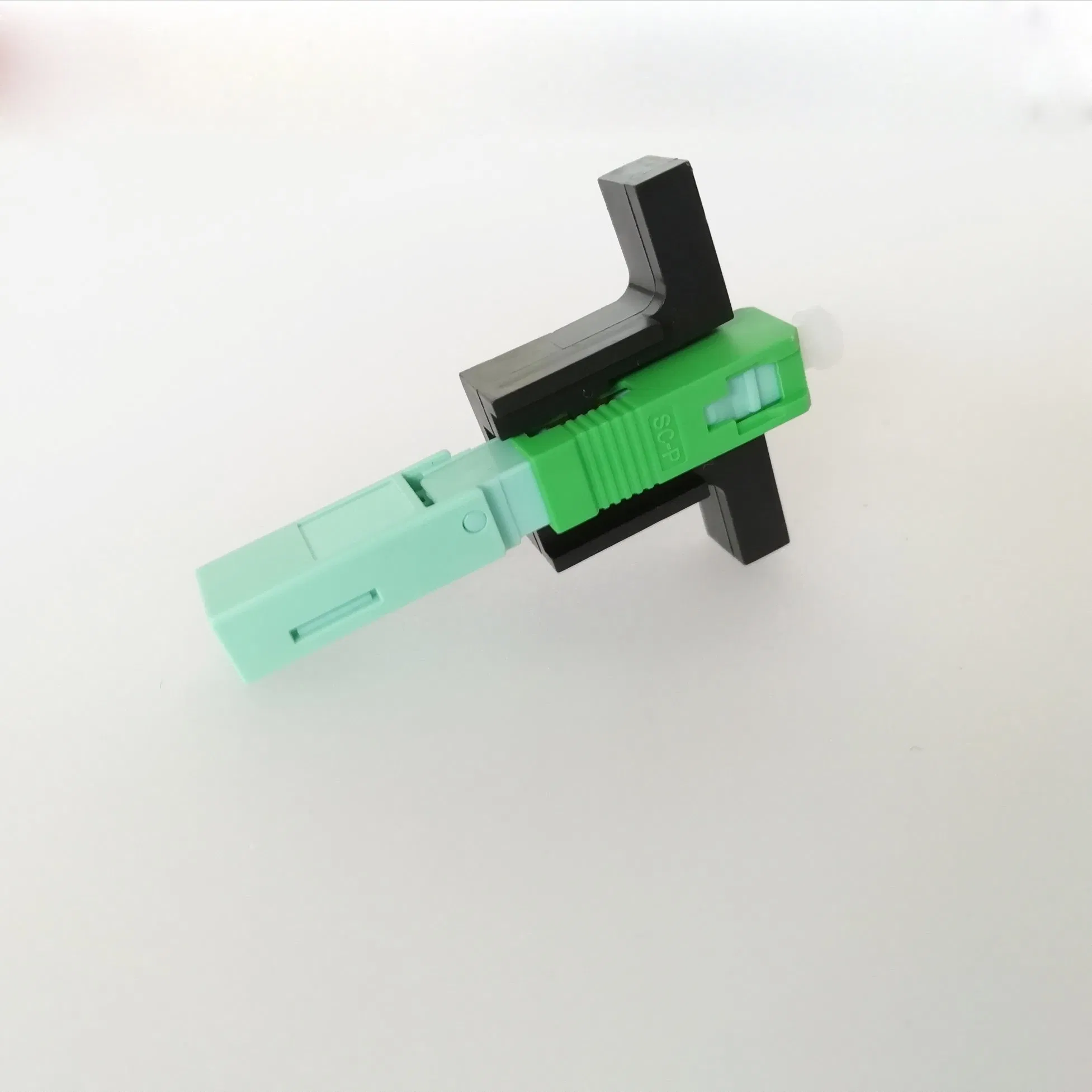

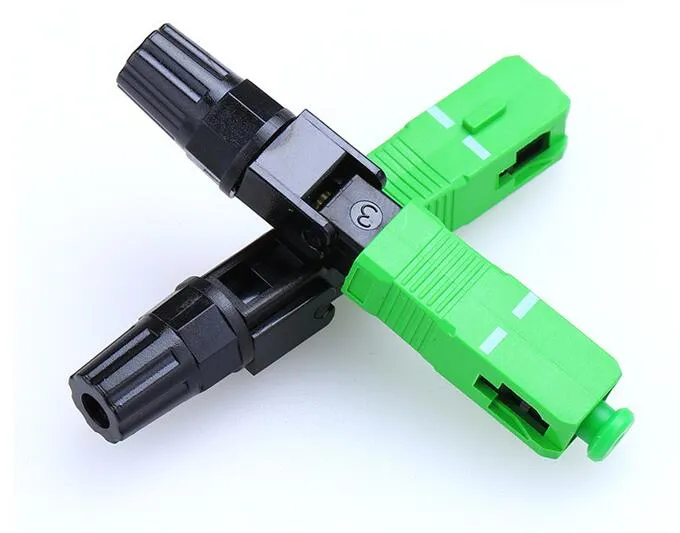

Fiber Optic Single Mode Sc/APC/Upc Fast Connector

Product Description

Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly. Fiber Optic Single Mode Sc/APC/Upc Fast Connector

Item	Parameter
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.25dB(1310nm & 1550nm)
Return Loss	≤ 60dB
Success Rate	>98%
Reusable Times	>10 times
Tensile Strength	>5 N
Tighten Strength of Coating	>10 N
Temperature	-40~+85°C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance. 6.Optical fiber access of mobile base station.

Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contactus from website directly for our catalogue and price list

Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods

Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested

Q4: Can I visit you?
A4: Sure, our factory is in Qingdao, China. Please contact us to make an appointment

Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future

Q6. What is your terms of packing?
A6: Generally, we pack our goods in neutral white boxes and brown cartons.

Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance

Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU

Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order

Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
