Product Description
FTTH exfo otdr price otdr ilom of sunet 5600

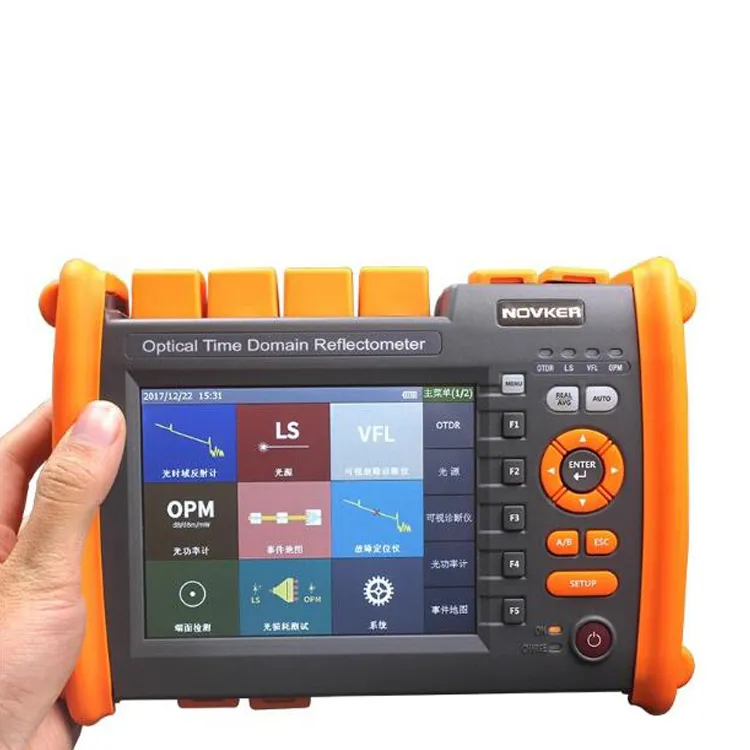

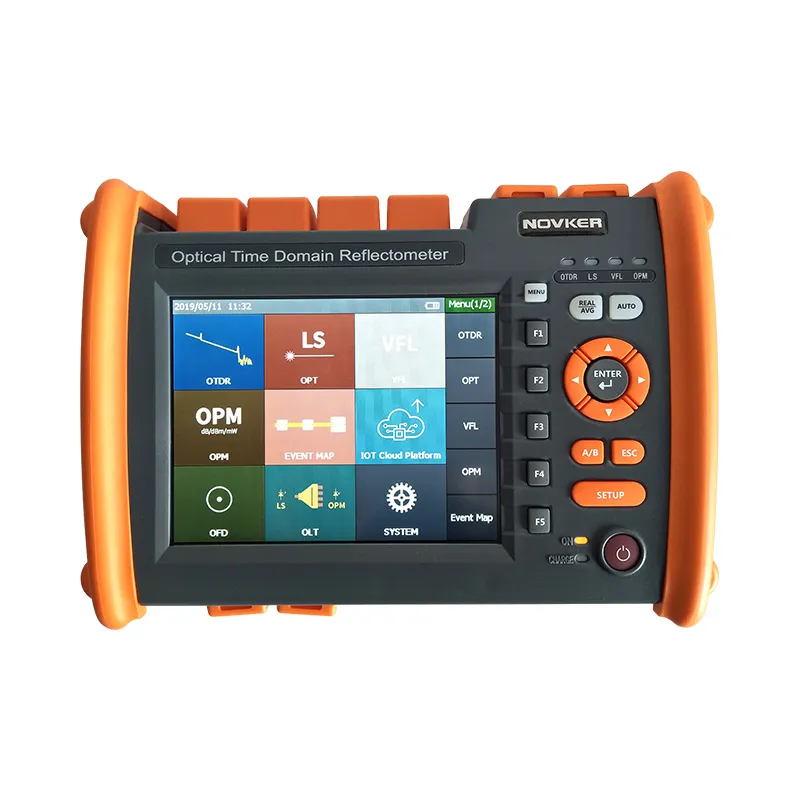

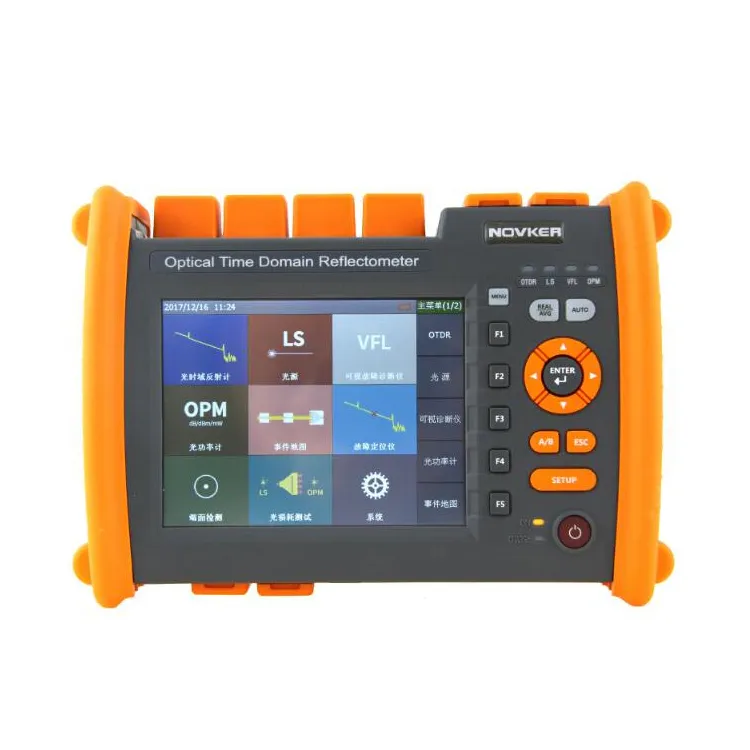

SNT 5600 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system. Adopt 5.8 inch color touch screen, button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuous.
Feature
Description
SNT 5600 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system. Adopt 5.8 inch color touch screen, button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuous.
Feature
·High performance test
·Mutifunctional test - Standard configuration
·Mutifuntional test - high configuration
·Convenient operation
·Convenient data processing
·High reliability
Specification
·Mutifunctional test - Standard configuration
·Mutifuntional test - high configuration
·Convenient operation
·Convenient data processing
·High reliability
Specification
Multi-Function Optical Time Domain Reflectometer | |||
Model | SNT5600 | ||
Fiber type | SMF | ||
Display | 5.8 inch color LCD with touch screen | ||
size: | 227 mm *160 mm *70mm | ||
Wavelength(nm) | 1310/1550 | ||
Maximum dynamic range(dB) | 32/30 | ||
Event dead zone(m) | 1 | ||
Attenuation dead zone(m) | 6 | ||
Measuring range | 500m /l km /2 km /4 km /8 km /16 km /32 km /64 km /128 km /256km | ||
Measuring pulse width | 5ns/ 10ns/ 5Ons/ 160ns/ 320ns/ 500ns/1000ns/ 5000ns/ 1000ns/ 2000ns | ||
Ranging accuracy | ± (0.75m+ Sampling interval +0.005% x Test distance) | ||
Loss precision | ±0.05dB | ||
Reflection accuracy | ±3dB | ||
Data storage | ≥2000 | ||
Interface type | FC/ PC (Replaceable SC, ST) | ||
Communication interface | USB,mini-USB, 10M/100M Ethernet | ||
VFL output | ≥5mW | ||
