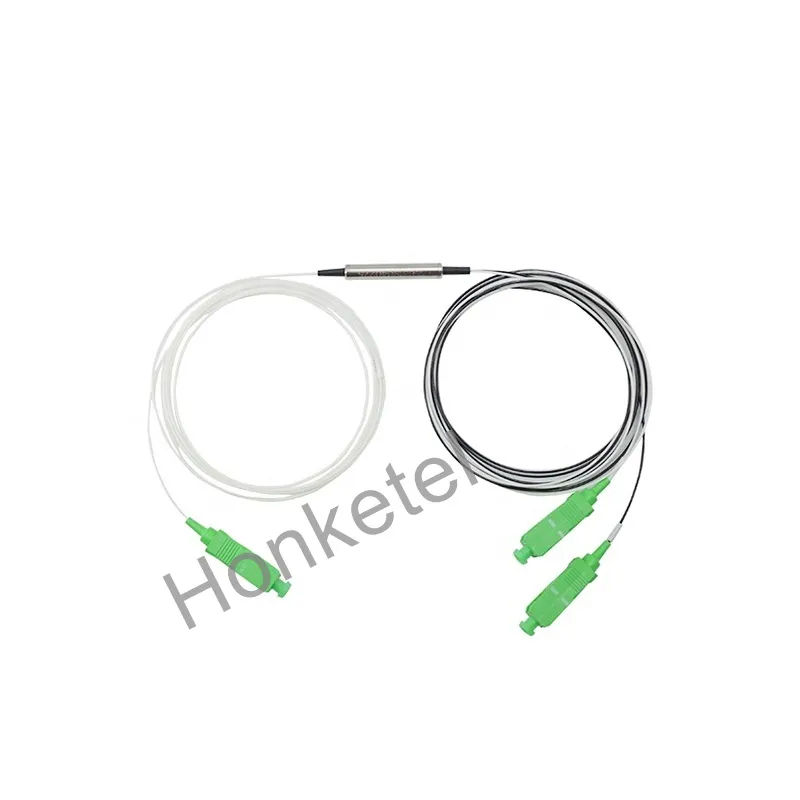

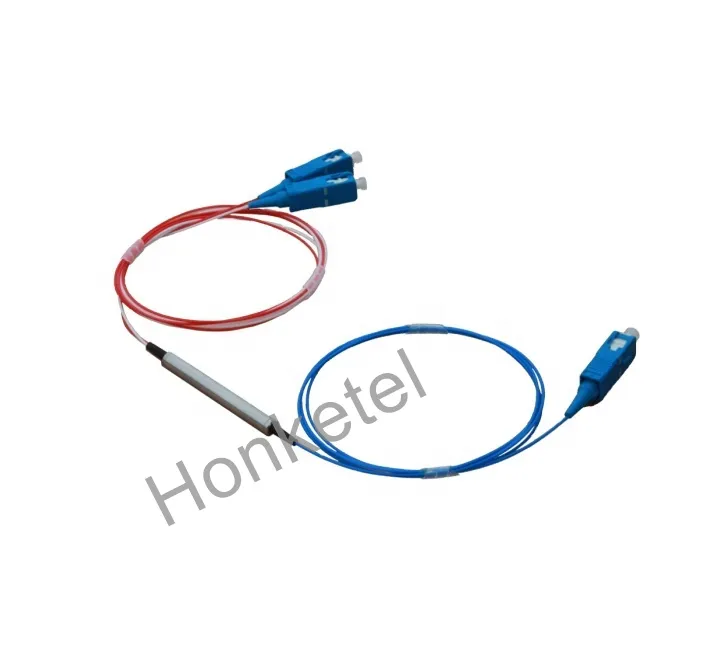

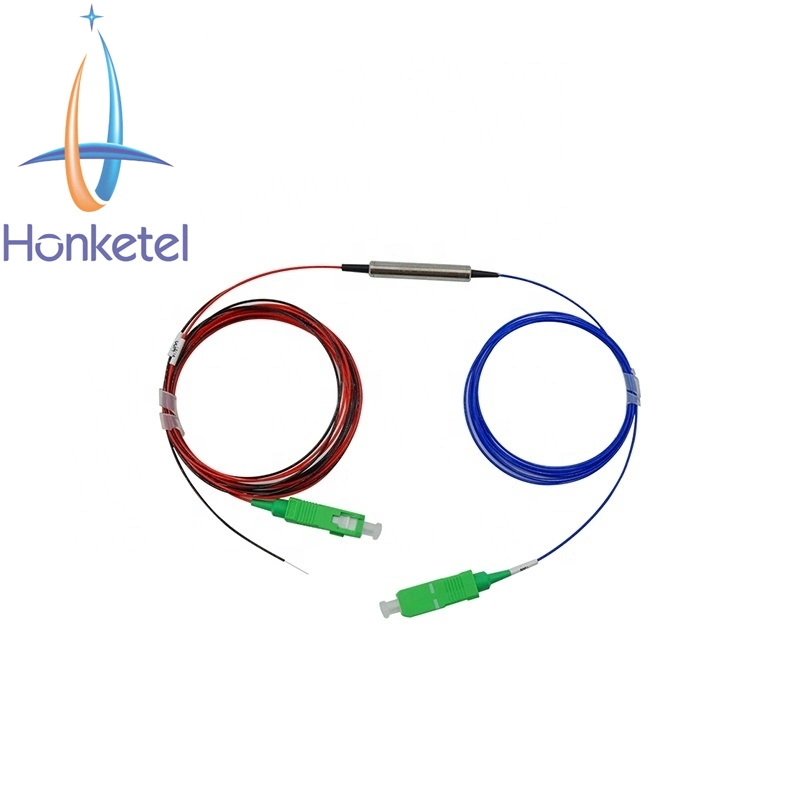

Fiber Optic Coupler Fwdm 1310 1490 1550 Nm with Steel Tube
DescriptionFilter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely us......
Send Inquiry
Product Description
Description
Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.It works on 1310nm/1490nm, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get together.
Features
Applications
Specifications
Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.It works on 1310nm/1490nm, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get together.
Features
- Wide Wavelength Range
- Low Insertion Loss
- High Channel Isolation
- High stability and reliability
Applications
- System Monitoring
- Transmitters and Fiber
- Passive Optical Network (PON)
- Fiber optical amplifier
- CATV System
- FTTH System
Specifications
| ParameterA2:F15A4A2:F14A2:F16A2:F18 | FWDM T4/R35 | FWDM T5/R34 | FWDM T3/R45 | FWDM T34/R5 | |
| Pass Band Wavelength Range (nm)±10 | 1480~1500 | 1540~1560 | 1260~1360 | 1260~1360 & 1480~1500 | |
| Reflection Band 1 Wavelength Range(nm)±10 | 1260~1360 | 1260~1360 | 1480~1500 | 1540~1560 | |
| Reflection Band 2 Wavelength Range (nm)±10 | 1540~1560 | 1480~1500 | 1540~1560 | ||
| Insertion Loss(dB) | Reflect Channel | ≤0.6 | |||
| Pass Channel | ≤0.8 | ||||
| Insertion Loss Variation(dB) | <0.3 | ||||
| Isolation(dB) | Pass Channel | >15 | |||
| Reflect Channel | >30 | ||||
| Inertion Loss Temperature Sensitivity(dB/ºC) | <0.005 | ||||
| Polarization Dependent Loss(dB) | <0.1 | ||||
| Polarization Mode Dispersion(ps) | <0.1 | ||||
| Directivity(dB) | >50 | ||||
| Return Loss(dB) | >50 | ||||
| Maximum Power Handling(mW) | 500 | ||||
| Opterating Temperature(ºC) | -20~+70 | ||||
| Storage Temperature(ºC) | -40~+85 | ||||
